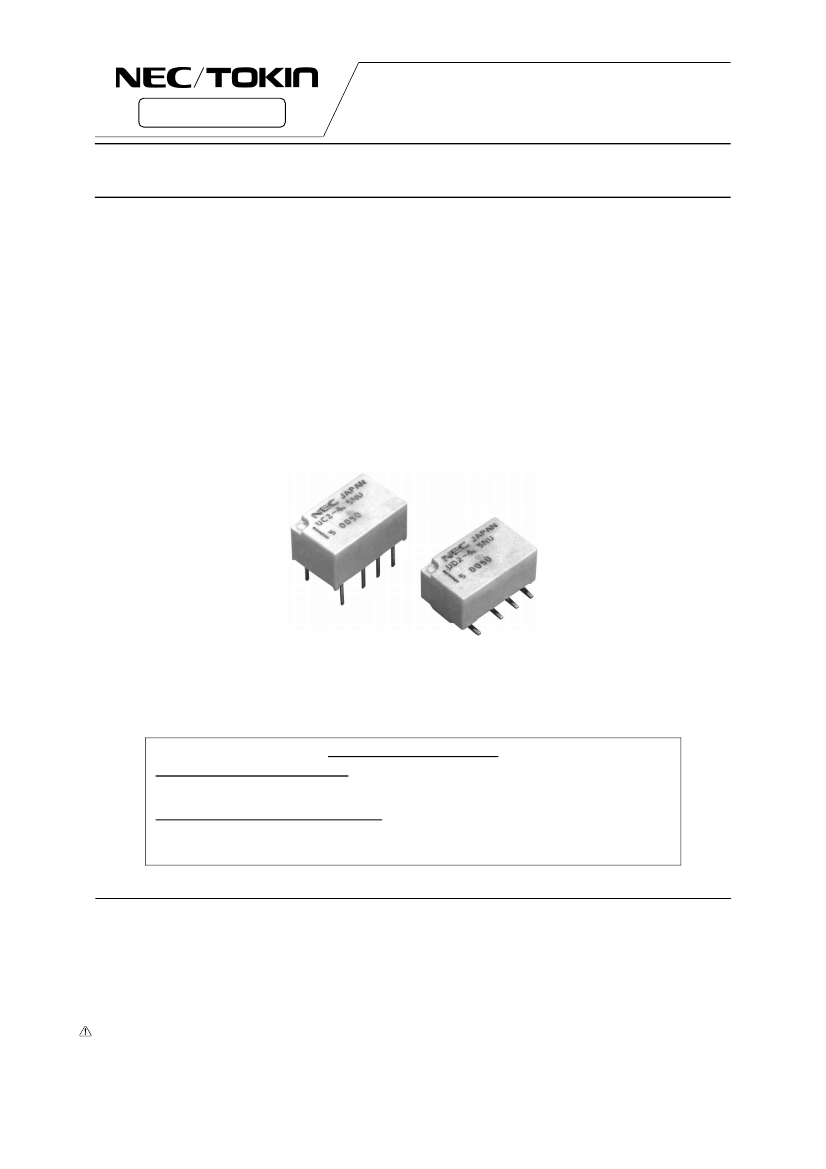

UC2/UD2 SERIES

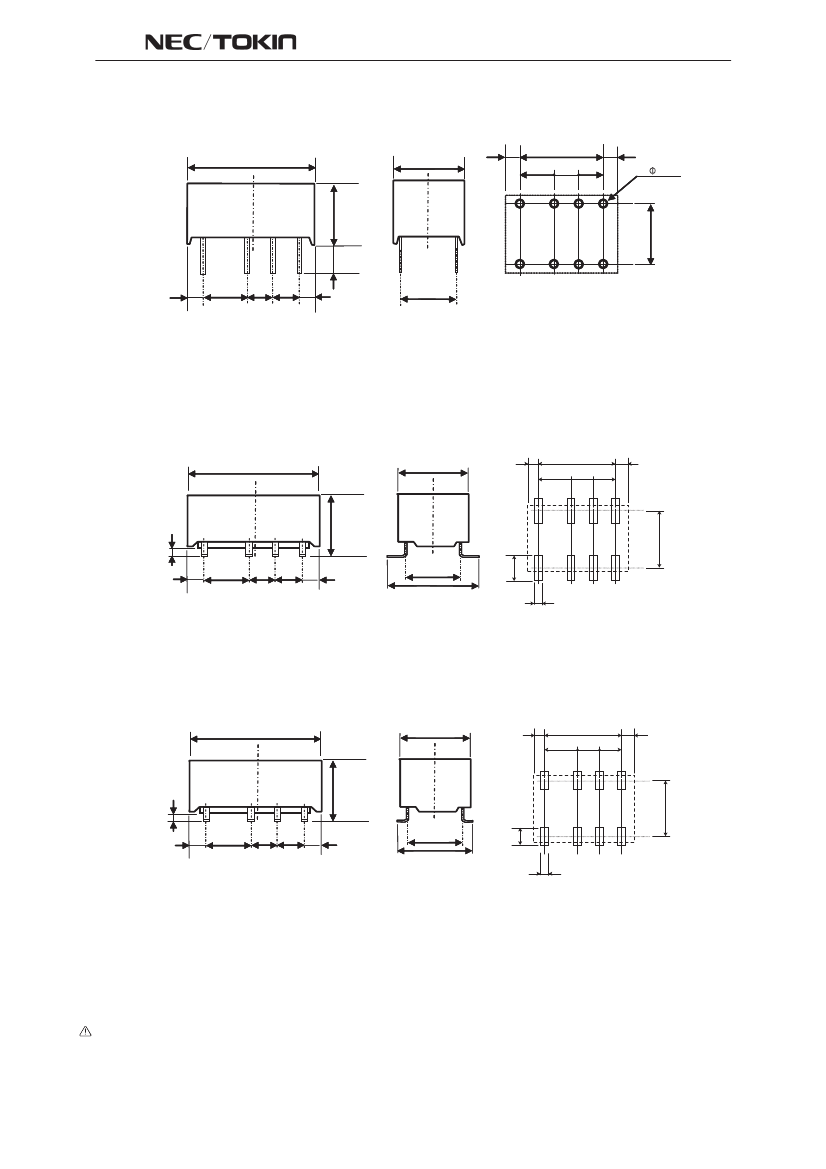

DIMENSIONS AND PAD LAYOUTS
UC2 SERIES
Unit: mm (inch)
(mm)
(1.5)
3.2
7.6
(1.5)
2.2
8-Φ0.85
10.6 (0.417)
6.5 (0.256)
2.2
5.3
(0.209)
3.4
(0.134)
[1.5]
[1.5]
5.08
(0.2)
5.08
3.2
(0.126)
2.2
2.2
(0.087) (0.087)
NOTE . Ge neral tolerance ::±0.1
General tolerance
±0.1
(Bottom view)
Tolerance of lead pitch is
±0.15mm
(0.006inch)
Other tolerances
±
0.3mm (0.012inch)
NJ type: Lead length 2.8mm
Lead size 0.4x0.2
±0.1
UD2 SERIES
STANDARD
(mm)
10.6 (0.417)
6.5 (0.256)
(1.5)
3.2
7.6
2.2
2.2
(1.5)
0.2
5.45
max.
(0.215)
5.08
(0.2)
8.4 (0.331)
Lead size 0.4x0.2
±0.1
6.74
2.66
[1.5]
3.2
(0.126)
2.2
2.2
(0.087) (0.087)
[1.5]
0.8
Tolerance of lead pitch is
±0.15mm
(0.006inch)
Other tolerances
±0.3mm
(0.012inch)
NOTE. General tolerance :
±0.1
(Top view)
MINIMUM FOOTPRINT TYPE
(mm)
10.6 (0.417)
6.5 (0.256)
(1.5)
3.2
7.6
2.2
2.2
(1.5)
0.
0
6.0
max.
(0.236)
5.08
(0.2)
6.8 (0.268)
Lead size 0.4x0.2
±0.1
5.94
1.86
[1.5]
3.2
(0.126)
2.2
2.2
(0.087) (0.087)
[1.5]
Tolerance of lead pitch is
±0.15mm
(0.006inch)
Other tolerances
±0.3mm
(0.012inch)
NOTE. General tolerance :
±0.1
(Top view)
0.8
2
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2007.08.03 P0894EMDD03VOL03E
UC2/UD2 SERIES
PIN CONFIGURATIONS
(Bottom view)
Direction mark
1
+
2
3
4
Direction mark
1
+-
SR
2
3
4
-
8
7
6
5
- +
8
7
6
5
Non-latch type
(Not energized position)
S: Coil polarity for Set
R: Coil polarity for Reset
Single coil latch type
(Reset position)
MARKINGS
(top view)
(2)
JAPAN
UD2-4.5NU
0501F
(3)
(1) Part number
(2) Manufacturer
(3) Country of origin
(4) Date code
(5) Direction mark (pin No. 1 and 8)
(5)
(4)
(1)
3
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2007.08.03 P0894EMDD03VOL03E
UC2/UD2 SERIES
GENERAL SPECIFICATIONS
Contact Form
Contact Material
Maximum Switching Power
Contact Ratings
Maximum Switching Voltage
Maximum Switching Current
Maximum Carrying Current
Minimum Contact Ratings
Initial Contact Resistance
Operate Time (Excluding bounce)
Release Time (Excluding bounce)
Insulation Resistance
Between open
contacts
Between adjacent
contacts
Between coil and
contacts
2 Form C
Silver alloy with gold alloy overlay
30 W, 37.5 VA
220 VDC, 250 VAC
1A
1A
10 m VDC, 10µA
*1
100 m
Ω
max. (initial)
Approx. 2 ms
Approx. 1 ms
1000 MΩ at 500 VDC
1000 VAC (for one minute) 1500 V surge (10x160 µs
*2
)
1000 VAC (for one minute) 1500 V surge (10x160 µs
*2
)
1500 VAC (for one minute) , 2500 V surge (2x10 µs
*3
)
735 m/s
2
(75G) (misoperation)
2
980 m/s (100G) (destructive failure)
10 to 55 Hz, double amplitude 3 mm(20G) (misoperation)
10 to 55 Hz, double amplitude 5 mm(30G) (destructive failure)
-40 to +85 °C
-40 to +70 °C (Low power consumption type)
18 °C at nominal coil voltage (140mW)
5x10
7
operations (Non-latch type)
*4
7
1x10 operations (Latch type)
30 VDC 1A (resistive), 1x10
5
operations at 20°C,1Hz
125 VAC 0.3A (resistive), 1x10
5
operations at 20°C,1Hz
Approx.
0.8 g
Withstanding Voltage
Shock Resistance
Vibration Resistance
Ambient Temperature
Coil Temperature Rise
Non-load
Running Specifications
Load
Weight
*
1
This value is a reference value in the resistance load.
Minimum capacity changes depending on switching frequency and environment temperature and the load.
*
2
rise time: 10 µs, decay time to half crest: 160 µs
*
3
rise time: 2 µs, decay time to half crest: 10 µs
*
4
This shows the number of operations with fatal defects. Stable characteristics are maintained for 1×10 operations.
7
4
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2007.08.03 P0894EMDD03VOL03E
UC2/UD2 SERIES
COIL SPECIFICATIONS
Non-latch Type
Nominal
Coil Voltage
(VDC)
3
4.5
5
9
12
Coil
Resistance
(Ω)±10%
64.3
145
178
579
1028
Must Operate
Voltage*
(VDC)
2.25
3.38
3.75
6.75
9.0
Set
Voltage*
(VDC)
2.25
3.38
3.75
6.75
Must Release
Voltage*
(VDC)
0.3
0.45
0.5
0.9
1.2
Reset
Voltage*
(VDC)
2.25
3.38
3.75
6.75
9.0
Must Release
Voltage*
(VDC)
0.3
0.45
0.5
at 20°C
Nominal
Operating Power
(mW)
140
140
140
140
140
at 20°C
Nominal
Operating Power
(mW)
100
100
100
100
100
at 20°C
Nominal
Operating Power
(mW)
100
100
100
Single Coil Latch Type
Nominal
Coil
Coil Voltage
Resistance
(VDC)
(Ω)±10%
3
4.5
5
9
90
202.5
250
810
12
1440
9.0
Non-latch Low Power Consumption Type
Nominal
Coil
Must Operate
Coil Voltage
Resistance
Voltage*
(VDC)
(Ω)±10%
(VDC)
3
4.5
5
90
202.5
250
2.4
3.6
4.0
Note * Test by pulse voltage
SAFETY STANDARD AND RATING
UL Recognized
(UL508)*
File No E73266
CSA Certificated
(CSA C22.2 No14)**
File No LR46266
TUV Certificate
(EN61810)
No. 2050596
Creepage and clearance of
coil to contact is more than 2 mm.
(According to EN60950)
Basic insulation class
30 VDC, 1 A (Resistive)
110 VDC, 0.3 A (Resistive)
125 VAC, 0.5 A (Resistive)
* Spacing: UL840,
**Spacing :CSA std950
RECOMMENDED RELAY DRIVE CONDITIONS
Drive under conditions. If it is impossible, please inquire to NEC TOKIN.
Non-latch type
Non-latch type
(Low power consumption Type)
Voltage: within ±5% of nominal voltage
Ambient temperature
- 40 to +85 °C
Ambient temperature
- 40 to +70 °C
Ambient temperature
- 40 to +85 °C
Single coil latch type
Square pulse (rise and fall time is rapidly)
pulse height : within ±5% of nominal voltage
pulse width : more than 10 ms
5
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
