SLIM-LINE SMT Power Micro-SPDT with 10 GHz capabilities
PAGE
1/8
ISSUE
06-05-2014
SERIES
Micro-SPDT
PART NUMBER
R596 XXX XXX
An innovative and original « micro-mechanical » design allows the R596 SMT micro-relay to bring together the excellent reliability, RF
and repeatability characteristics of coaxial switches with the miniature size and low cost implementation of surface mount components.
Very low return loss and insertion loss allow this relay to be used in power applications, as well as in typical SMT relay applications
such as RF attenuators, RF matrices, spectrum analysers, and telecommunications.
Failsafe models are proposed in two RF configurations (direct and inverted) : The association of these two products on the same PC
board allows to perform the « BYPASS » function very easily. (For Bypass mounting, further information is available on page7).

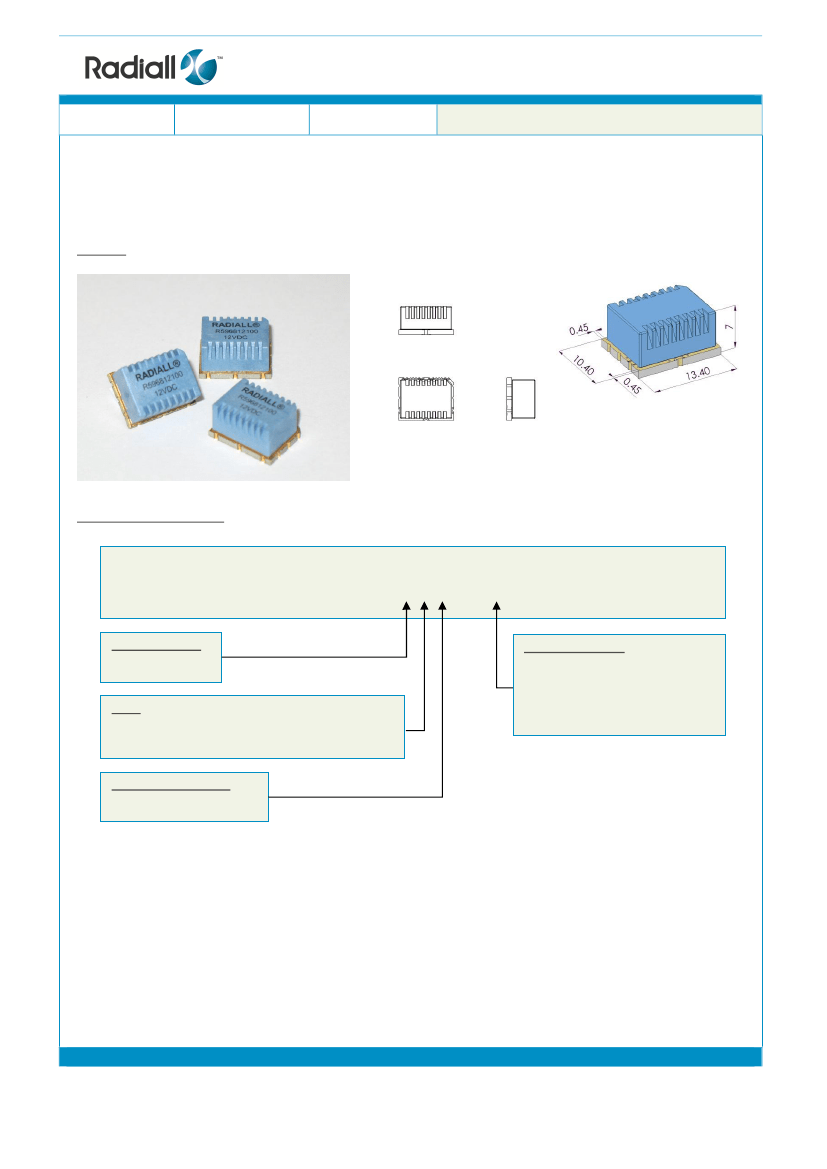

ACTUAL SIZE
TYPICAL OUTLINE
DRAWING
(All dimensions in mm)
PART NUMBER SELECTION
R596___10_
Frequency range :
3 : DC – 3GHz
8 : DC – 8GHz
TYPE :
1 : Failsafe
3 : Latching, 2 coils
9 : Failsafe, inverted RF path (1)
ACTUATOR VOLTAGE :
2 : 12Vdc
3 : 24Vdc
(1)
(2)
(3)
(4)
To be associated with a failsafe model, so as to achieve the “BYPASS” function (see application details on page 7)
Non-standard packaging symbols (2, 5, 9 or T) are not marked on the relay
See details about test fixture dimensions on page 3
Tape delivered without reel, available for all specific quantities up to 200 pieces
Packaging style (2) :
0 : Standard packaging
2 : Tape and reel of 200 relays (2)
5 : Tape and reel of 500 relays (2)
9 : Tape without reel (2) (4)
T : Soldered on a connectorized
test fixture (2) (3)
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
SLIM-LINE SMT Power Micro-SPDT with 10 GHz capabilities
PAGE
2/8
ISSUE
06-05-2014
SERIES
Micro-SPDT
PART NUMBER
R596 XXX XXX
GENERAL SPECIFICATION
Operating mode
Nominal operating voltage (Vdc)
(across operating temperature range)
Coil resistance (+/-10%) (Ohms)
Operating current at 23°C (mA)
RF and command ports
Switching time
(Nomial voltage)
Marking contacts
Breaking contacts
Cold switching
(Max 120 cycles/min)
Hot switching
(Max 20 cycles/min)
Insulation
Environmental protection
Mass
Operating temperature range (°C)
(With no icing nor consideration)
Storage temperature range (°C)
Sine vibration
(MIL STD 202, method 204)
Random vibration
(MIL STD 202, method 214A, Profile I)
Shocks
(According to MIL STD 202, method 213B,
Cond C)
Failsafe
- 25 to +85 (1)
-
-
-
-
Faisafe (Type 1 and 9)
Latching (Type 3)
12
24
12
24
(12.2 to 13)
(20.5 to 30)
(12.2 to 13)
(20.5 to 30)
330
1130
205
865
36
25
58
32
½ hole gold plated, infrared reflow, forced air oven or hand soldering
(Compatible with “lead free” soldering processes)
Max 4ms (Typical 1.8ms), including contact bounce time
« LEAD FREE » construction – Waterproof (acc.to IEC 60529 / IP67)
< 2g
Latching
- 40 to +85
Life
-55 to +85
Condition D : 10-2000Hz, 20g Operating
Condition G : 10-2000Hz, 30g Non-operating
Condition F : 50-2000Hz, 20.71grms Operating
Condition H : 50-2000Hz, 29.28grms Non-operating
100g / 6ms, ½ sine Operating
(1)
: Failsafe models may be used down to –40°C, but if coil remains permanently supplied at nominal voltage, the holding
current value must be reduced by 45% to 55% so as to avoid internal condensation. (for more details, see RADIALL
application note AN-R596-51)

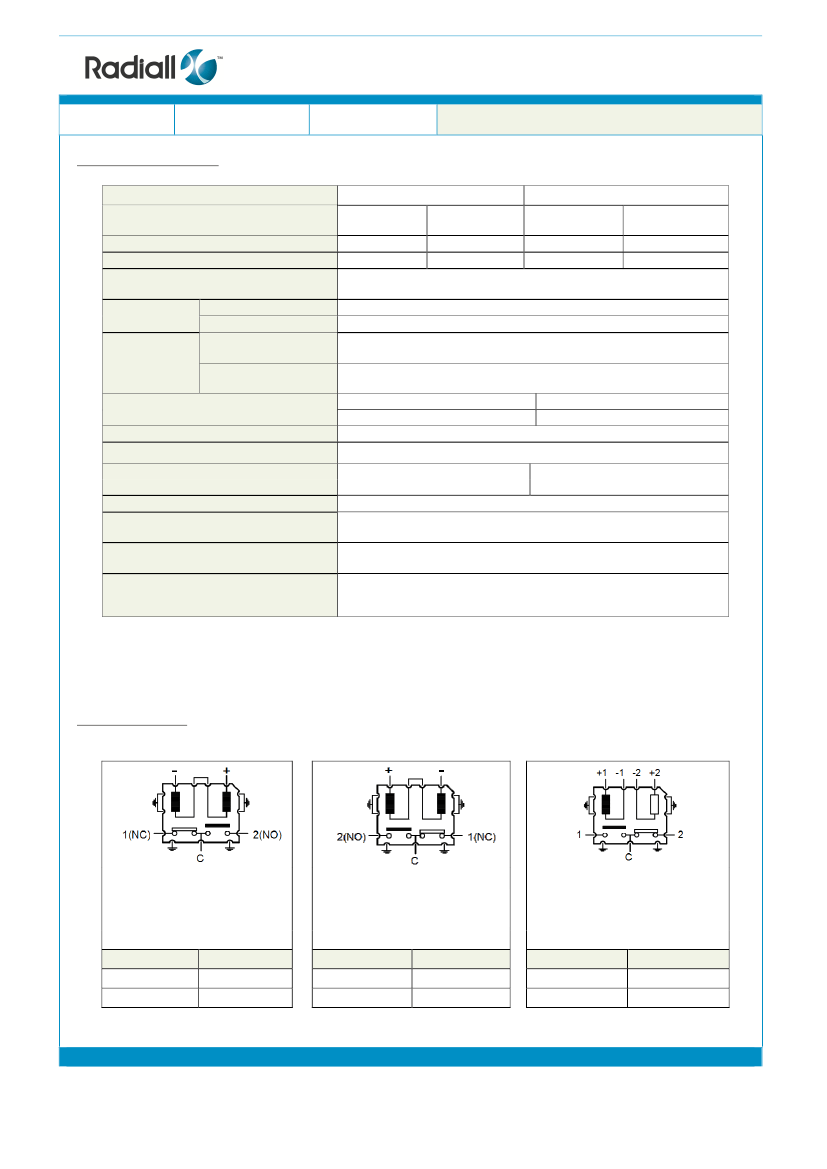

PIN IDENTIFICATION (TOP VIEW)
Failsafe model
(TYPE 1)
Inverted failsafe model for
By-pass application (TYPE 9)
Latching model
(TYPE 3)
Voltage
De-energized
Energized
RF continuity
C ↔ 1 (NC)
C ↔ 2 (NO)
Voltage
De-energized
Energized
RF continuity
C ↔ 1 (NC)
C ↔ 2 (NO)
Voltage
-1
-2
+1
+2
RF continuity
C↔1
C↔2
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
SLIM-LINE SMT Power Micro-SPDT with 10 GHz capabilities
PAGE
3/8
ISSUE
06-05-2014
SERIES
Micro-SPDT
PART NUMBER
R596 XXX XXX
RF PERFORMANCES
V.S.W.R
Frequency Range
(GHz)
DC – 1
DC – 3
DC – 8
1–2
2–3
3–6
6– 8
(max)
1.10
1.20
1.35
1.35
1.40
Insertion
Isolation (min) dB
Average power W Third order Impedance
Ohms
Inter
Loss
hot
switch switch + board
cold
layout (1)
switching switching modulation
(max) dB alone
0.10
0.20
0.30
0.40
0.80
50
45
40
35
30
50
40
30
30
30
400
280
175
50
35
50
50
40
25
5
-120 dBc
typical
(2 carriers
20W)
50

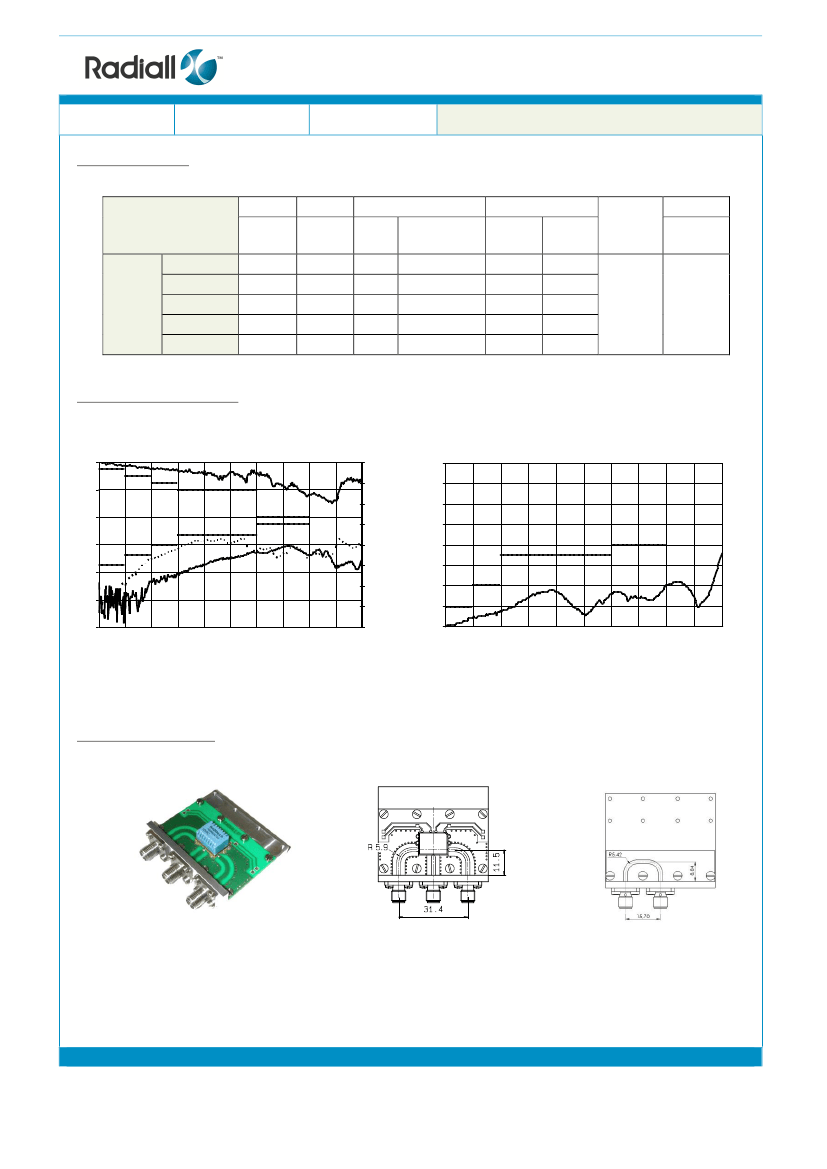

TYPICAL RF PERFORMANCES
Insertion Loss and Isolation
V.S.W.R.
-0.4
-0.8
-1.2
IL dB
IL dB
-10
-20
-30
-40
-50
-60
-70
Isolation dB
0
0
1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
-1.6
-2
-2.4
0.10
GHz
10
-80
0.10
GHz
10
(1) : taking account of the reduction of isolation due to coupling between PCB microstrip lines (see isolation dotted curve above and
measurement method below)
MEASUREMENT METHOD
Relay soldered on Test Fixture (2)
Calibration board
Inputs/Outputs of the calibration board and test fixture are equipped with SMA type receptacle connectors, RADIALL part number
R125 510 000. The length of the RF tracks are the same on the calibration board and the test fixture circuits. The insertion loss of the
relay itself is calculated by subtracting the insertion loss of the “calibration board” to the insertion loss of the “relay welded on the test
fixture”.
(2) : Relay soldered on Test Fixture available. To order, please use the suffix « T » (part number R596 - - - - - - T), as explained in
page 1.
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
SLIM-LINE SMT Power Micro-SPDT with 10 GHz capabilities
PAGE
4/8
ISSUE
06-05-2014
SERIES
Micro-SPDT
PART NUMBER
R596 XXX XXX

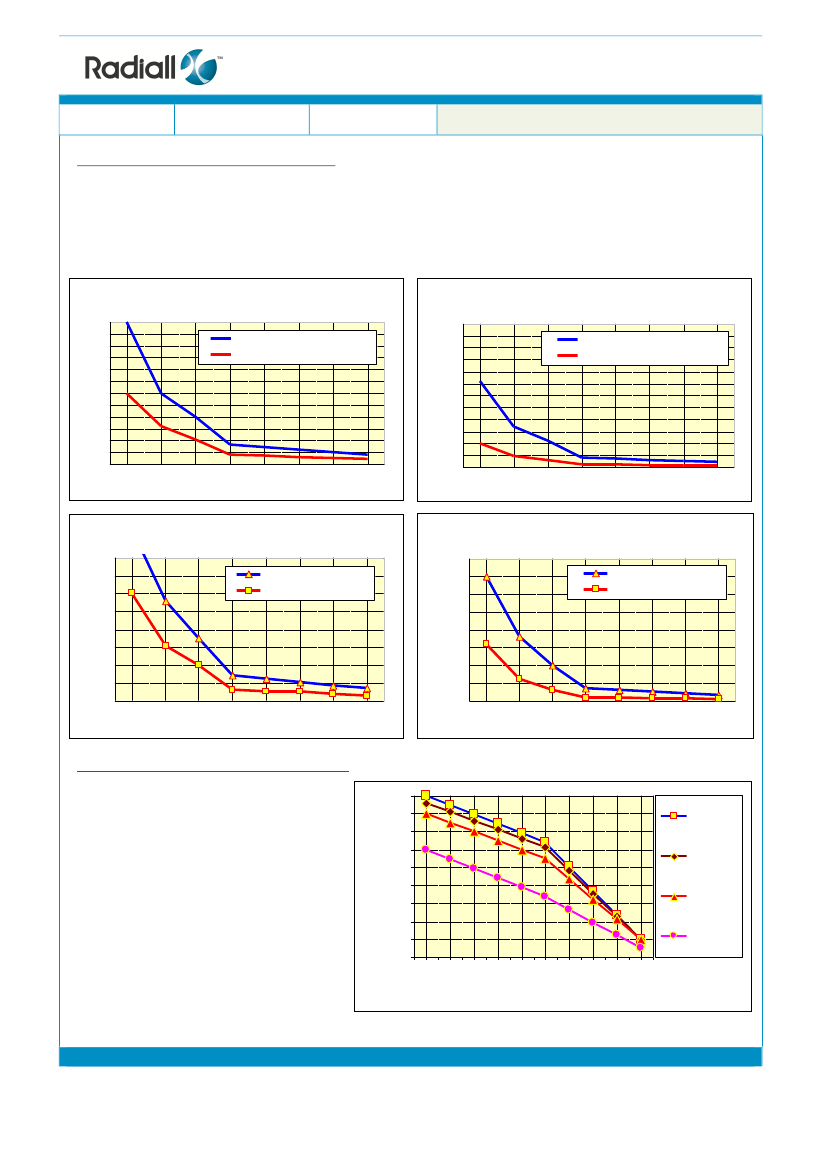

RF POWER RATING FOR COLD SWITCHING USE (impedance 50 Ohms , V.S.W.R < 1.25)
Power level depends on environmental conditions :
- R596 series relays have been designed to be used without cooling fan even for high power applications. However, the power
capability may be improved by using an appropriate cooling fan.
- For failsafe models used with coil permanently supplied (NO position), the same power level as latching models may be applied: see
application note Nr AN-R596-51, how to implement a “low holding current” function on your PC board, so as to avoid internal
overheating and increase the RF power level.
POWER
-
LATCHING (all models)
NO COOLING FAN
HANDLING
, (LATCHING,
FAILSAFE
: NC pos. &
NO
with low holding
voltage)
FAILSAFE
: NC pos, and
NO
pos @ low holding
voltage
300
275
250
225
200
175
150
125
100
ENVIRONMENTAL
75
50
25
0
1
2
NO COOLING
POWER HANDLING
FAN
(FAILSAFE, NO pos @ nom
nominal voltage
FAILSAFE : NO pos. supplied at
inal voltage)
300
275
250
225
200
175
150
125
100
75
50
25
0
1
2
3
W @ 25°C without cooling fan
W @ 85°C without cooling fan
power (W)
W @ 25°C without cooling fan
W @ 85°C without cooling fan
power (W)
SPECIFICATIONS
3
4
5
6
7
8
4
5
6
7
8
Frequency (GHz)
Frequency (GHz)
POWER HANDLING
, (LATCHING,
WITH COOLING FAN -
LATCHING (all models)
FAILSAFE :
pos, and NO pos @
holding voltage
FAILSAFE : NC
NC pos. & NO with
low holding voltage)
400
350
300
power (W)
POWER
WITH COOLING FAN
HANDLING
(FAILSAFE, NO
supplied at nominal voltage
FAILSAFE : NO pos.
pos @ nominal voltage)
400
350
300
power (W)
W @ 25°C, cooling fan
W @ 85°C, cooling fan
W @ 25°C, cooling fan
W @ 85°C, cooling fan
250
200
150
100
50
0
1
2
3
4
5
6
7
8
250
200
150
100
50
0
1
2
3
4
5
Frequency (GHz)
6
7
8
Frequency (GHz)
LIFE DERATING CURVE FOR HOT SWITCHING USE
50
50
45
25
40
10
35
5
30
2
25
1
20
0.5
15
0.2
10
0.1
5
0
average power (watts)
DC-2 GHz
2 - 3 GHz
Impedance 50
V.S.W.R. <1.25
max switching frequency : 30 cycles per mn
3 - 6 GHz
6 - 8 GHz
1.000.000
2.000.000
100.000
200.000
500.000
10.000
20.000
50.000
2.000
5.000
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
SLIM-LINE SMT Power Micro-SPDT with 10 GHz capabilities
PAGE
5/8
ISSUE
06-05-2014
SERIES
Micro-SPDT
PART NUMBER
R596 XXX XXX

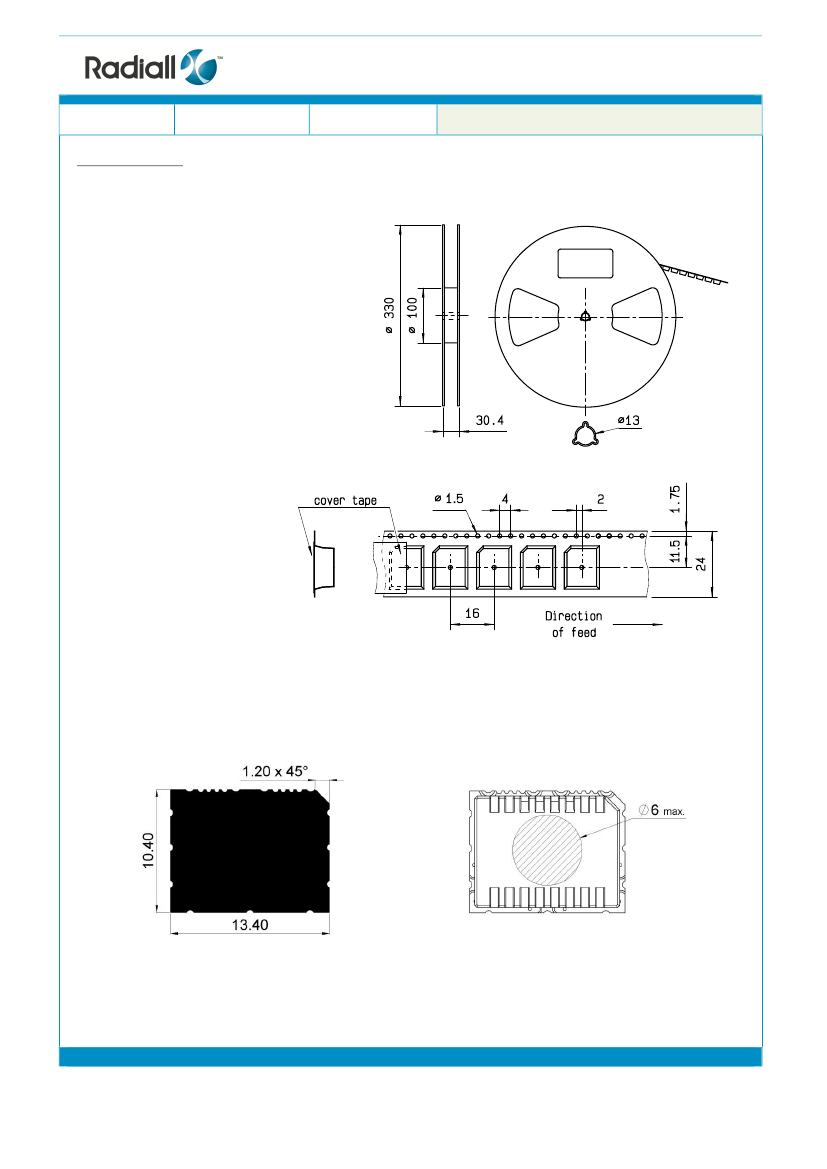

RELAY PACKAGING
ACCORDING TO IEC 286-3 STANDARD
MATERIALS
Reel : polyester
Carrier tape : antistatic PETG (polyester)
Cover tape : polyester
Video shadow of the relay
Aspiration area
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
