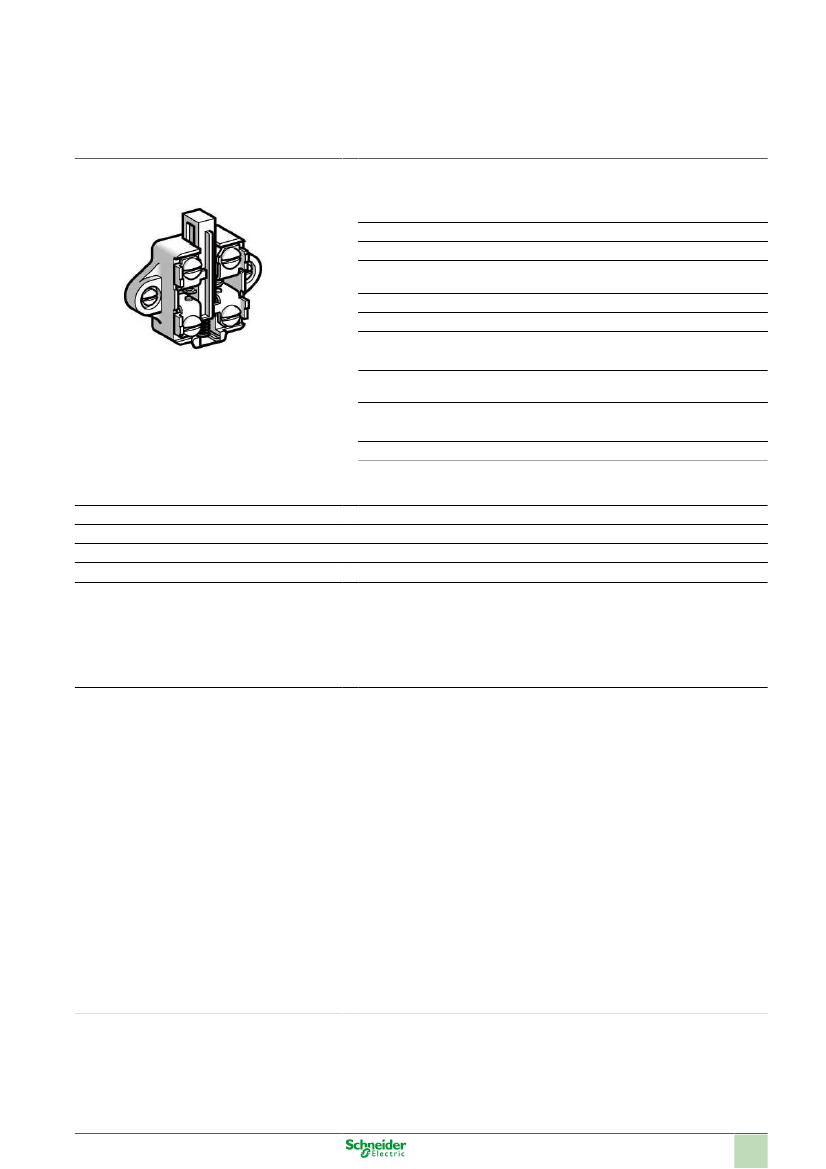

Product data sheet
Characteristics
ZC1AZ12
contact block - 1NC+1NO - break before make
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Series name
Product or component
type
Device short name
Product compatibility
Electrical connection
Number of poles
Contacts type and
composition
Contacts operation
Contacts material
Positive opening
Commercialised
OsiSense XC
Special format
Limit switch contact block
ZC1A
XC1AC12.
Screw-clamp terminals, 1 x 0.5...2 x 2.5 mm²
2
1 NO + 1 NC
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Slow-break, break before make
Silver plated contacts
Without
Complementary
Contacts insulation form
Minimum actuation speed
Resistance across terminals
[Ithe] conventional enclosed thermal current
[Ui] rated insulation voltage
Zb
6 m/min
< 8 mOhm IEC 60255-7 category 3
10 A
600 V DC CSA C22.2 No 14
600 V AC CSA C22.2 No 14
600 V DC NF C 20-040
600 V DC IEC 60947-5-1
500 V AC NF C 20-040
500 V AC IEC 60947-5-1
10 A cartridge fuse gG
3000000 cycles DC-13,48 V 35 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
3000000 cycles DC-13,230 V 33 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
3000000 cycles DC-13,110 V 40 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
3000000 cycles AC-15,48 V 170 VA,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
3000000 cycles AC-15,230 V 430 VA,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
3000000 cycles AC-15,110 V 350 VA,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
1000000 cycles DC-13,48 V 100 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
1000000 cycles DC-13,230 V 95 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
1000000 cycles DC-13,110 V 100 W,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
1000000 cycles AC-15,48 V 450 VA,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
1000000 cycles AC-15,230 V 1900 VA,< 60 cyc/mn, load factor: 0.5 conforming
to IEC 60947-5-1 appendix C
1000000 cycles AC-15,110 V 900 VA,< 60 cyc/mn, load factor: 0.5 conforming to
IEC 60947-5-1 appendix C
Short circuit protection
Electrical durability
