LC1257EESP datasheet, PDF - EEWORLD Datasheet

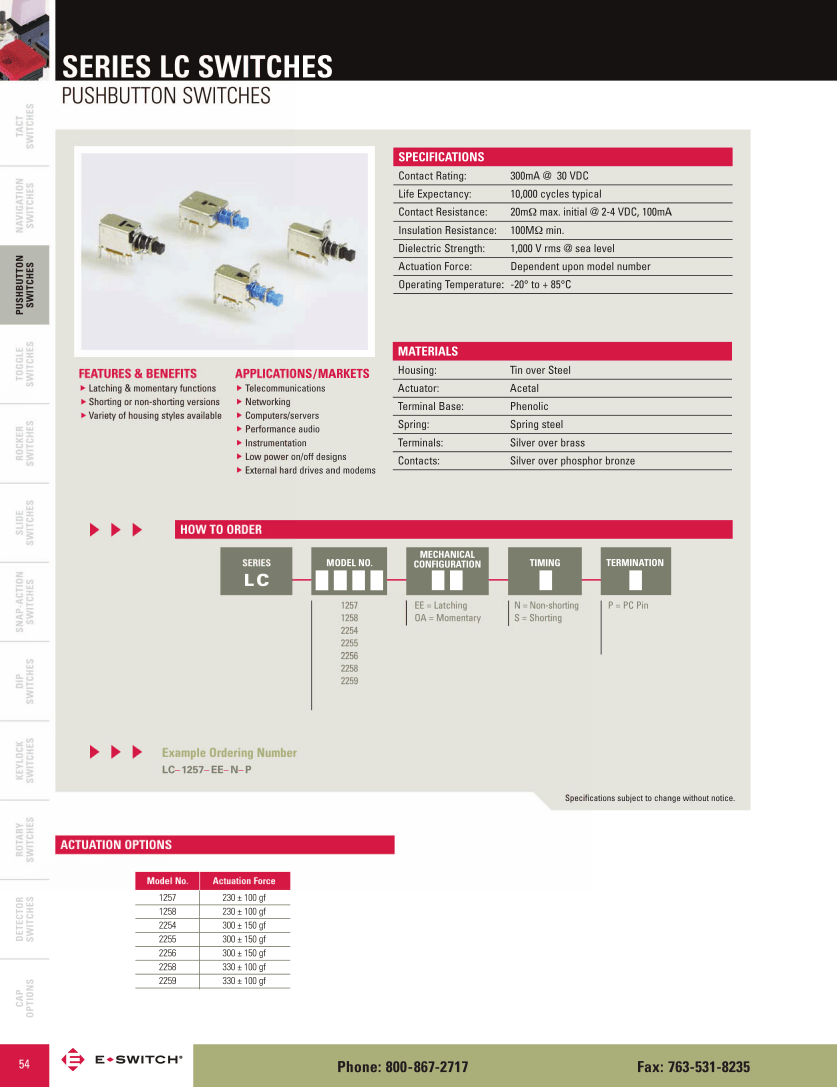

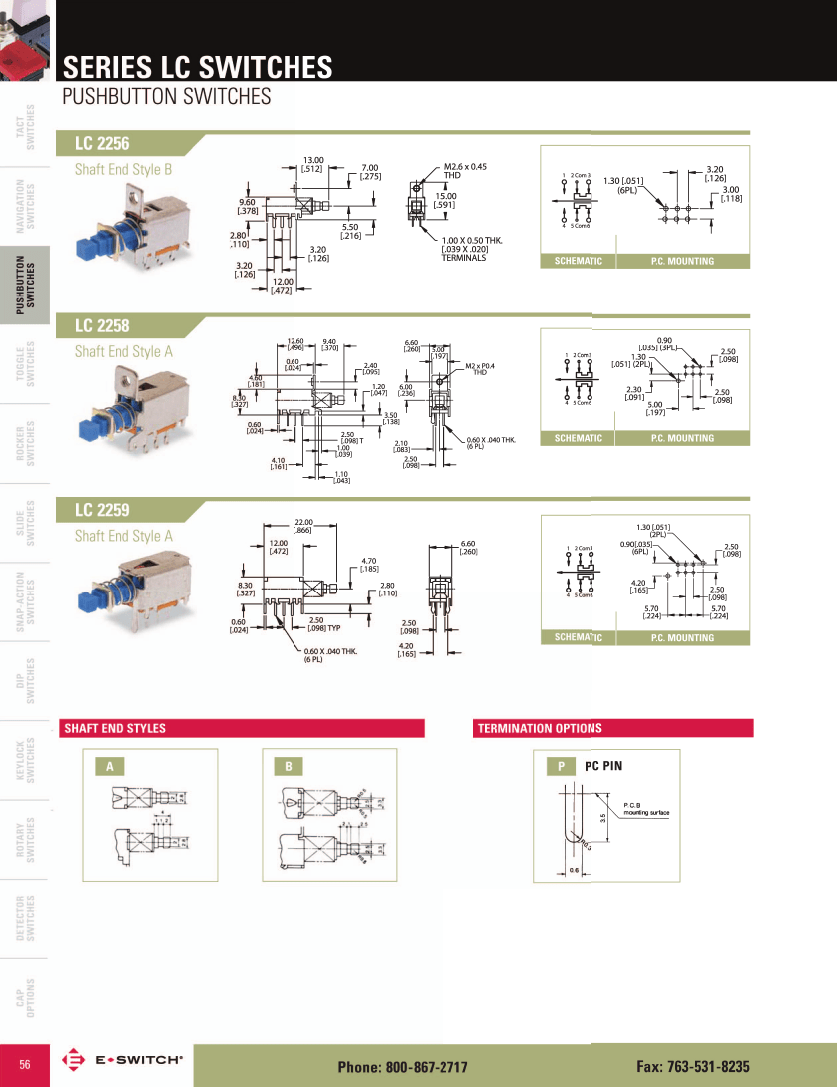

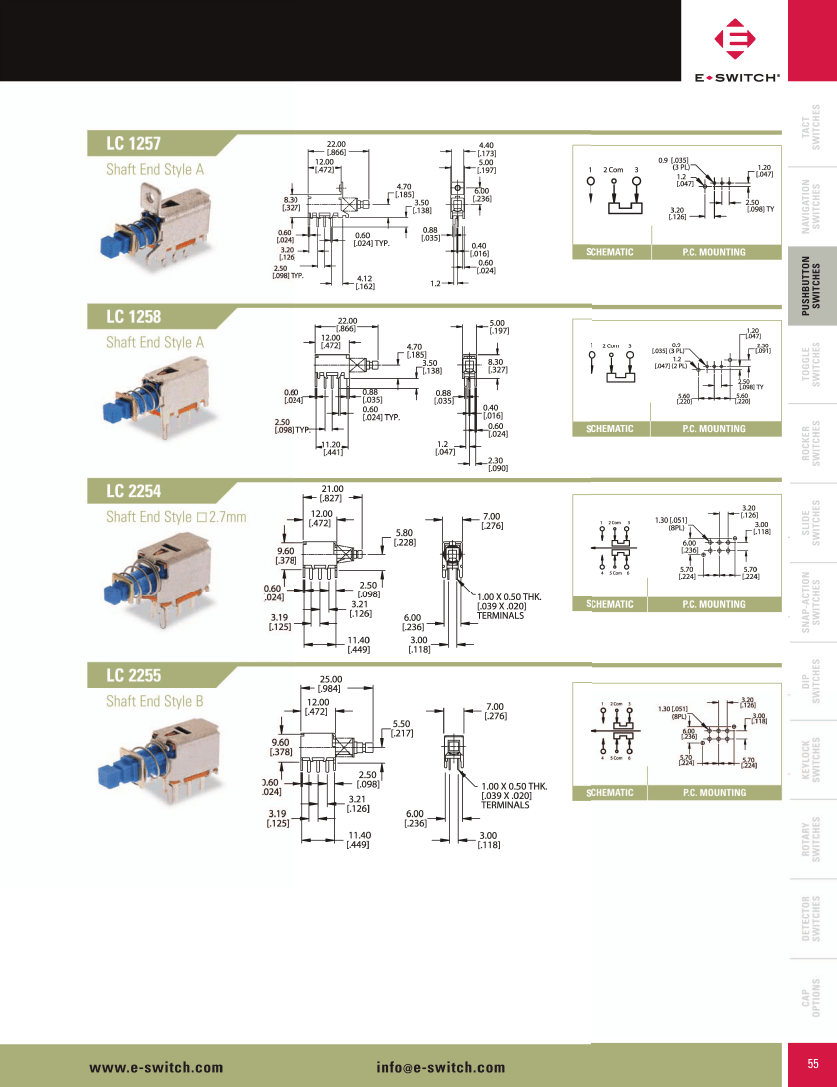

LC1257EESP: DescriptionPushbutton Switches 300mA/30VDC PC-Pin Latching Shorting; CategoryMechanical and electronic products switch; File Size5MB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

LC1257EESP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LC1257EESP	-	-	View	Buy Now

Pushbutton Switches 300mA/30VDC PC-Pin Latching Shorting

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	90 deg
Actuator length	0.394 inch
Actuator material	POLYACETAL
Actuator type	PUSHBUTTON
body width	4.4 mm
body height	8.3 mm
Body length or diameter	12 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	.3A@30VDC
Contact function	ON-(ON)
Contact resistance	0.1 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VRMS V
Electrical life	10000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	SILVER
Shell material	STEEL
insulator material	PHENOLIC
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	3.24 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	4
seal	MOLDED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	SILVER
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1
