39-00-0021 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 39-00-0021 (Cut Strip)

39-00-0021 (Cut Strip): DescriptionHeaders & Wire Housings SPOX TERM 18-24G FEM Cut Strip of 100; CategoryThe connector; File Size39KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-00-0021 (Cut Strip) Overview

Headers & Wire Housings SPOX TERM 18-24G FEM Cut Strip of 100

39-00-0021 (Cut Strip) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Product	Contacts
Type	-
Number of Positions	-
Pitch	-
Number of Rows	-
Mounting Style	-
Termination Style	Crimp
Mounting Angle	-
Contact Gender	Socket (Female)
Contact Plating	Tin
Mating Post Length	-
Termination Post Length	-
Packaging	Cut Tape
Accessory Type	-
Application	Power
Contact Type	Female
Current Rating	3 A
Housing Material	-
Voltage Rating	250 V
Contact Material	Phosphor Bronze
Flammability Rating	-
Row Spacing	-
Housing Gender	-
Insulation Resistance	-
Latching Type	-
Factory Pack Quantity	100
Wire Gauge	24-18
Unit Weight	0.004445 oz

Preview

Download Datasheet

View All

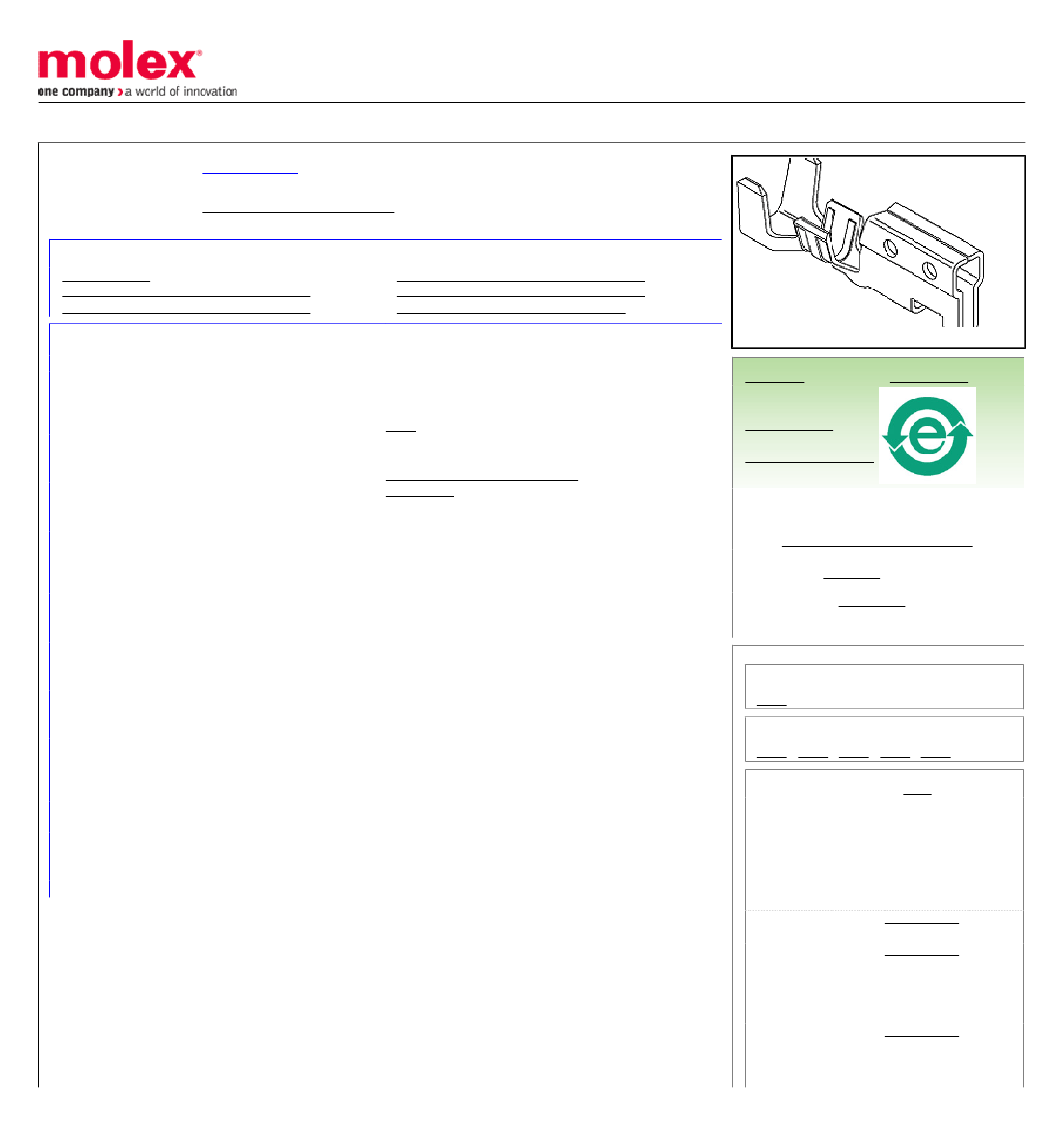

This document was generated on 06/30/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-00-0021

Active

SPOX™ BMI Connector System

SPOX™ Crimp Terminal 5194, 18-24 AWG, Phosphor Bronze, Reel

Documents:

Drawing (PDF)

Product Specification PS-5195-004 (PDF)

Product Specification PS-5195-005 (PDF)

Product Specification PS-5195-006 (PDF)

Product Specification PS-5195-007 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Packaging Alternative

Product Name

UPC

Crimp Terminals

5194

Signal

Yes

SPOX™ BMI Connector System

39-00-0022 (Loose)

SPOX™

800754318242

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Tin

180.000/mg

Reel

0.889µm

0.914µm

Crimp or Compression

1.30-3.20mm

18, 20, 22, 24

N/A

Search Parts in this Series

5194Series

Use With

5195 , 5196 , 5197 , 5198 , 5199

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool for 0638116500

Crimp Terminals

FineAdjust™

0639005300

Applicator for

3.96mm Pitch Crimp

Terminal, 18-24

AWG Wire

T2 Terminator

0639105300

Tooling Die for Crimp

Terminal, 18-24

AWG Wire

Material Info

Old Part Number

5194PBT

Reference - Drawing Numbers

Crimp Specification

Product Specification

Sales Drawing

CS-5194, CS-5194(S)

PS-5195-004, PS-5195-005, PS-5195-006,

PS-5195-007, RPS-5195-001, RPS-5195-002

SD-5194-001

39-00-0021 (Cut Strip) Related Products

	39-00-0021 (Cut Strip)	39-00-0021	39-00-0021 (Mouser Reel)
Description	Headers & Wire Housings SPOX TERM 18-24G FEM Cut Strip of 100	Headers & Wire Housings SPOX TERM 18-24G FEM Reel of 5000	Headers & Wire Housings SPOX TERM 18-24G FEM Reel of 1000
Product Attribute	Attribute Value	-	Attribute Value
Manufacturer	Molex	-	Molex
Product Category	Headers & Wire Housings	-	Headers & Wire Housings
RoHS	Details	-	Details
Product	Contacts	-	Contacts
Termination Style	Crimp	-	Crimp
Contact Gender	Socket (Female)	-	Socket (Female)
Contact Plating	Tin	-	Tin
Packaging	Cut Tape	-	Reel
Application	Power	-	Power
Contact Type	Female	-	Female
Current Rating	3 A	-	3 A
Voltage Rating	250 V	-	250 V
Contact Material	Phosphor Bronze	-	Phosphor Bronze
Factory Pack Quantity	100	-	1000
Wire Gauge	24-18	-	24-18
