BAV99_Q

Description
Diodes - General Purpose, Power, Switching 70V 200mA A7
Categorysemiconductor    Discrete semiconductor
File Size196KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

BAV99_Q Online Shopping

Suppliers Part Number Price MOQ In stock
BAV99_Q - - View Buy Now

BAV99_Q Overview

Diodes - General Purpose, Power, Switching 70V 200mA A7

BAV99_Q Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerON Semiconductor
Product CategoryDiodes - General Purpose, Power, Switching
RoHSN
Mounting StyleSMD/SMT
Package / CaseSOT-23
Max Surge Current2 A
If - Forward Current0.2 A
ConfigurationDual Series
Recovery Time6 ns
Vf - Forward Voltage1.25 V
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 150 C
PackagingCut Tape
PackagingReel
Height0.93 mm
Length2.92 mm
Termination StyleSMD/SMT
TypeSmall Signal Diode
Width1.3 mm
Factory Pack Quantity15000
Vr - Reverse Voltage70 V
Unit Weight0.000282 oz

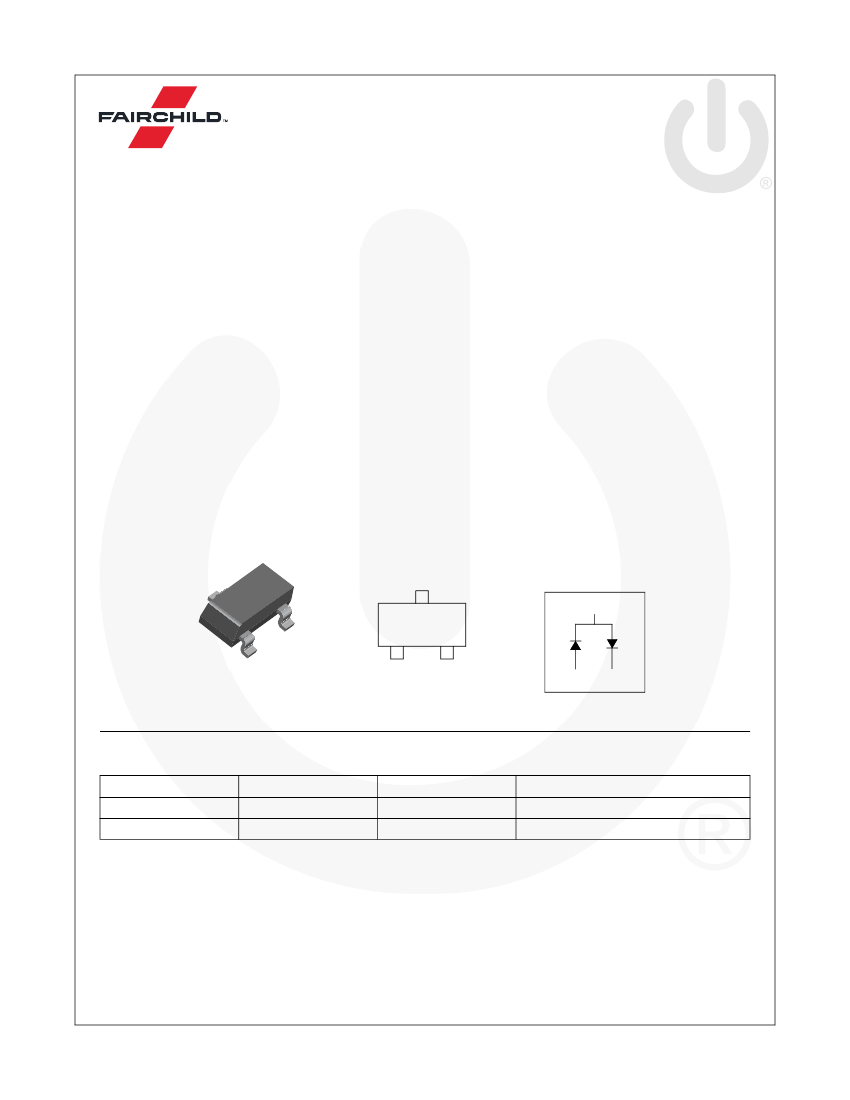

BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode
April 2014
BAV99
200 mA 70 V High Conductance Ultra-Fast Switching
Diode
Features
High Conductance: I
F
= 200 mA
Fast Switching Speed: t
rr
< 6 ns Maximum
Small Plastic SOT-23 Package
Series-Pair Configuration
Description
The BAV99 is a 350 mW high-speed switching diode
array with series-pair diode configuration. It achieves
high-current conductivity, up to 200 mA, in a very small
7mm
2
footprint. These features make the BAV99 optimal
for area-constrained applications that need a little extra
power capability.
For common cathode and common anode high-speed
switching diodes, explore Fairchild's BAV70 and BAW56.
Looking for more options in the SOT-23 package? Check
Fairchild's MMBD family.
Applications
• High-Speed Switching Applications
Connection Diagram
3
3
3
2
1
A7
2
1
2
1
SOT-23
Ordering Information
Part Number
BAV99
BAV99_D87Z
Marking
A7
A7
Package
SOT-23 3L
SOT-23 3L
Packing Method
Tape and Reel, Reel 7 inch
Tape and Reel, Reel 13 inch
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
1
www.fairchildsemi.com
