Magnetics
Make Possible
Surface Mount
Common Mode Chokes
MODEL HM86
Features
Operating Temperature Range -40°C to +125°C
Ambient Temperature, Maximum +85°C
Temperature Rise, Maximum 40°C
RoHS Compliant

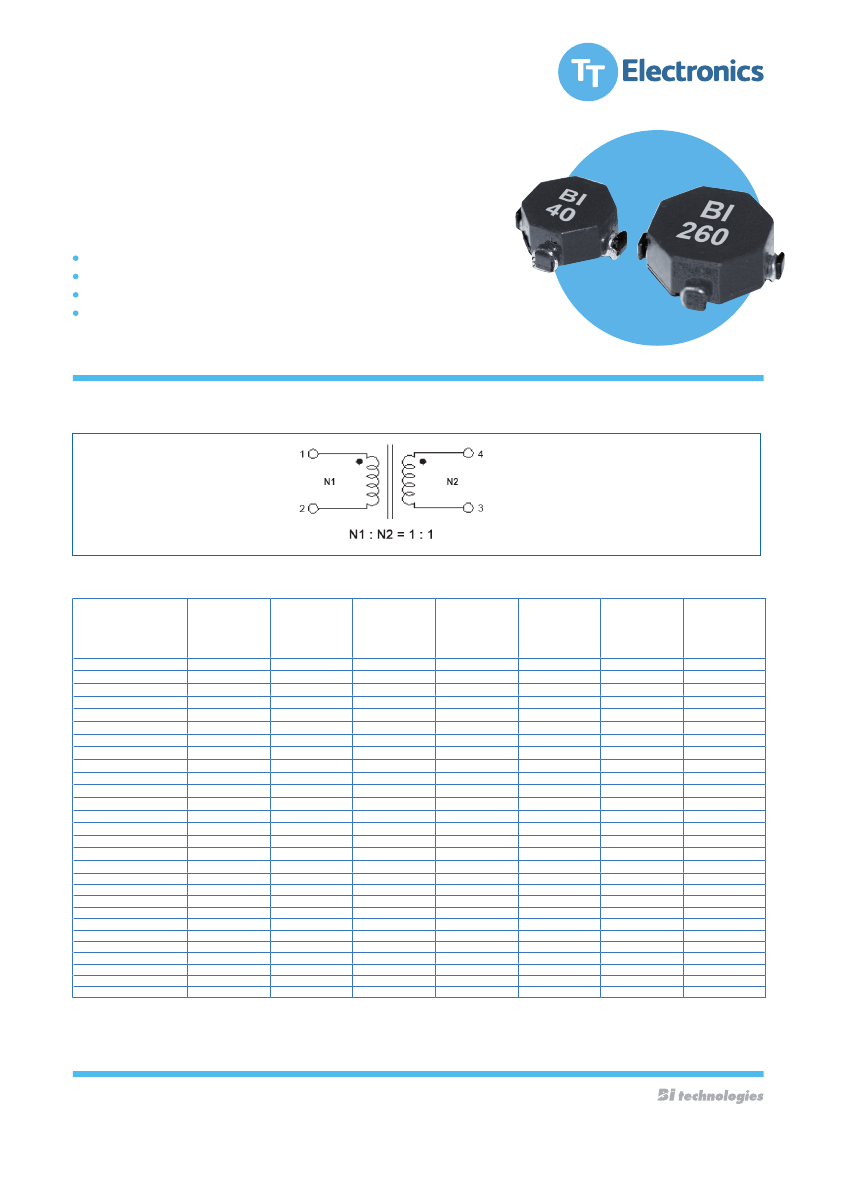

Schematics
Specifications @ 25°C
Part Number
HM86-10025LF
HM86-10040LF
HM86-10070LF
HM86-10095LF
HM86-10150LF
HM86-10275LF
HM86-10320LF
HM86-10400LF
HM86-10500LF
HM86-10620LF
HM86-10750LF
HM86-11100LF
HM86-11300LF
HM86-11600LF
HM86-20035LF
HM86-20050LF
HM86-20075LF
HM86-20105LF
HM86-20175LF
HM86-20260LF
HM86-20310LF
HM86-20420LF
HM86-20480LF
HM86-20620LF
HM86-20780LF
HM86-20950LF
HM86-21250LF
HM86-21600LF
Inductance
(1-2 or 4-3)
μH
±30%
25.0
40.0
70.0
95.0
150.0
275.0
320.0
400.0
500.0
620.0
750.0
1100.0
1300.0
1600.0
34.9
50.0
75.0
105.0
175.0
260.0
310.0
420.0
480.0
620.0
780.0
950.0
1250.0
1600.0
Rated
Current
(Max.)
Amps
5.35
4.40
3.60
2.80
2.30
1.85
1.60
1.35
1.10
0.94
0.80
0.67
0.58
0.50
5.70
5.10
4.75
3.95
3.10
2.85
2.45
2.00
1.70
1.45
1.20
1.05
0.88
0.75
DC
Resistance
(1-2 or 4-3)
mΩ Typ.
3.10
3.89
5.35
7.97
16.85
34.53
39.72
42.73
57.43
73.72
98.34
161.2
245.5
350.5
4.63
5.12
6.52
7.92
15.9
19.5
25.3
36.8
50.2
62.1
92.3
132.1
192.2
286.5
Leakage
Inductance
(μH)
Max.
0.22
0.34
0.47
0.80
1.25
1.75
2.00
2.60
3.30
4.00
5.00
6.30
7.30
9.00
0.31
0.46
0.64
0.85
1.30
1.90
2.20
3.00
3.30
4.20
5.10
6.10
7.80
9.60
Interwinding
Capacitance
pF
Typ.
2.00
2.30
2.50
2.80
3.10
3.40
3.60
3.90
4.10
4.30
4.60
4.90
5.10
5.40
2.80
3.05
3.30
3.50
3.70
3.90
4.15
4.40
4.65
4.85
5.10
5.35
5.55
5.80
Figure
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Height
mm
Max.
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
Notes:
(1) Inductance, leakage inductance and interwinding capacitance are measured at 100kHz, 0.1Vrms.
(2)
Leakage inductance is measured at pin-1-2 with N2 (pin 4-3) winding shorted.
(3)
It is recommended that the temperature of the component (ambient plus temperature rise) does not exceed 125°C under worst
case operating conditions.
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
Surface Mount
Common Mode Chokes
MODEL HM86
Make Possible

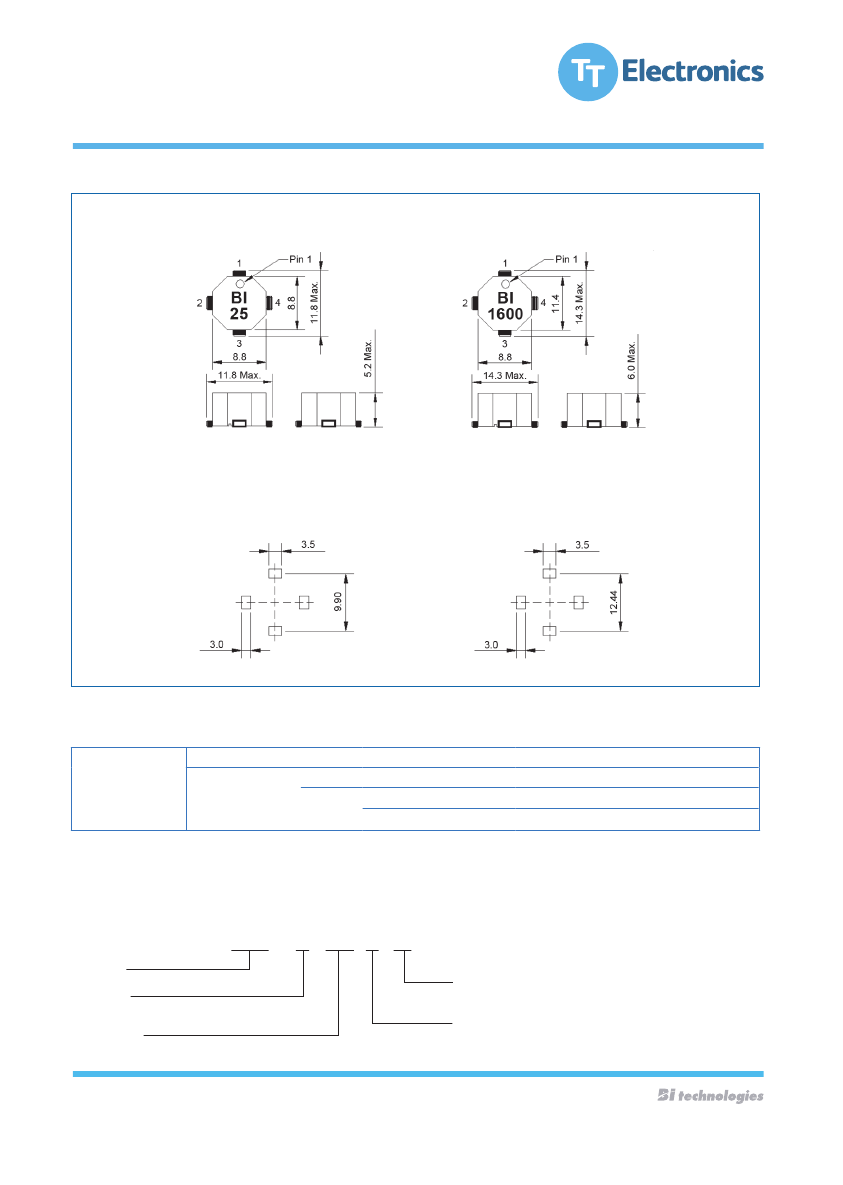

Outline Dimensions (mm)
Figure 1
Figure 2
Recommended Solder Pad Layouts
Packaging
Embossed Tape and Reel
Standard:
Diameter:
Reel:
Capacity:
Case size 1
Case size 2
=
=
=
13” (330.2mm)
800 units
600 units
Ordering Information
HM86 - 1 1100 LF TR
Model Series
Case Size :
Case 1 or Case 2
Inductance Code:
Tape & Reel Packing
Lead Free
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
