Pomona
®
Pomona PLCC Test Adapters
Model Numbers: 5279, 5280, 5733, 5281,
5312, 5401 & 5402 Chip Lead Spacing: 0.050”

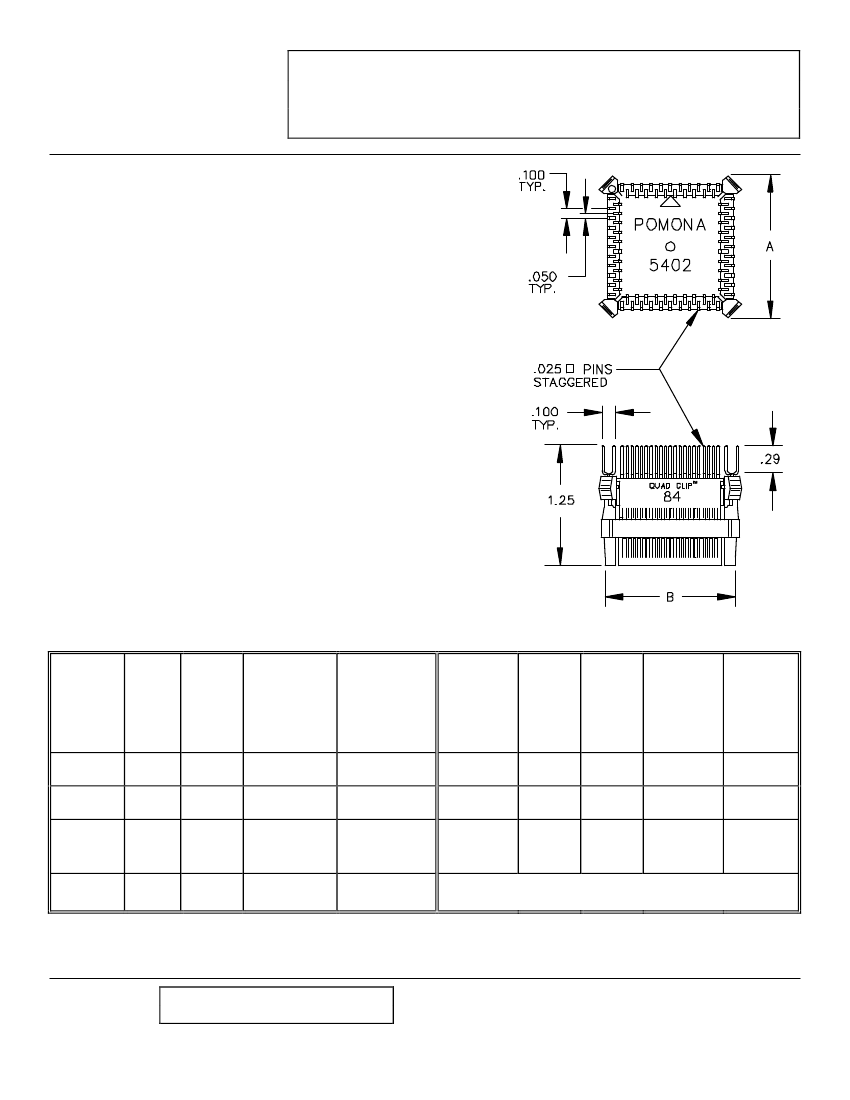

These new test adapters are designed for testing
surface mounted PLCC chips with "J" leads (JEDEC
MO-047 and MO-052).
The patented lock-on design attaches directly to
the surface mounted
IC and provides hands-free access to all of the chip
leads.
•
•
•
•
•
Gold plated upper contacts assure noise free, low
resistance
connections. Standard .025 square pins accept
wire-wrap, .025 sq.
receptacle or soldered wires. Pins are staggered to
use the least space
Gold plated lower contacts assure the best
connection the chip leads.
Material: Gray, glass-filled nylon.
Model 5515A is a kit that contains all seven sizes of PLCC Test Clips.
Model
Number
5279
5280
5733
5281
No.
of
Pins
20
28
32
44
Pins
Per
Side
5x5
7x7
7x9
11x11
Space
Required
"B"
.675"
.775"
.775"x.875
"
.975"
Board
Footprint
"A"
0.560"
0.665"
.665" x
.765"
0.865"
Model
Number
5312
5401
5402
No. of
Pins
52
68
84
Pins
Per
Side
13x13
17x17
21x21
Space
Required
"B"
1.075"
1.275"
1.520"
Board
Footprin
t
"A"
0.965"
1.180"
1.350"
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90326
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
C:\Laura Goldberg\FlukeDataSheet\d5279-81_5312_5401-02_5733_1_01.doc
