Model 5748 -
Maxi Universal Adapter Kit
Model 5749 -
Universal Adapter Cable

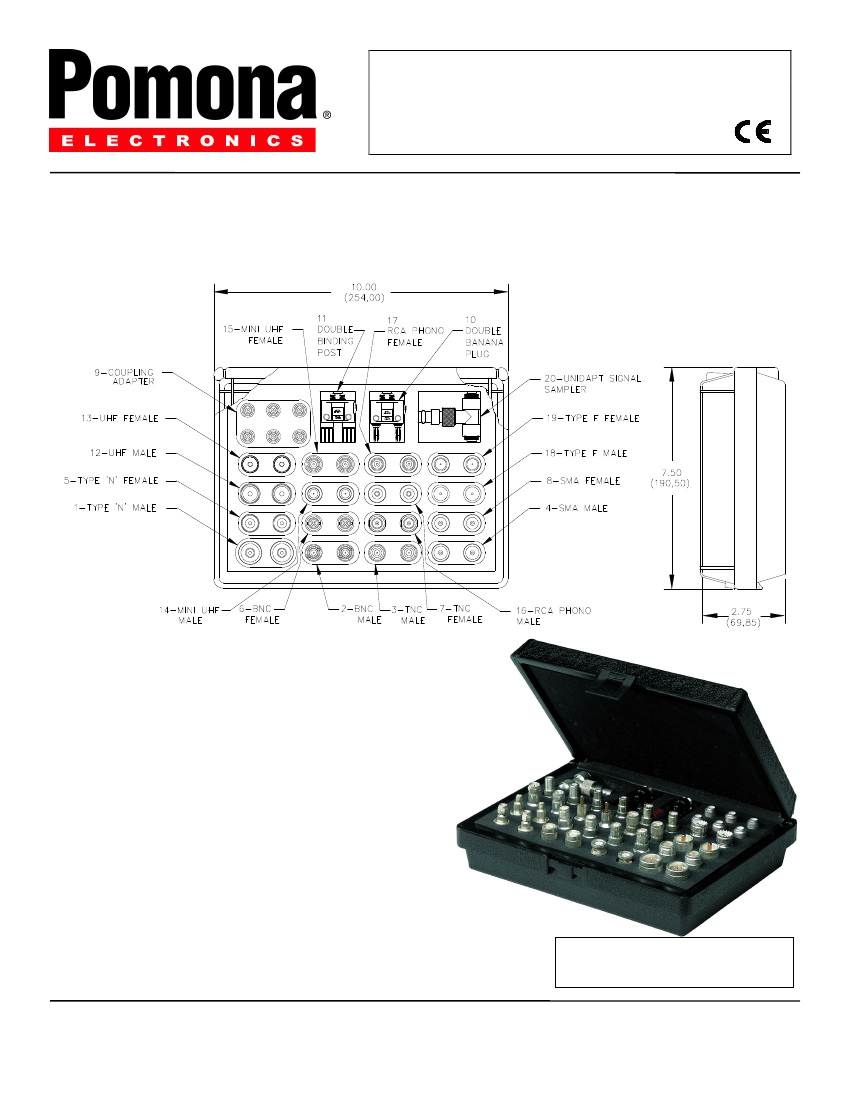

FEATURES:
Kit allows users to make their own adapters combinations, such as SMA to BNC or BNC to double banana
plugs. Adapter’s ends are joined with coupling nuts. Simply choose your combination. All connectors feature
gold plated center contacts and silver plated bodies.
RATINGS:
Operating Temperature:
Items 1 through 9, and 12 through 20:
-67°F to +302°F (-55°C to +150°C)
Items 10 and 11:
+122°F (+50°C)
Nominal Impedance:
Items 1 through 9, and 12 through 20:50 Ohms
Items 18 and 19: 75 Ohms
VSWR:
Items 1 through 9: 1.2:1 (DC-1GHz)
Items 12 through 15: 1.2:1 (DC-300 MHz)
Frequency Range:
Items 1 through 9: DC-1GHz
Items 12 through 15: DC-500 MHz
Items 16 through 19: DC-300 MHz
Item 20: 50MHz -3GHz
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Order Example: 5748
(Maxi Universal Adapter Kit)
Sales: 800-490-2361
Rev: 101
D1094642, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 1 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Model 5748 -
Maxi Universal Adapter Kit
Model 5749 -
Universal Adapter Cable
Item
1
2
3
4
5
6
7
8
9
Description
“N” male
BNC male
TNC male
SMA male
“N” female
BNC female
TNC female
SMA female
Coupler
Model
5734
5735
5736
5737
5738
5739
5740
5741
5742
10
Double
Banana Plug
5743
11
Double
Binding Post
5744
12
13
14
15
16
17
18
19
20
UHF male
UHF female
Mini UHF
male
Mini UHF
female
RCA male
RCA female
“F” male
“F” female
Signal
Sampler
5752
5756
5753
5757
5754
5758
5759
5755
5760
Material
Center Contact: Gold Plated Brass, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Spring:
Beryllium copper ASTM B194, alloy 172 cond. Ht.
Plug Body:
Brass per QQ-B-626, alloy 360, ½ hard.
Finish:
Nickel plated per QQ-N-290, class2, 200/300 microinches
Insulation:
ABS. Color: Black
Center Contact: Gold plated brass
Dielectric:
Teflon
Shell:
Silver plated brass
Body:
Brass per QQ-B-626, alloy 360, ½ hard
Finish:
Nickel plated per QQ-N-290, class 2, 200/300 microinches
Insulation:
Polycarbonate. Color: one black, one red
Insulation, Body: ABS. Color: Black
Center Contact: Gold plated phosphor bronz
Dielectric:
Teflon
Shell:
Silver plated brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361
Rev: 101
D1094642, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 2 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Model 5748 -
Maxi Universal Adapter Kit
Model 5749 -
Universal Adapter Cable

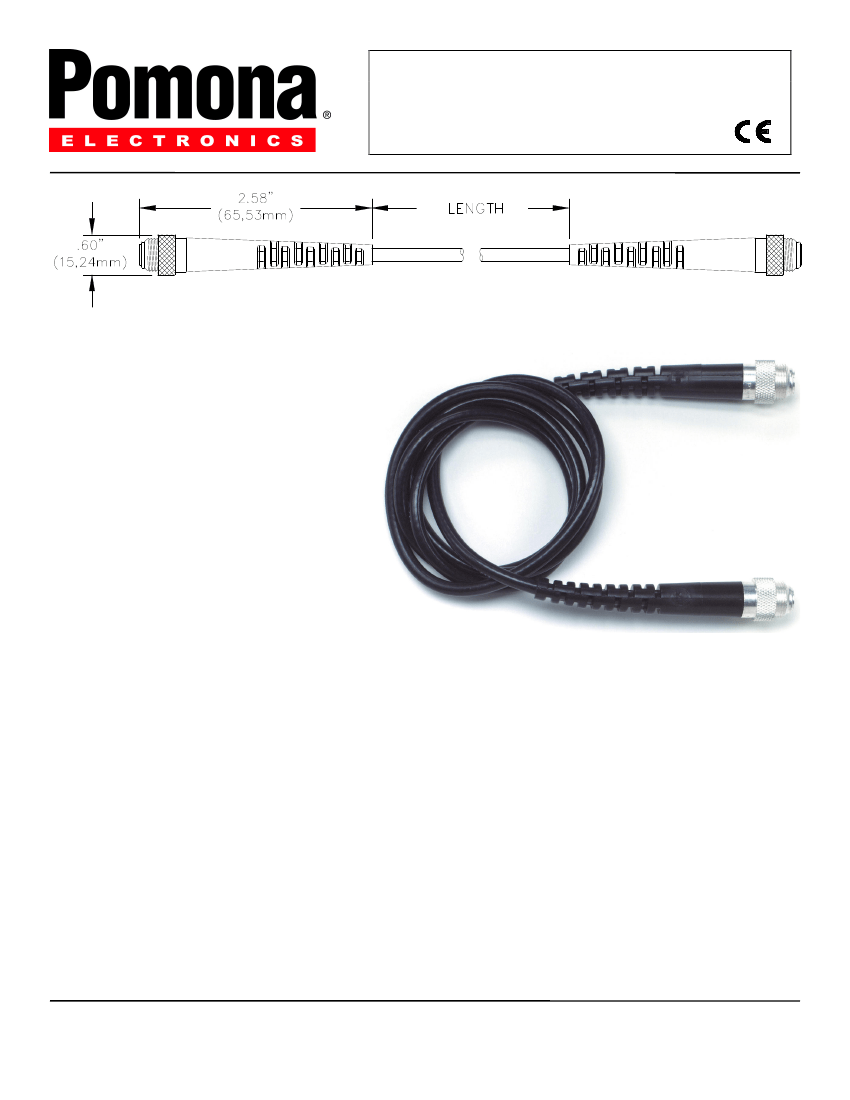

FEATURES:
•
Universal Adapter Cable used with
Pomona Universal Adapter Kits,
models 5698 and 5748.
MATERIALS:
Coupler Shell (each end):
Brass, Nickel
Plated
Coupler Conductor:
Phosphor Bronze, Gold
Plated
Strain Relief Boot:
PVC Black
Cable:
RG58C/U, O.D.: 0.195”
Frequency:
DC – 1.2GHz.
Impedance:
50 Ohms
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 500 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +122°F (+50°C) Max.
ORDERING INFORMATION:
Model 5749-Length
Length
=: 24” (60,96cm), 36” (91,44cm), 48” (121,92cm), 60” (152.40cm) & 72” (182,88cm)
Order Example: 5749-48 (Cable ONLY, 48”)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361
Rev: 101
D1094642, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 3 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
