55616-0551: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,; CategoryThe connector; File Size108KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

55616-0551 Overview

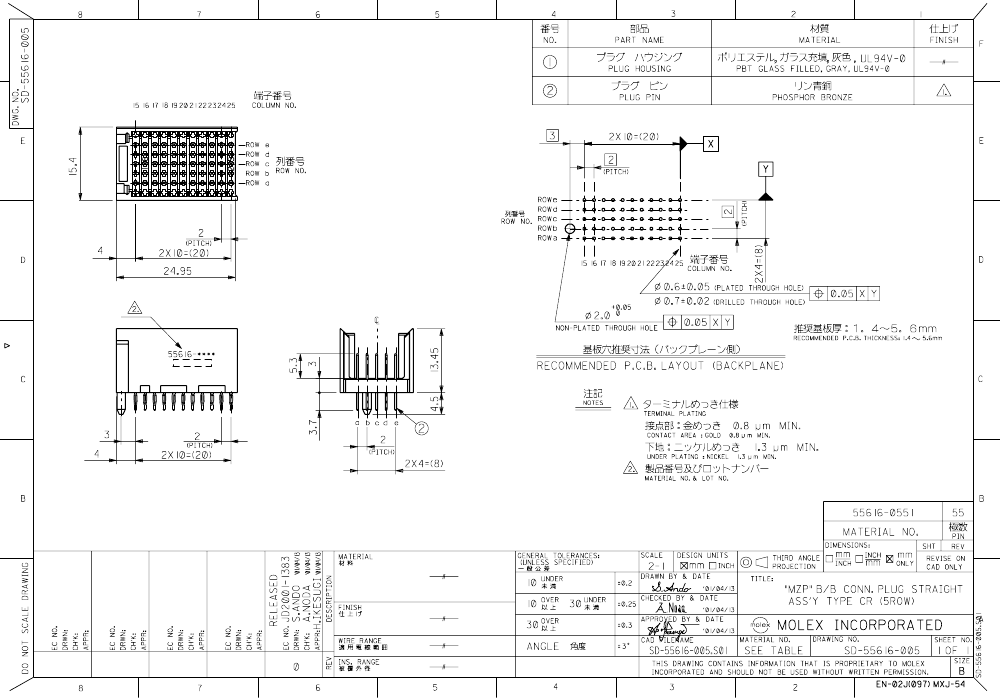

Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N

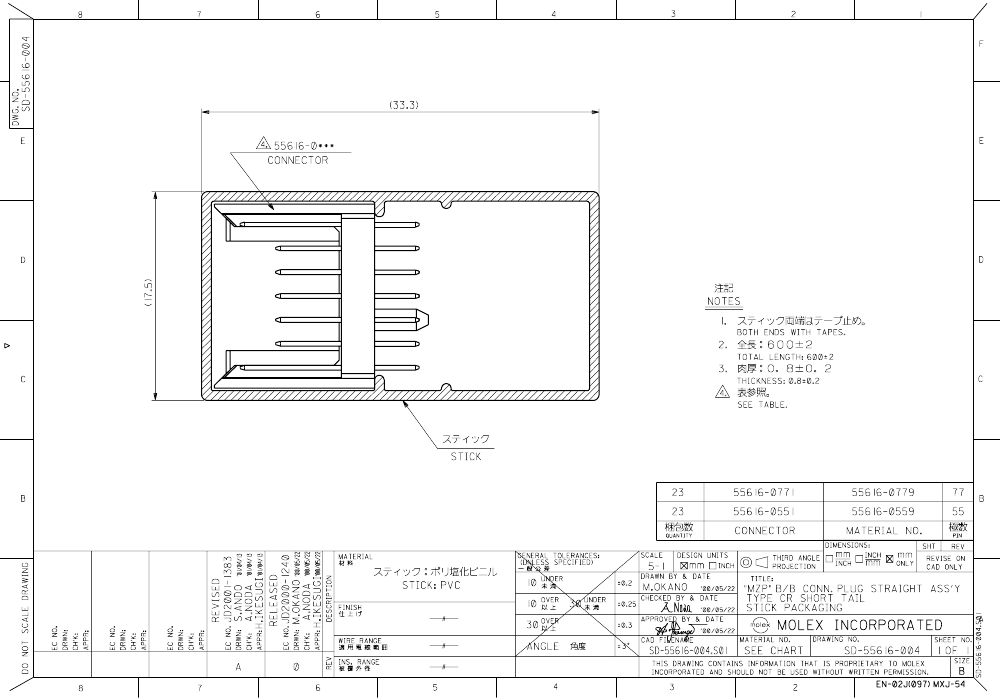

Other features	WITH TUBE PACKAGING
Board mount options	PEG
body width	0.606 inch
subject depth	0.53 inch
body length	0.982 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

	55616-0551	55616-0559	55616-0779	55616-0771
Description	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 77 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug,
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	unknown
Is Samacsys	N	N	N	N
Other features	WITH TUBE PACKAGING	MZP, SHIELDED	MZP, SHIELDED	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	7	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	55	55	77	77
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
Contact to complete cooperation	AU ON NI	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-
Contact completed and terminated	GOLD OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
JESD-609 code	e4	e4	e4	-
