CA24J138207Q

Description
Rocker Switches Rocker
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size1MB,8 Pages
ManufacturerC&K Switches
Environmental Compliance
Download Datasheet Parametric View All

CA24J138207Q Online Shopping

Suppliers Part Number Price MOQ In stock
CA24J138207Q - - View Buy Now

CA24J138207Q Overview

Rocker Switches Rocker

CA24J138207Q Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerC&K Switches
Product CategoryRocker Switches
RoHSDetails
ActuatorRocker
Factory Pack Quantity1

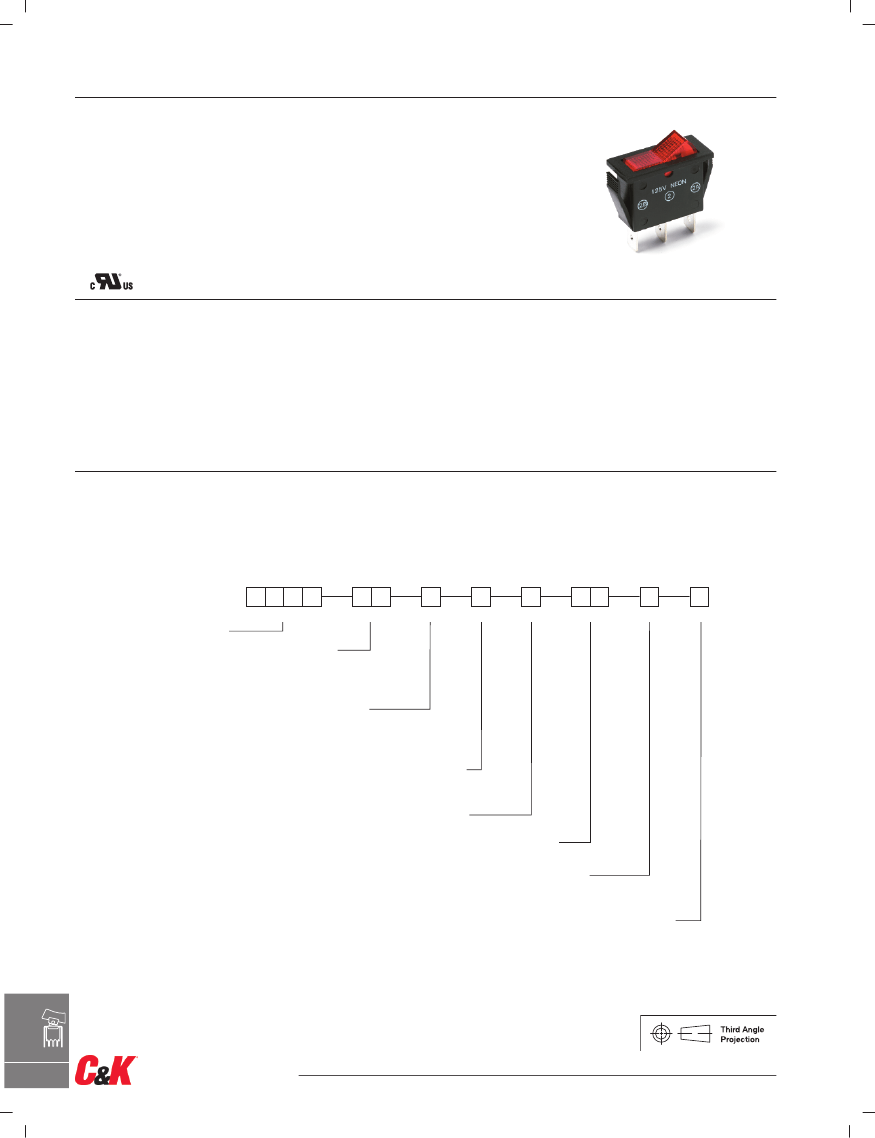

CA Series
Power Rocker Switches
Features/Benefits
15 AMPS @ 125 V AC
Cosmetic slimline detail
Positive detent
Typical Applications
Hair dryers and other small appliances
HVAC and other large appliances
RoHS compliant
Specifications
CONTACT RATING: 15 AMPS @ 125 V AC;
10 AMPS @ 250 V AC;
1/4 HP @ 125 V AC or 250 V AC
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -30ºC to +65ºC
Materials
HOUSING: 6/6 nylon (UL 94V-2), black.
ACTUATOR: Polycarbonate (UL 94V-2), black.
CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
CONTACT SPRING: Music wire.
NOTE:
Specifications and material listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

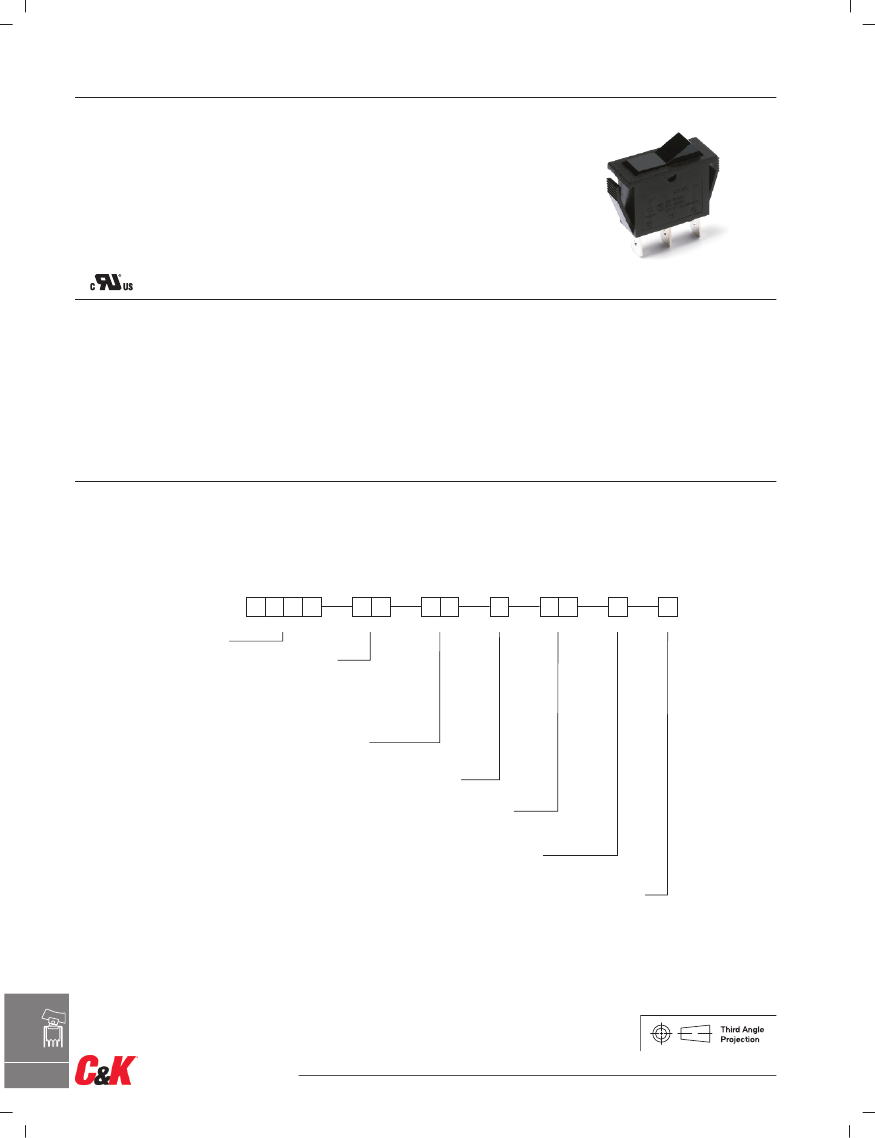

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–106 through G–108. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CA01
SPDT, On-On
CA02
SPST, On-Off
CA21
DPDT, On-On
CA22
DPST, On-Off
Actuator
J1
Rocker with gloss finish
J7
Curved rocker with matte finish
Actuator Color
2
Black
1
White
3
Red
6
Green
Housing Color
2
Black
Terminations
07
Quick connect
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
P
O–
Rocker
Contact Material
Q
Silver
G

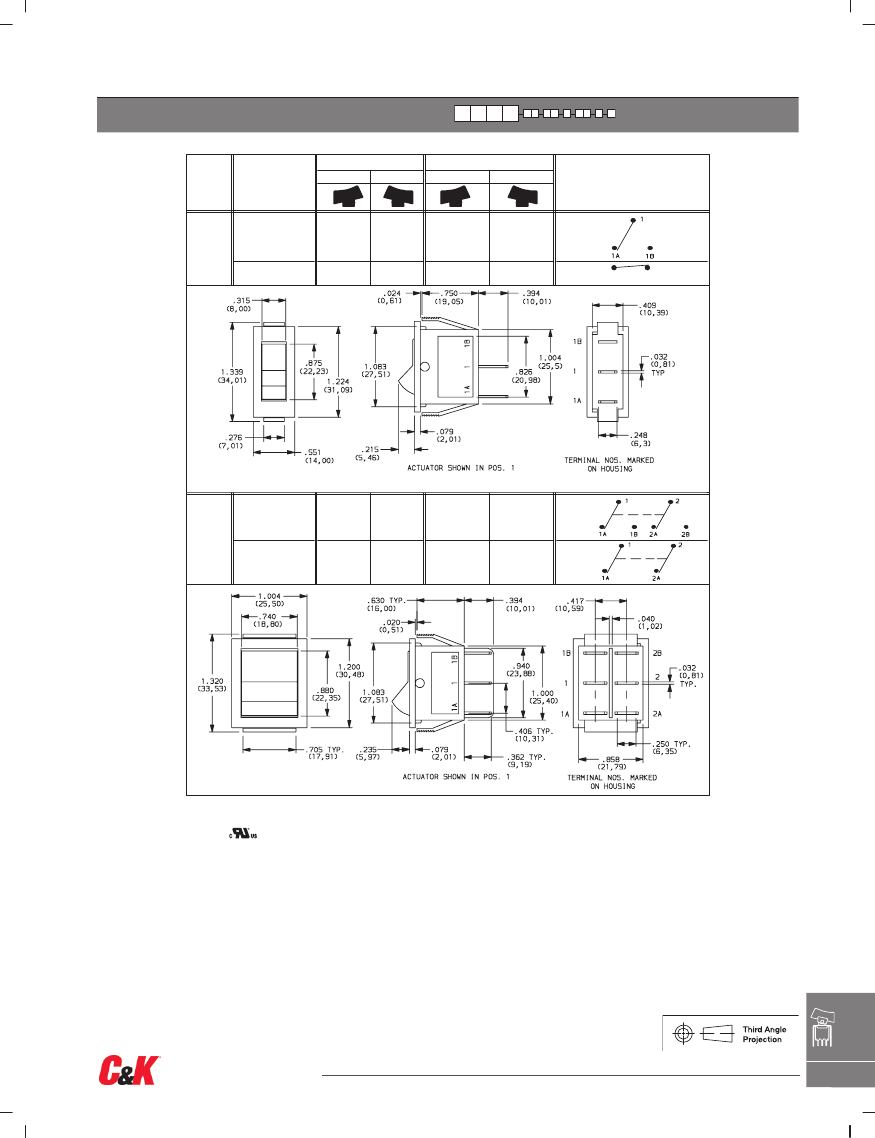

Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
