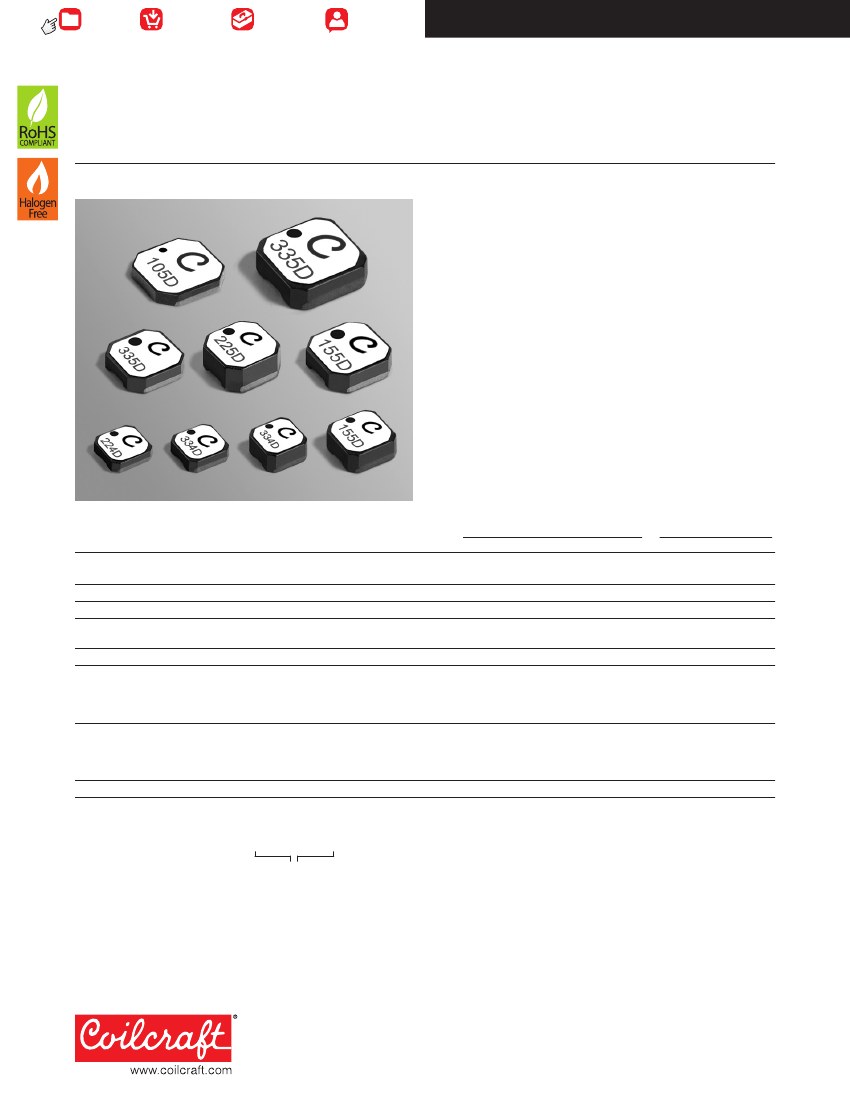

Document 1244-1
Shielded Power Inductors
High Inductance
• High inductance values (220 – 4700 µH) not available in the
corresponding LPS series of parts
• Rugged construction improves pick and place operation
• LPZ3010, LPZ3015, LPZ4012 and LPZ4018 are rated
AEC-Q200 Grade 3 (−40°C to +85°C)
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over silver.
Ambient temperature
–40°C to +85°C with
Irms
current
Maximum part temperature
+125°C (ambient + temp rise)
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Tested with pure water or alcohol only. For other solvents,
see
Doc787_PCB_Washing.pdf.
Part number
1
LPZ3008-224MR_
LPZ3008-334MR_
LPZ3010-334MR_
LPZ3015-334MR_
LPZ3314-105MR_
LPZ3314-155MR_
LPZ4012-335MR_
LPZ4018-155MR_
LPZ4018-185MR_
LPZ4018-225MR_
LPZ4018-335MR_
LPZ4414-155MR_
LPZ4414-185MR_
LPZ4414-225MR_
LPZ4414-335MR_
LPZ5010-105MR_
LPZ5015-335MR_
LPZ5015-475MR_
Inductance
2
±20% (µH)
220
330
330
330
1000
1500
3300
1500
1800
2200
3300
1500
1800
2200
3300
1000
3300
4700
DCR max
3
(Ohms)
11.5
18.0
18.5
23.0
31.0
44.0
65.0
25.0
31.5
32.5
48.0
26.4
35.0
42.5
56.0
28.0
55.0
80.0
SRF typ
4
(MHz)
9.0
7.0
7.0
5.0
3.0
2.7
0.95
2.4
2.3
2.1
1.6
2.2
1.9
1.9
1.3
3.0
1.7
1.4
2.
3.
4.
5.
10% drop
0.067
0.059
0.10
0.10
0.090
0.080
0.074
0.095
0.090
0.088
0.082
0.096
0.089
0.082
0.072
0.087
0.064
0.062
Isat
(A)
5
20% drop 30% drop
0.073
0.064
0.105
0.11
0.099
0.086
0.078
0.10
0.095
0.094
0.092
0.099
0.094
0.089
0.078
0.096
0.072
0.069
0.076
0.066
0.115
0.11
0.100
0.090
0.080
0.105
0.10
0.10
0.094
0.10
0.097
0.092
0.083
0.10
0.076
0.072
Irms
(A)
6
20°C rise 40°C rise
0.100
0.090
0.085
0.070
0.082
0.060
0.050
0.080
0.070
0.070
0.055
0.085
0.075
0.065
0.055
0.080
0.055
0.045
0.145
0.130
0.11
0.095
0.100
0.080
0.065
0.11
0.095
0.090
0.075
0.11
0.10
0.080
0.070
0.11
0.075
0.065
1. When ordering, please specify
termination
and
packaging
codes:
LPZ3008-334MRC
Termination: R
= RoHS compliant matte tin over nickel over silver.
Special order, added cost:
Q
= RoHS tin-silver-copper (95.5/4/0.5) or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.
DCR measured on a micro-ohmmeter.
SRF measured using an Agilent/HP 8753ES or equivalent.
DC current that causes the specified inductance drop from its value
without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1244-1
Revised 01/05/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

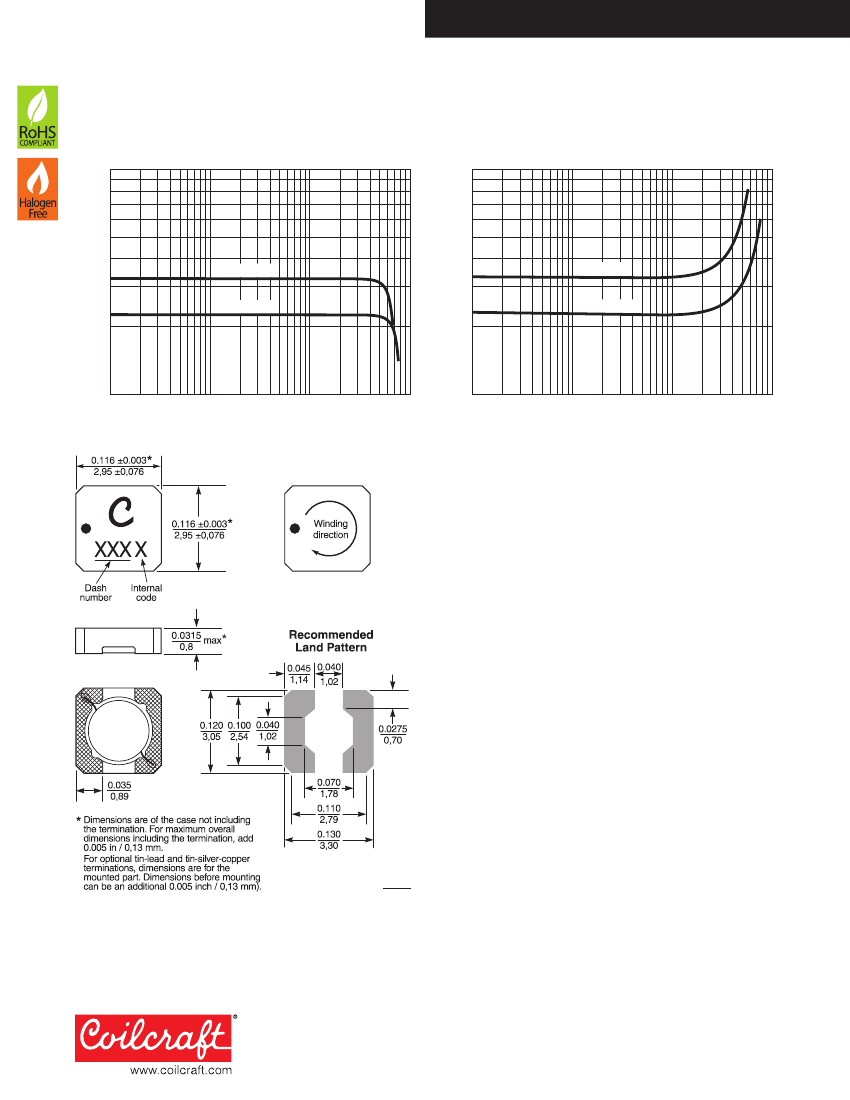

Document 1244-2
Shielded Power Inductors – LPZ3008
L vs Current
1000
800
700
600
500
400
300
220 µH
200
330 µH
L vs Frequency
1000
800
700
600
500
400
300
220 µH
200
330 µH
Inductance (µH)
Inductance (µH)
0.01
0.10
100
0.0001
0.001
100
0.01
0.1
1
10
Current (A)
Frequency (MHz)
Dimensions are in
inches
mm
Weight
22 – 25 mg
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
Recommended pick and place nozzle
OD: 3 mm; ID:
≤
1.5 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1244-2
Revised 01/05/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

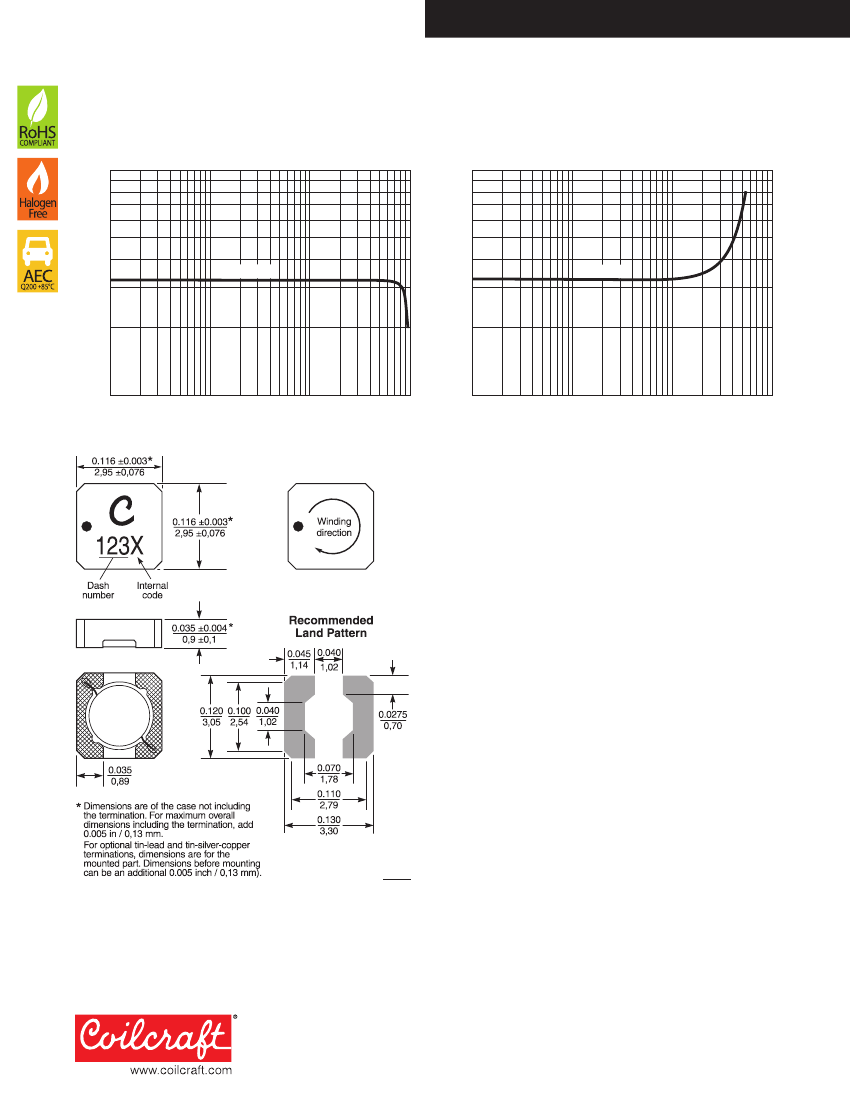

Document 1244-3
Shielded Power Inductors – LPZ3010
L vs Current
1000
800
700
600
500
400
300
330 µH
L vs Frequency
1000
800
700
600
500
400
300
330 µH
Inductance (µH)
200
Inductance (µH)
0.01
0.10
200
100
0.0001
0.001
100
0.01
0.1
1
10
Current (A)
Frequency (MHz)
Dimensions are in
inches
mm
Weight
25 – 32 mg
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.4 mm pocket depth
Recommended pick and place nozzle
OD: 3 mm; ID:
≤
1.5 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1244-3
Revised 01/05/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

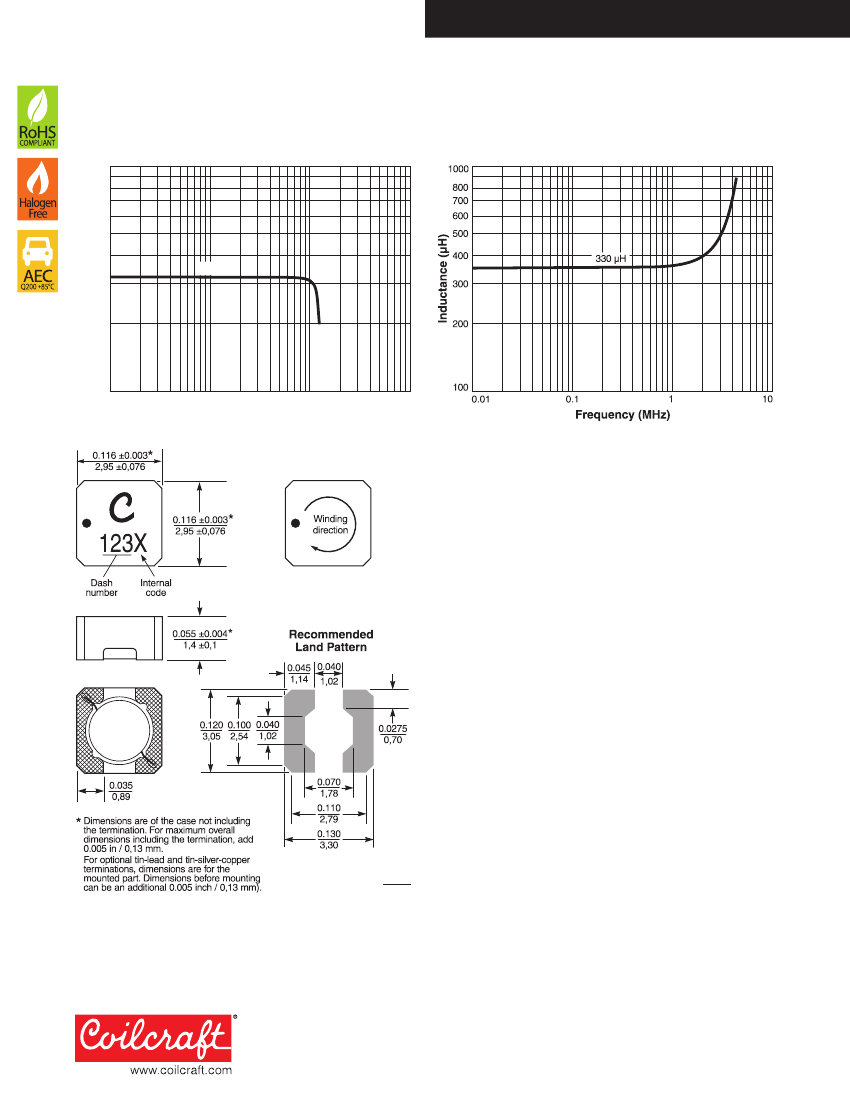

Document 1244-4
Shielded Power Inductor – LPZ3015
L vs Current
1000
800
700
600
500
400
330 µH
300
L vs Frequency
Inductance (µH)
200
100
0.001
0.01
0.1
1.0
Current (A)
Dimensions are in
inches
mm
Weight
40 – 45 mg
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.26 mm thick, 8 mm pocket spacing, 1.65 mm pocket depth
Recommended pick and place nozzle
OD: 3 mm; ID:
≤
1.5 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1244-4
Revised 01/05/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

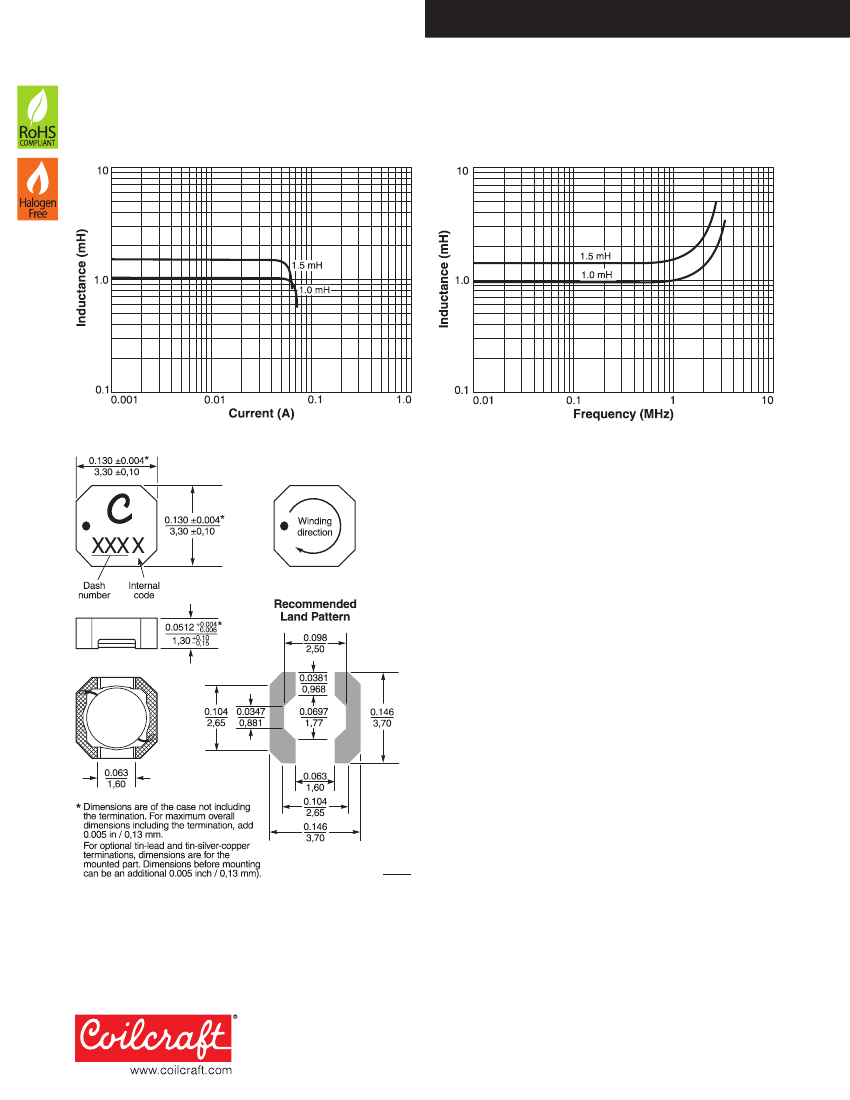

Document 1244-5
Shielded Power Inductors – LPZ3314
Typical L vs Current
Typical L vs Frequency
Dimensions are in
inches
mm
Weight
44.1 – 46.5 mg
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.52 mm pocket depth
Recommended pick and place nozzle
OD: 3.3 mm; ID:
≤
1.65 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1244-5
Revised 01/05/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
