84854-106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84854-106

84854-106: DescriptionBoard Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size343KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84854-106 Overview

Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle

84854-106 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Board mount options	PEG
body width	0.583 inch
subject depth	0.933 inch
body length	2.834 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	84854
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	MIXED
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

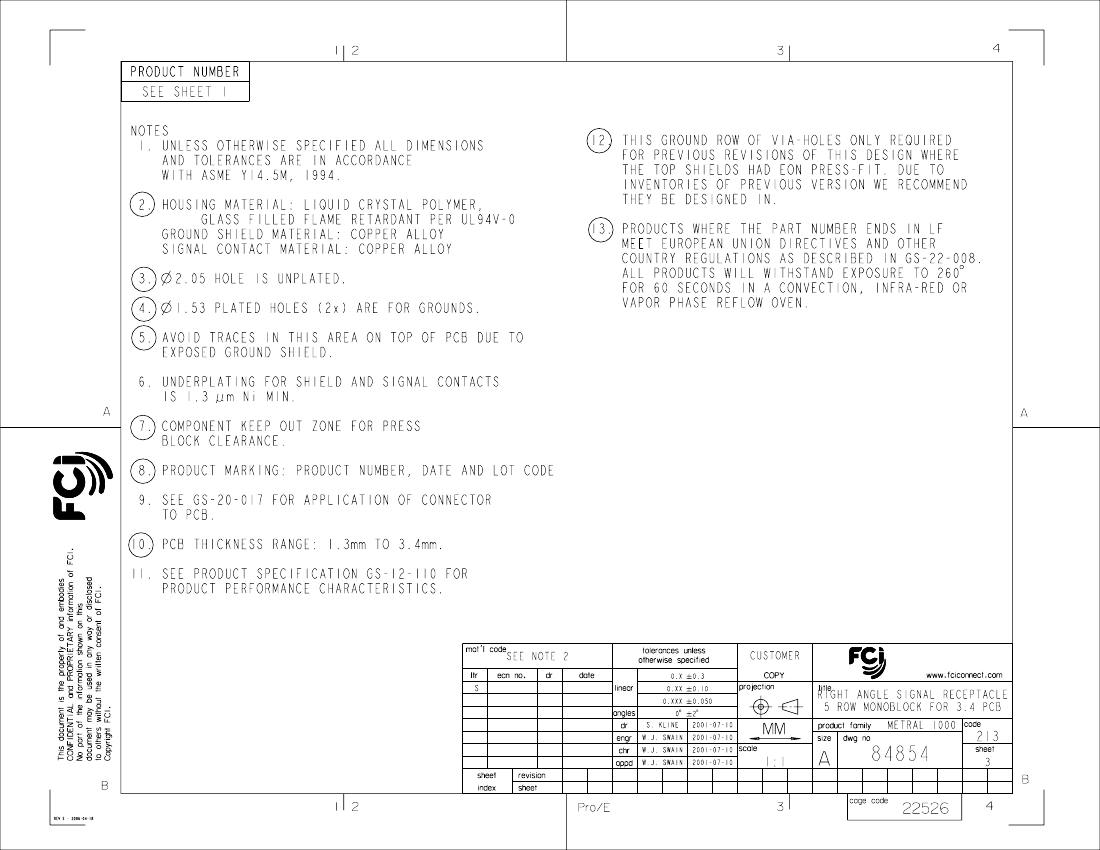

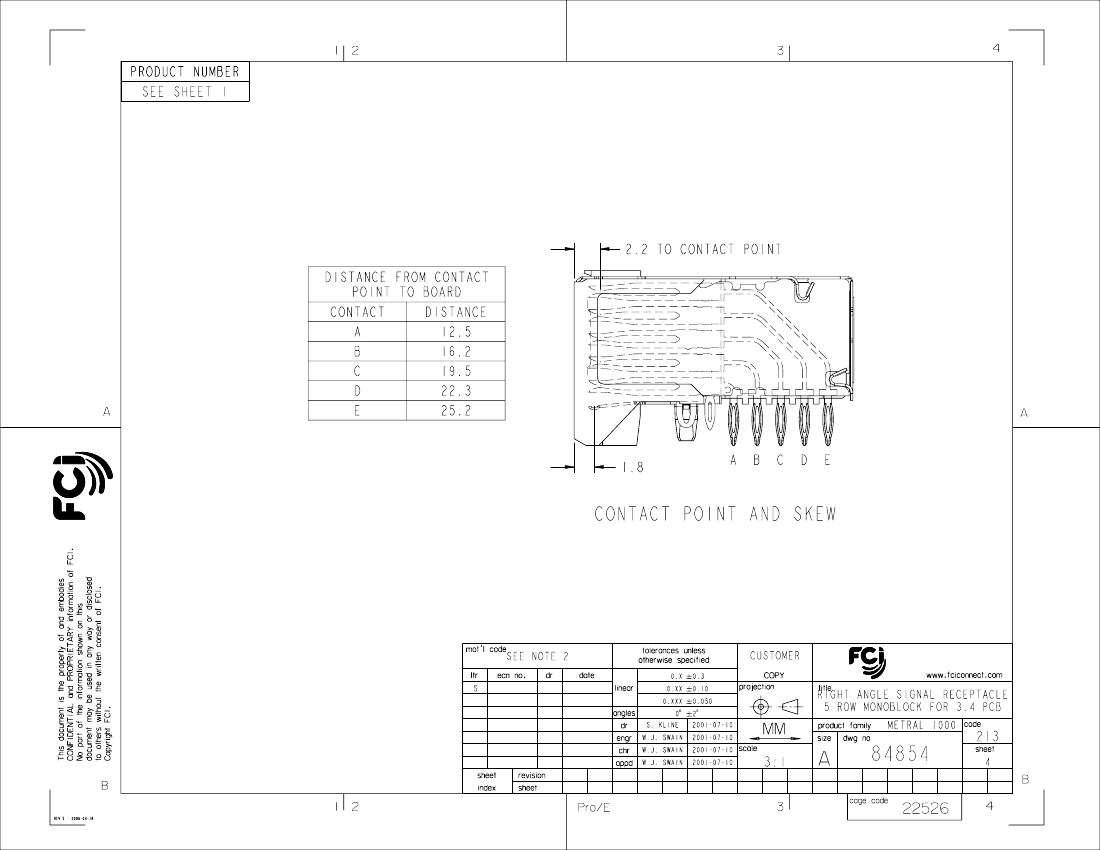

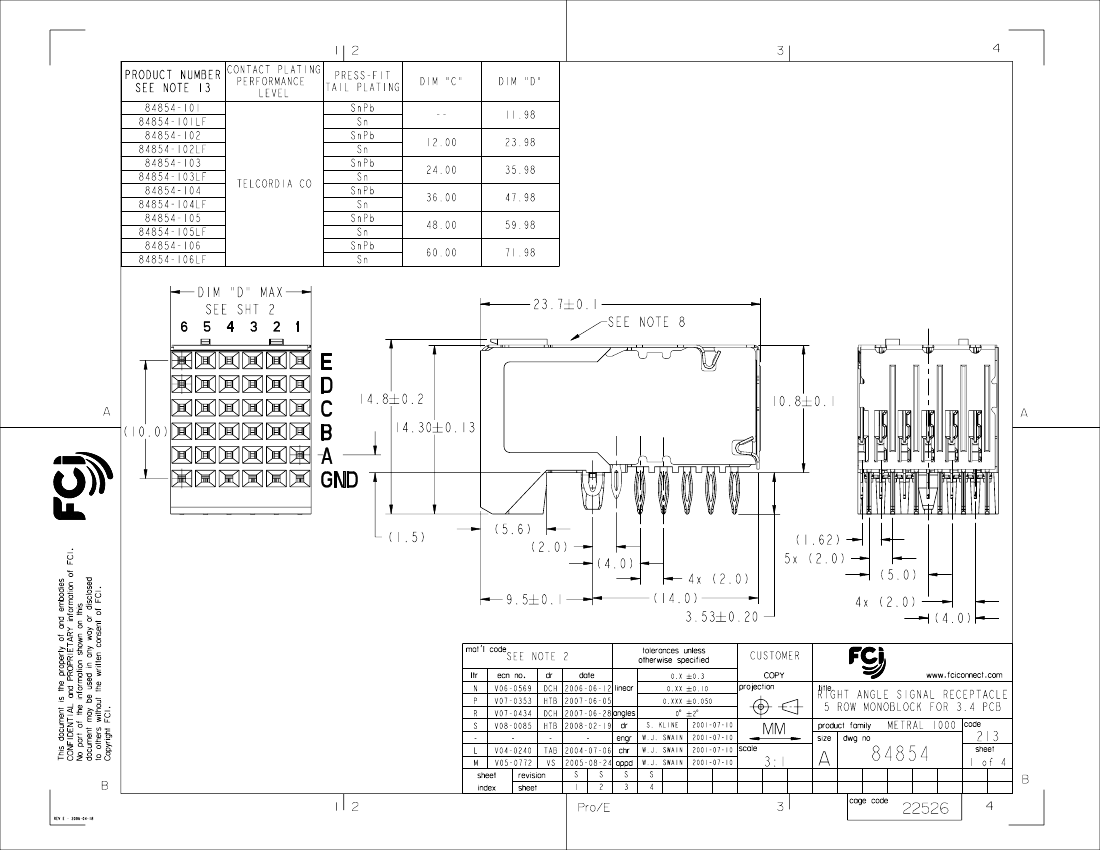

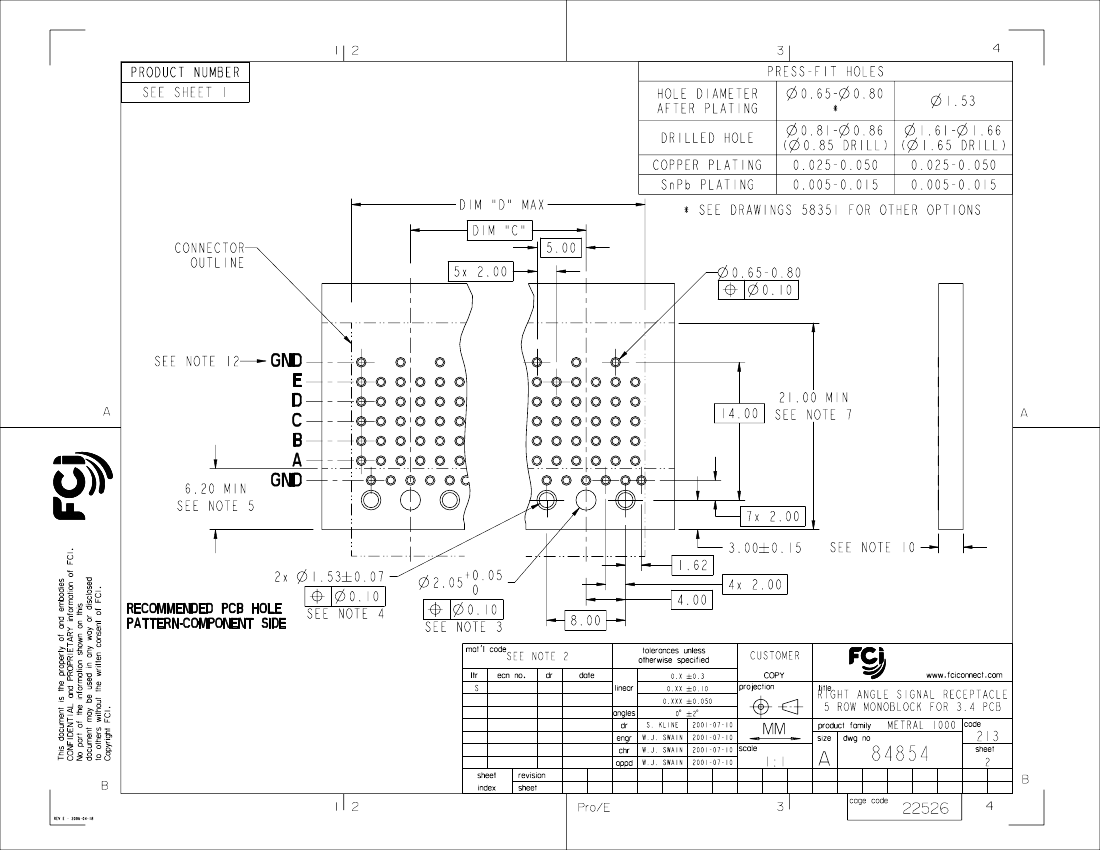

Preview

Download Datasheet

View All

PDM: Rev:S

STATUS:

Released

Printed: May 13, 2011

84854-106 Related Products

	84854-106	84854-103LF	84854-104LF	84854-105LF	84854-106LF	84854-105	84854-104	84854-103
Description	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle	Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	TIN	TIN	TIN	TIN	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e3	e3	e3	e3	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	84854	84854	84854	84854	84854	84854	84854	84854
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	36	36	36	36	36	36	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
