SNB-3754 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> SNB-3754

Preview

SNB-3754: DescriptionElectrical Enclosures 24 x 24 x 10 PAINTED STEEL; CategoryTopical application Mechanical and electrical/engineering/automation; File Size118KB，2 Pages; ManufacturerBud Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

SNB-3754 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SNB-3754	-	-	View	Buy Now

SNB-3754 Overview

Electrical Enclosures 24 x 24 x 10 PAINTED STEEL

SNB-3754 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bud Industries
Product Category	Electrical Enclosures
Shipping Restrictions	Due to size or weight of the product, your shipping charge may increase.
RoHS	Details
Product	Industrial Enclosures
Type	NEMA Enclosure
Material	Steel
Color	Gray
Length	254 mm
Width	254 mm
Height	609.6 mm
IP Rating	IP66
NEMA Rating	1, 2, 4, 4X, 12, 13
Features	Air tight seal, quarter turn lock and key, mounting hardware supplied
Factory Pack Quantity	1
Unit Weight	35.300 lbs

Preview

Download Datasheet

View All

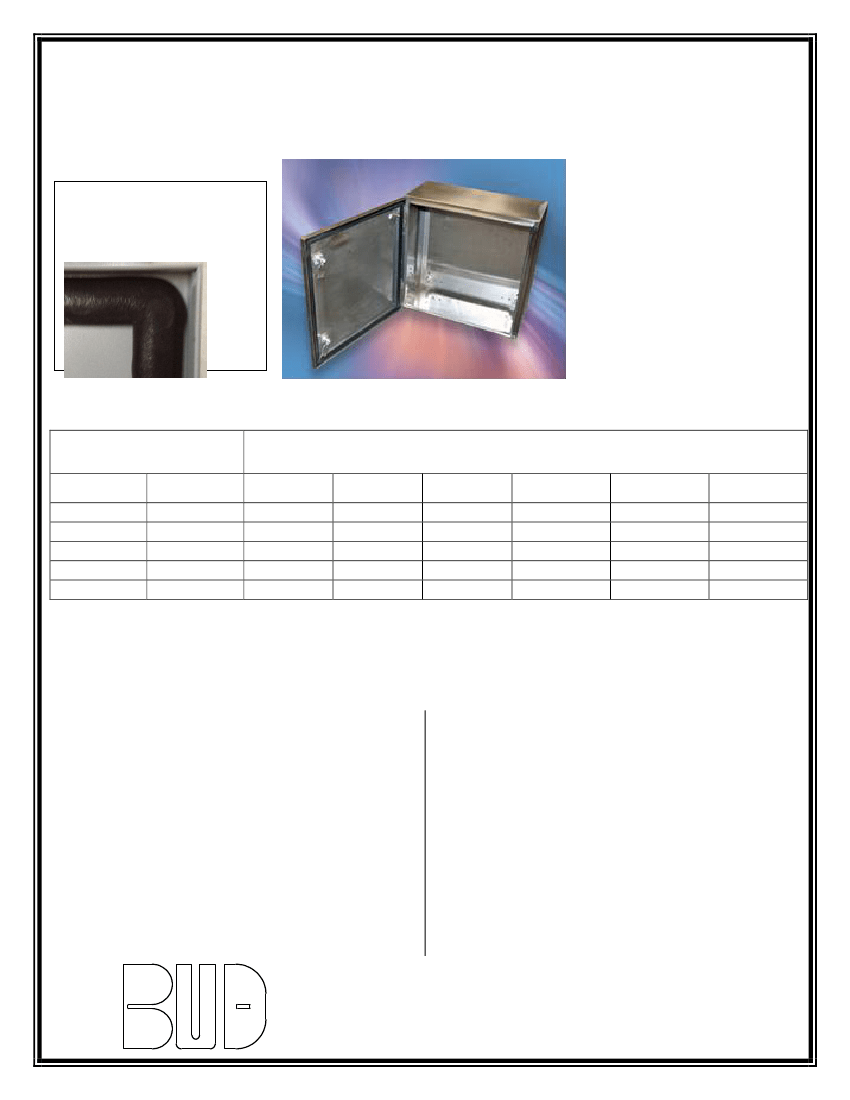

NEMA SHEET METAL BOX

SNB – NEW SIZES

NEW!!

Continues Door Gasket

Poured In Place.

Ordering Information

CATALOG NO.

PAINTED

STEEL

STAINLESS

STEEL

EXTERNAL DIMENSIONS

H

20

24

W

16

20

16

20

24

D

8

12

8

10

D’-BOX

7.18

11.18

7.18

9.18

LOCKS

2

3

HINGES

3

SNB-3746

SNB-3749

SNB-3751

SNB-3752

SNB-3754

SNB-3746-SS

SNB-3749-SS

SNB-3751-SS

SNB-3752-SS

SNB-3754-SS



Priced, sold and packaged in quantities of one



Available by August 1, 2013



Contact the factory for modifications

Trade name



SNB-Series NEMA 4X Sheet Metal

Box



Designed to meet NEMA 1, 2, 4, 4x,

12, 13 and

IP66

ratings.



UL listed and tested to

UL508-4X,

UL 50E

requirements.



Continuous seam welded 16 GA

(1.5mm). steel constructions OR

304

Stainless Steel (316 can be used as

a special order)



Continues poured in place door

gasket provide air tight seal.

Benefits and Features



New design for increased rigidity

and longevity. Bar folded flanges

eliminate sharp edges.

BUD INDUSTRIES, INC.



4605 E. 355

th

Street



P.O. Box 998

Willoughby, Ohio 44094



(440) 946-3200



Fax (440) 951-4015

E-MAIL:

saleseast@budind.com



WEB SITE:

www.budind.com

BUD WEST



10000 N 31

st

Ave. Suite D-401



Phoenix, Arizona

85051



(602) 870-8377



Fax (602) 870-8477

SNB-3754 Related Products

	SNB-3754	SNB-3746-SS	SNB-3749
Description	Electrical Enclosures 24 x 24 x 10 PAINTED STEEL	Electrical Enclosures 20 x 16 x 8 STAINLESS STEEL	Electrical Enclosures 20 x 20 x 12 PAINTED STEEL
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bud Industries	Bud Industries	Bud Industries
Product Category	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures
Shipping Restrictions	Due to size or weight of the product, your shipping charge may increase.	Due to size or weight of the product, your shipping charge may increase.	Due to size or weight of the product, your shipping charge may increase.
RoHS	Details	Details	Details
Product	Industrial Enclosures	Enclosures	Industrial Enclosures
Type	NEMA Enclosure	Weather Resistant	NEMA Enclosure
Material	Steel	Steel	Steel
Color	Gray	Silver	Gray
Length	254 mm	20 in	12 in
Width	254 mm	16 in	304.8 mm
Height	609.6 mm	8 in	20 in
IP Rating	IP66	IP66	IP66
NEMA Rating	1, 2, 4, 4X, 12, 13	1, 2, 4, 4X, 12, 13	1, 2, 4, 4X, 12, 13
Features	Air tight seal, quarter turn lock and key, mounting hardware supplied	Air tight seal, quarter turn lock and key, mounting hardware supplied	Air tight seal, quarter turn lock and key, mounting hardware supplied
Factory Pack Quantity	1	1	1
Unit Weight	35.300 lbs	20.296 lbs	29.400 lbs
