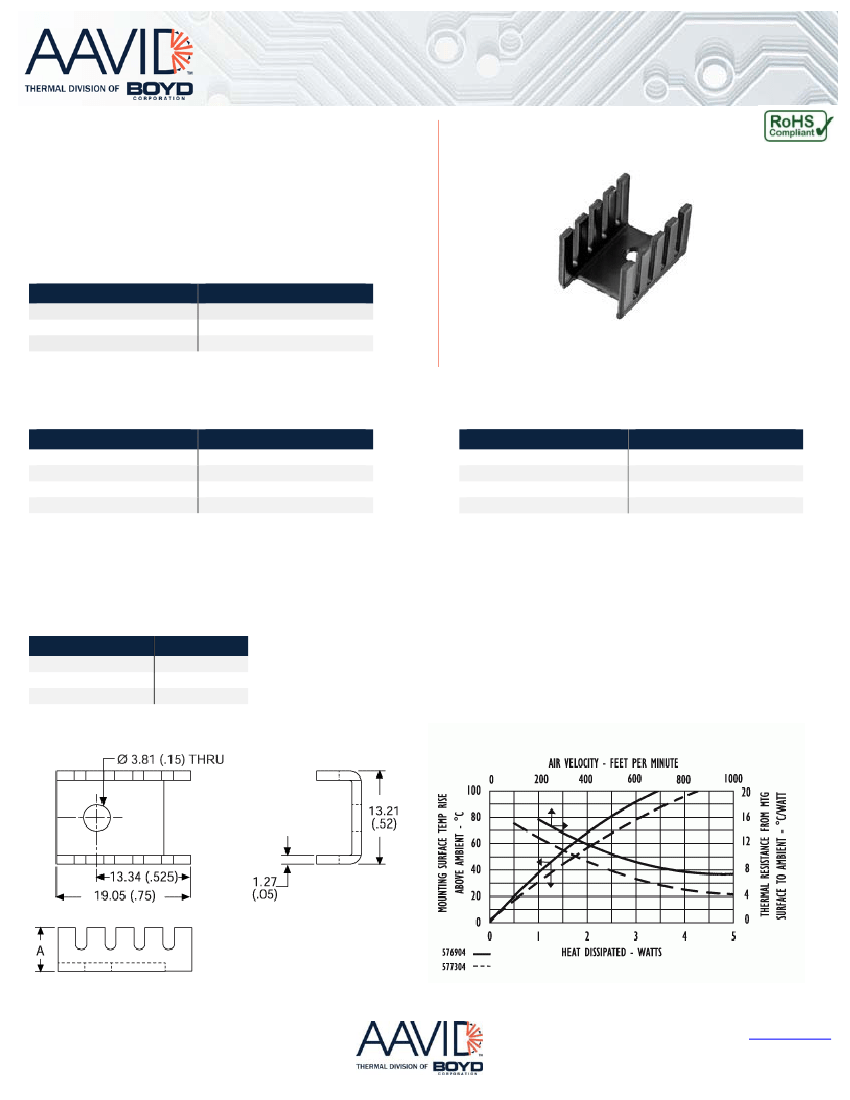

DATASHEET
BOARD LEVEL COOLING ‐ Channel 5700
Board Level Cooling – Channel 5700
Channel 5700 is a series of channel board level heat sinks designed to cool
TO‐202 devices. Representative image only.
ORDERING INFORMATION
Part Number
576904B00000G
577304B00000G
577404B00000G
Device Type
TO‐202
TO‐202
TO‐202
HEAT SINK DETAILS
Property
Material
Finish
Device Attachment Options
Thermal Interface Material
Details
Aluminum
Black Anodize
Requires Mounting Kit
‐
Property
Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
Details
13.21
See “A” Dim below
19.05
Horizontal, Vertical
MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)
Part Number
576904B00000G
577304B00000G
577404B00000G
“A Dim”
6.35
9.53
12.7
USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122
Board Level Cooling
