577102B00000G datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> Heat resisting bracing> 577102B00000G

Preview

577102B00000G: DescriptionHeat Sinks TO-220 HORIZ/VERT SLIM CHANNEL STYLE; CategoryThermal management products Heat resisting bracing; File Size309KB，3 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric Compare View All

577102B00000G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	577102B00000G	-	-	View	Buy Now

577102B00000G Overview

Heat Sinks TO-220 HORIZ/VERT SLIM CHANNEL STYLE

577102B00000G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Main material	ALUMINUM
color	BLACK
structure	FIN
Device is on	TRANSISTOR
fin direction	TRANSVERSE
Surface layer	ANODIZED
high	19.05 mm
length	13.21 mm
contour	U
Thermal resistance	25.9 Ω
Heat Resistant Support Device Type	HEAT SINK
width	9.52 mm
Base Number Matches	1

Preview

Download Datasheet

View All

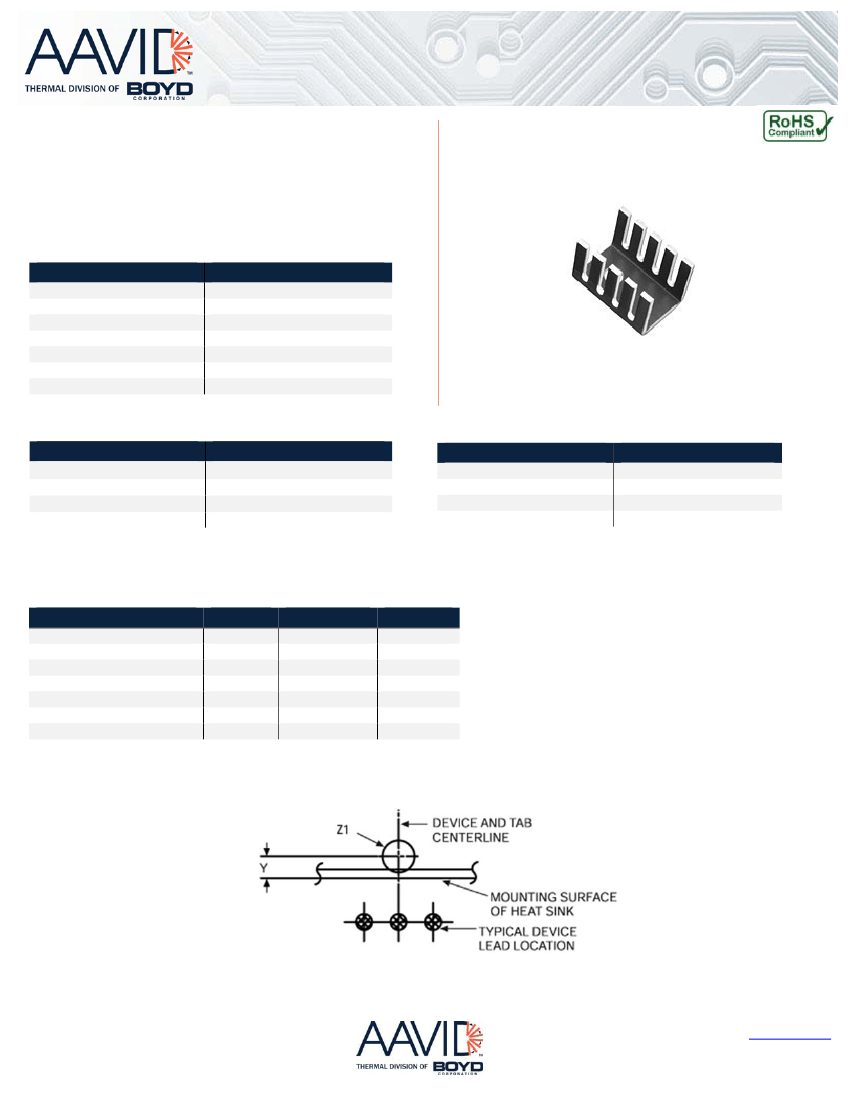

DATASHEET

BOARD LEVEL COOLING ‐ Channel 5770

Board Level Cooling – Channel 5770

Device Type

TO‐220, TO‐220‐single gauge

Channel 5770 is a series of channel board level heat sinks designed to cool

TO‐220 and TO‐220‐single gauge devices. Representative image only.

ORDERING INFORMATION

Part Number

577002B00000G

577002B04000G

577102B00000G

577102B04000G

577202B00000G

577202B04000G

6084BG

HEAT SINK DETAILS

Property

Material

Finish

Device Attachment Options

Thermal Interface Material

Details

Aluminum

Black Anodize

Mounting Kit Required

‐

Property

Heat Sink Width (mm)

Heat Sink Length (mm)

Heat Sink Height (mm)

Heat Sink Mounting Direction

Details

13.21

See “H” Dim Below

19.05

Horizontal, Vertical

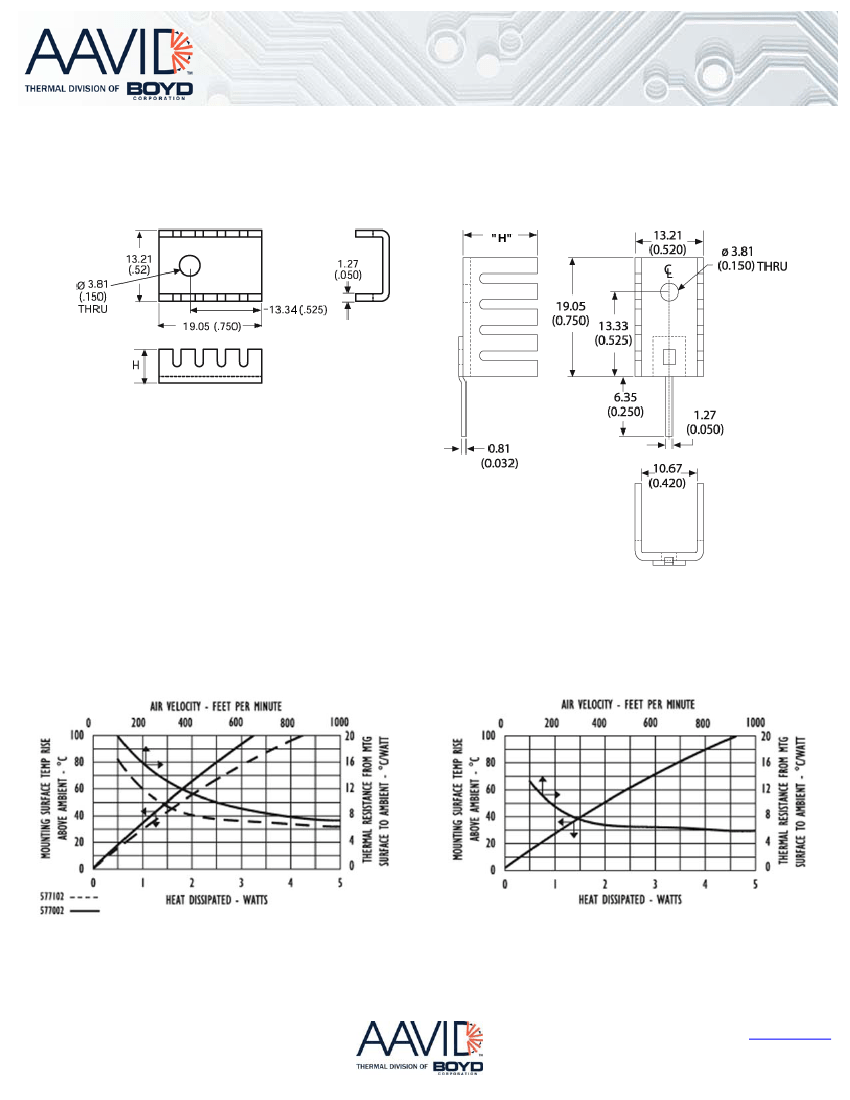

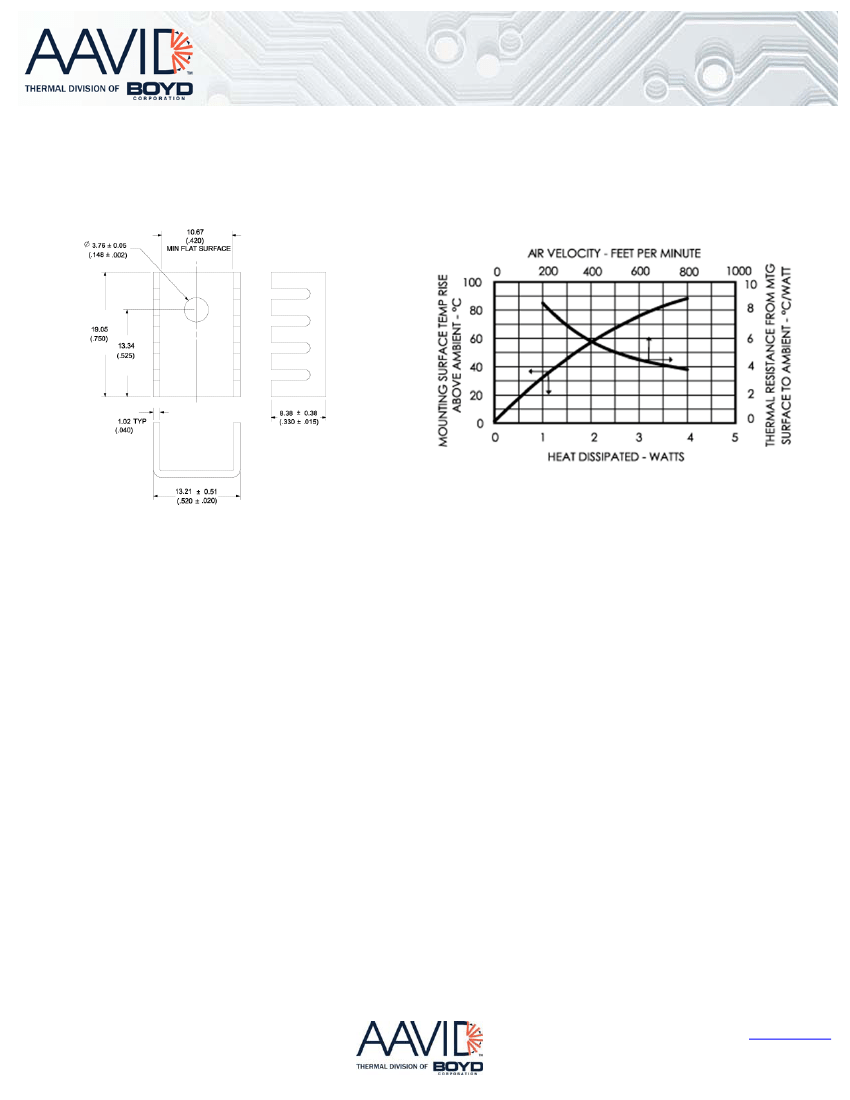

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

“Y” Dim

‐

0.86 (0.034)

‐

0.86 (0.034)

‐

0.86 (0.034)

‐

Part Number

577002B00000G

577002B04000G

577102B00000G

577102B04000G

577202B00000G

577202B04000G

6084BG

“H” Dim

6.35

9.52

12.7

8.38

“Z” Dim

‐

1.75 (0.069)

‐

1.75 (0.069)

‐

1.75 (0.069)

‐

Mounting Details:

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com

577102B00000G Related Products

	577102B00000G	577202B00000G	577202B04000G	577002B00000G	6084BG
Description	Heat Sinks TO-220 HORIZ/VERT SLIM CHANNEL STYLE	Heat Sinks TO-220 HORIZ/VERT SLIM CHANNEL STYLE	Heat Sinks TO-220 VERT 24.4 TR	Heat Sinks TO-220 HORIZ/VERT CHANNEL STYLE	Heat Sinks BLACK ANODIZE TO-220
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	8 weeks	8 weeks	8 weeks	8 weeks	9 weeks
color	BLACK	BLACK	BLACK	BLACK	BLACK
Surface layer	ANODIZED	ANODIZED	ANODIZED	ANODIZED	ANODIZED
high	19.05 mm	19.05 mm	19.05 mm	19.05 mm	8.38 mm
length	13.21 mm	13.21 mm	13.21 mm	13.21 mm	19.05 mm
Heat Resistant Support Device Type	HEAT SINK	HEAT SINK	HEAT SINK	HEAT SINK	HEAT SINK
width	9.52 mm	12.7 mm	12.7 mm	6.35 mm	13.21 mm
Base Number Matches	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	Lead free	-
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Main material	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	-
structure	FIN	FIN	FIN	FIN	-
fin direction	TRANSVERSE	TRANSVERSE	TRANSVERSE	LONGITUDINAL	-
contour	U	-	U	U	U
Thermal resistance	25.9 Ω	-	24.4 Ω	32 Ω	22.5 Ω
Maker	-	Aavid Thermalloy	Aavid Thermalloy	Aavid Thermalloy	Aavid Thermalloy
