5500.2605.01: DescriptionPower Line Filters FMBB NEO Filter 1PH 2ST C 16A 250VAC; CategoryAnalog mixed-signal IC filter; File Size1MB，12 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5500.2605.01 Overview

Power Line Filters FMBB NEO Filter 1PH 2ST C 16A 250VAC

5500.2605.01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
Reach Compliance Code	compliant
Factory Lead Time	10 weeks 3 days
Certification	UL; ENEC-10
filter type	SINGLE PHASE EMI FILTER
high	41 mm
Maximum leakage current	0.5 mA
length	66 mm
Installation type	PANEL MOUNT
working frequency	60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L66.0XB51.0XH41.0 (mm)/L2.598XB2.008XH1.614 (inch)
Rated current	16 A
Rated voltage	250 V
width	51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

1-Phase AC Filters / DC Filters

https://www.schurter.com /PG84

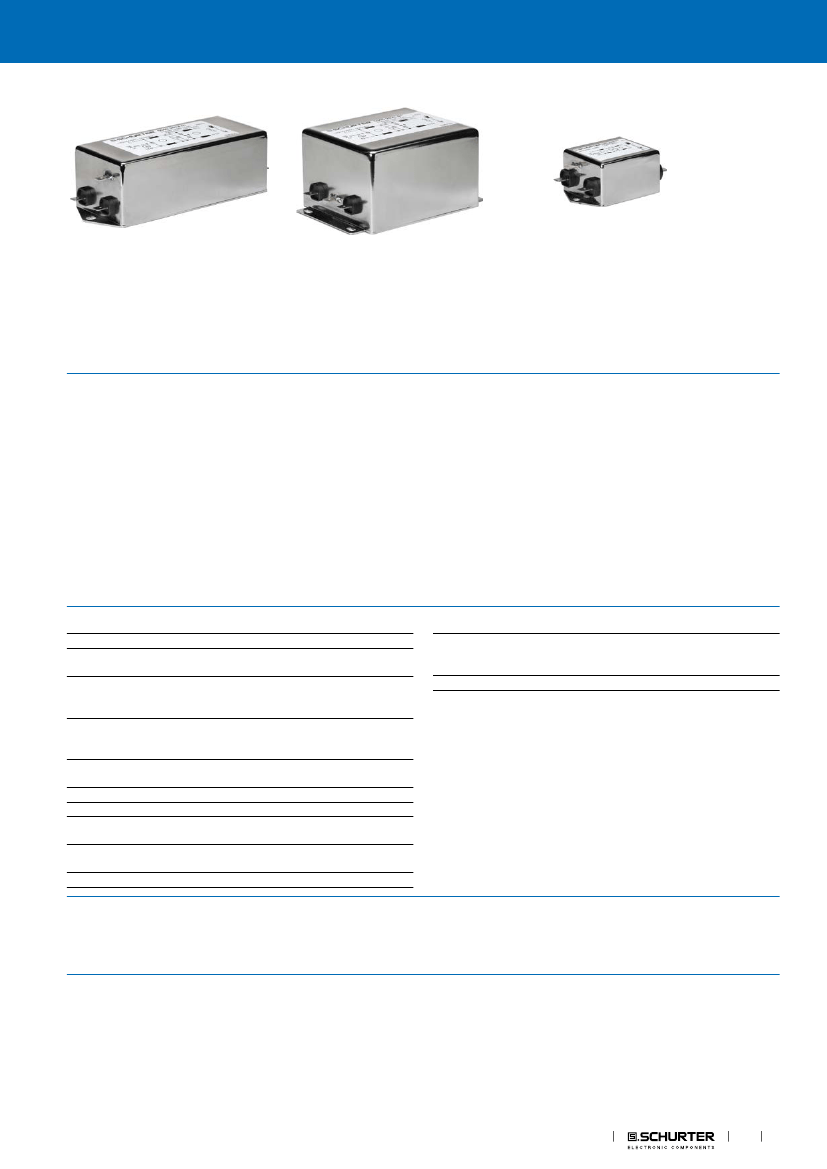

FMBB NEO

AC Filter 2-Stage, Broad Band Attenuation

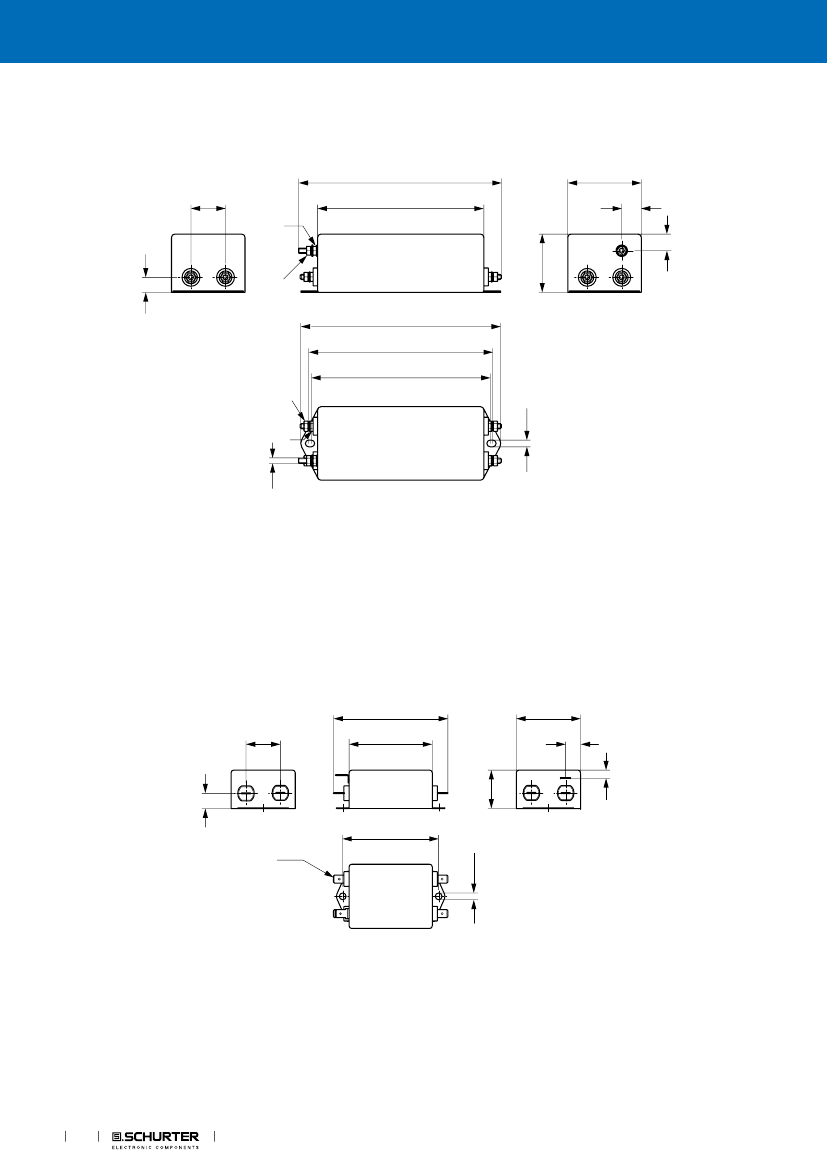

Quick connect terminals 6.3x0.8 mm

Case MB

Quick connect terminals 6.3x0.8 mm

Case MF

Quick connect terminals 6.3x0.8 mm

Case 09

Approvals and Compliances

Description

- Line filter in standard and medical version

- 2 stages

- 3 Designs:

C) high symmetrical and asymmetrical noise

attenuation

D) Excellent high frequency noise attenuation

F) Excellent low frequency noise attenuation

See below:

Characteristics

Unique Selling Proposition

Broad band attenuation

3 Filter designs for various applications

Compact and fully potted

Optional wire leads

- Designed for current applications of 1 - 36 A

- Protection against interference voltage from the mains

Possible interferences generated in the equipment are strongly attenu-

ated

- Especially designed for industrial applications such as: Frequency Con-

verters, Stepper Motor Drives, UPS-Systems, Inverters

- Suitable for use in equipment according to IEC/UL 60950

Suitable for use in medical equipment according to IEC/UL 60601-1

Other versions on request

- Version with wire connection

References

Weblinks

Alternative: Standard version

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product, Microsite

Caractéristiques techniques

Ratings IEC

Valeurs nominales UL/CSA

Leakage Current

1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 30 A @ Ta 40 °C / 125/250 VAC;

60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical (M5) < 5 µA resp. (M80) < 80

µA (250 V / 60 Hz)

1.7 kVDC between L-N

2.75 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 100 °C

25/100/21 acc. to IEC 60068-1

from rear-side IP 20 IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminal 6.3 x 0.8 mm

Bolt and nut M4

Aluminum

Line Filter

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

Technical Details

> 200'000 h acc. to MIL-HB-217 F

MTBF

Résistance diélectrique

Température de fonctionne-

ment admissible

Climatic Category

IP-Protection

Protection Class

Borne

Matériau: Boîtier

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

EMC Products

5500.2605.01 Related Products

	5500.2605.01	5500.2603.01	5500.2624.01	5500.2617.03	5500.2620.01	5500.2604.01	5500.2612.01
Description	Power Line Filters FMBB NEO Filter 1PH 2ST C 16A 250VAC	Power Line Filters FMBB NEO FILTER 1PH 2ST C 10A 250VAC	Power Line Filters FMBB NEO Filter 1PH 2ST F 12A 250VAC	Power Line Filters FMBB NEO Filter 1PH 2ST D 36A 250VAC	Power Line Filters FMBB NEO Filter 1PH 2ST F 1A 250VAC	Power Line Filters FMBB NEO Filter 1PH 2ST C 12A 250VAC	Power Line Filters FMBB NEO Filter 1PH 2ST D 6A 250VAC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	10 weeks 3 days	10 weeks 3 days	10 weeks 3 days	10 weeks 3 days	7 weeks	10 weeks 3 days	7 weeks
Certification	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	41 mm	31 mm	46 mm	46 mm	31 mm	31 mm	46 mm
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
length	66 mm	66 mm	131 mm	131 mm	66 mm	66 mm	87 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L66.0XB51.0XH41.0 (mm)/L2.598XB2.008XH1.614 (inch)	L66.0XB51.0XH31.0 (mm)/L2.598XB2.008XH1.22 (inch)	L131.0XB58.0XH46.0 (mm)/L5.157XB2.283XH1.811 (inch)	L131.0XB58.0XH46.0 (mm)/L5.157XB2.283XH1.811 (inch)	L66.0XB51.0XH31.0 (mm)/L2.598XB2.008XH1.22 (inch)	L66.0XB51.0XH31.0 (mm)/L2.598XB2.008XH1.22 (inch)	L87.0XB52.0XH46.0 (mm)/L3.425XB2.047XH1.811 (inch)
Rated current	16 A	10 A	12 A	36 A	1 A	12 A	6 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	51 mm	51 mm	58 mm	58 mm	51 mm	51 mm	52 mm
Maker	SCHURTER	-	SCHURTER	-	SCHURTER	SCHURTER	-
Base Number Matches	1	1	1	1	-	1	1
package instruction	-	ROHS COMPLIANT PACKAGE	-	ROHS COMPLIANT PACKAGE	-	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE
