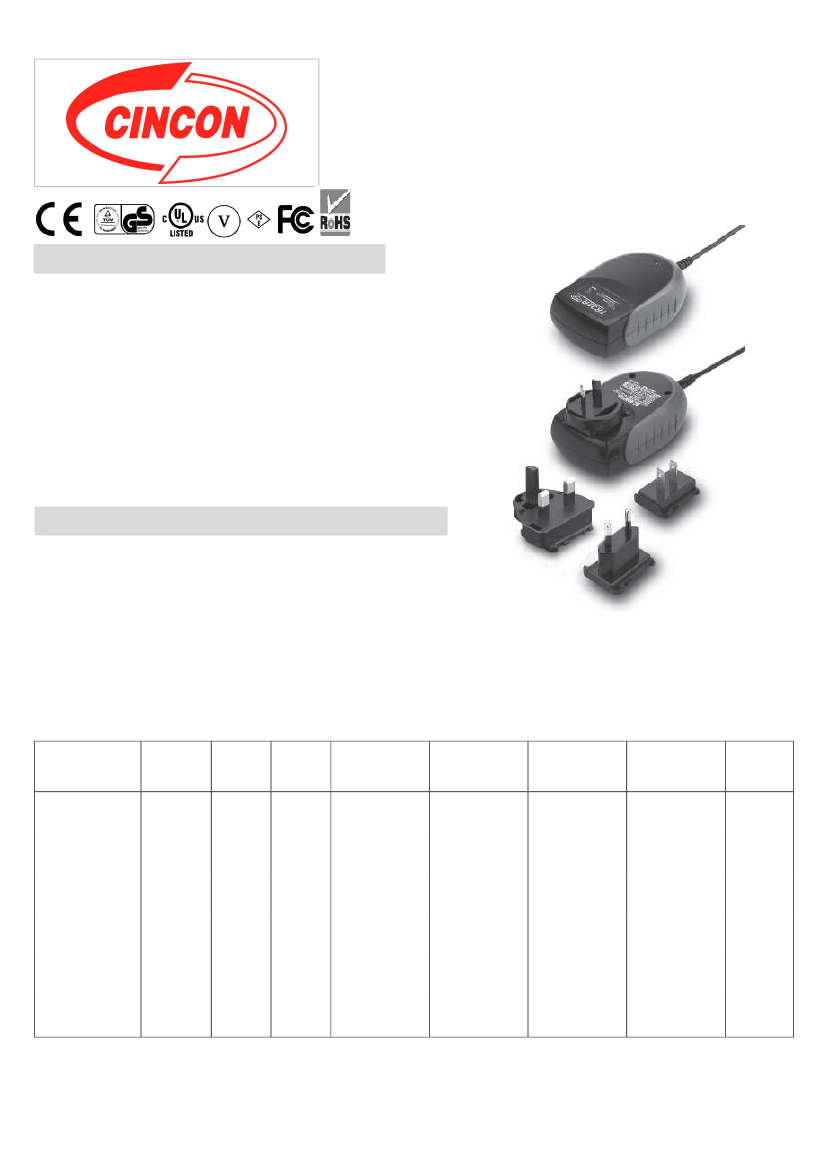

Features
TRG30R V SERIES
30W SWITCHING
ADAPTER
* Universal Input Range 90-264VAC
* Interchangeable AC Plugs
* Meets EN61204-3 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CEC & ErP Level V
(Output Cable Length
≦
1800mm)
(TRG30R050V
、
TRG30R090V
：
Output Cable
Length
≦
1220mm)
Ordering information
TRG30RXXXV
Model No.
- XX
DC Plug Type
E
XX
-
XX
-BK
DC Cable Length and Type Color of Overmold Case
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
* 16AWG / UL1185 for 5V、9V
BE: Blue
GY: Gray
RD: Red
PE: Purple
OR: Orange
OUTPUT
MODEL
VOLTAGE
MAX.
LOAD
MIN.
LOAD
RIPPLE &
NOISE
VOLTAGE
ACCURACY
LINE
REGULATION
LOAD
REGULATION
% EFF.
(Typ.)
TRG30R050V
TRG30R090V
TRG30R120V
TRG30R150V
TRG30R180V
TRG30R240V
5V
9V
12V
15V
18V
24V
4.0A
3.0A
2.5A
2.0A
1.67A
1.25A
0A
0A
0A
0A
0A
0A
1%
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±6%
±3%
±2%
±2%
±2%
±2%
80%
84%
84%
85%
85%
86%
Specifications are subject to change without notice.
1

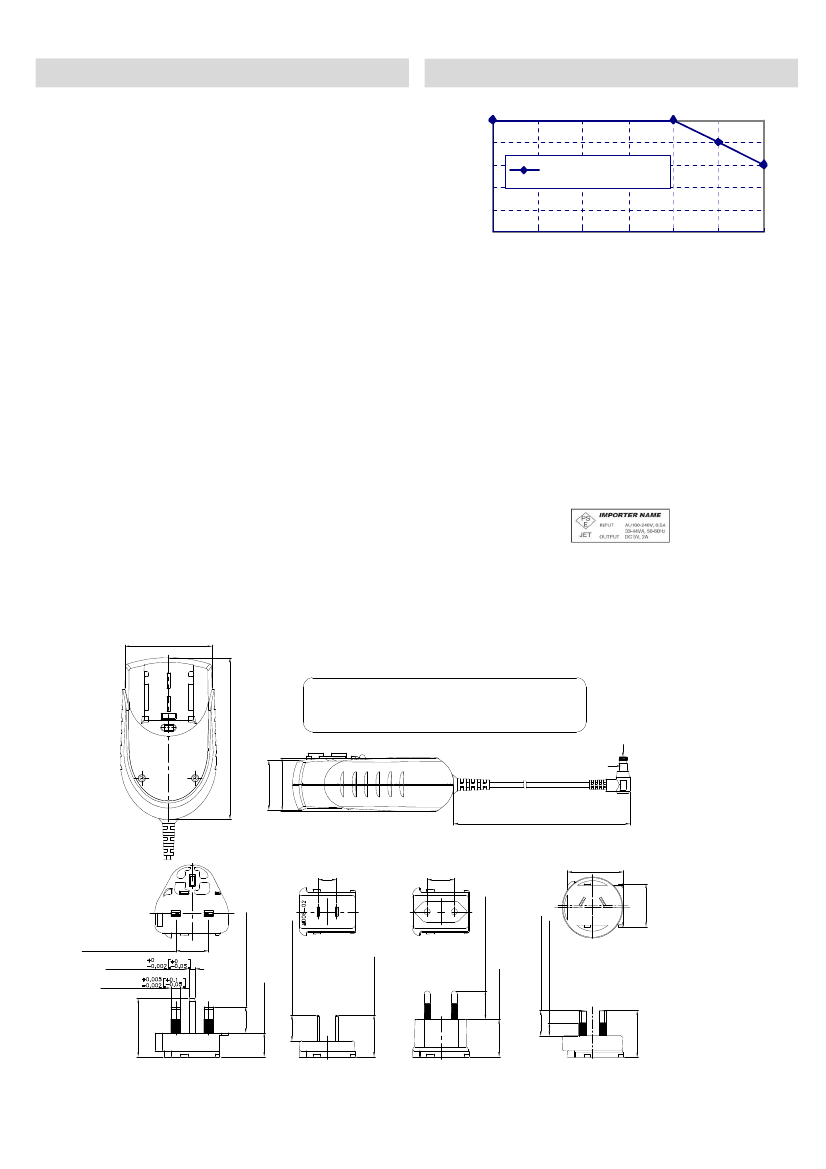

Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Input Current …………………......... 100Vac/0.8A max., 240Vac/0.4A max.
Inrush Current …………Cold start@25℃………. 100A max. @240Vac
Leakage Current …………………………………………….…… 0.25mA max.
TRG30R-V Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
0
10
20
30
40
Ambient Temperature(
o
C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 10ms typ. @115Vac
Short Circuit Protection …………….………… Hiccup Mode (Auto Recovery)
Over Voltage Protection ………………................. TVS Component to Clamp
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 4,242VDC
Operating Temperature .................................... 0 ~ 60℃(see Drating Curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity …………………...……......….......... 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ……………………….. …….. …….. … 70KHz Typical
MTBF ……….… MIL-HDBK-217F, GB, 25℃/115VAC …… 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions ………….. 4.243x2.267x1.319Inches (107.77x57.60x33.50mm)
Weight ……………………………………………….……… 300g(0.66 Pounds)
NOTE:
1. Voltage setpoint at 60% full load
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 60% to full load and from 60% to
20% load (60% +/- 40% load)
5. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
representative for details”
SAFETY AND EMC:
Emission and Immunity ……….... EN61204-3, EN61000-3-2,EN61000-3-3
FCC CFR Title 47 Part 15 Subpart B
Safety ………………………….………. IEC60950-1, UL60950-1, EN60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
2.267[57.60]
4.243[107.77]
DC Plug type: V+ ─●)─ V-
DC Plug :Right Angle(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
+
1.283[32.60]
1.319[33.50]
-
70.866[1800.00]±1.969[50.00]
1.494[37.95]
0.492[12.50]±0.002[0.05]
0.720[18.30]±0.002[0.05]
1.139[28.93]
1.240[31.48]
0.689[17.50]±0.019[0.50]
0.748[19.00]±0.019[0.50]
0.874[22.20]±0.005[0.13]
0.157[4.00]
0.248[6.30]
0.685[17.40]±0.027[0.70]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.535[39.00]
0.630[16.00]
2
0.988[25.10]
0.669[16.99]±0.011[0.30]
0.342[8.70]±0.019[0.50]
1.102[28.00]
