FN2080B-16-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN2080B-16-06

FN2080B-16-06: DescriptionPower Line Filters 16A MEDICAL FASTON GENERAL PURPOSE FLTR; CategoryAnalog mixed-signal IC filter; File Size287KB，5 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN2080B-16-06 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FN2080B-16-06	-	-	View	Buy Now

FN2080B-16-06 Overview

Power Line Filters 16A MEDICAL FASTON GENERAL PURPOSE FLTR

FN2080B-16-06 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
Reach Compliance Code	compliant
Other features	MEDICAL VERSION; INDUCTANCE 2.8 MILLIHENRY
Certification	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER
high	57.6 mm
high potential	1100 V
Maximum leakage current	0.002 mA
length	98.5 mm
Installation type	CHASSIS MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)
Rated current	18.4 A
Rated voltage	250 V
width	84.5 mm

Preview

Download Datasheet

View All

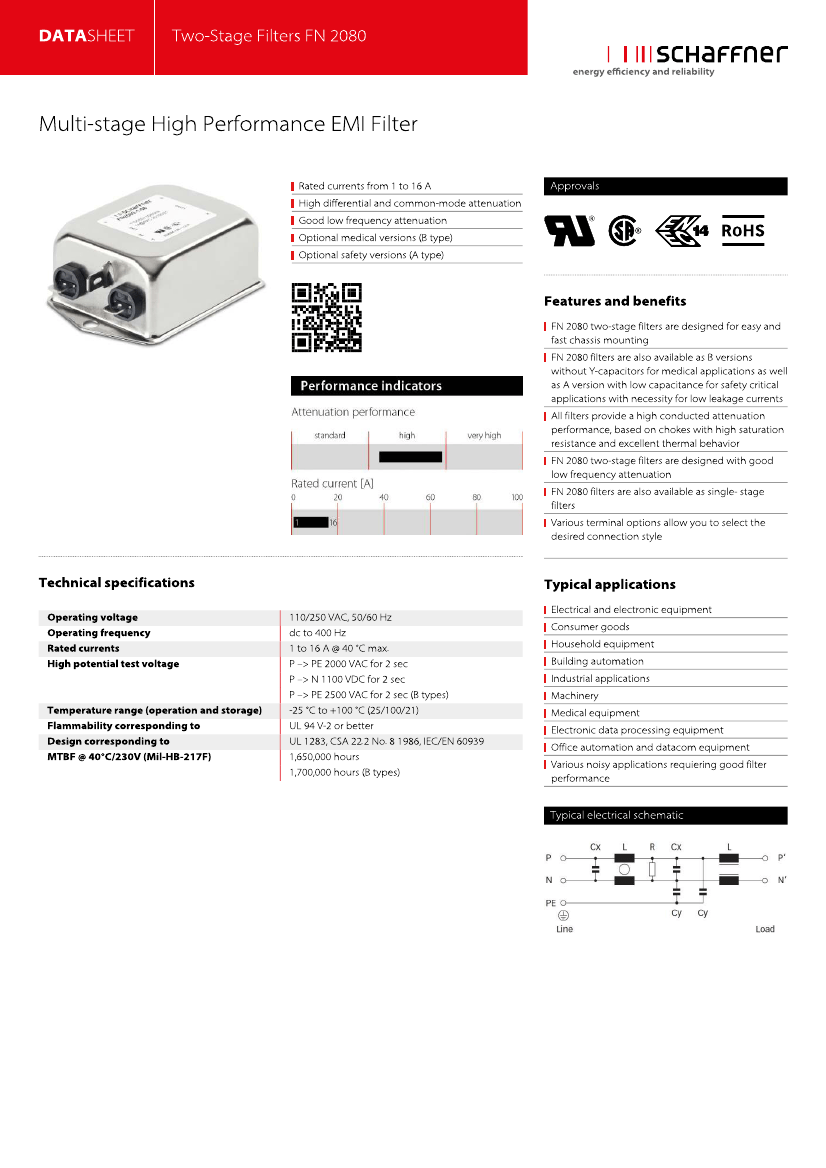

citamehcs lacirtcele lacipyT

ecnamrofrep

retlif doog gnireiuqer snoitacilppa ysion suoiraV

)sepyt B( sruoh 000,007,1

sruoh 000,056,1

)F712-BH-liM( V032/C°04 @ FBTM

ot gnidnopserroc ngiseD

ot gnidnopserroc ytilibammalF

)egarots dna noitarepo( egnar erutarepmeT

egatlov tset laitnetop hgiH

stnerruc detaR

ycneuqerf gnitarepO

egatlov gnitarepO

tnempiuqe mocatad dna noitamotua eciffO

tnempiuqe gnissecorp atad cinortcelE

tnempiuqe lacideM

yrenihcaM

snoitacilppa lairtsudnI

noitamotua gnidliuB

tnempiuqe dlohesuoH

sdoog remusnoC

tnempiuqe cinortcele dna lacirtcelE

93906 NE/CEI ,6891 8 .oN 2.22 ASC ,3821 LU

retteb ro 2-V 49 LU

)12/001/52( C° 001+ ot C° 52-

)sepyt B( ces 2 rof CAV 0052 EP >– P

ces 2 rof CDV 0011 N >– P

ces 2 rof CAV 0002 EP >– P

.xam C° 04 @ A 61 ot 1

zH 004 ot cd

zH 06/05 ,CAV 052/011

snoitacilppa lacipyT

snoitacificeps lacinhceT

elyts noitcennoc derised

eht tceles ot uoy wolla snoitpo lanimret suoiraV

sretlif

egats -elgnis sa elbaliava osla era sretlif 0802 NF

noitaunetta ycneuqerf wol

doog htiw dengised era sretlif egats-owt 0802 NF

roivaheb lamreht tnellecxe dna ecnatsiser

noitarutas hgih htiw sekohc no desab ,ecnamrofrep

noitaunetta detcudnoc hgih a edivorp sretlif llA

stnerruc egakael wol rof ytissecen htiw snoitacilppa

lacitirc ytefas rof ecnaticapac wol htiw noisrev A sa

llew sa snoitacilppa lacidem rof sroticapac-Y tuohtiw

snoisrev B sa elbaliava osla era sretlif 0802 NF

gnitnuom sissahc tsaf

dna ysae rof dengised era sretlif egats-owt 0802 NF

stifeneb dna serutaeF

)epyt A( snoisrev ytefas lanoitpO

)epyt B( snoisrev lacidem lanoitpO

noitaunetta ycneuqerf wol dooG

noitaunetta edom-nommoc dna laitnereffid hgiH

slavorppA

A 61 ot 1 morf stnerruc detaR

retliF IME ecnamrofreP hgiH egats-itluM

0802 NF sretliF egatS-owT

TEEHS

ATAD

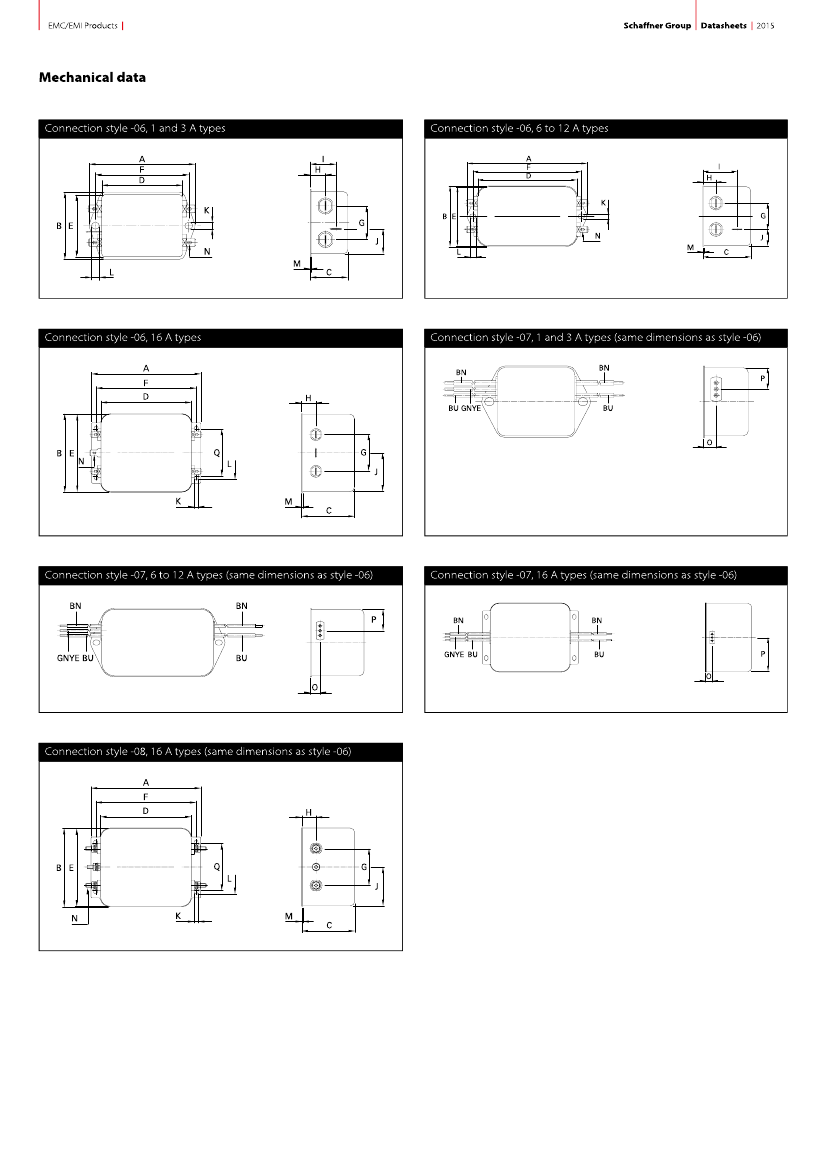

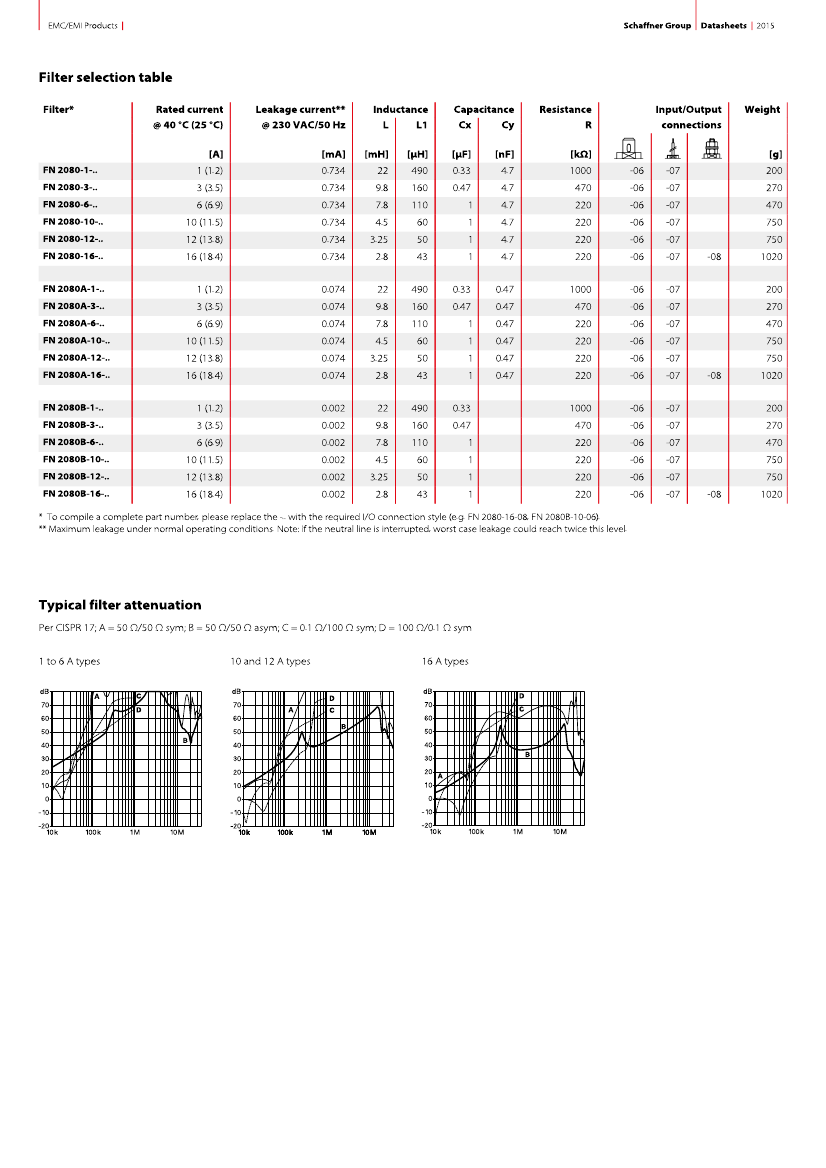

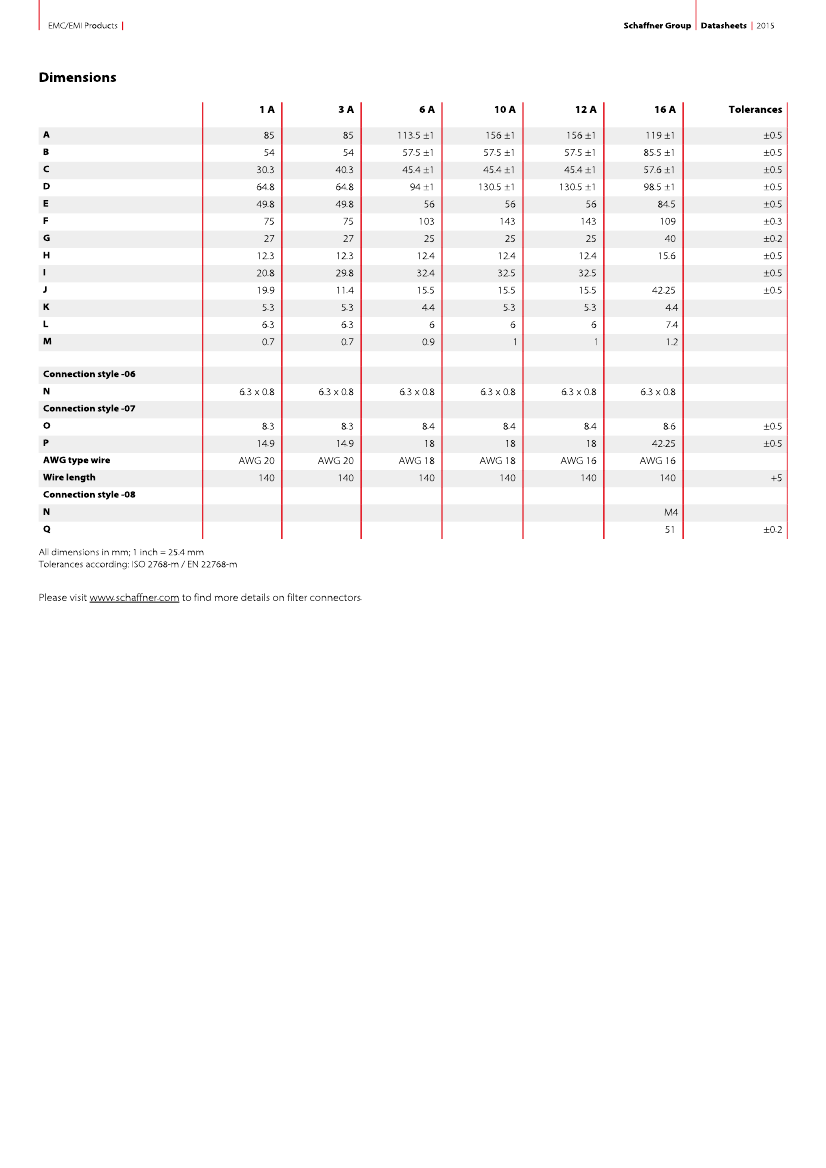

FN2080B-16-06 Related Products

	FN2080B-16-06	FN2080-1-06	FN2080B-1-06	2381594T250S	FN2080A-16-06	FN2080A-10-06	FN2080-10-06	FN2080B-16-08	FN2080-10-07	FN2080-12-06
Description	Power Line Filters 16A MEDICAL FASTON GENERAL PURPOSE FLTR	Power Line Filters FN2080-1-06	Power Line Filters 1A MEDICAL FASTON GENERAL PURPOSE FLTR	RESISTOR, VOLTAGE DEPENDENT, 31 V, 7.7 J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	Power Line Filters 16A SAFETY FASTON GENERAL PURPOSE FLTR	Power Line Filters 10A SAFETY FASTON GENERAL PURPOSE FLTR	Power Line Filters FN2080-10/06	Power Line Filters 16A MEDICAL M4 SCREW GENERAL PURPOSE FLTR	Power Line Filters HI PERFORM 10A FILTER MUTI-STAGE	Power Line Filters 12A MULTI-STAGE HIGH-PERFORMANCE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	100 °C	100 °C	100 °C	85 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-40 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maker	Schaffner	Schaffner	Schaffner	-	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner	-
Other features	MEDICAL VERSION; INDUCTANCE 2.8 MILLIHENRY	INDUCTANCE 22 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 22 MILLIHENRY	-	SAFETY VERSION; INDUCTANCE 2.8 MILLIHENRY	SAFETY VERSION; INDUCTANCE 4.5 MILLIHENRY	INDUCTANCE 4.5 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 2.8 MILLIHENRY	INDUCTANCE 4.5 MILLIHENRY	INDUCTANCE 3.25 MILLIHENRY
Certification	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	-	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	-	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	57.6 mm	30.3 mm	30.3 mm	-	57.6 mm	45.4 mm	45.4 mm	57.6 mm	45.4 mm	45.4 mm
high potential	1100 V	1100 V	1100 V	-	1100 V	1100 V	1100 V	1100 V	1100 V	1100 V
Maximum leakage current	0.002 mA	0.734 mA	0.002 mA	-	0.074 mA	0.074 mA	0.734 mA	0.002 mA	0.734 mA	0.734 mA
length	98.5 mm	64.8 mm	64.8 mm	-	98.5 mm	130.5 mm	130.5 mm	98.5 mm	130.5 mm	130.5 mm
Installation type	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	-	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	-	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)	L64.8XB49.8XH30.3 (mm)/L2.551XB1.961XH1.193 (inch)	L64.8XB49.8XH30.3 (mm)/L2.551XB1.961XH1.193 (inch)	-	L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)	L130.5XB56.0XH45.4 (mm)/L5.138XB2.205XH1.787 (inch)	L130.5XB56.0XH45.4 (mm)/L5.138XB2.205XH1.787 (inch)	L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)	L130.5XB56.0XH45.4 (mm)/L5.138XB2.205XH1.787 (inch)	L130.5XB56.0XH45.4 (mm)/L5.138XB2.205XH1.787 (inch)
Rated current	18.4 A	1.2 A	1.2 A	-	18.4 A	11.5 A	11.5 A	18.4 A	11.5 A	13.8 A
Rated voltage	250 V	250 V	250 V	-	250 V	250 V	250 V	250 V	250 V	250 V
width	84.5 mm	49.8 mm	49.8 mm	-	84.5 mm	56 mm	56 mm	84.5 mm	56 mm	56 mm
