ECM SMD Ferrite Chip Inductors

LNC UCR Series

ECM Series

4 Package Sizes

Low 1.8mm Height Option

Up to 6 Amp

Low Cost

Typical Reel Size 1000pcs

The

LNC

series comes in four sizes aproximate to EIA packages 1206, 1210, 1812 and 2220.

Suitable applications include power choke for:- PDA, VTR, OA equipment, LCD display, metering and flow

monitoring, and DC/DC converters.

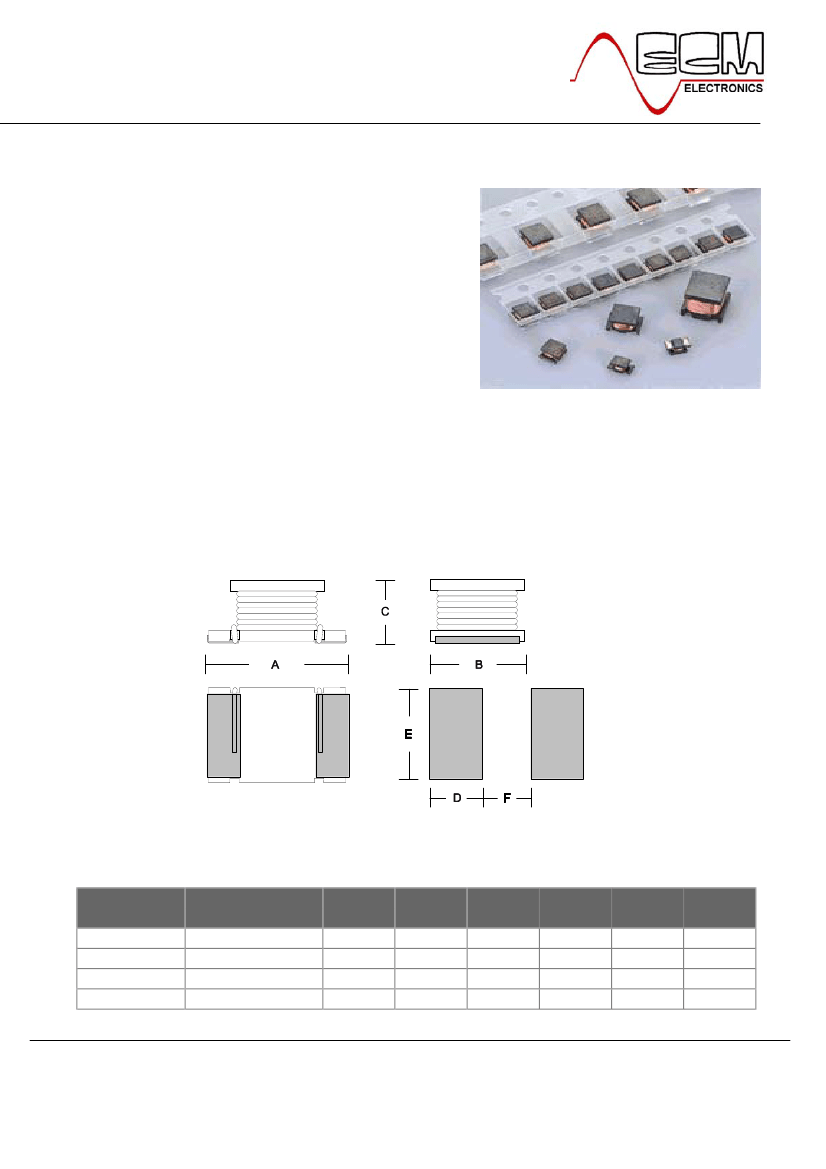

COMPONENT OUTLINE

DIMENSIONS

ECM Type

LNC30T

LNC32T

LNC45T

LNC56T

Inductance

Range

0.12uH~100uH

1.0uH~560uH

1.0uH~470uH

0.12uH~10mH

(mm)

3.20

4.50

5.70

1.60

2.50

3.20

5.00

1.80

2.00

2.60

4.70

1.50

2.00

1.50

2.00

3.00

5.00

1.00

1.20

2.00

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.
