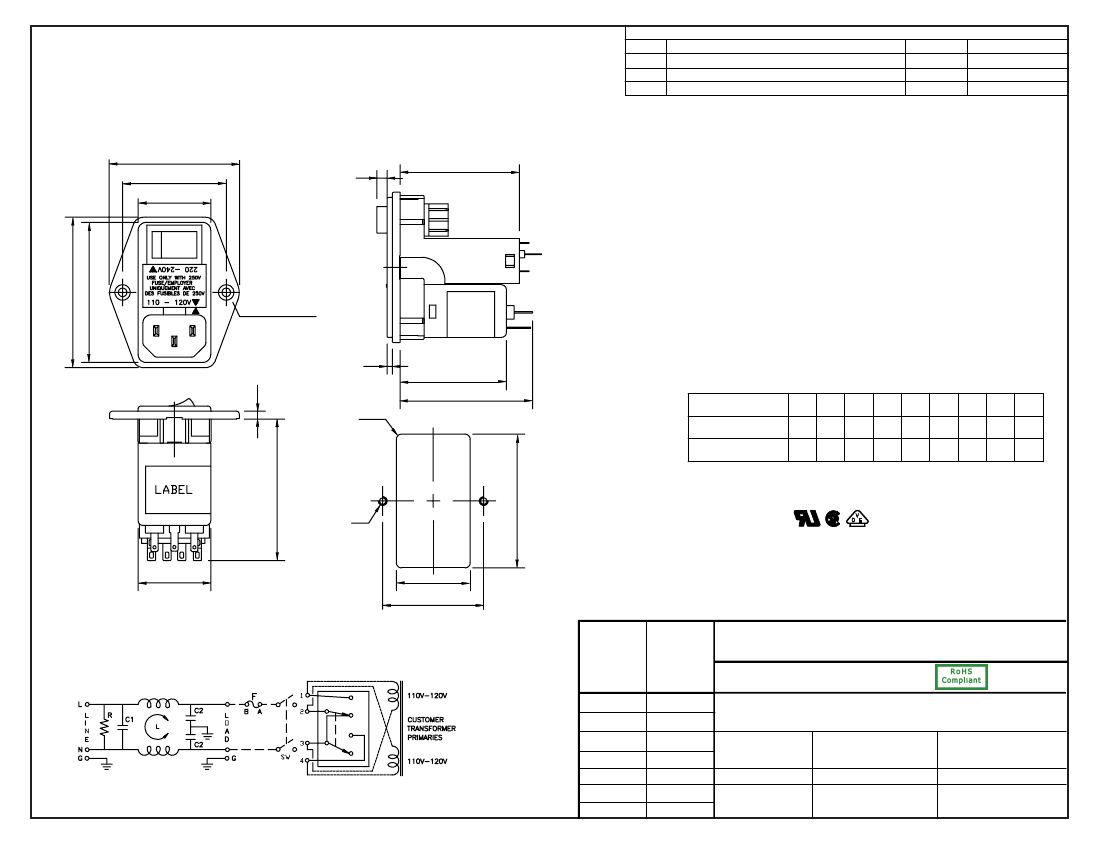

1. PHYSICAL DIMENSIONS
50.0
40.01
28.0
4.0
46.0
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................3 A RMS MAX
B. @ 250 VAC.........................................3 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
/
/
.10
/
/
.15
20
4
.50
25
12
1.0
30
18
5.0
38
38
10
40
40
30
40
40
1-3.
1-4.
58.0
54.0
Ø3.3 ± 0.1(2X)
2.0
R2.0
LABEL
1-5.
1-6.
41.0
51.3
3.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
55.0
55.9 ±
0.2
0
1-7.
1-8.
1-9.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
M3
28.4MAX
28.5 ±
0.2
0
40.01 ± 0.1
PANEL CUTOUT
(MOUNTING FROM FRONT)
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
2. ELECTRICAL SCHEMATIC
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
883-03/003
EMI FILTER
UNIT: mm
L:
C1:
C2:
R:
2.5mH
0.1uF
2200pF
1.0MΩ
REV. B
Approved / Date
JJH / 04-07-03
Drawn / Date
B.ZHANG
04-07-03
Checked / Date
04-07-03
