M28F421N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M28F421N

M28F421N: Description512KX8 FLASH 5V PROM, 60ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP-40; Categorystorage storage; File Size100KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M28F421N Overview

512KX8 FLASH 5V PROM, 60ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP-40

M28F421N Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	TSOP
package instruction	10 X 20 MM, PLASTIC, TSOP-40
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	60 ns
startup block	BOTTOM
JESD-30 code	R-PDSO-G40
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	40
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
type	NOR TYPE
width	10 mm

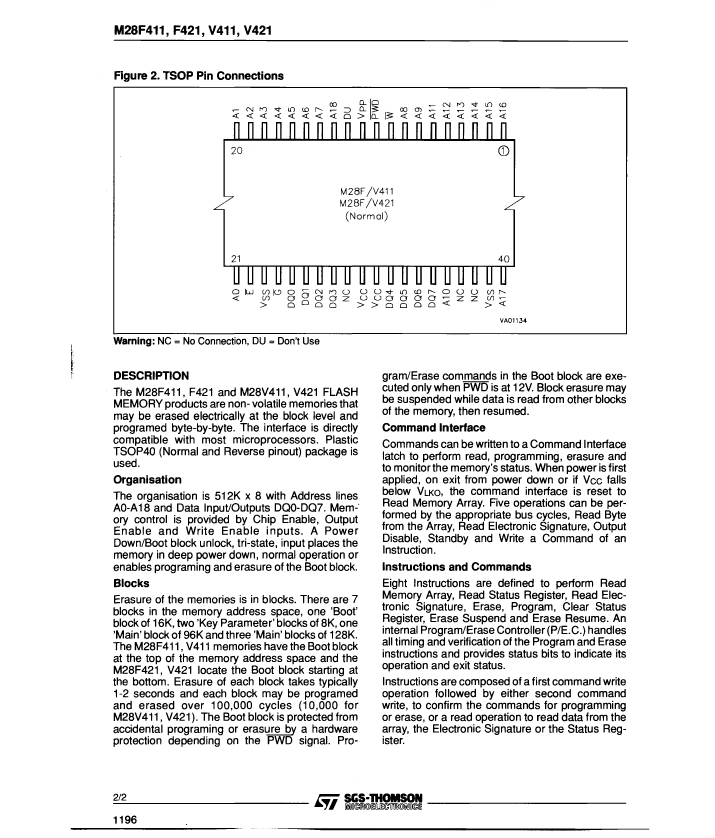

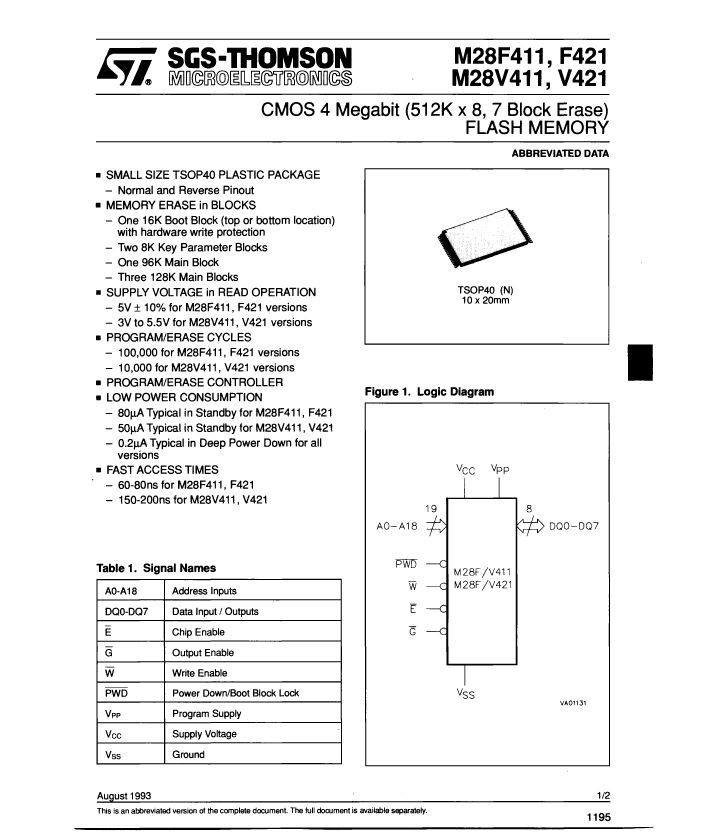

Preview

Download Datasheet

View All

M28F421N Related Products

	M28F421N	M28V421N	M28F411N	M28V411N
Description	512KX8 FLASH 5V PROM, 60ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP-40	512KX8 FLASH 3V PROM, 120ns, PDSO40, TSOP-40	512KX8 FLASH 5V PROM, 60ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP-40	512KX8 FLASH 3V PROM, 120ns, PDSO40, TSOP-40
Parts packaging code	TSOP	TSOP	TSOP	TSOP
package instruction	10 X 20 MM, PLASTIC, TSOP-40	TSOP-40	10 X 20 MM, PLASTIC, TSOP-40	TSOP-40
Contacts	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	60 ns	120 ns	60 ns	120 ns
startup block	BOTTOM	BOTTOM	TOP	TOP
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	40	40	40	40
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SOP	TSOP1	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	3 V	5 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	3 V	4.5 V	3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
