BPWXLD10-14U-070 datasheet, PDF

Datasheet> All Categories > Power/power management> BPWXLD10-14U-070

BPWXLD10-14U-070: DescriptionLED Power Supplies 10W 14V 700mA UNIV IN/OUT LED DIM; CategoryPower/power management; File Size663KB，2 Pages; ManufacturerBias Power; Environmental Compliance

Download Datasheet Parametric Compare View All

BPWXLD10-14U-070 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPWXLD10-14U-070	-	-	View	Buy Now

BPWXLD10-14U-070 Overview

LED Power Supplies 10W 14V 700mA UNIV IN/OUT LED DIM

BPWXLD10-14U-070 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bias Power
Product Category	LED Power Supplies
RoHS	Details
Output Current-Channel 1	700 mA
Output Voltage-Channel 1	14 VDC
Output Power	10 W
Input Voltage	100 VAC to 308 VAC
Dimming	With Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Length	2.3 in
Width	2.5 in
Height	1.25 in
Industry	Commercial
Open Frame/Enclosed	Open Frame
Factory Pack Quantity	50

Preview

Download Datasheet

View All

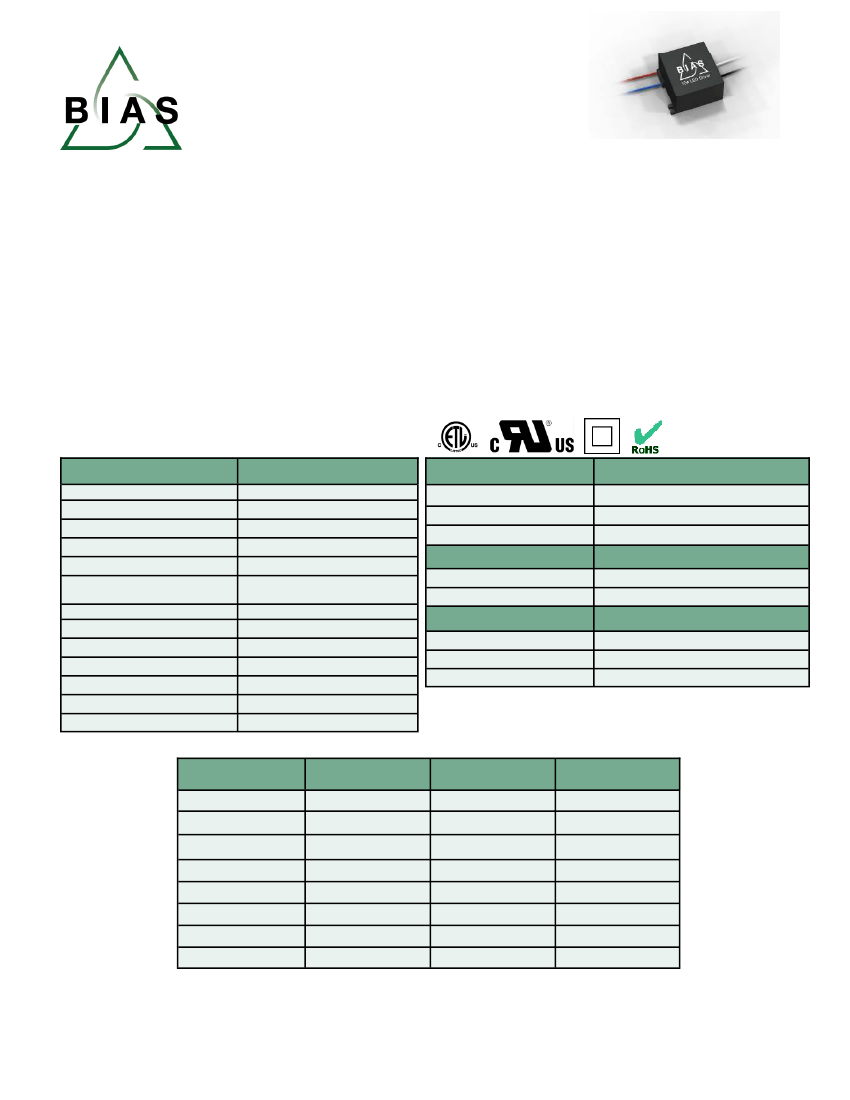

BIAS 10 Watt LED Drivers

Universal Input/Output with AOVC

BPWXL 10-14U-070 (700mA, constant current)

BPWXLD 10-14U-070 (700mA, 0-10 dimmable)

BPWXL 10-32U-035 (350mA, constant current)

BPWXLD 10-32U-035 (350mA, 0-10 dimmable)

BPWXL 10-42U-024 (240mA, constant current)

BPWXLD 10-42U-024 (240mA, 0-10 dimmable)

BPWXL 10-50U-020 (200mA, constant current)

BPWXLD 10-50U-020 (200mA, 0-10 dimmable)

Features

•

Universal Input (100-308 VAC, 50/60Hz)

•

Universal Output with AOVC

(3-14 VDC@700mA), (3-32VDC@350mA),

(3-42VDC@240mA) or (9-50VDC@200mA)

Benefits

•

Bias Adaptive Output Voltage Control, AOVC

technology (patent pend-

ing) provides the broadest range of applications with the fewest driver

SKUs

and

75%+ efficiency across all string lengths

•

Highly reliable, rugged construction for indoor or outdoor applications

•

True 0-10 volt dimming with 1000:1 range, IEC 60929 compliant

•

1% current regulation and no flicker

•

Color coded flying leads for simple assembly and installation

•

AC line or DC load switching without overshoot on startup

RECOGNIZED

•

Ingress protection to IP67

•

-40 to +85°C ambient, 90°C maximum

case temperature

•

Flying Leads for AC and LED connections

•

3000 VAC Isolation

•

82% efficiency

•

EN 55022, Class B; FCC Part 15, Class B

•

Meets UL/CSA and EN Product Safety

Requirements (UL 8750 Class 2)

•

Overcurrent, short circuit (shorted string),

open circuit (string break) and overload

protected

Operating Specifications

(@120VAC / 60 Hz / 25°C unless otherwise specified)

Electrical

Input Voltage Range

Output Power (Pmax)

String Voltage (Minimum)

Efficiency

Temperature Regulation Io (Peak)

Isolation

Short Circuit Protection

Reliability @ 25° C, MIL HDBK-217F

0-10 VDC Dimming, +/- 2% linearity

Line Regulation, Io (Pk)

AC Input Connections

DC Output Connections

Dimming (0-10 VDC) Connections

100-308 VAC (50/60Hz)

10 W nominal

3.0 VDC for all drivers

82% nom.

+/- 2%, Po < Pmax

3000 VAC (meets UL/CSA &

EN Product Safety)

Continuous, Pin ≤ 0.7 w @ 120 VAC

> 500 Khr MTBF

Per IEC 60929, Annex E

+/- 1%, Po < Pmax

Line BLK, Neutral WHT

Pos(+) RED, Neg (-) BLU

Adjust PUR/Com GRY

Environmental

Operating / Storage Temperature

Case Temperature, maximum

Ingress Protection

-40 to 85

C / -40 to 105

IP67

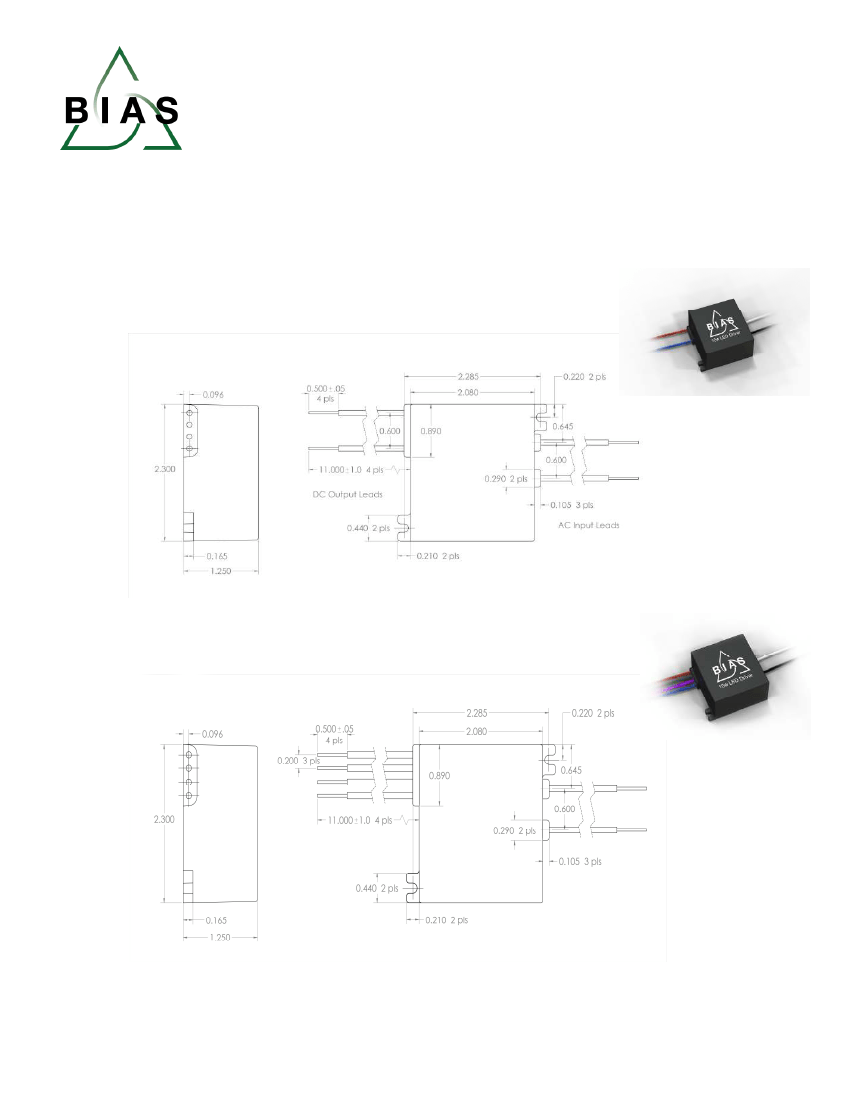

Mechanical

Package Size (L x W x H)

Lead Length

2.3 x 2.5 x 1.25 inches

11”, 18AWG 600V class

Safety and Standards

Safety Compliance

EMI Emissions

Standards Compliance

ETL/UL 8750 Class 2/CAN/CSA c22.2 (1)

EN 55022, Class B, FCC Part 15, Class B

IEC61347-1, IEC61347-2-3

Model Number

BPWXL 10-14U-070

BPWXLD 10-14U-070

BPWXL 10-32U-035

BPWXLD 10-32U-035

BPWXL 10-42U-024

BPWXLD 10-42U-024

BPWXL 10-50U-020

BPWXLD 10-50U-020

Maximum String

Voltage

14 VDC

32 VDC

42 VDC

50 VDC

Output Current

700 mA

0 to 700 mA

350 mA

0 to 350 mA

240 mA

0 to 240 mA

200 mA

0 to 200 mA

Dimming

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

5 Year Warranty - see Bias Power published warranty for specifics

BIAS Power

BPWXL 10 Series Data Sheet, Page

1 of 2

+1 847 215 2427

Revised 04/12/2012

Specifications subject to change

www.biaspower.com

BPWXLD10-14U-070 Related Products

	BPWXLD10-14U-070	BPWXLD10-42U-024	BPWXLD10-50U-020
Description	LED Power Supplies 10W 14V 700mA UNIV IN/OUT LED DIM	LED Power Supplies 10W 42V 240mA UNIV IN/OUT LED DIM	LED Power Supplies 10W 50V 200mA UNIV IN/OUT LED DIM
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bias Power	Bias Power	Bias Power
Product Category	LED Power Supplies	LED Power Supplies	LED Power Supplies
RoHS	Details	Details	Details
Output Current-Channel 1	700 mA	240 mA	200 mA
Output Voltage-Channel 1	14 VDC	42 VDC	50 VDC
Output Power	10 W	10 W	10 W
Input Voltage	100 VAC to 308 VAC	100 VAC to 308 VAC	100 VAC to 308 VAC
Dimming	With Dimming	With Dimming	With Dimming
Number of Outputs	1 Output	1 Output	1 Output
Mounting Style	Chassis	Chassis	Chassis
Length	2.3 in	2.3 in	2.3 in
Width	2.5 in	2.285 in	2.5 in
Height	1.25 in	1.25 in	1.25 in
Industry	Commercial	Commercial	Commercial
Open Frame/Enclosed	Open Frame	Open Frame	Open Frame
Factory Pack Quantity	50	10	50
