416F38413IAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 416F38413IAT

416F38413IAT: DescriptionCrystals 38.4MHz 10pF 10ppm -40C +85C; CategoryPassive components; File Size282KB，4 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

416F38413IAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	416F38413IAT	-	-	View	Buy Now

416F38413IAT Overview

Crystals 38.4MHz 10pF 10ppm -40C +85C

416F38413IAT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CTS
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	1.6 mm x 1.2 mm
Load Capacitance	10 pF
Frequency	38.4 MHz
Tolerance	10 PPM
Frequency Stability	30 PPM
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	1.6 mm
Width	1.2 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
ESR	200 Ohms
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Model 416

Features



Miniature Surface Mount Crystal

Hermetic Ceramic Surface Mount Package

Fundamental Crystal Design

Frequency Range 24 – 80MHz

Frequency Tolerance, ±20ppm Standard

Frequency Stability, ±20ppm Standard

Operating Temperature Range to -40°C to +85°C

Tape and Reel Packaging, EIA-418

Wearable and Handheld Electronics

Wireless Communications

FPGA/Microcontrollers

Computer Peripherals

USB Interfaces

Measuring Equipment

Consumer Electronics

High Density Board Layouts

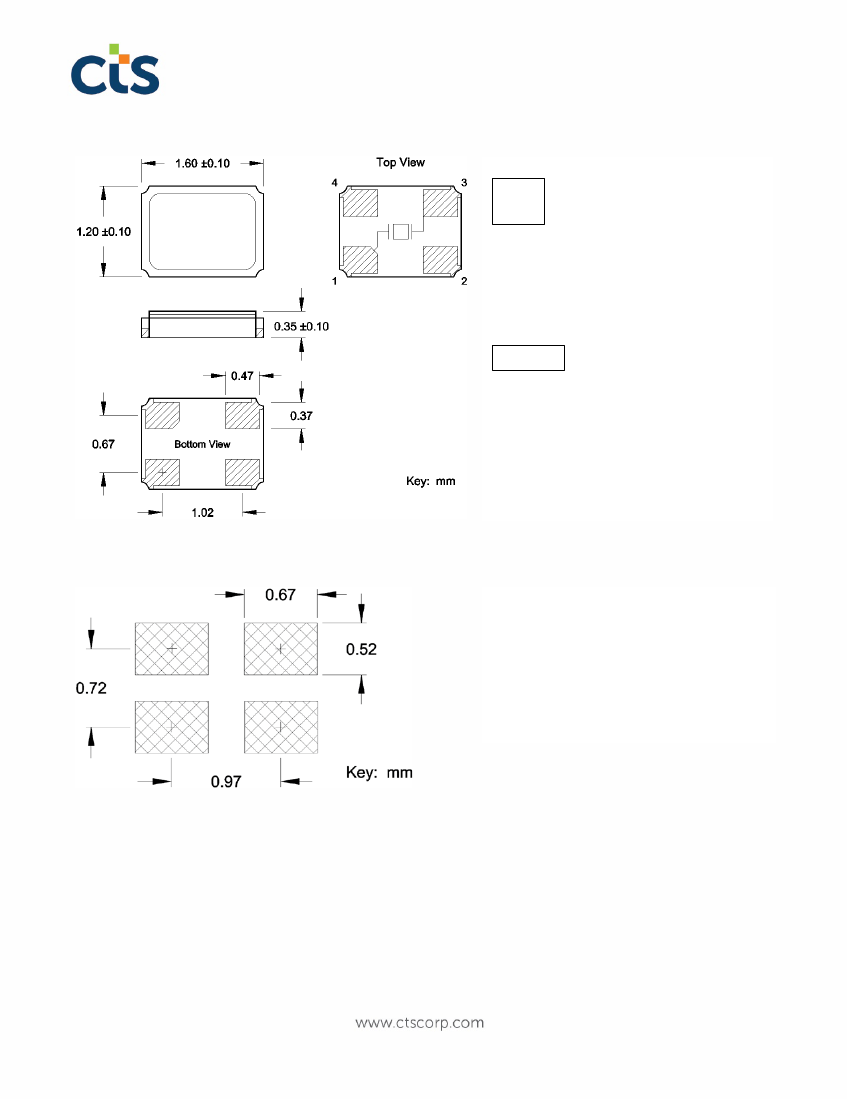

Part Dimensions:

1.6 × 1.2 × 0.45mm

•

2.51054mg

Applications



Description

CTS Model 416 incorporates a high Q quartz resonator and is ideal for supporting a wide range of commercial and

industrial applications.

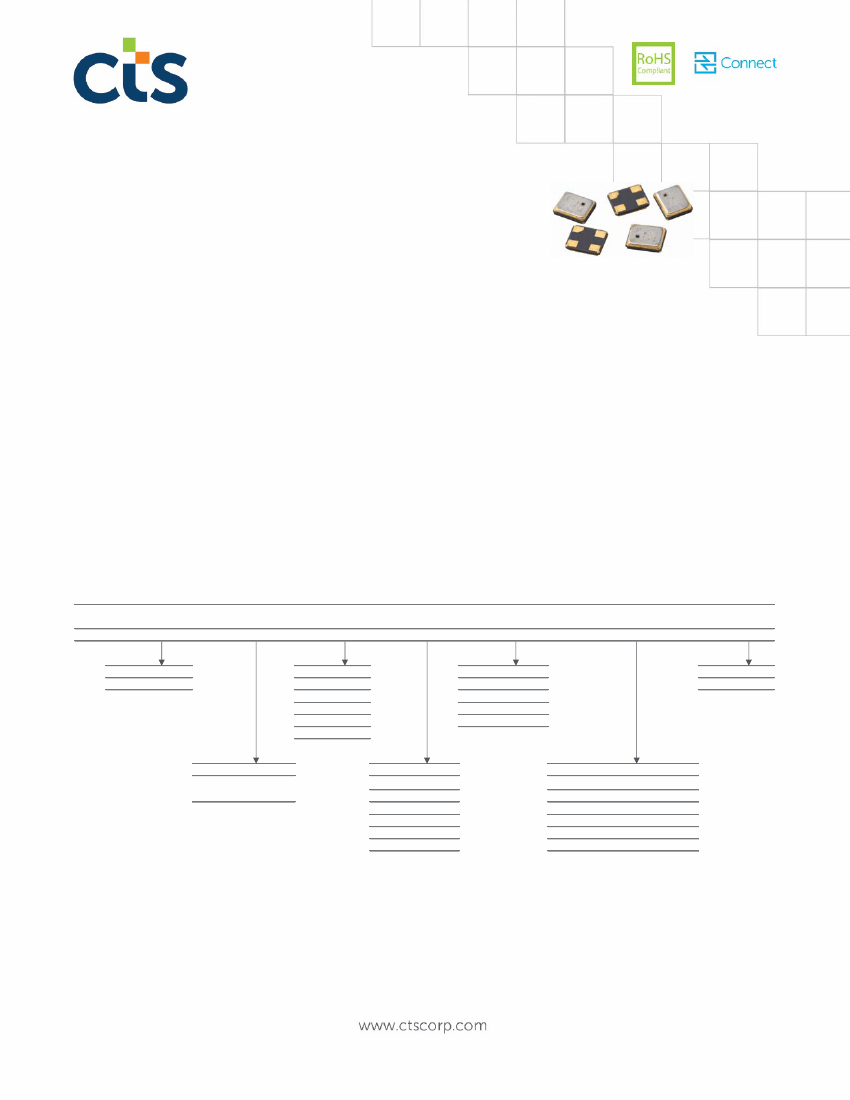

Ordering Information

Model

416

Mode of

Oscillation

Frequency Code

[MHz]

XXX

Tolerance

@ +25°C

Temperature

Stability

Temperature

Range

Load

Capacitance

Packaging

Mode

Code

Fundamental

Code

Tolerance

±10ppm

±15ppm

±20ppm

±25ppm

±30ppm

Code

Temp. Range

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Packing

Code

3k pcs./reel

Code

Frequency

Product Frequency Code

Code

Stability

±10ppm

±15ppm

±20ppm

±25ppm

±30ppm

±50ppm

Code Capacitance Code Capacitance

5pF

12pF

16pF

6pF

7pF

18pF

8pF

20pF

9pF

Series

10pF

Notes:

1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz.

2] Check factory availability when combined with -40°C to +85°C temperature range.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0331-0 Rev. D

Page 1 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
