Thick Film Chip Resistors
Thick Film Chip Resistors
01005, 0201, 0402, 0603, 0805,
1206, 1210, 1812, 2010, 2512
Type:
ERJ XG, 1G, 2G, 3G, 6G, 8G,
14, 12, 12Z, 1T
■
Features
●
Small size and lightweight
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Compatible with placement machines
Taping packaging available
●
Suitable for both reflow and flow soldering
●
Reference Standards
IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
AEC-Q200 qualified (Exemption ERJXG)
●
RoHS compliant
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
●
ERJXGN, 1GN, 2GE, 3GE, 6GE, 8GE, 14, 12, 12Z, 1T Series, ±5 % type
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Type : inch
Power R.
XGN : 01005 0.031 W
0.05 W
1GN : 0201
0.1 W
2GE : 0402
0.1 W
3GE : 0603
0.125 W
6GE : 0805
0.25 W
8GE : 1206
0.5 W
14 : 1210
0.75 W
12 : 1812
0.75 W
12Z : 2010
1W
1T : 2512
Code
Y
Nil
Marking
Marking
Value Marking on
black side
No marking
Resistance Tolerance
Code
J
0
Tolerance
±5 %
Jumper
Code
Y
U
C
X
Y
Packaging Methods
Packaging
Pressed Carrier Taping
W8P2, 20,000 pcs.
Embossed Carrier Taping
W4P1, 40,000 pcs.
Type
ERJXGN
Resistance Value
The first two digits are significant figures of resistance and
the third one denotes number of zeros following.
Decimal Point is expressed by R as 4.7 = 4R7.
Jumper is expressed by R00.
Pressed Carrier Taping
2 mm pitch, 15,000 pcs. ERJ1GN
Punched Carrier Taping
2 mm pitch, 10,000 pcs.
Punched Carrier Taping
2 mm pitch, 20,000 pcs.
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
ERJ2GE
V
½
When omitted, the rest of the P/N factors shall be moved up respectively.
(Only XGN, 1GN, 2GE type)
U
ERJ3GE
ERJ6GE
ERJ8GE
ERJ14
Embossed Carrier Taping
ERJ12
4 mm pitch, 5,000 pcs.
ERJ12Z
Embossed Carrier Taping
ERJ1T
4 mm pitch, 4,000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Feb. 2014
3

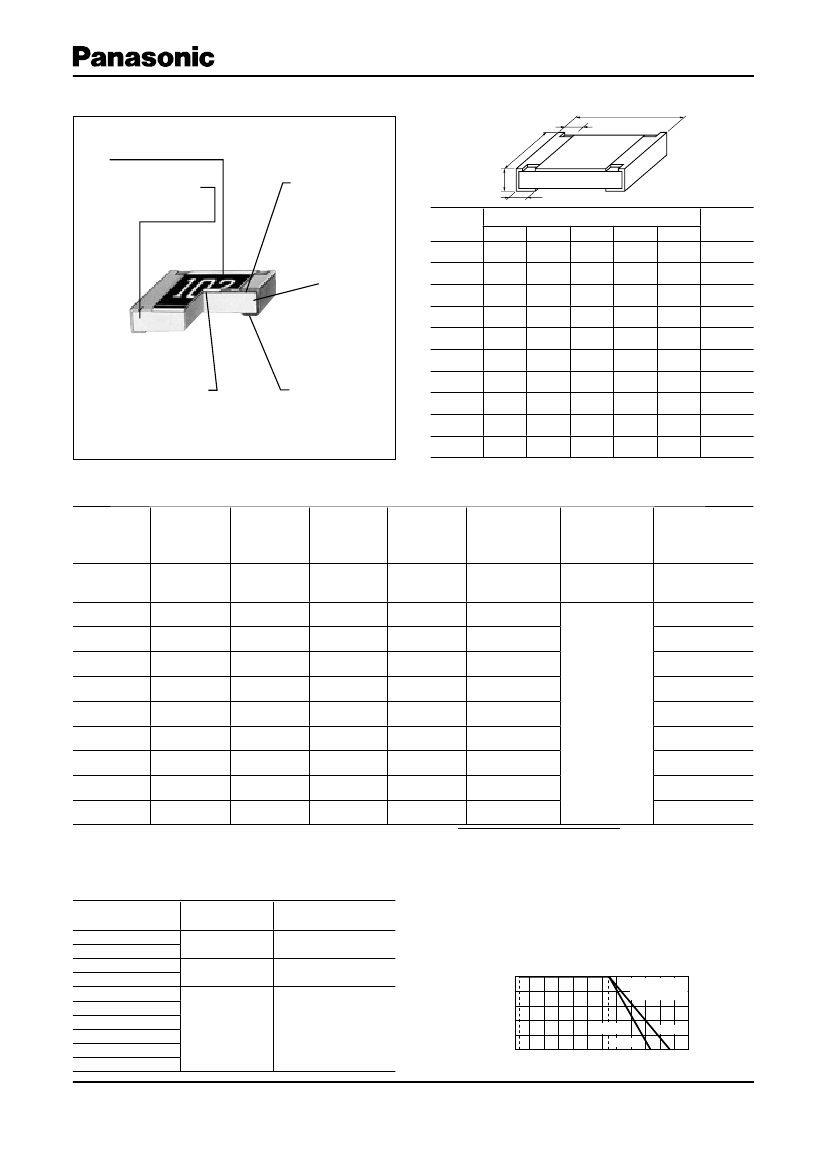

Thick Film Chip Resistors
■
Construction
Protective coating
Alumina substrate
Electrode (Inner)
t
b
Type
(inch size)
ERJXG
(01005)
ERJ1G
(0201)
ERJ2G
(0402)
ERJ3G
(0603)
ERJ6G
(0805)
ERJ8G
(1206)
ERJ14
(1210)
ERJ12
(1812)
ERJ12Z
(2010)
ERJ1T
(2512)
Dimensions (mm)
L
0.40
±0.02
■
Dimensions in mm (not to scale)
L
a
W
W
0.20
±0.02
a
0.10
±0.03
b
0.10
±0.03
t
0.13
±0.02
Mass (Weight)
(g/1000 pcs.)
0.04
0.15
0.8
2
4
10
16
27
27
45
Electrode
(Between)
0.60
±0.03
0.30
±0.03
0.10
±0.05
0.15
±0.05
0.23
±0.03
1.00
±0.05
0.50
±0.05
0.20
±0.10
0.25
±0.05
0.35
±0.05
1.60
±0.15
0.80
+0.15
0.30
±0.20
0.30
±0.15
0.45
±0.10
–0.05
2.00
±0.20
1.25
±0.10
0.40
±0.20
0.40
±0.20
0.60
±0.10
3.20
+0.05
1.60
+0.05
0.50
±0.20
0.50
±0.20
0.60
±0.10
–0.15
–0.20
3.20
±0.20
2.50
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
4.50
±0.20
3.20
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
5.00
±0.20
2.50
±0.20
0.60
±0.20
0.60
±0.20
0.60
±0.10
6.40
±0.20
3.20
±0.20
0.65
±0.20
0.60
±0.20
0.60
±0.10
Thick film
resistive element
Electrode (Outer)
■
Ratings
<For Resistor>
Type
(inch size)
ERJXG
(01005)
(0201)
Power Rating Limiting Element Maximum Overload Resistance
(1)
(2)
Voltage
Voltage
Tolerance
at 70 °C
(%)
(W)
(V)
(V)
0.031
0.05
0.1
0.1
0.125
0.25
0.5
0.75
0.75
1
15
25
50
75
150
200
200
200
200
200
30
50
100
150
200
400
400
500
500
500
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
Resistance
Range
(Ω)
T.C.R.
(×10
–6
/°C)
Category
Temperature Range
(°C)
–55 to +125
–55 to +125
<10
Ω
: –100 to +600
4.7 to 1 M (E24) 10
Ω
to 100
Ω
: ±300
100
Ω<
: ±200
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24)
1 to 1 M (E24)
1 MΩ<:
–400 to +150
10
Ω
to 1 MΩ:
±200
<10
Ω:
–100 to +600
ERJ1G
ERJ2G
(0402)
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
ERJ3G
(0603)
(0805)
(1206)
(1210)
(1812)
ERJ6G
ERJ8G
ERJ14
ERJ12
ERJ12Z
(2010)
(2512)
ERJ1T
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5 (Only ERJ2G=2.0)
×
Power Rating or max. Overload
Voltage listed above whichever less.
<For Jumper>
Type
(inch size)
ERJXG (01005)
ERJ1G (0201)
ERJ2G (0402)
ERJ3G (0603)
ERJ6G (0805)
ERJ8G (1206)
ERJ14 (1210)
ERJ12 (1812)
ERJ12Z (2010)
ERJ1T (2512)
Rated Current Maximum Overload Current
(A)
(A)
0.5
1
1
2
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure below.
Rated Load (%)
–55 °C
100
80
70 °C
2G, 3G, 6G, 8G,
14, 12, 12Z, 1T
2
4
60
40
XG, 1G
155 °C
20
125 °C
0
–60 –40 –20 0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Feb. 2014
4
