FR40GR05

Description
Rectifiers 400V 40A REV Leads Fast Recovery
Categorysemiconductor    Discrete semiconductor
File Size683KB，4 Pages
ManufacturerGeneSiC Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

FR40GR05 Online Shopping

Suppliers Part Number Price MOQ In stock
FR40GR05 - - View Buy Now

FR40GR05 Overview

Rectifiers 400V 40A REV Leads Fast Recovery

FR40GR05 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGeneSiC Semiconductor
Product CategoryRectifiers
RoHSDetails
Mounting StyleStud Mount
Package / CaseDO-5
Vr - Reverse Voltage400 V
If - Forward Current40 A
TypeFast Recovery Rectifiers
Vf - Forward Voltage1.4 V
Max Surge Current500 A
Ir - Reverse Current25 uA
Recovery Time500 ns
PackagingBulk
ProductRectifiers
Factory Pack Quantity5
Unit Weight1.005308 oz

Preview

Download Datasheet

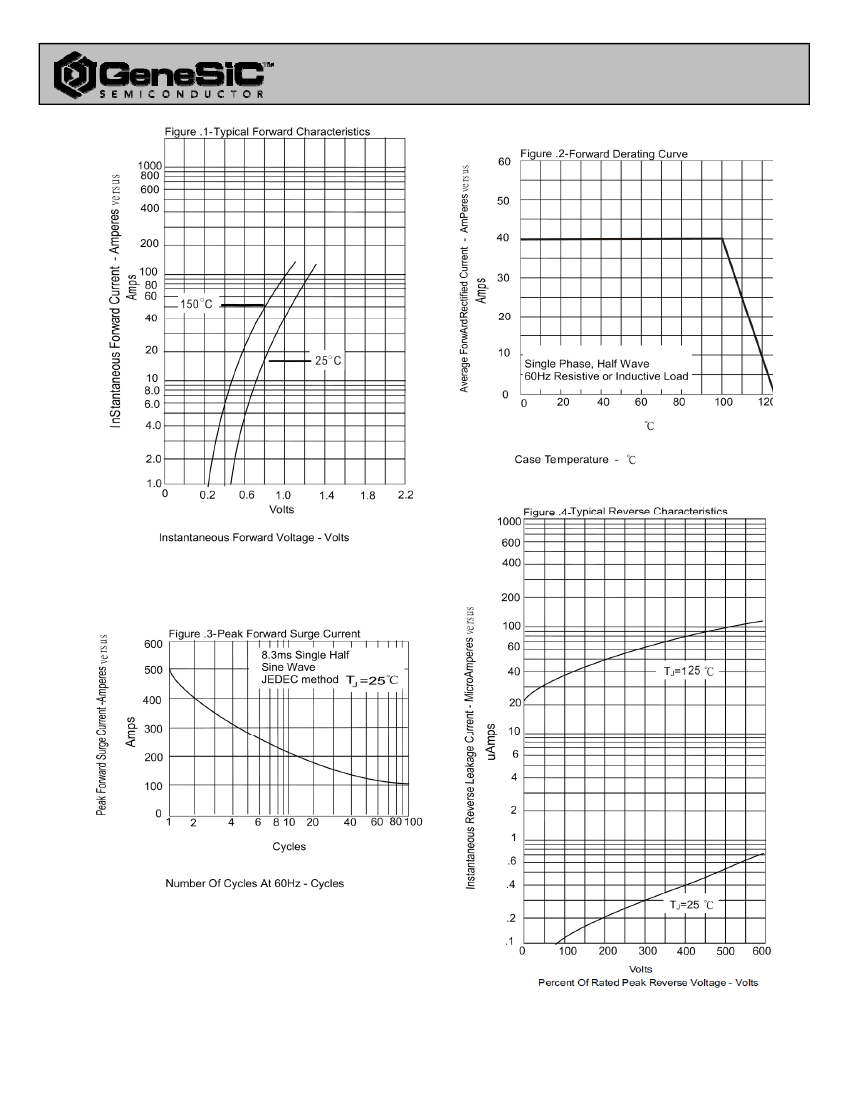

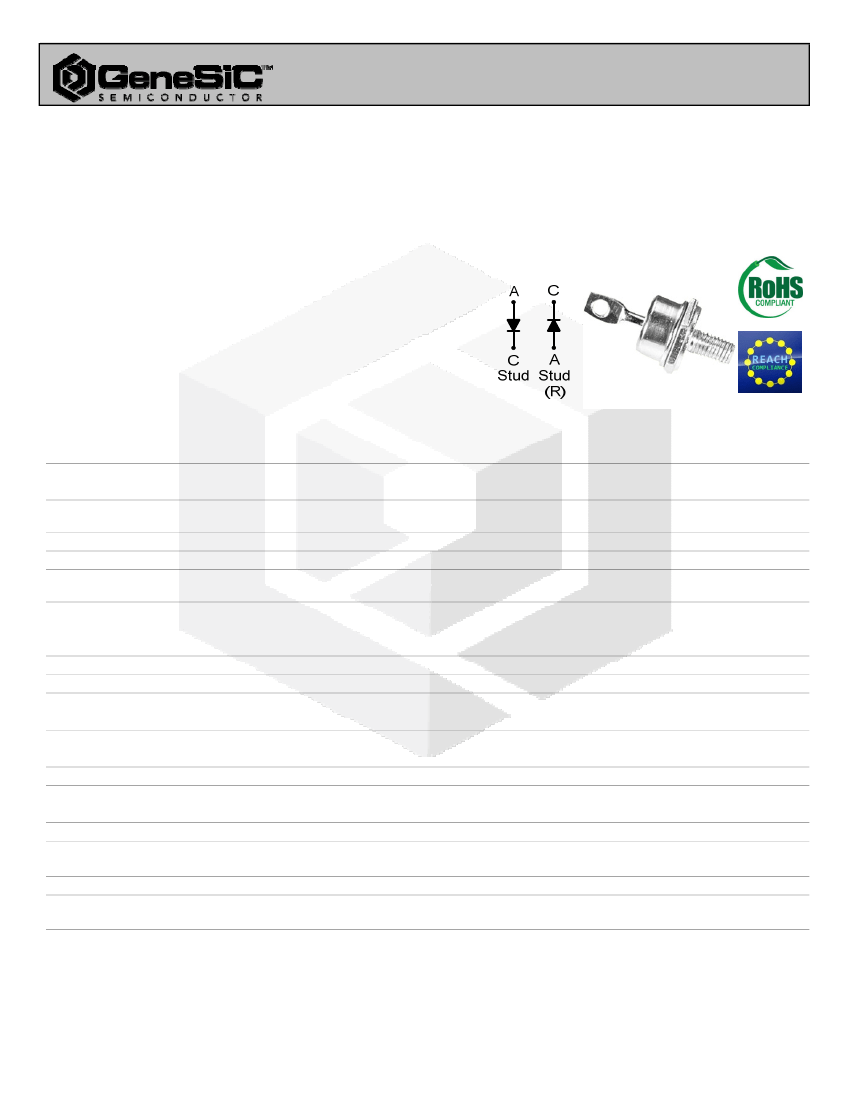

FR40B05 thru FR40JR05
Silicon Fast
Recovery Diode
Features
• High Surge Capability
• Types from 100 V to 600 V V
RRM
• Not ESD Sensitive
Note:
1. Standard polarity: Stud is cathode.
2. Reverse polarity (R): Stud is anode.
3. Stud is base.
DO-5 Package
V
RRM
= 100 V - 600 V
I
F
= 40 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive p
p
peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Continuous forward current
Surge non-repetitive forward
current, Half Sine Wave
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
I
F
I
F,SM
T
j
T
stg
T
C
≤ 100 °C
T
C
= 25 °C, t
p
= 8.3 ms
Conditions
FR40B(R)05
100
70
100
40
500
-55 to 150
-55 to 150
FR40D(R)05
200
140
200
40
500
-55 to 150
-55 to 150
FR40G(R)05
400
280
400
40
500
-55 to 150
-55 to 150
FR40J(R)05
600
420
600
40
500
-55 to 150
-55 to 150
Unit
V
V
V
A
A
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Diode forward voltage
Reverse current
Symbol
V
F
I
R
Conditions
I
F
= 40 A, T
j
= 25 °C
V
R
= 100 V, T
j
= 25 °C
V
R
= 100 V, T
j
= 125 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
FR40B(R)05
1.0
25
10
FR40D(R)05
1.0
25
10
FR40G(R)05
1.0
25
10
FR40J(R)05
1.0
25
10
Unit
V
μA
mA
Recovery Time
Maximum reverse recovery
time
T
RR
500
500
500
500
nS
Thermal characteristics
Thermal resistance, junction
- case
R
thJC
0.8
0.8
0.8
0.8
°C/W
Feb 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/fast-recovery-rectifiers/
