ROHS COMPLIANT
PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
A
NRN 38619
DCN 41757
09/15
10/15
STW
STW
.616 15.65
.020 0.50
.096 2.43
.115 2.92
.190 4.81
.542 13.75
7X .088 2.24
.053 1.35
.931 23.65
2X .100±.006 2.54±0.15
2X 2-56 UNC-2B
THRU
.136 3.45
9X .050 1.27
8X
.009 0.23
9X .023 0.58
MATERIAL:
BODY &
PRESS SLEEVES:
CONTACTS:
INSULATORS:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
1.131 28.73
.731 18.57
FINISH:
BODY,
PRESS SLEEVES &
CONTACTS:
GOLD PER ASTM B488, TYPE II, CODE C,
CLASS 1.27 (.000050" MIN.) OVER NICKEL
PER AMS QQ-N-290, CLASS 1 (.000050" MIN.)
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
PERFORMANCE:
IMPEDANCE:
50 OHMS
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 09/11/15
STW 09/11/15
STW 09/11/15

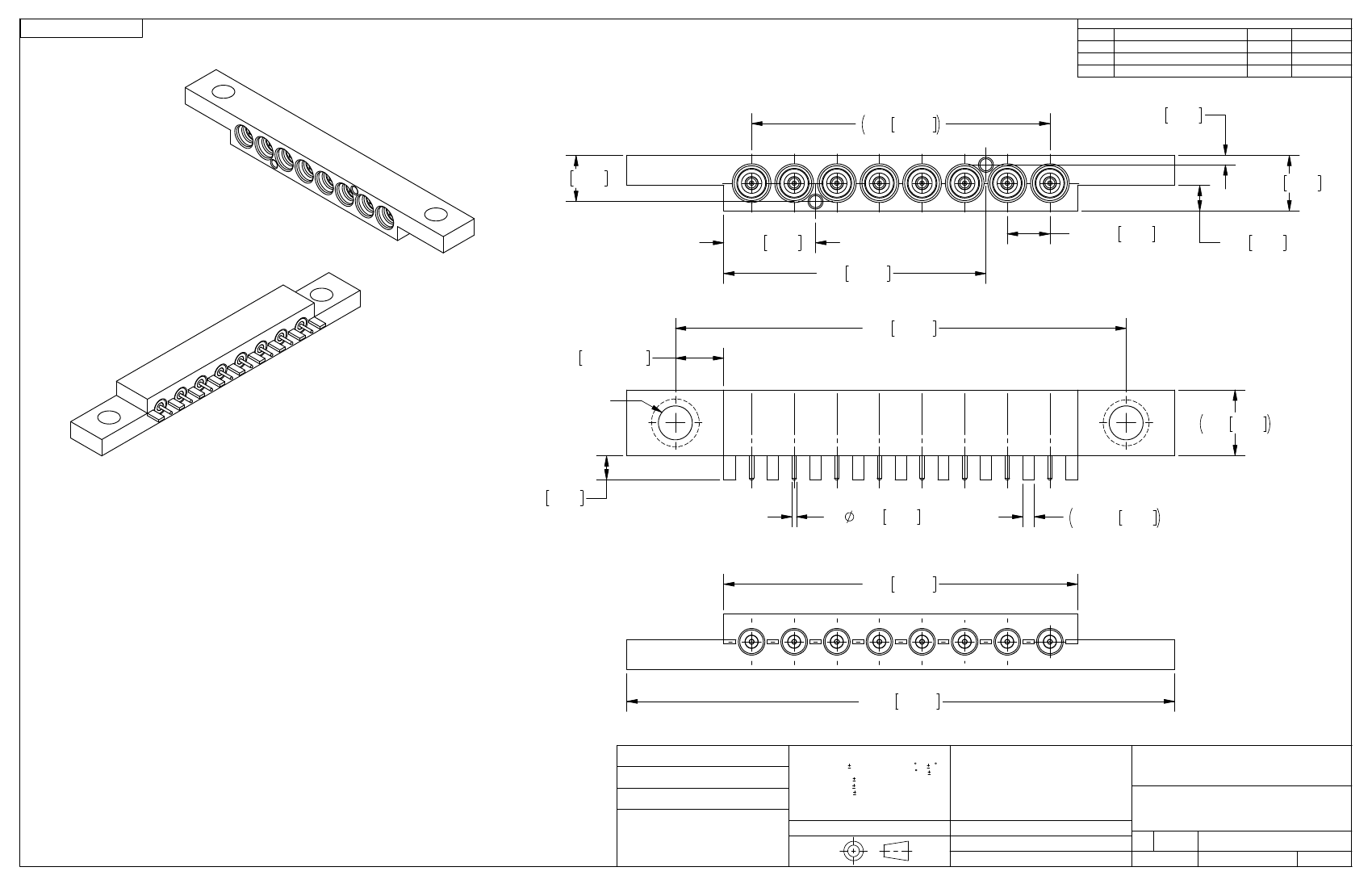

8-PORT SMPS FD
MALE BOARD MOUNT
CONNECTOR
95077
SIZE CAGE CODE DWG. NO.
B
3811-60019
SHEET 1 OF 1
SCALE: 4:1
