Antenna, Sensor, and Communications Trunk Line Connections
GT 5
GT 13
PO5G

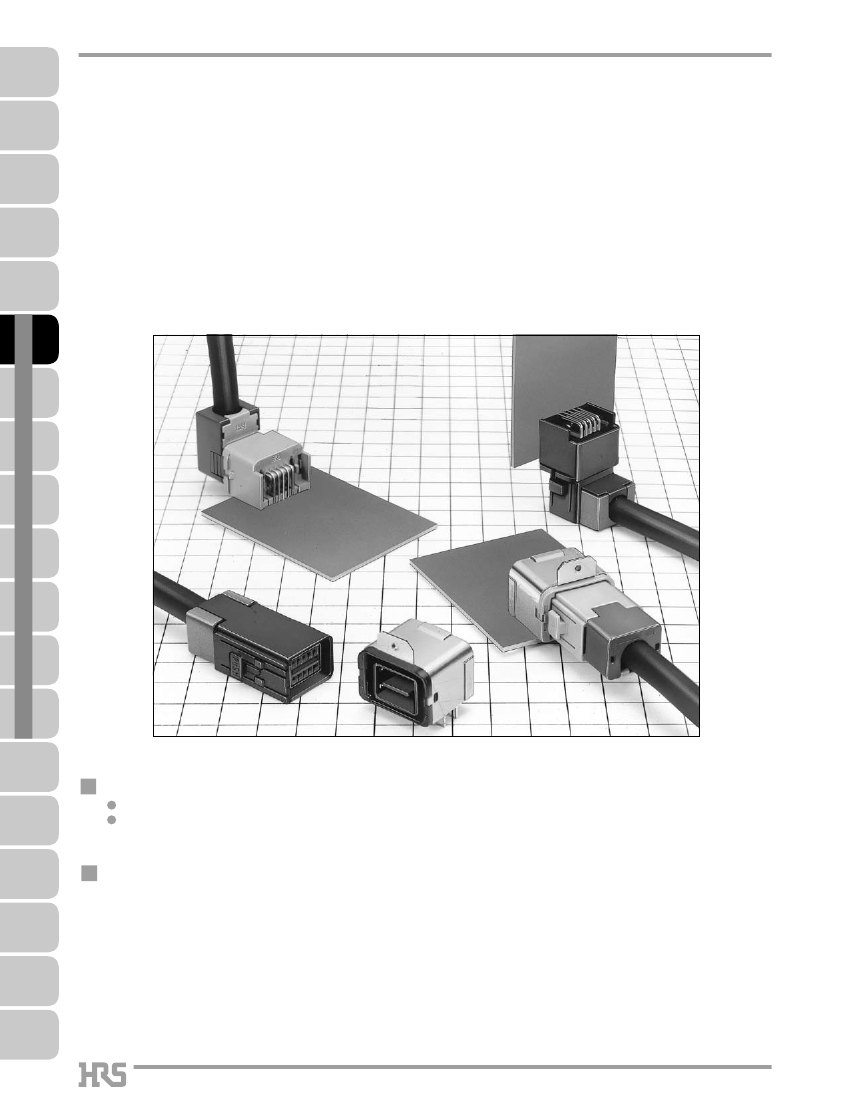

GT17 Series
— Multi contacts connector for high frequency Application —
(as USB,LVDS,GVIF)
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 15 GT 18W GT 10
GT 7
GT 6W
GT 3
GT 27
GT 26
GT 19
GT 17
GT 11
GT 16
Features
All surface shielded construction.
Ideal for use as Automotive USB connectors.
GT 8
Applications
In-car data communications, etc.
100
GT 22
GT 25
GT 9
GT17 Series
GT 5
F Connectors
Center Terminals
(Used with 6, 8, and 10 conductor cable)
T=0.2
GT 13
GT 16
21.1
PO5G
14.35
GT 11
1.7
2.1
These are lead-free products.
HRS No.
Part Number
GT17-2022SCF
767-0009-0
GT17-2428SCF
767-0010-0
GT17-30SCF
767-0064-9
GT17B-2428SCF
767-0122-3
1.45
GT 17
GT 19
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
Material
Copper alloy
Copper alloy
Copper alloy
Copper alloy
Finish
Tin plating
Tin plating
Tin plating
Tin plating
Conductor Size (AWG)
#20 to 22
#24 to 28
#30
#24 to 28
Outer Diameter
1.1 to 1.3 mm
0.7 to 1.0 mm
1.1 to 1.3 mm
0.5 to 0.7 mm
Packaging
10,000 pcs/reel
10,000 pcs/reel
10,000 pcs/reel
10,000 pcs/reel
RoHS
YES
GT 26
M Connectors
Center Terminals
(Used with 6, 8, and 10 conductor cable)
GT 27
T=0.2
GT 3
GT 6W
GT 7
GT 10 GT 18W GT 15
1.7
These are lead-free products.
0.64
0.9
18
GT 8
GT 9
Part Number
GT17-2022PCF
GT17-2428PCF
GT17A-2428PCF
HRS No.
767-0082-0
767-0076-8
767-0121-0
Material
Brass
Brass
Brass
Finish
Tin plating
Tin plating
Tin plating
Conductor Size (AWG)
AWG#20~22
AWG#24~28
AWG#24~28
Outer Diameter
1.1 to 1.3 mm
0.7 to 1.0 mm
1.1 to 1.3 mm
Packaging
10,000 pcs/reel
10,000 pcs/reel
10,000 pcs/reel
RoHS
YES
101
GT 25
GT 22
GT17 Series
GT 5
6-Conductor Straight Connectors
B
By using each of the two differently keyed types of housing for different purposes,
incorrect insertion can be prevented.
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 17
GT 11
PO5G
GT 16
GT 13
B
Shown with inserted retainer
GT 26
GT 27
GT 19
B
The product comprises 6 parts.
(Housing, insulator, outer terminal, shield plate, retainer, and center terminal)
Housing
Part Number
GT17VS- 6DS-HU
GT17VSA- 6DS-HU
HRS No.
767-0051-7
767-0052-0
Material / Finish or Color
PBT/Light Gray
PBT/Black
Packaging
1piece
1piece
Remarks
----------
----------
RoHS
YES
GT 3
GT 6W
Insulator
Part Number
GT17V- 6DS-2C
Outer terminal
Part Number
GT17VS- 6DS-5CF
Shield plate
Part Number
GT17VS- 6DS-SC
Retainer
Part Number
GT17VS- 6DS-R
Center terminal
Used with 6,8, and 10 conductor cable
HRS No.
767-0053-2
Material / Finish or Color
PBT/Dark Gray
Packaging
1piece
Remarks
----------
RoHS
YES
HRS No.
767-0049-5
Material / Finish or Color
Copper alloy / Tin plating
Packaging
1piece
Remarks
Lead free
RoHS
YES
HRS No.
767-0050-4
Material / Finish or Color
Copper alloy / Tin plating
Packaging
1piece
Remarks
Lead free, Conductor Size 4.8 to 5.2
RoHS
YES
HRS No.
767-0026-0
Material / Finish or Color
PBT/Dark Gray
Packaging
1piece
Remarks
----------
RoHS
YES
GT 8
GT 15 GT 18W GT 10
GT 9
GT 7
B
Mating Table
Color
Gray
Black
Cable side connector
GT17VS- 6DS-HU
GT17VSA- 6DS-HU
Boad connector
GT17V- 6DP-DS(70)
GT17VB- 6DP-DS(70)
GT17VA- 6DP-DS(70)
GT17VC- 6DP-DS(70)
102
GT 22
GT 25
GT17 Series
GT 5
6-Conductor Right-angle Connectors
B
By using each of the two differently keyed types of housing for different purposes,
incorrect insertion can be prevented.
GT 13
GT 16
PO5G
GT 11
GT 17
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
B
Shown with inserted retainer
GT 19
GT 26
GT 27
B
The product comprises 6 parts.
(Housing, insulator, outer terminal, shield plate, retainer, and center terminal)
Housing
Part Number
GT17V- 6DS -HU
GT17VA- 6DS -HU
Insulator
Part Number
GT17V- 6DS -2C
Outer terminal
Part Number
GT17V- 6DS -5CF
GT17V- 6DS -3.8CF
Shield plate
Part Number
GT17V- 6DS -SC
Retainer
Part Number
GT17V- 6DS -R
Center terminal
Used with 6,8, and 10 conductor cable
HRS No.
767- 0031-0
Material / Finish or Color
PBT / Dark Gray
Packaging
1piece
Remarks
----------
RoHS
YES
HRS No.
767- 0028-5
Material / Finish or Color
Copper alloy / Tin plating
Packaging
1piece
Remarks
Lead free
RoHS
YES
HRS No.
767- 0027-2
767- 0075-5
Material / Finish or Color
Copper alloy / Tin plating
Copper alloy / Tin plating
Packaging
1piece
1piece
Remarks
Lead free, Conductor Size 4.8 to 5.2mm
Lead free, Conductor Size 3.8 to 4.2mm
RoHS
YES
HRS No.
767- 0026-0
Material / Finish or Color
PBT / Dark Gray
Packaging
1piece
Remarks
----------
RoHS
YES
HRS No.
767- 0029-8
767- 0030-7
Material / Finish or Color
PBT / Light Gray
PBT / Black
Packaging
1piece
1piece
Remarks
----------
----------
RoHS
YES
GT 3
GT 6W
GT 7
GT 10 GT 18W GT 15
GT 8
GT 9
B
Mating Table
Color
Gray
Black
Cable side connector
GT17V- 6DS-HU
GT17VA- 6DS-HU
Boad connector
- 6DP-DS(70)(Cable exit direction, up side from mounting side)
GT17V
GT17VB- 6DP-DS(70)(Cable exit direction, down side from mounting side)
GT17VA- 6DP-DS(70)(Cable exit direction, up side from mounting side)
GT17VC- 6DP-DS(70)(Cable exit direction, down side from mounting side)
103
GT 25
GT 22
GT17 Series
GT 5
6-Conductor Printed Circuit Board Connectors
B
By using each of the two differently keyed types of housing for different purposes,
incorrect insertion can be prevented.
Cable extraction facing up
Part Number
HRS No.
Material / Finish or Color
Housing: PBT/Light Gray
Center terminal: Brass /Tin plating
Outer terminal: Copper alloy /Tin plating
Packaging
1piece
Remarks
Lead free
RoHS
YES
GT 16
GT 13
GT17V- 6DP-DS(70) 767- 0024- 4-70
PO5G
GT 11
In Combination with a Right-angle Connector
(Facing Up)
16.5
15
13.1
GT17V-6DP-DS(70)
2
3
GT17V-6DS-R
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 17
15.7
GT 19
GT 26
T=1.6
GT17V-6DP-DS(70)
12.2
PC BOARD
PANEL
16.5
26.5
GT17V-6DS-HU
GT 27
In Combination with a Straight Connector
13.1
2
GT 6W
GT 3
GT17V-6DP-DS(70)
GT17VS-6DS-R
23.2
22
15.7
GT 7
12.2
T=1.6
PC BOARD
PANEL
GT17VS-6DS-HU
GT 15 GT 18W GT 10
Cable extraction facing down
Part Number
HRS No.
Material / Finish or Color
Housing: PBT/Light Gray
Center terminal: Brass /Tin plating
Outer terminal: Copper alloy /Tin plating
Packaging
1piece
Remarks
Lead free
RoHS
YES
GT17VB- 6DP-DS(70) 767- 0032-2-70
In Combination with a Right-angle Connector
(Facing Down)
16.5
GT17V-6DS-HU
PANEL
13.1
GT17VB-6DP-DS(70)
GT 9
GT 8
23.2
22
GT 25
GT17VB- 6DP-DS(70)
GT17V-6DS-R
GT 22
3
15
2
PC BOARD
104
T=1.6
12.2
15.7
14.5
