09-9110-04411 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09-9110-04411

09-9110-04411: DescriptionInterconnection Device; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerConcord Electronics Inc

Download Datasheet Parametric Compare View All

09-9110-04411 Overview

Interconnection Device

09-9110-04411 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

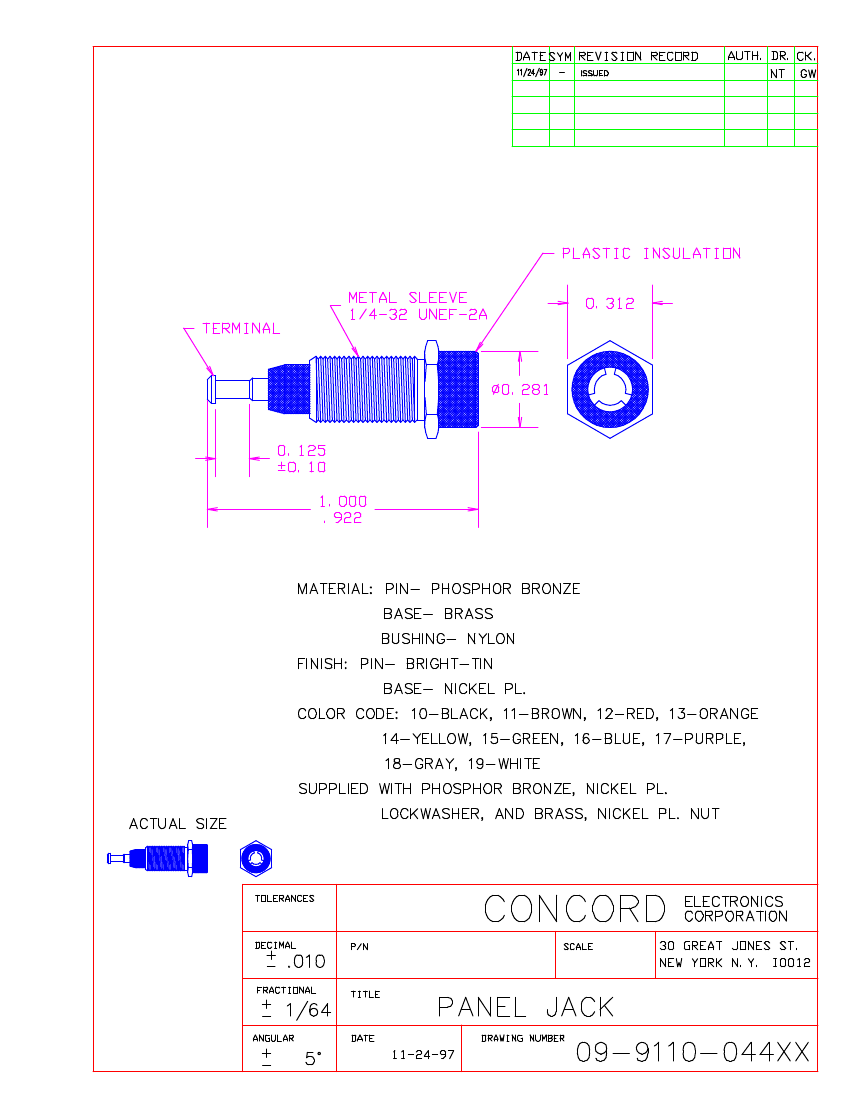

Preview

Download Datasheet

View All

09-9110-04411 Related Products

	09-9110-04411	09-9110-04415	Y163712R4000D9W	290-14K	290-182	290-196	290-3.09K	290-3.32M	239043161242L	239073154171L
Description	Interconnection Device	Interconnection Device	Fixed Resistor, Metal Foil, 0.75W, 12.4ohm, 122V, 0.5% +/-Tol, -.2,.2ppm/Cel, 2018	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 14000ohm, 200V, 1% +/-Tol, -200,200ppm/Cel, 1206,	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 182ohm, 200V, 1% +/-Tol, -200,200ppm/Cel, 1206,	RES,SMT,METAL FILM,196 OHMS,200WV,1% +/-TOL,-200,200PPM TC,1206 CASE	RES,SMT,METAL FILM,3.09K OHMS,200WV,1% +/-TOL,-200,200PPM TC,1206 CASE	Fixed Resistor, Metal Film, 0.125W, 3320000ohm, 200V, 1% +/-Tol, -200,200ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.25W, 1240ohm, 200V, 0.5% +/-Tol, -50,50ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.25W, 417ohm, 200V, 0.25% +/-Tol, -15,15ppm/Cel, 1206,
Reach Compliance Code	compli	compliant	compliant	unknown	unknown	unknown	unknown	unknown	compliant	compliant
Is it Rohs certified?	-	-	conform to	incompatible	incompatible	incompatible	incompatible	-	conform to	conform to
Objectid	-	-	1181387705	914249786	914249823	1216886101	1216886175	914249971	755165508	755274614
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	-	-	Rectangular	Chip	Chip	Chip	Chip	Chip	Chip	Chip
Number of terminals	-	-	2	2	2	2	2	2	2	2
Maximum operating temperature	-	-	150 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	-	-	0.64 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm
Package length	-	-	5.18 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm
Package form	-	-	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	-	-	4.67 mm	1.55 mm	1.55 mm	1.55 mm	1.55 mm	1.55 mm	1.6 mm	1.6 mm
method of packing	-	-	Waffle Pack	TR	TR	TR	TR	TR	TR, Paper, 10 Inch	TR, Paper, 10 Inch
Rated power dissipation(P)	-	-	0.75 W	0.125 W	0.125 W	0.125 W	0.125 W	0.125 W	0.25 W	0.25 W
resistance	-	-	12.4 Ω	14000 Ω	182 Ω	196 Ω	3090 Ω	3320000 Ω	1240 Ω	417 Ω
Resistor type	-	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	-	-	VSMP2018	CR1	CR1	CR1	CR1	290	RT	RT
size code	-	-	2018	1206	1206	1206	1206	1206	1206	1206
technology	-	-	METAL FOIL	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL FILM	METAL FILM	METAL FILM	THIN FILM	THIN FILM
Temperature Coefficient	-	-	0.2 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	50 ppm/°C	15 ppm/°C
Tolerance	-	-	0.5%	1%	1%	1%	1%	1%	0.5%	0.25%
Operating Voltage	-	-	122 V	200 V	200 V	200 V	200 V	200 V	200 V	200 V
