XC61N2102LB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> XC61N2102LB

XC61N2102LB: DescriptionPower Management Circuit, Fixed, +2.1VV, CMOS; CategoryPower/power management The power supply circuit; File Size790KB，18 Pages; ManufacturerTOREX; Websitehttp://www.torex.co.jp/chinese/; Environmental Compliance

Download Datasheet Parametric View All

XC61N2102LB Overview

Power Management Circuit, Fixed, +2.1VV, CMOS

XC61N2102LB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, SIP3,.01,50
Reach Compliance Code	compli
Adjustable threshold	NO
Humidity sensitivity level	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.01,50
power supply	0.7/10 V
Certification status	Not Qualified
Maximum supply current (Isup)	0.0036 mA
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal pitch	1.27 mm
Terminal location	SINGLE
Threshold voltage nominal	+2.1V
Base Number Matches	1

Preview

Download Datasheet

View All

◆CMOS

◆Highly

Accurate

◆Low

Power Consumption

:±2%

:0.7μA

(VIN=1.5V)

■APPLICATIONS

●Microprocessor

reset circuitry

●Memory

battery back-up circuits

●Power-on

reset circuits

●Power

failure detection

●System

battery life and charge voltage monitors

■GENERAL

DESCRIPTION

The XC61C series are highly precise, low power

consumption voltage detectors, manufactured using

CMOS and laser trimming technologies.

Detect voltage is extremely accurate with minimal

temperature drift.

Both CMOS and N-channel open drain output

configurations are available.

■FEATURES

Highly Accurate

: ± 2%

Low Power Consumption

: 0.7μA (TYP.)[ V

=1.5V ]

Detect Voltage Range

: 0.8V ~ 1.5V in 100mV increments(Low Voltage)

: 1.6V∼6.0V in 100mV increments(Standard Voltage)

Operating Voltage Range

: 0.7V ~ 6.0V(Low Voltage)

: 0.7V∼10.0V(Standard Voltage)

Detect Voltage Temperature Characteristics

±100ppm/℃

(TYP.)

Output Configuration

: N-channel open drain or CMOS

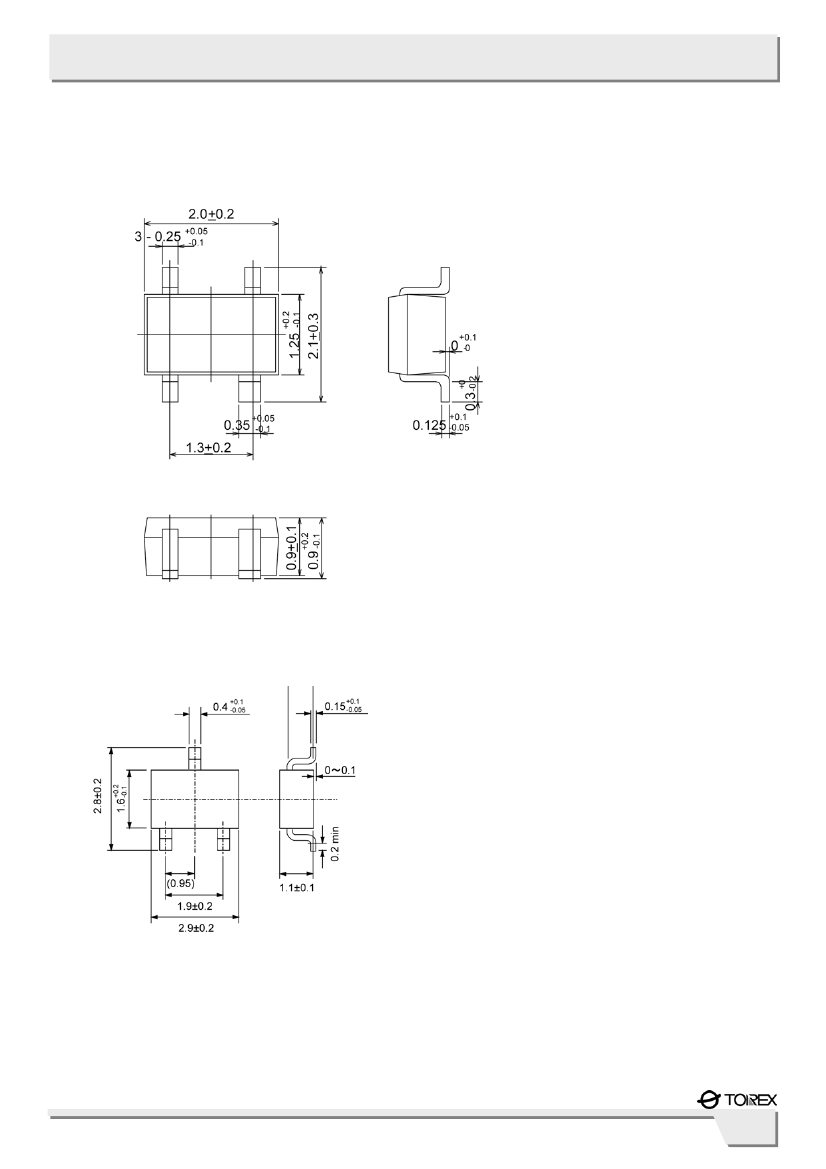

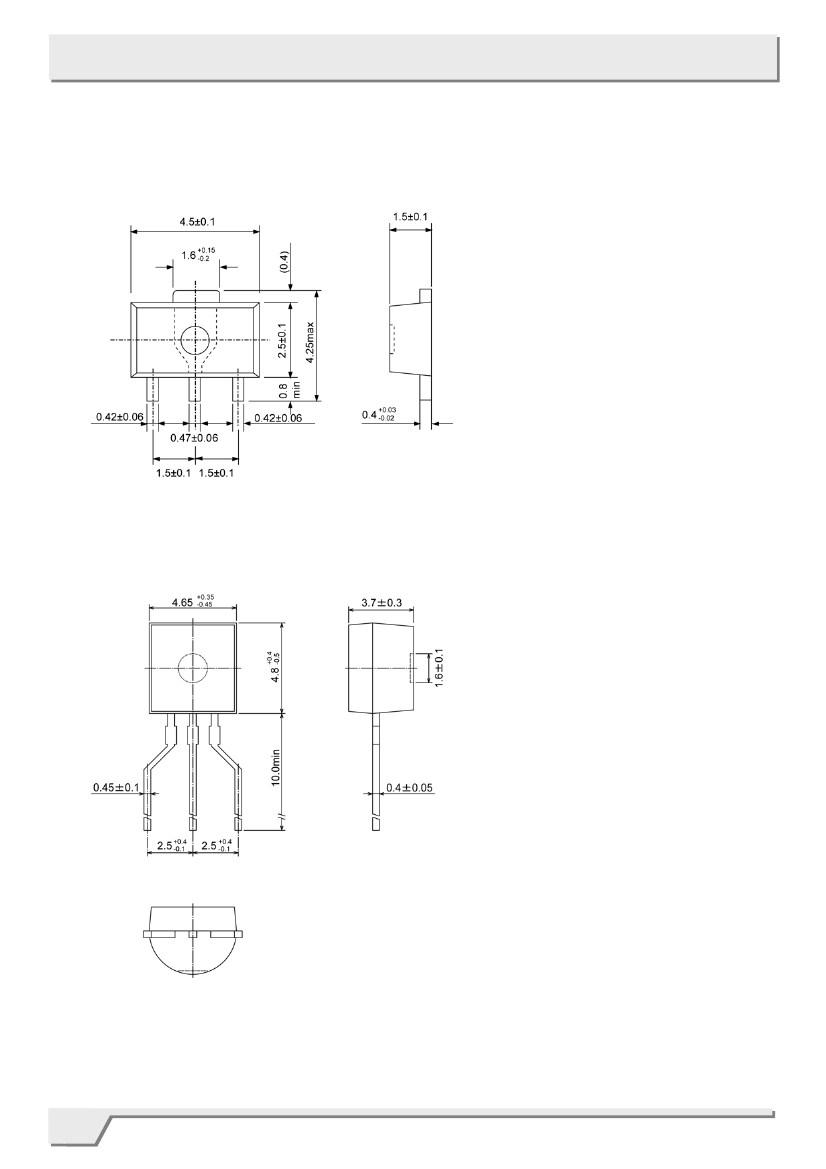

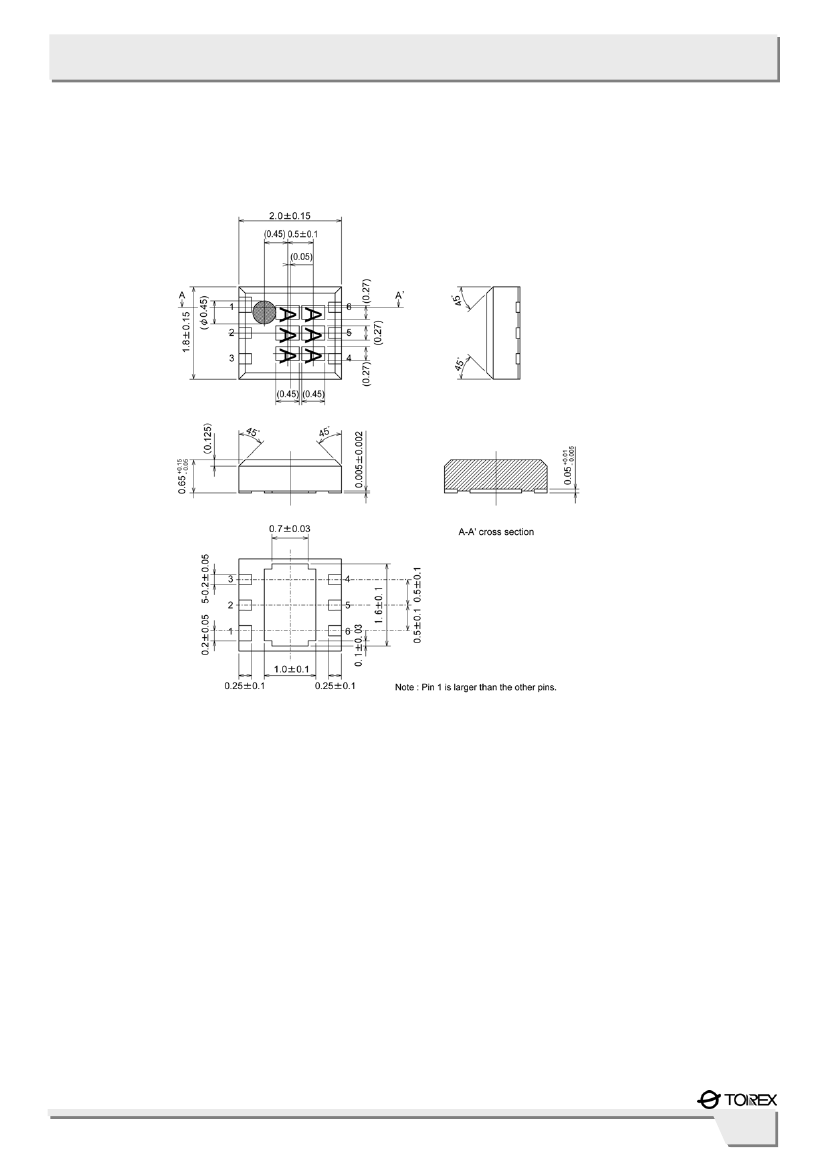

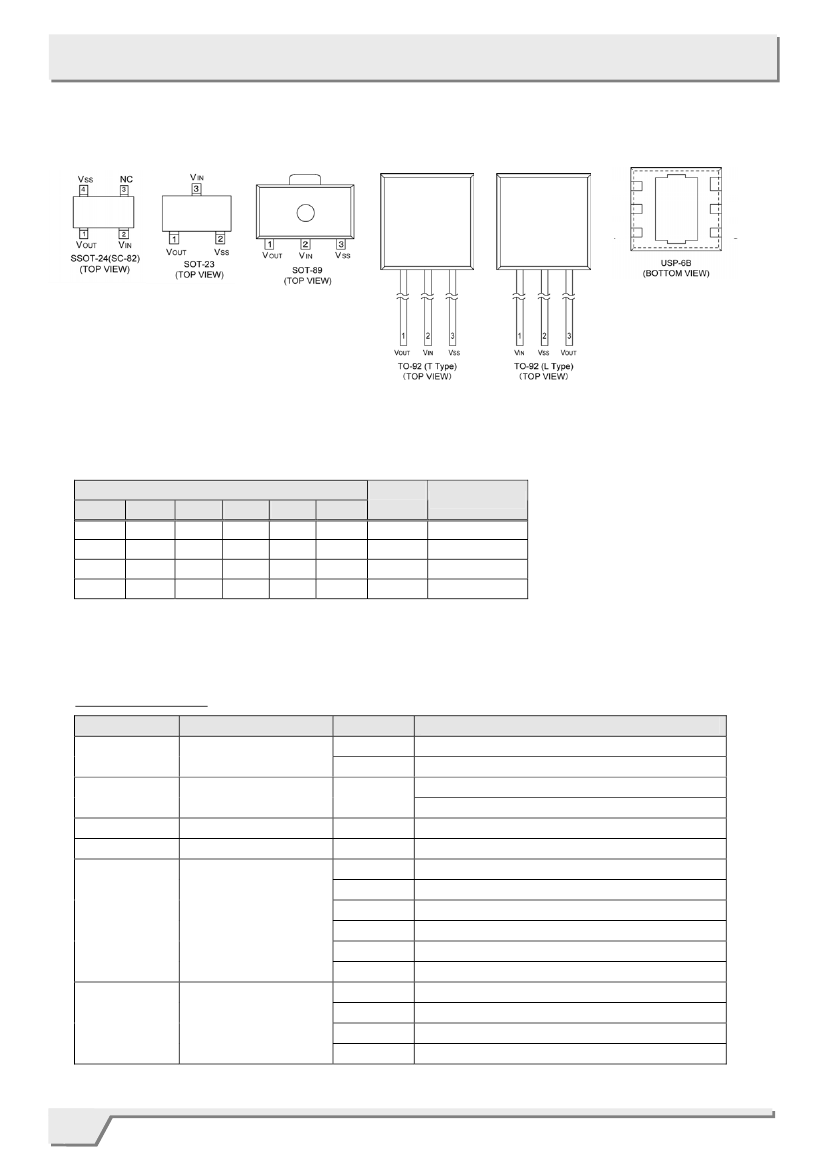

Ultra Small Packages

: SSOT-24 (150mW) super mini-mold

: SOT-23 (150mW) mini-mold

: SOT-89 (500mW) mini-power mold

: TO-92 ( 300mW )

: USP-6B (100mW)

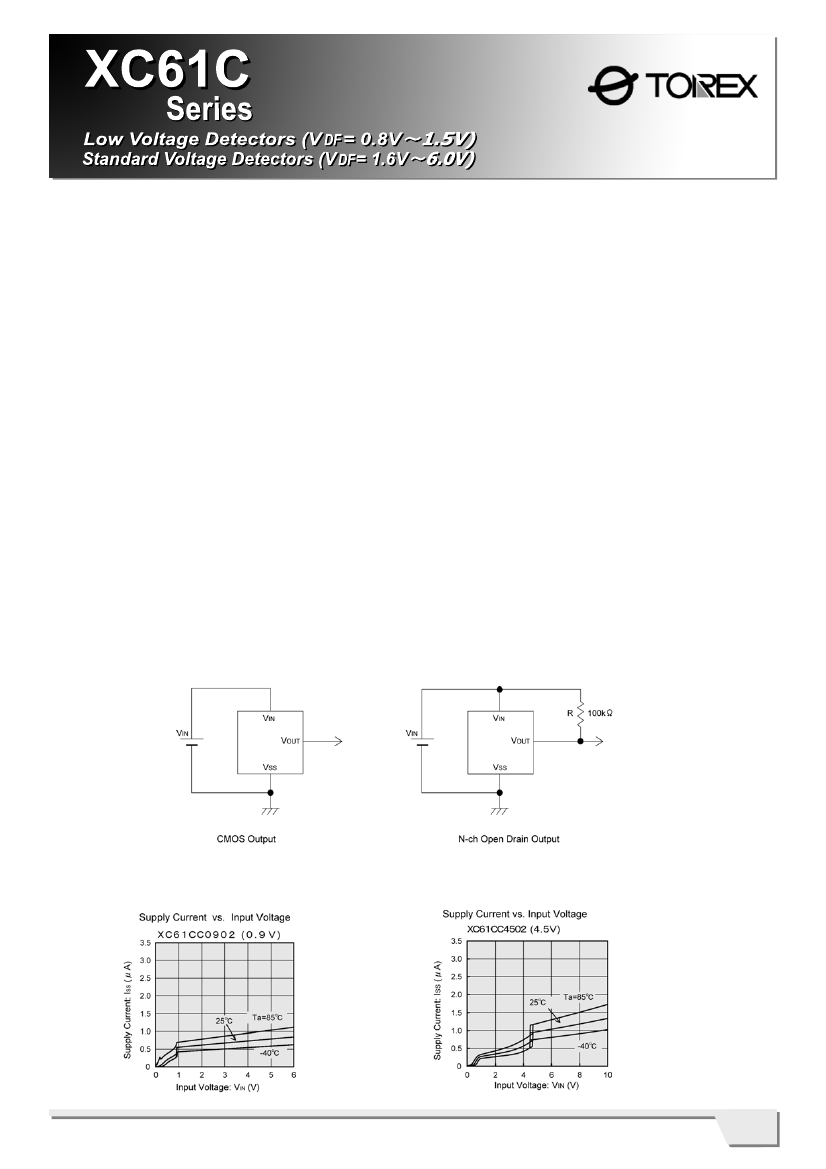

■TYPICAL

APPLICATION CIRCUITS

■TYPICAL

PERFORMANCE CHARACTERISTICS
