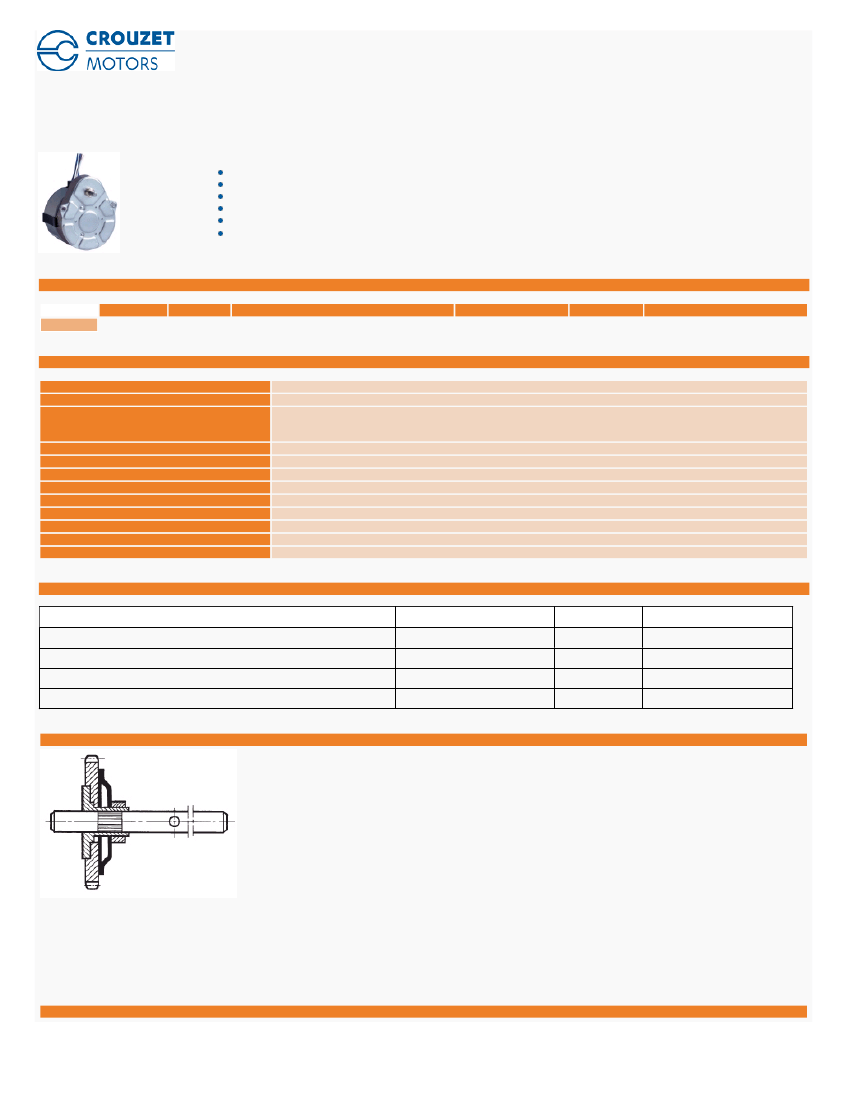

0.5 Nm 3.5 Watts 3.5 Watts Part number made to order
Mechanical strength : 0.5 Nm
Constant speed, dependent on supply frequency
Wide range of speeds available
Direction of rotation controlled by dephasing capacitor
Permanent magnet rotor
UL, CSA, VDE approved, comply with IEC standards
Part numbers
Type
82 524 005
3.5 Watts
Type
82 524 0
Base speed of motor (rpm)
250
Output speed
8,33 rpm
Ratios (i)
30
Voltage / Frequency
230-240 V - 50 Hz
Specifications
Motor
Gearbox
Maximum permitted continuous rated gearbox output
torque for 1 million revolutions of gearbox output shaft
(Nm)
Axial load static (daN)
Radial load static (daN)
Absorbed power (W)
Motor output (W)
Maximum temperature rise (°C)
Ambient temperature (°C)
Weight (g)
Wires length mm (approximately)
Protection rating
82 520 0
81 021 0
0.5
1
8
3,5
0,98
50
-5 →+70
140
250
IP40
Accessories
Voltages/Frequencies
Capacitors for motor 82 520 0
230-240 V - 50 Hz
115 V 60 Hz
24 V - 50 Hz
0,1 ± 10 %
0,33 ± 10 %
8,2 ± 10 %
500
400
63
26 231 941
26 231 801
26 231 711
μF
V AC
Code
Principles
This device is situated inside the gearbox and is particularly recommended when gearbox protection is required in the event of accidental overloading.
In this system, the final gear is connected to the gearbox output shaft by means of a friction assembly.
In some cases, this device can be used for time adjustment or zero reset on timers.
The standard torque setting is from :
- 1.8 to 2.5 cm/kg for gearbox 810210
- 7 to 10 cm/kg for gearbox 810330
Principles
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
This device, situated inside the gearbox, enables the output shaft to be rotated by
an external force (manual or mechanical) independently of the final wheel of the gearbox.
Description

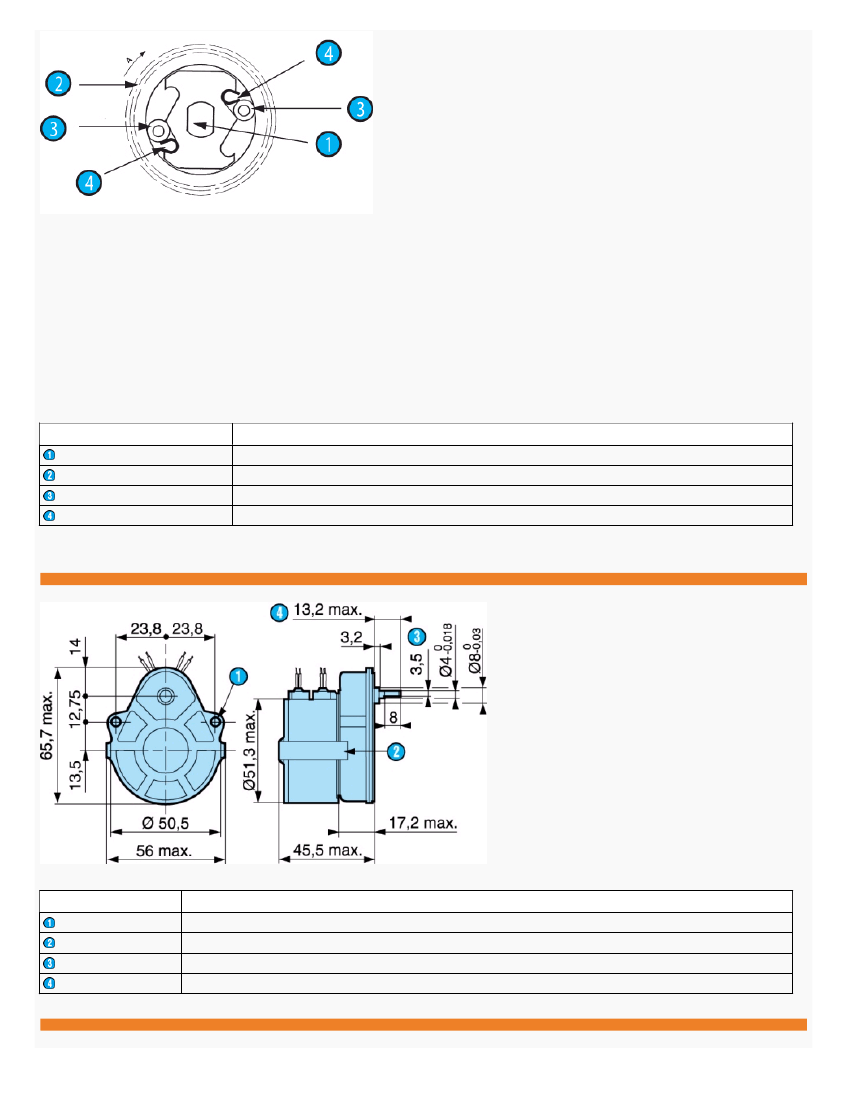

A specially shaped cam (1) is directly fitted on the gearbox output shaft. The final wheel (2) of the gearbox pivots freely on this shaft and has a housing into which the cam fits (1).
Between the cam and final wheel two rollers are symmetrically located held in place under the pressure of two springs (4).
When the geared motor is energised, it causes the final wheel (2) to rotate which, via the two rollers (3), in turn drives the output shaft.
If, under external force, the output shaft is turned in the same direction as the final wheel but at a higher speed, the two rollers (3) release the final wheel and the shaft speed becomes
independent of the speed of the final wheel.
The rollers can be located according to whether the final wheel is rotating clockwise or anti-clockwise.
Can be used with gearboxes 81 021 0 and 81 033 0.
N
o
Legend
Cams
Einstellräder
Roller
Dimensions (mm)
82 524 0 - 82 524 4
N
o
Legend
2 fixing holes Ø 3.2
Fixing clip
3.5 across flat
pushed-in shaft
Dimensions (mm)

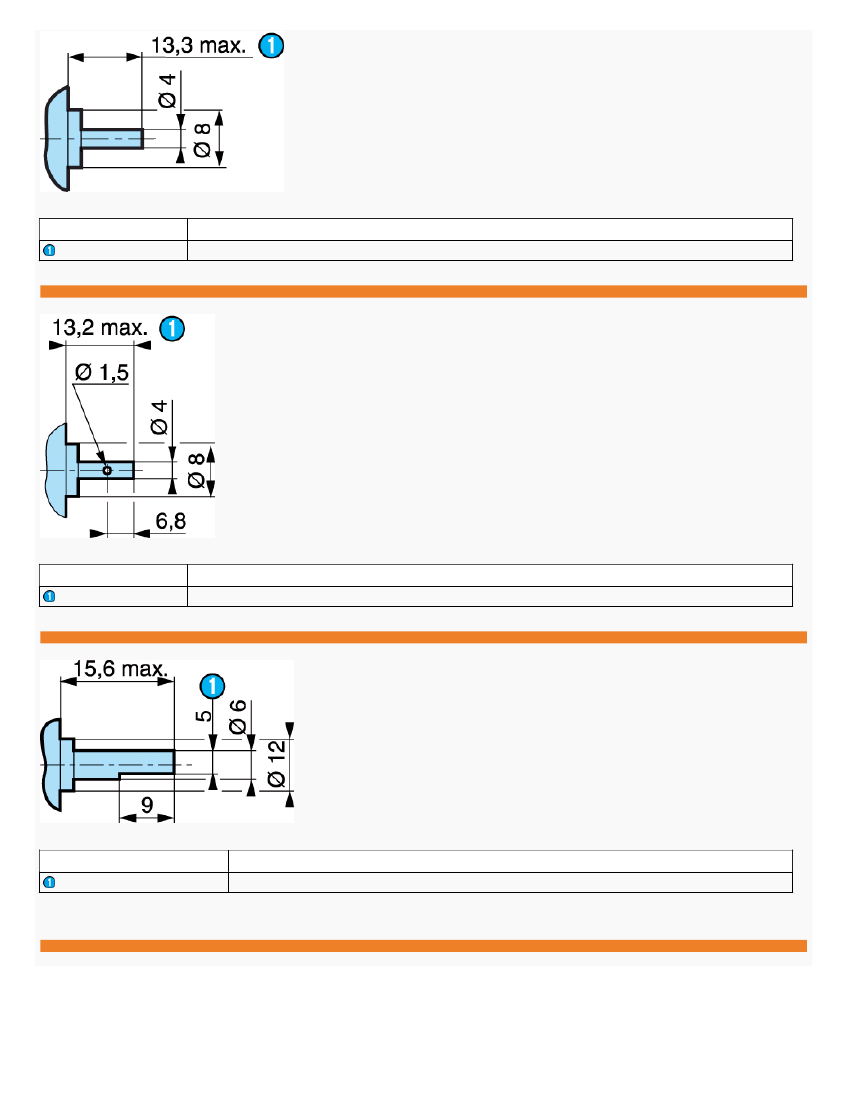

Shaft 79 200 967
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
(pushed-in shaft )
Dimensions (mm)
Shaft 79 200 779
N
o
Legend
(pushed-in shaft )
Dimensions (mm)
Shaft 70 999 421 SP1295-10
N
o
Legend
5 across flat
Curves

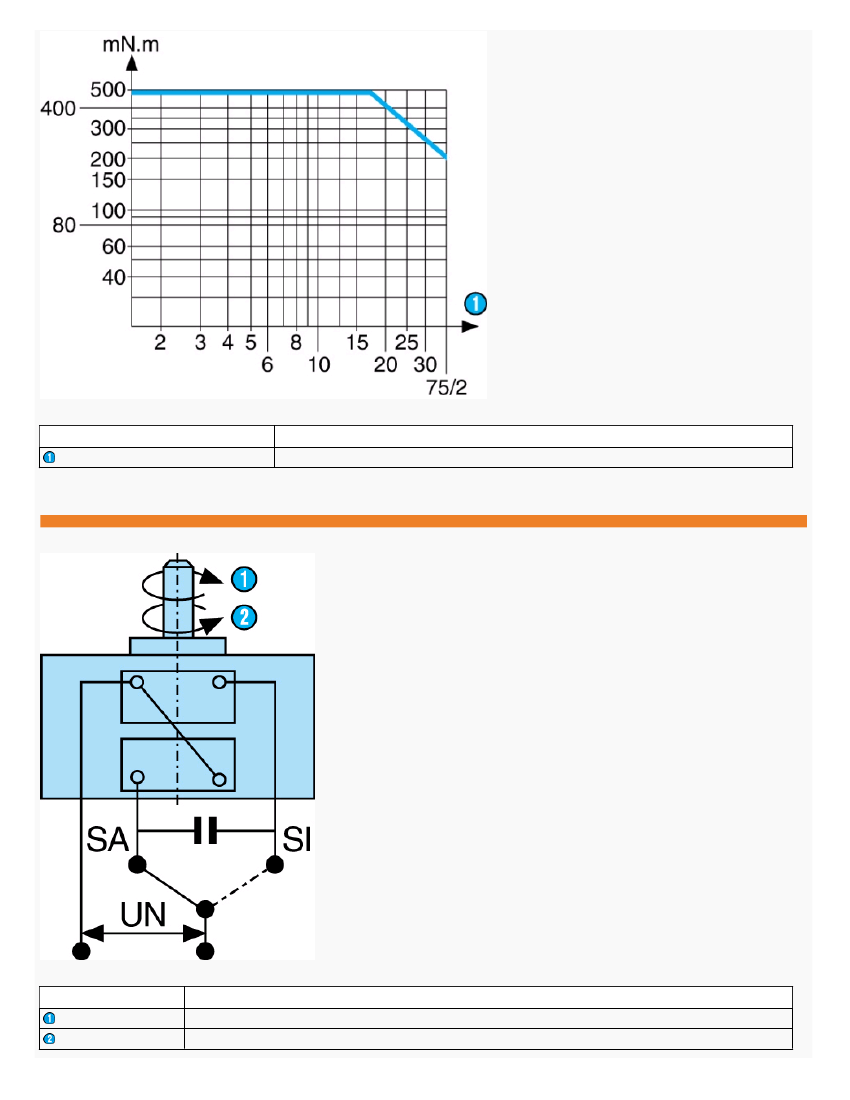

Torque/speed curves 82 524 0
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
RPM
Connections
In parallel
Motors 82 520 0 - 82 520 4
N
o
Legend
SA : Clockwise
SI : Anti-clockwise
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Product adaptations
Different voltages available
Special cable lengths
Special connectors
Special output shafts
Special gearbox ratios
Special gear wheel material
Special output bearing
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
