800BWSP9SM6RE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 800BWSP9SM6RE

800BWSP9SM6RE: DescriptionPushbutton Switches SPST OFF-(ON); CategoryMechanical and electronic products switch; File Size95KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

800BWSP9SM6RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800BWSP9SM6RE	-	-	View	Buy Now

800BWSP9SM6RE Overview

Pushbutton Switches SPST OFF-(ON)

800BWSP9SM6RE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	657664
Samacsys Pin Count	4
Samacsys Part Category	Switch
Samacsys Package Category	Other
Samacsys Footprint Name	800BWSP9SM6RE
Samacsys Released Date	2018-06-29 10:01:20
Is Samacsys	N
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PLUNGER
Other features	TAPE AND REEL PACKAGE
body width	8.13 mm
body height	5.08 mm
Body length or diameter	9.11 mm
Nozzle length	0.162 inch
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Contact function	ON-(OFF)
Contact resistance	0.02 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
JESD-609 code	e4
Manufacturer's serial number	800B
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

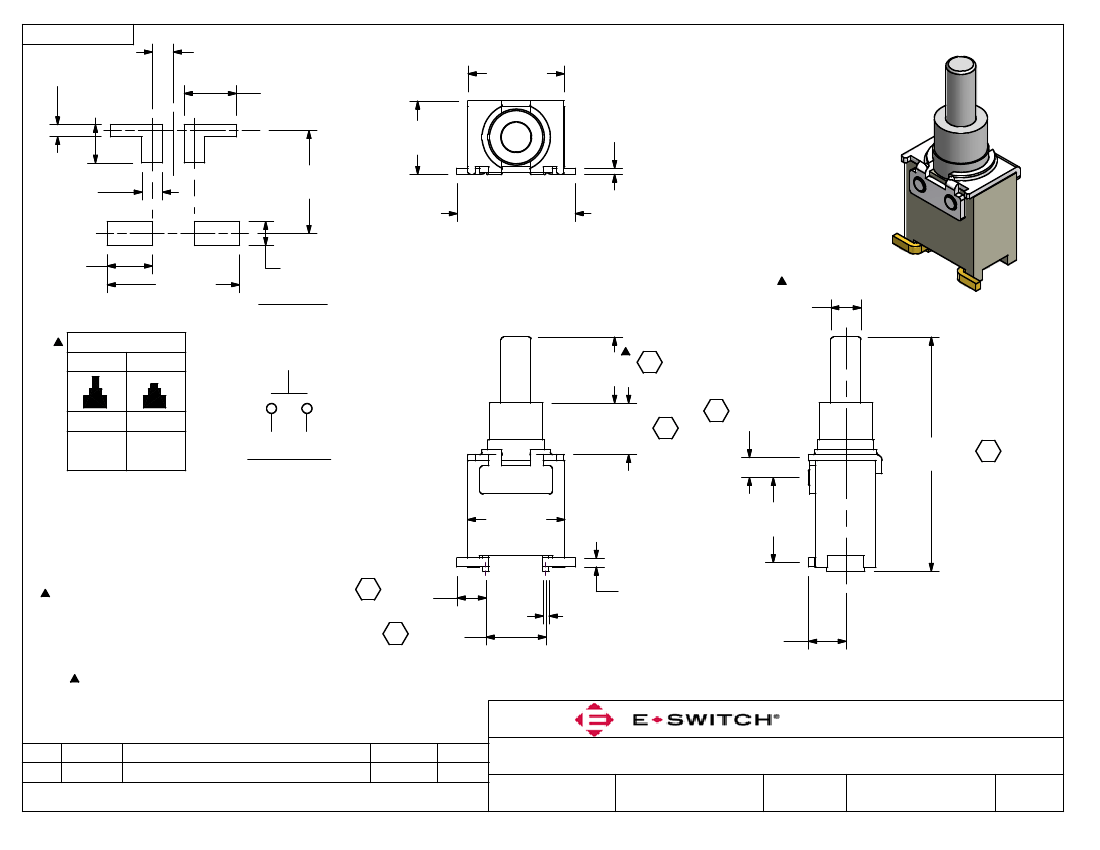

SHEET 1 OF 1

1.02

[.040 in]

3.25

[.128 in]

1.78

[.070 in]

3.63

[.143 in]

6.20

[.244 in]

8.70

[.343 in]

8.13

[.320 in]

.51

[.020 in]

2.03

[.080 in]

9.98

[.393 in]

(10.41 MAX)

([.410] MAX)

3.81

[.150 in]

11.18

[.440 in]

2.03

[.080 in]

PCB LAYOUT

2.54

[.100 in]

SWITCH FUNCTION

POS. 1

POS. 2

5.60

[.220 in]

4.35

[.171 in]

1.70

[.067 in]

19.83

1.00

[.781

.039

in]

OFF

OPEN

(ON)

1-3

CIRCUIT: SPST

(ON) = MOMENTARY

8.23

[.324 in]

7.20

[.283 in]

NOTES:

1. ALL DIMENSIONS IN MM [INCH].

2. TERMINAL NUMBERS FOR REF. ONLY.

3. GENERAL TOLERANCE: X.X=

0.4

X.XX=

0.25

4. PLATING MATERIAL: GOLD

5. RATING: 0.4VA @ 20V AC OR DC MAX

6. CONTACT RESISTANCE: 20 Milli-OHMS MAX.

7. MECHANICAL LIFE: 50,0000 MAKE AND BREAK

CYCLES AT FULL LOAD

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. DIELECTRIC STRENGTH: 1,000 VRMS @ SEA LEVEL

10. OPERATING TEMPERATURE: -30

C TO 85

11. DENOTES CRITICAL PARAMETER

12. PACKAGED 500 PCS. / REEL

13. 2002/95/EC (ROHS) COMPLIANT.

2.45

[.096 in]

5.08

[.200 in]

.76

[.030 in]

.51

[.020 in]

3.15

[.124 in]

REV

21447

PCR NO

REDRAW IN 3D, CORRECT DIMENSIONS

DESCRIPTION

4/29/14

DATE

EBP

TITLE

800BWSP9SM6RE

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

4/30/2014

EBP

T833015
