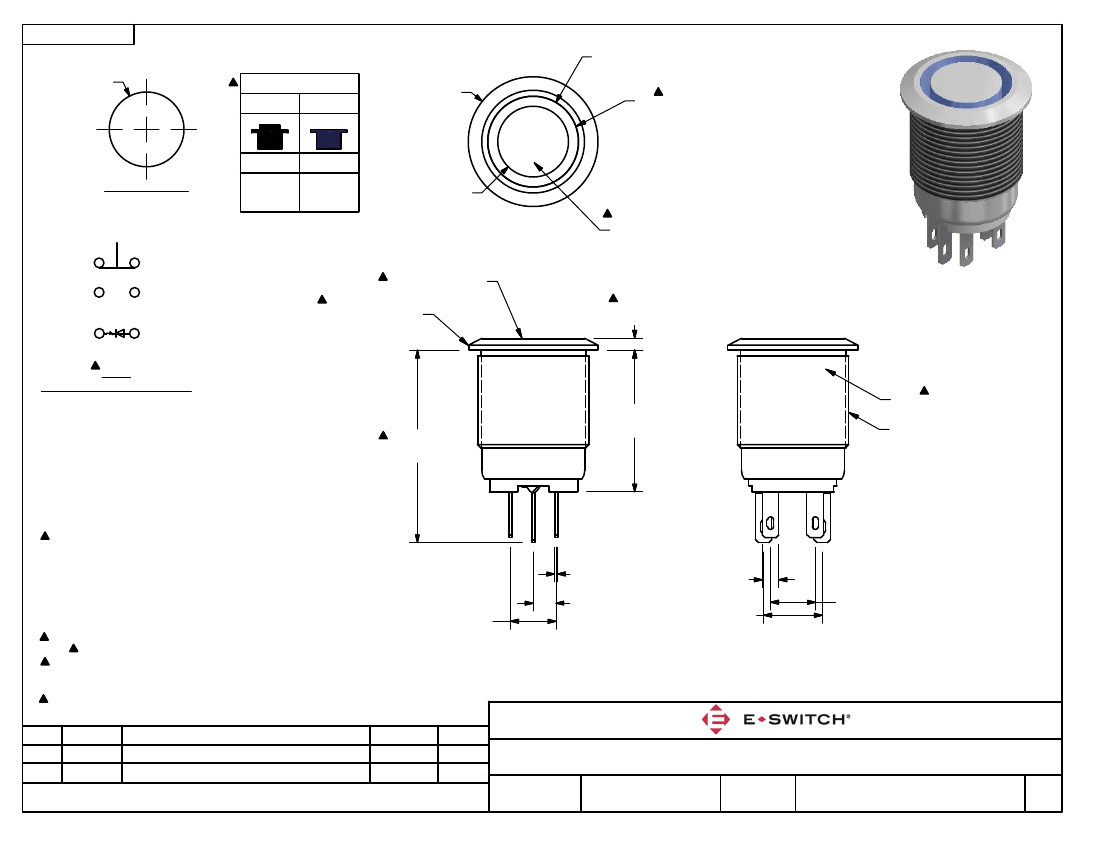

SHEET 1 OF 1
15.40
[.606 in]
19.00
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
22.00
[.866 in]
RING
ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-2
(ON)
3-4
12.00
[.472 in]
ACTUATOR FINISH
MACHINE FINISH
STAINLESS STEEL
FLAT ACTUATOR
(ON) = MOMENTARY
1
4
_
2
3
+
BODY FINISH
MACHINE FINISH
STAINLESS STEEL
2.00
[.079 in]
BLUE
SPDT
CONTACT CONFIGURATION
24.0
1.00
[.94
.04
in]
32.6
[1.28
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X= 0.4
X.XX= 0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 24VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20 C to 55 C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 24V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: BLUE
1.00
.04
in]
NOTE 15
HARDWARE SUPPLIED
M19x1.0
4
+
1
(+)
.50
[.020 in]
2.80
[.110 in]
9.90
[.390 in]
1 3
(-)
7.70
[.303 in]
3.85
[.152 in]
7.60
[.299 in]
C
B
REV
23606
20763
PCR NO
IUPDATED RATING TO 2A @ 24VDC
CORRECT RING ILLUMINATION NOTE
DESCRIPTION
10/11/18
9/19/12
DATE
MJR
EBP
BY
SCALE
DATE
DR
DWG
REV
TITLE
PV4F2Y0SS-345
3:2
2/7/2012
BGL
52-PV4F2Y0SS345
C
