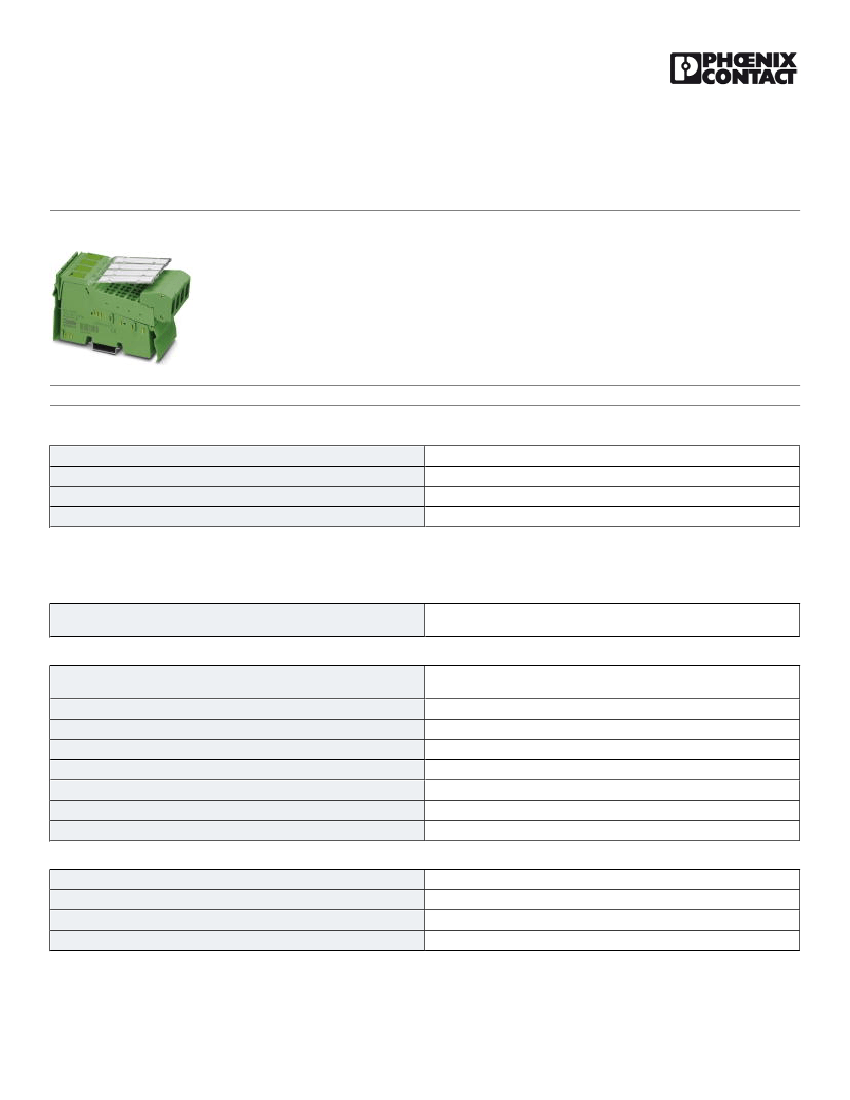

Inline terminal - IB IL AI 8/SF-XC-PAC - 2701159
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline analog input terminal, version for extreme conditions, complete with accessories (connector plug and
labeling field), 8 inputs, 0 - 20 mA, 4 - 20 mA, ±20 mA, 0 - 10 V, ±10 V, (additionally 0 - 40 mA, ±40 mA, 0 - 5 V,
±5 V, 0 - 25 V, ±25 V, 0 - 50 V), 2-conductor connection technology
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
260.0 GRM
85389091
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
GRP_Temperature class
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-40 °C ... 55 °C (See also the "Tested successfully: Use under extreme
ambient conditions" section of the data sheet.)
-40 °C ... 85 °C
T2 (-40°C ... 55°C, EN 50155)
10 % ... 95 % (according to DIN EN 61131-2)
10 % ... 95 % (according to DIN EN 61131-2)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
General
Weight
Note on weight specifications
Mounting type
Protection class
213 g
with connectors
DIN rail
III, IEC 61140, EN 61140, VDE 0140-1
09/03/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2701159
Inline terminal - IB IL AI 8/SF-XC-PAC - 2701159
Technical data
General
Test section
5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min
7.5 V supply (bus logic), 24 V supply U
ANA
/ I/O 500 V AC 50 Hz 1 min
7.5 V supply (bus logic), 24 V supply U
ANA
/functional earth ground 500 V
AC 50 Hz 1 min
I/O / functional earth ground 500 V AC 50 Hz 1 min
Interfaces
Fieldbus system
Designation
Connection method
Transmission speed
Transmission physics
Lokalbus
Inline local bus
Inline data jumper
500 kBit/s
Copper
Inline potentials
Communications power U
L
Current consumption from U
L
I/O supply voltage U
ANA
Current consumption from U
ANA
7.5 V DC (via voltage jumper)
max. 55 mA
typ. 48 mA
24 V DC
max. 35 mA
typ. 24 mA
Analog inputs
Number of inputs
Connection method
Input name
A/D conversion time
Limit frequency (3 dB)
Data formats
Measuring principle
Measured value resolution
Measured value representation
Current input signal
max. 8 (single ended)
2-wire (shielded)
Analog inputs
approx. 10 µs
3.5 kHz
IL, IB ST, IB RT, standardized representation, PIO format
Successive approximation
16 bits (15 bits + sign bit)
16 bit two's complement
0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA
0 mA ... 40 mA
-40 mA ... 40 mA
Voltage input signal
0 V ... 5 V
09/03/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2701159
Inline terminal - IB IL AI 8/SF-XC-PAC - 2701159
Technical data
Analog inputs
-5 V ... 5 V
0 V ... 10 V
-10 V ... 10 V
0 V ... 25 V
-25 V ... 25 V
0 V ... 50 V
Number of inputs
Voltage input signal
8 (single-ended voltage inputs)
0 V ... 5 V
-5 V ... 5 V
0 V ... 10 V
-10 V ... 10 V
0 V ... 25 V
-25 V ... 25 V
0 V ... 50 V
Input resistance of voltage input
Number of inputs
Current input signal
> 240 kΩ 0.01 %
8 (single-ended current inputs)
0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA
0 mA ... 40 mA
-40 mA ... 40 mA
Input resistance current input
25 Ω 0.01 %
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250303
27250303
27250303
27242601
27242601
27242601
27242601
ETIM
ETIM 3.0
ETIM 4.0
EC001596
EC001599
09/03/2014 Page 3 / 4
