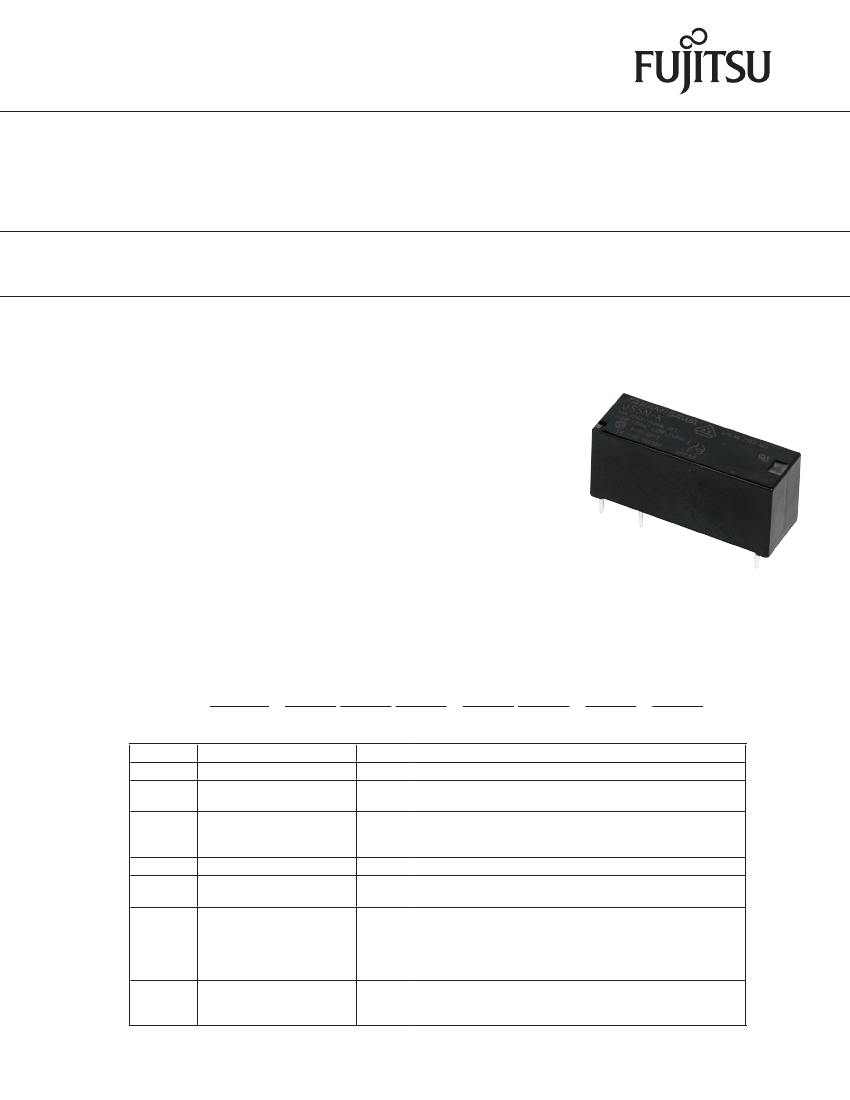

POWER RELAY
1 POLE - 8A Medium Load Control
JS Series
■
FEATURES
•
UL class B (130°C) coil wire insulation
•
1 form A (SPST-NO) or 1 form C (SPDT) contact
•
Low profile and space saving
•
•
•
•
•
•
Height: 12.5 mm - Mounting space: 290 mm2
High sensitivity in small package
Operating power 110 to 140 mW
Nominal power 220 to 290 mW
High insulation in small package
Insulation distance : 8.0 mm (between coil and contacts)
Dielectric strength : 5,000 VAC
Surge strength : 10,000 V
Plastic materials
UL 94 flame class V-0 UL CTI level class 2
Plastic sealed type
Various contact material options
RoHS compliant (Please see page 6 for more information)
■
Part Numbers
[Example]
JS
(a)
-
12
(b)
M
(c)
JS
12
Nil
M
D
F
N
K
Nil
T
Nil
V3
F
(d)
-
K
(e)
T
(f)
-
V3*
(g)
-
RW
(h)
(a)
(b)
(c)
(d)
(e)
(f)
(g)
Relay type
Contact rated voltage
Coil configuration
Contact material
Enclosure
Construction
Gold plating
(h)
Special type
: JS series
: 5....60VDC (Coil rating table at page 3)
: 1 form C (SPDT)
: 1 form A (SPST-NO)
: Silver nickel
: Gold flash silver nickel
: Gold flash
: Plastic sealed type
: 3.2mm
: 5.0mm (only JS-MN)
: Standard (0.3micron gold flash with Nil, N and F contact)
: 3.0μ gold plating for lower current applications (available
with Nil and N contact, not available for T, 5.0mm type)
V1 : 1.0μ gold plating for lower current applications
(avaialble with N contact, not available for T, 5,0mm type)
Nil
: Standard
RW : Reflow capable (through hole reflow)
(not available for V1, V3)
Note: Actual marking omits the hyphen (-) or (*)
*: V3 is marked at different position on the relay
E.g.: Ordering code: JS-12F Actual marking: JS12F-K
1
JS Series
■
Specifications
Item
Contact
Configuration
data
Construction
Plating
Material
Resistance
Contact rating
Max. carrying current
Max. switching voltage
Max. switching power
Min. switching load
*1
Rated power (20
o
C)
Operate power (20
o
C)
Operating temperature range
Operate
Release
Mechanical
Electrical
AC contact rating
(resistive)
DC contact rating
Insulation resistance
Dielectric
Open contacts
strength
Coil contact
Surge strength
Coil to contacts
Clearance
Creepage
EN61810-1,
VDE0435
Voltage
Pollution
Material group
Category
Other
Vibration resis- Misoperation
tance
Endurance
Shock resis-
tance
Misoperation
Endurance
Dimensions / weight
Sealing
*1
JS-( )
JS-( )D-K
JS-( )
JS-( )
F/N-K
N-K-V1
N-K-V3
1 form A (SPST-NO), 1 form C (SPDT)
Single
0.3μ Au
-
1μ Au
3μ Au
Plated
Plated
Plated
See partnumber information
Max.100mΩ
Max.30mΩ
8A, 250VAC / 24VDC
10A
400VAC / 300VDC (-RW; 400VAC / 150VDC)
2000VA / 192W
100 mA, 5VDC
10 mA, 5VDC
220 - 290mW
110 - 140mW
-40ºC ~ +85ºC (at rated voltage)
Max. 10ms
Max. 5ms
Min. 20 x 10⁶ operations
Min. 50 x 103 operations (AgSnO2)
Min. 20 x 103 operations (AgNi)
Min. 50 x 103 operations (AgSnO2)
Min. 20 x 103 operations (AgNi)
Min. 1000MΩ at 500VDC
1000VAC (50/60Hz), 1 minute
5000VAC (50/60Hz), 1 minute
10000V / 1.2 x 50μs standard wave
8mm
8mm
250V
3
III a
C / 250V (reference voltage) (VDE 01106)
10Hz ~ 55Hz ~ 10Hz single amplitude
0.825mm
10Hz ~ 55Hz ~ 10Hz single amplitude
1.65mm
Min. 100m/s² (11 ± 1ms)
Min. 1,000m/s² (6 ± 1ms)
10.0 x 29.0 x 12.5 mm / approx. 8.0g
Plastic sealed
Remarks / conditions
6VDC,
1A
Resistive
Coil
Timing
data
Life
No frost
without bounce
without bounce, no diode
At rated load
At rated load
Insula-
tion
Direction X, Y, Z, contact ON/OFF
total 36 times
Direction X, Y, Z, contact OFF total
18 times
:
Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual load
before production since reference values may vary according to switching frequencies, environmental contions and
expected reliability levels.
2
JS Series
■
Coil Data
Coil code Rated Coil Voltage Coil Resistance +/-10% Must Operate Voltage
*
Must Release Voltage
*
(VDC)
(Ω)
(VDC)
(VDC)
005
5
112
3.5
0.5
006
6
160
4.2
0.6
009
9
360
6.3
0.9
012
12
660
8.5
1.2
018
18
1,455
12.7
1.8
024
24
2,350
16.8
2.4
048
48
8,000
33.4
4.8
060
60
12,500
41.7
6.0
Rated Power
(mW)
225
220
225
245
290
Note: All values in the table are valid at 20
o
C and zero contact current, unless otherwise specified.
*
:
Specified operated values are valid for pulse wave voltage.
Note: Please use at rated coil voltage. Please refer to characteristic data and set up adequate voltage in case of use at over voltage.
Care shall be taken on the heat generated on PC board when maximum carrying current exceeds 10A. Please perform the confirmation test with actual
conditions.
■
Safety Standards
Type
UL
Compliance
UL 508
Contact rating
Flammability: UL 94-V-0 (plastics)
Contact material:
N
D, F
Nil, E
8A 24VDC
8A 24VDC
8A, 24VDC resistive
(resistive) 100k
(resistive) 100k
8A, 250VAC resistive
8A, 250VAC
8A, 250VAC
(resistive) 100k
(resistive) 100k
10A, 30VDC
10A, 30VDC
(resistive)
(resistive)
10A, 250VAC
10A, 250VAC (
(resistive)
resistive)
1/4HP, 125VAC /
1/4HP, 125VAC /
250VAC
250VAC
1/3HP, 125VAC
1/3HP, 125VAC
1/2HP, 250VAC
1/2HP, 250VAC
Pilot duty: C150,
Pilot duty: A300,
B300
B300
Pilot duty: 0.27A,
C150, R300
250VDC
8A 250VAC (cos
φ=1)
JS-( )D-K, JS-( )F-K:
8A 24VDC (L/R=0ms)
6A, 250VAC, (cos
φ=1)
8A, 24VDC (L/R=0ms)
JS-( )MD-K, JS-( )
MF-K:
8A, 240VAC (cos
φ=1)
8A, 24VDC (L/R=0ms)
10A 30VDC/250VAC (except -V3 type)
CSA
File No. E 56140
C22.2 No. 14
File No. LR 35579
VDE
IEC/EN61810-1
EN60335-1 clause
15.3; 16.3; 29.1; 29.2; 29.3
EN60730-1 clause
12.2; 13.2; 20.1; 20.2; 20.3
EN60947-5-1 Appendix C
CQC
GB15092.1
CQC17001162883
3
JS Series
■

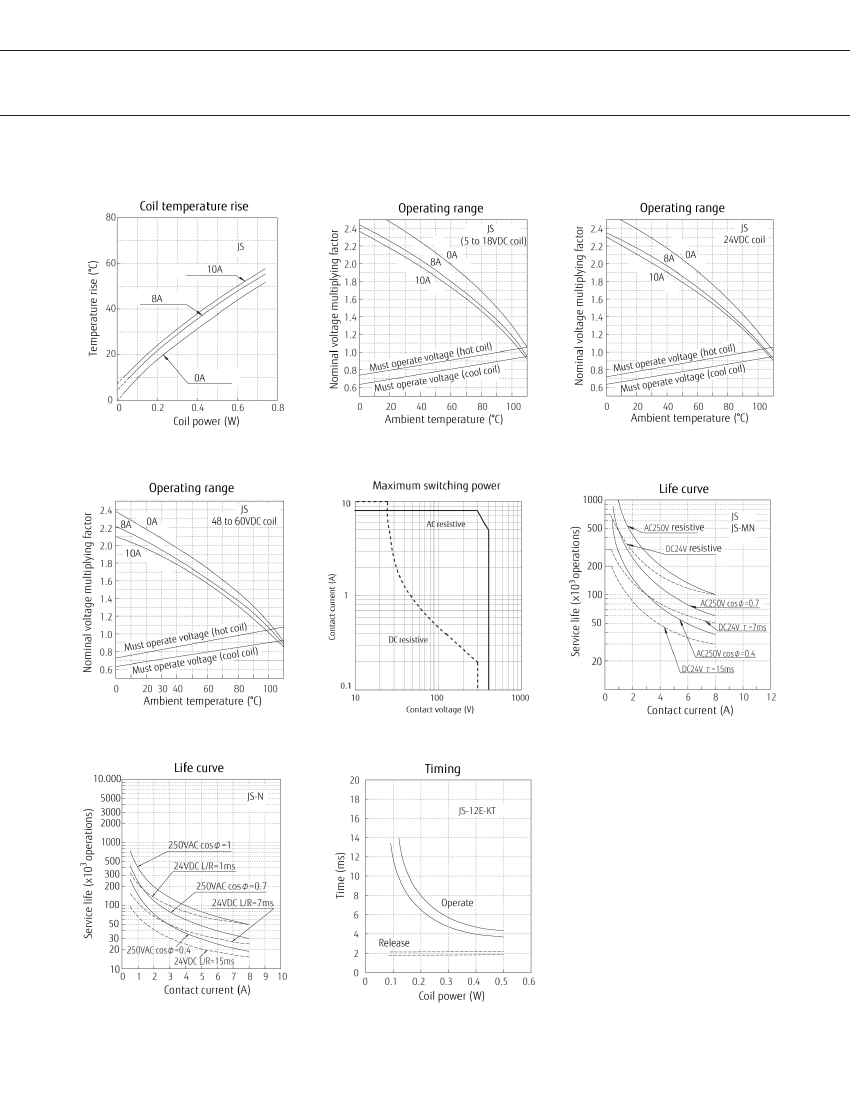

Characteristic Data (Reference)
* Characteristic data is not guaranteed value but measured values of samples from production line.
4
JS Series
■

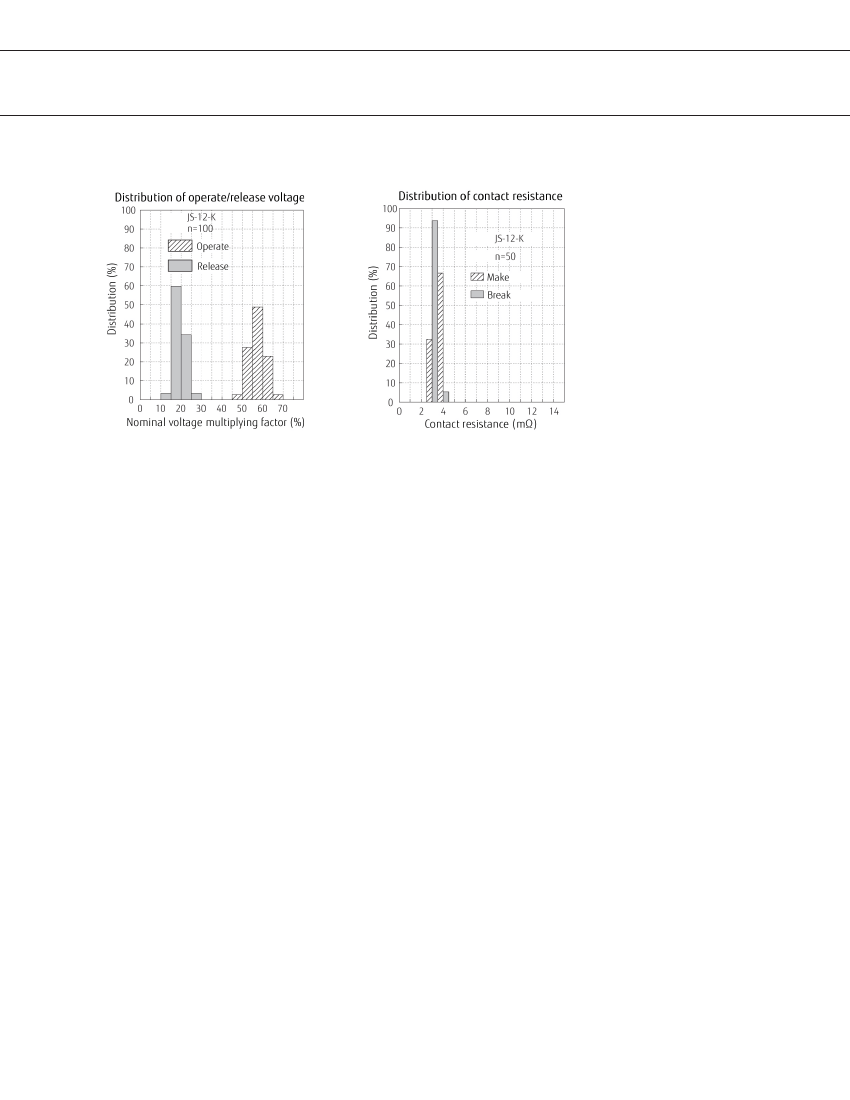

Characteristic Data (Reference)
* Characteristic data is not guaranteed value but measured values of samples from production line.
5
