Z: Tape and reel packing (picked from 10 pin side)
2
0
A
TYPES
1. Tube packing
Contact
arrangement
Nominal coil voltage
1.5V DC
3 V DC
4.5V DC
5 V DC
6 V DC
9 V DC
12 V DC
24 V DC
48 V DC
Single side stable
ARA200A1H
ARA200A03
ARA200A4H
ARA200A05
ARA200A06
ARA200A09
ARA200A12
ARA200A24
ARA200A48
Part No.
1 coil latching
ARA210A1H
ARA210A03
ARA210A4H
ARA210A05
ARA210A06
ARA210A09
ARA210A12
ARA210A24
—
2 coil latching
ARA220A1H
ARA220A03
ARA220A4H
ARA220A05
ARA220A06
ARA220A09
ARA220A12
ARA220A24
—
2 Form C
Standard packing: 40 pcs. in an inner package (tube); 1,000 pcs. in an outer package
ASCTB102E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RA (ARA)
2. Tape and reel packing
Contact
arrangement
Nominal coil voltage
1.5V DC
3 V DC
4.5V DC
5 V DC
6 V DC
9 V DC
12 V DC
24 V DC
48 V DC
Part No.
Single side stable
ARA200A1HZ
ARA200A03Z
ARA200A4HZ
ARA200A05Z
ARA200A06Z
ARA200A09Z
ARA200A12Z
ARA200A24Z
ARA200A48Z
1 coil latching
ARA210A1HZ
ARA210A03Z
ARA210A4HZ
ARA210A05Z
ARA210A06Z
ARA210A09Z
ARA210A12Z
ARA210A24Z
—
2 coil latching
ARA220A1HZ
ARA220A03Z
ARA220A4HZ
ARA220A05Z
ARA220A06Z
ARA220A09Z
ARA220A12Z
ARA220A24Z
—
2 Form C
Standard packing: 500 pcs. in an inner package (tape and reele); 1,000 pcs. in an outer package
Note: Tape and reel packing symbol “-Z” is not marked on the relay. “X” type tape and reel packing (picked from 1-pin side) is also available.
RATING
1. Coil data
1) Single side stable
Nominal coil
voltage
1.5V DC
3 V DC
4.5V DC
5
6
9
12
V DC
V DC
V DC
V DC
75%V or less of
nominal voltage*
(Initial)
10%V or more of
nominal voltage*
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
93.8mA
46.7mA
31 mA
28.1mA
23.3mA
15.5mA
11.7mA
8.3mA
6.3mA
Coil resistance
[±10%] (at 20°C
68°F)
16
Ω
64.3Ω
145
Ω
178
257
579
1,028
Ω
Ω
Ω
Ω
140mW
150%V of nominal voltage
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
24 V DC
48 V DC
2,880
Ω
7,680
Ω
200mW
300mW
120%V of nominal voltage
2) 1 coil latching
Nominal coil
voltage
1.5V DC
3 V DC
4.5V DC
5 V DC
6 V DC
9 V DC
12 V DC
24 V DC
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
46.9mA
23.3mA
15.6mA
14 mA
11.7mA
7.8mA
5.8mA
4.2mA
Coil resistance
[±10%] (at 20°C
68°F)
32
Ω
128.6Ω
289.3Ω
357
Ω
514
Ω
1,157
Ω
2,057
Ω
5,760
Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
75%V or less of
nominal voltage*
(Initial)
75%V or less of
nominal voltage*
(Initial)
70mW
150%V of nominal voltage
100mW
3) 2 coil latching
Nominal coil
voltage
1.5V DC
3 V DC
4.5V DC
5 V DC
6 V DC
9 V DC
12 V DC
24 V DC
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C 68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
93.8mA
46.7mA
31 mA
28.1mA
23.3mA
15.5mA
11.7mA
8.3mA
Coil resistance
[±10%] (at 20°C
68°F)
16
Ω
64.3Ω
145
Ω
178
Ω
257
Ω
579
Ω
1,028
Ω
2,880
Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
75%V or less of
nominal voltage*
(Initial)
75%V or less of
nominal voltage*
(Initial)
140mW
150%V of nominal voltage
200mW
*Pulse drive (JIS C5442-1996)
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB102E 201202-T
RA (ARA)
2. Specifications
Characteristics
Arrangement
Contact
Contact material
Initial contact resistance, max.
Contact rating
Contact carrying power
Max. switching voltage
Max. switching current
Single side stable
Nominal
operating
1 coil latching
power
2 coil latching
Between open contacts
Between contact sets
Insertion loss (without D.U.T. board’s loss)
Isolation
V.S.W.R.
Input power
Insulation resistance (Initial)
Breakdown
voltage
(Initial)
Electrical
characteristics
Between open contacts
Between contact sets
Between contact and coil
Between contact and earth terminal
Item
Specifications
2 Form C
Stationary: AgPd + Au clad, Movable: AgPd
Max. 75mΩ (By voltage drop 6V DC 1A)
10mA 10V DC (resistive load), 1A 30V DC (resistive load)
3W (at 1GHz, impedance 50Ω, V.S.W.R. max.1.2)
30V DC
1A
140mW (1.5 to 12V), 200mW (24V), 300mW (48V)
70 mW (1.5 to 12V), 100mW (24V)
140mW (1.5 to 12V), 200mW (24V)
Min. 20dB
Min. 30dB
Max. 0.3dB
Max. 1.2
3W (at 1GHz, impedance 50Ω, V.S.W.R. max.1.2)
Min. 100MΩ (at 500V DC)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
Max. 60°C
(By resistive method, nominal voltage applied to the coil, 1GHz, 3W, V.S.W.R. max.1.2)
Max. 4ms (Approx. 2ms) [Max. 4ms (Approx. 2ms)] (Nominal operating voltage applied to
the coil, excluding contact bounce time.)
Max. 4ms (Approx. 1ms) [Max. 4ms (Approx. 2ms)] (Nominal operating voltage applied to
the coil, excluding contact bounce time.) (without diode)
Min. 500 m/s
2
(Half-wave pulse of sine wave: 11ms; detection time: 10µs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6ms.)
10 to 55 Hz at double amplitude of 3mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 5mm
Min. 10
8
(at 180 cpm)
Min. 10
7
(at 20 cpm) (10mA 10V DC resistive load)
Min. 10
5
(at 20 cpm) (1A 30V DC resistive load)
Ambient temperature: –40°C to +85°C
–40°F to +185°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 2 g
.07 oz
Rating
High frequency
characteristics
(Initial) (~1GHz,
Impedance 50Ω)
Temperature rise (at 20°C)
Operate time [Set time] (at 20°C)
Release time [Reset time] (at 20°C)
Shock
resistance
Vibration
resistance
Mechanical
Expected life
Conditions
Unit weight
Electrical
Conditions for operation, transport and storage*
Functional
Destructive
Functional
Destructive
Mechanical
characteristics
Note: * The upper operation ambient temperature limit is the maximum temperature that can satisfy the coil temperature rise value. Refer to [6] AMBIENT ENVIRONMENT
in GENERAL APPLICATION GUIDELINES.
REFERENCE DATA

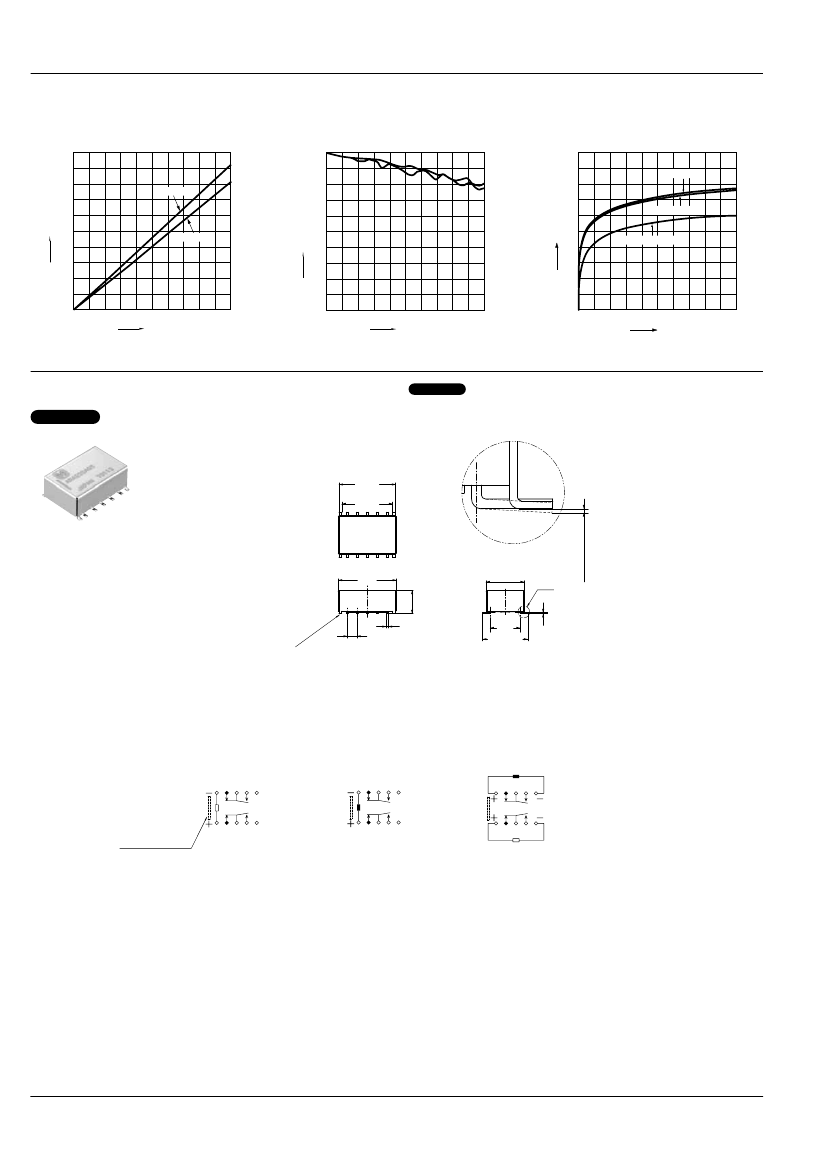

1-(1). High frequency characteristics (Impedance 50Ω)
Sample: ARA200A12
Measuring method: Measured with HP network analyzer (HP8753C).
• V.S.W.R.
1.5
• Insertion loss
0
COM-NO
• Isolation
0
COM-NC
Insertion loss, dB
1.4
V.S.W.R.
0.2
0.3
0.4
Isolation, dB
COM-NC
20
30
40
COM-NO
1.3
1.2
COM-NC
1.1
COM-NO
300kHz
0.5GHz
Frequency
1.0GHz
0.6
60
CONTACT sets
0.8
80
1.0
1.0
300kHz
0.5GHz
Frequency
1.0GHz
100
300kHz
0.5GHz
Frequency
1.0GHz
ASCTB102E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RA (ARA)
1-(2). High frequency characteristics (Impedance 75Ω)
Sample: ARA200A12
Measuring method: Measured with HP network analyzer (HP8753C).
• V.S.W.R.
1.5
1.4
COM-NC
V.S.W.R.
1.3
COM-NO
1.2
• Insertion loss
0
• Isolation
0
COM-NC
Insertion loss, dB
0.2
Isolation, dB
20
30
40
COM-NO
0.4
0.6
60
CONTACT sets
1.1
0.8
80
1.0
300kHz
0.5GHz
Frequency
1.0GHz
1.0
300kHz
0.5GHz
Frequency
1.0GHz
100
300kHz
0.5GHz
Frequency
1.0GHz
DIMENSIONS
(mm
inch)
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
A (S = 20:1)
14.30
.563
12.90
.508
Coplanarity of
terminals & ribs
Max. 0.20
.008
14.70
.579
5.90
.232
0.50
.020
9.70
.382
A
Soldering with
PC board earth
(4 ribs)
2.54
.100
7.62
.300
11.5±0.5
.453±.020
0.25
.010
Tolerance:
±0.3
±.012
Single side stable
10 9 8 7 6
Schematic (Top view)
1 coil latching
10 9 8 7 6
2 coil latching
10 9 8 7 6
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
Direction indication
(Deenergized condition)
(Reset condition)
(Reset condition)
Note: Please consult us regarding recommended PC board patterns.
