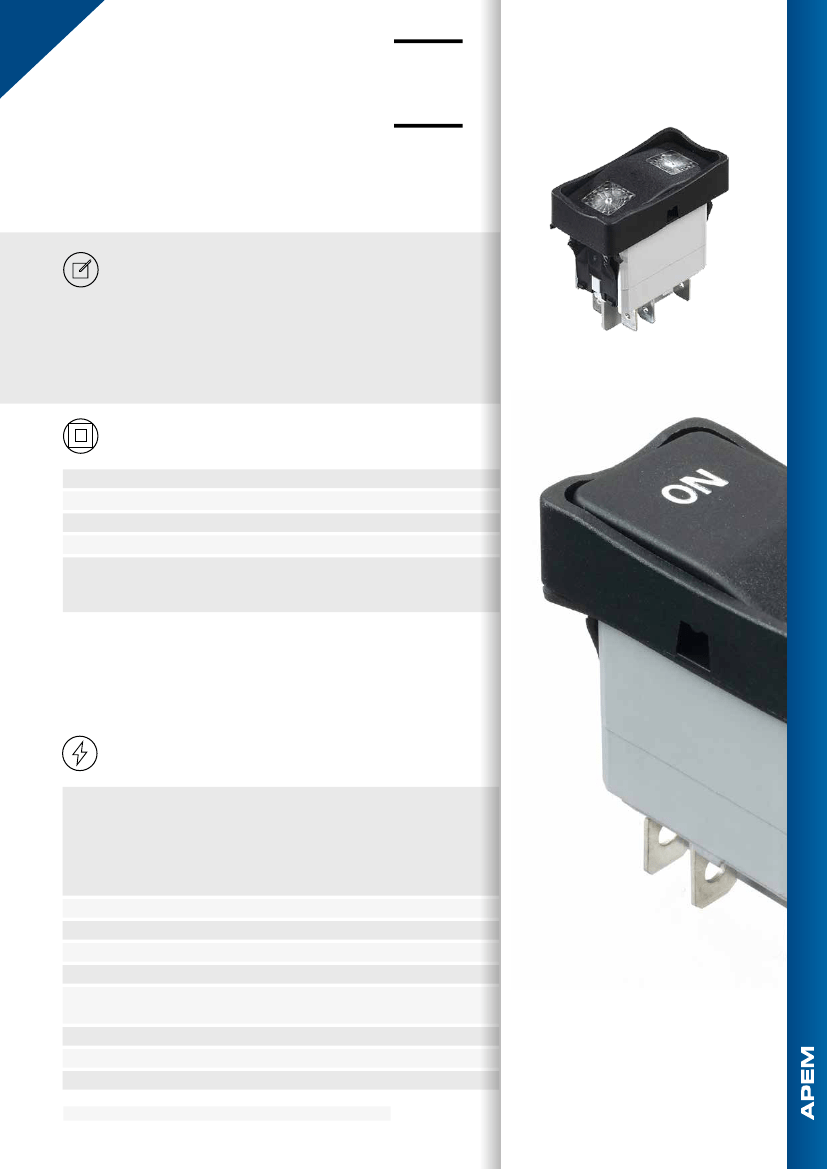

KG series
Power rocker switches
DISTINCTIVE FEATURES
Protected rocker
Illuminated or non-illuminated
VDE (EN 61058-1) approved
Sealed to IP65

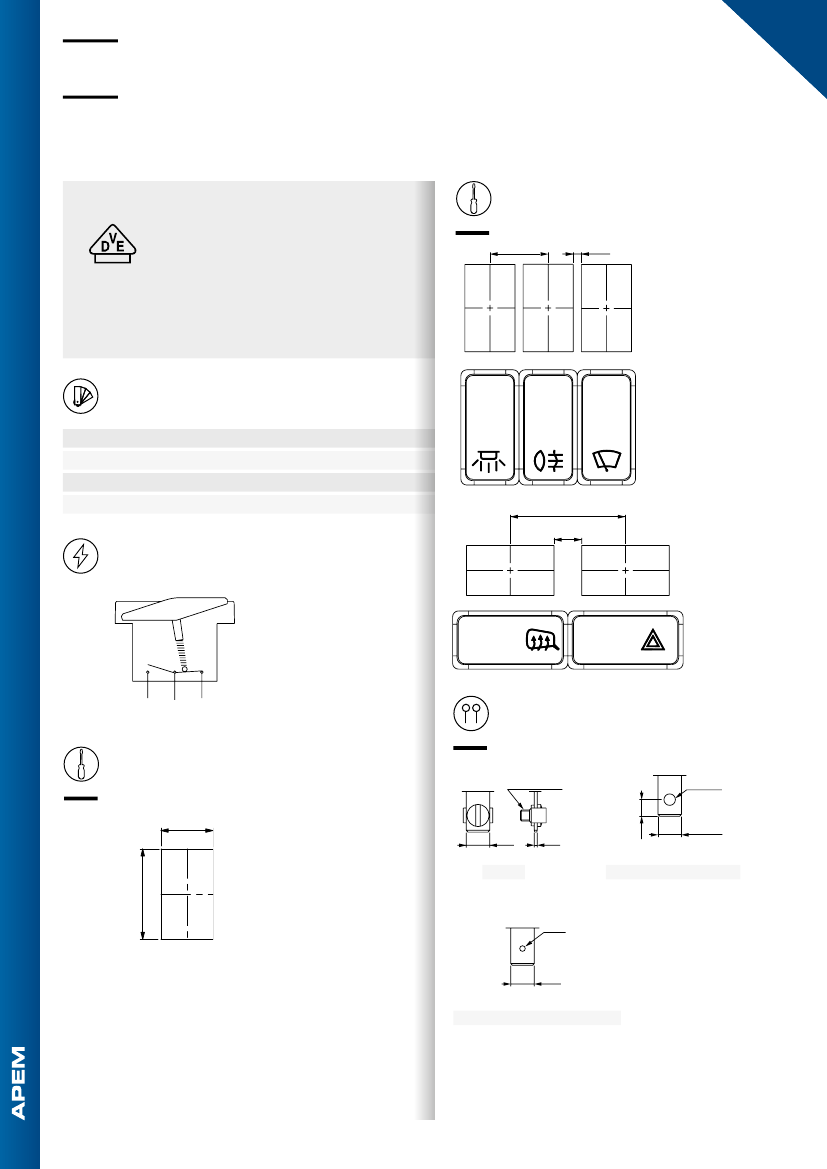

ENVIRONMENTAL SPECIFICATIONS
• Degree of protection : IP65 according to IEC 60529
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d
• Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature :
2 position models : -40 °C to + 85 °C (-40 °F to +185 °F)
3 position models : -10 °C to + 65 °C (-14 °F to +149 °F)
ELECTRICAL AND GENERAL SPECIFICATIONS
• Currrent/voltage rating :
- functions 1 (ON-OFF) and 6 (ON-ON) : 15 A 12 VDC, 10 A 24 VDC max.,
10 mA 14 VDC min.
- functions 4 ( ON ON ON) and 4-1R (ON ON MOM) : 8 A 12 VDC,
5A 24VDC max.
- other functions : 10 A 12 VDC, 8 A 24 VDC max.
• Initial contact resistance : 10 mΩ max. at 1 A 2 VDC
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals
• Electrical life : 10,000 cycles min.
• Mechanical life : 2 position models : 100,000 cycles min.
3 position models : 30,000 cycles min.
• Panel cut-out : 36.80 x 21.08 mm (1.149 x .830)
• Panel thickness : 0.8 mm to 4.6 mm
• Recommended thickness : between 2 mm and 3.5 mm
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
01
PANEL SWITCHES
KG series
Power rocker switches
AGENCY APPROVAL
12(4) A 250 VAC
T85/55 °C
EN 61058-1
Availability :
double pole models, functions ON-OFF and
ON-ON.
Marking :
to order switches marked VDE, add “VDE” at
the end of model number..
MATRIX MOUNTING
25.00 mini.
(.984 min.)
4.00
(.157)
49.00 mini.
(1.929 min.)
12.20
(.480)
MATERIALS
• Case : thermoplastic UL94-V0
• Terminals : brass, silver plated
• Contacts : silver grain
• Contact roller : brass, nickel plated
25.00 mini.
(.984 min.)
4.00
(.157)
25.00 mini.
(.984 min.)
4.00
(.157)
49.00 mini.
(1.929 min.)
12.20
(.480)
49.00 mini.
(1.929 min.)
12.20
(.480)
ELECTRICAL FUNCTIONS
3
2
1
TERMINALS
PANEL CUT-OUT
21.08 0/+0.3
(.830 0/+.012)
Ø3.00x0.50 SI
(.118DIAx0.50 IS)
Ø3.10
(.122DIA)
6.35
(.25)
0.80
(.031)
36.80 0/+0.3
(1.449 0/+.012)
Screw
Solder lug / quick-connect
CKRDE3-C
Normalized quick-connect 6.35x0.8
2
4.50
(.177)
6.35x0.80
(.25x.031)
KG series
Power rocker switches
BUILD YOUR PART NUMBER
CASE + LAMPS
KG
Side A
Side B
SERIES
ELECTRICAL FUNCTIONS
TERMINALS
LAMPS
LED 6 V, 12 V, 18 V
Neon 125 V or 250 V
Filament 6 V, 12 V, 24 V
Fluorescent 220 V or 110 V
Codes, see website.
BEZEL
LAMP WIRING
See following
pages.
POLES
1
4
4-1R
5
6
7
8
9
ON
ON
ON
MOM
ON
MOM
ON
ON
-
ON
ON
-
-
OFF
OFF
OFF
OFF
ON
MOM
ON
ON
MOM
MOM
ON
0
2
3
Screw
Solder lug /
quick- connect
Normalized
quick-connect
3
4
Single pole
Double pole
2
CONTACTS
Black, sealed
to IP65
A
Silver grain
ACTUATOR
Side A
Side B
ROCKER COLOR
ROCKER SHAPE
Yellow
Red
Ivory
Orange
Full rocker, opening
on one side or on two
sides : see following
pages.
LENS COLOR
1
1/4
2
3
4
Blue
Dark blue
Black
Green
Grey
5
6
7
9
X
1
3
6
No lens
Blue*
Green*
Red
9
B
T
Orange
White
Translucent
*Blue or green lens recommended
with fluorescent lamp.
Actuator marking and symbols :
see end of the series.
ABOUT THIS SERIES
Notice :
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
Sealing boot
are available to protect the switches against dust and water. See "Sealing Boots" section of website.
3
PANEL SWITCHES
PANEL SWITCHES
KG series
Power rocker switches

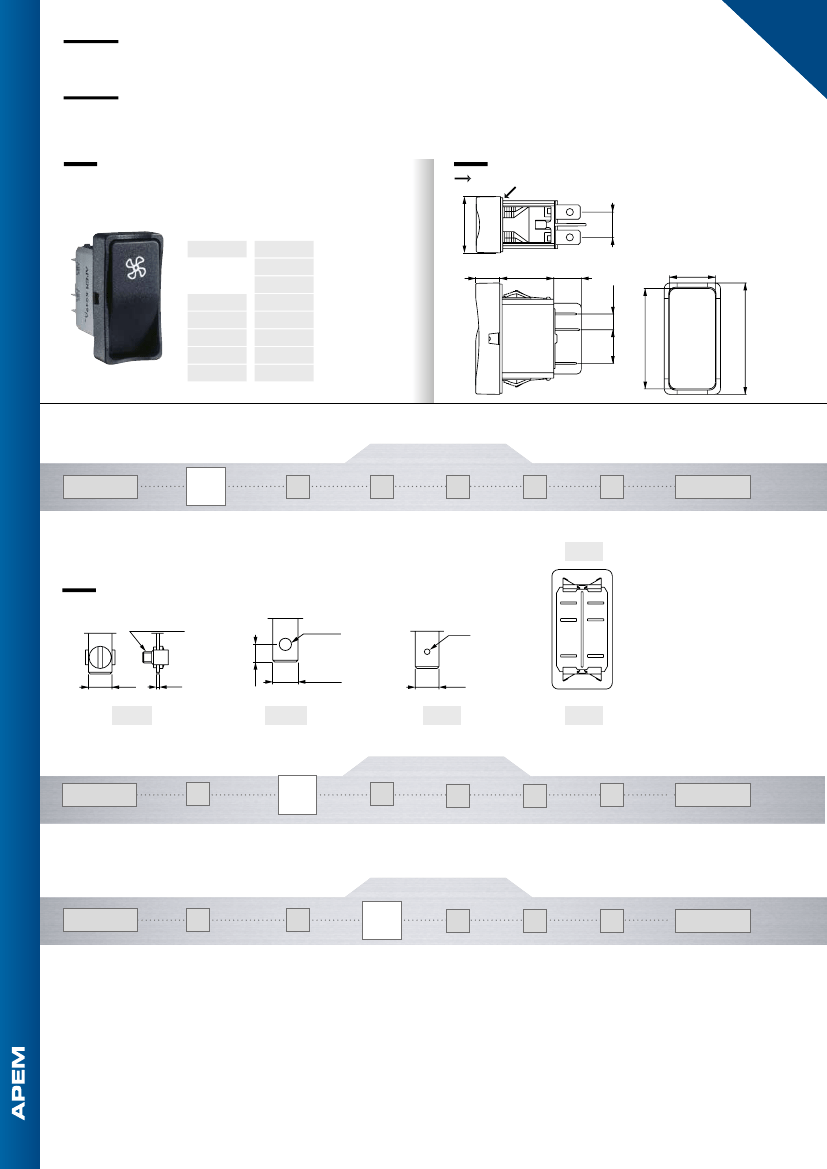

SOLDER LUG / QUICK-CONNECT TERMINALS
Single pole
Double pole
FLAT SEAL
11.0011.00
(.433)(.433)
24.5024.50
(.964)(.964)
2-3
5-6
1-2
4-5
KG31
KG41
KG44*
ON
ON
MOM
ON
MOM
ON
ON
-
ON
ON
-
-
OFF
OFF
OFF
OFF
ON
MOM
ON
ON
MOM
MOM
ON
10.50
(.413)
10.50
(.413)
23.50
(.925)
23.50
(.925)
12.00
(.472)
12.00
(.472)
20.00
(.787)
20.00
(.787)
KG35
KG36
KG37
KG38
KG39
* Function 4 : single pole in double pole case
KG45
KG46
KG47
KG48
KG49
6.85 6.85
(.269)(.269)
KG44-1R*
ON

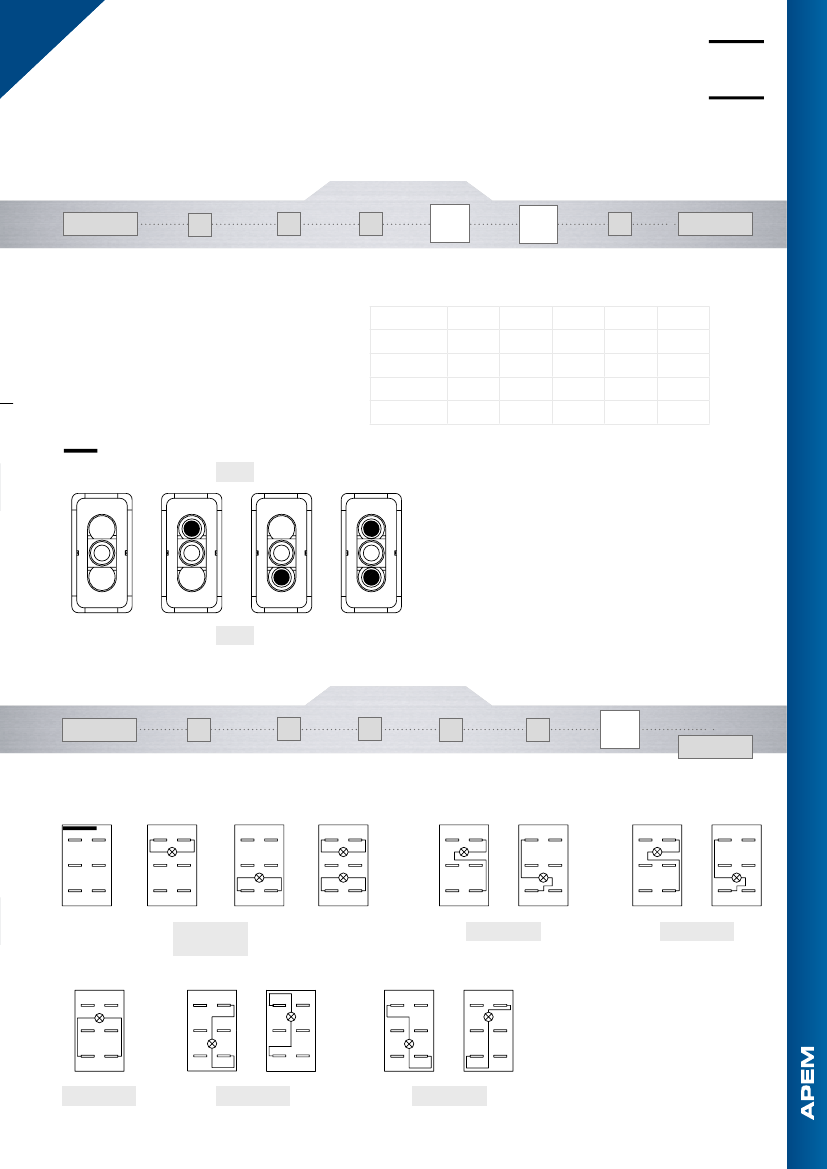

CASE + LAMPS
BASIC P/N
TERMINALS
ACTUATOR
0
2
3
Screw
Solder lug / quick-connect
Normalized quick-connect
1
Ø3.00x0.50 SI
(.118DIAx0.50 IS)
Side A
14.6514.65
(.576)(.576)
4
Ø3.10
(.122DIA)
2
5
0
4.50
(.177)
6.35
(.25)
0.80
(.031)
6.35x0.80
(.25x.031)
3
6
2
3
Side B
CASE + LAMPS
BASIC P/N
CONTACT MATERIALS
ACTUATOR
A
Silver grain
BEZEL
ACTUATOR
CASE + LAMPS
BASIC P/N
2
Black, sealed to IP65
4
43.7043.70
(1.720)
(1.720)
Terminals 1 to 6 are marked
on the case.
Side A : terminals 1 and 4
Side B : terminals 3 and 6
48.5048.50
(1.909)
(1.909)
KG series
Power rocker switches
CASE + LAMPS
BASIC P/N
LAMPS
Side A
Side B
ACTUATOR
Complete each enlarged box with one of the codes listed below.
X
M
N
O
P
R
S
T
Without LED
Neon 125 V
Neon 250 V
Filament 6 V
Filament 12 V
Filament 24 V
Fluorescent 220 V
Fluorescent 110 V
Red
6 VDC
12 VDC
18 VDC
24 VDC
A
D
G
J
Green
B
E
H
K
Yellow
C
F
I
L
Blue
1
Z
-
Y
White
W
V
-
U
Side A
4
1
4
1
4
1
4
1
5
2
5
2
5
2
5
2
6
3
6
3
6
3
6
3
Side B
CASE + LAMPS
BASIC P/N
LAMP WIRING
ACTUATOR
The lamp wiring diagram is shown on the case.
To order case only (without rocker), finish your order number with the lamp wiring code.
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
+
-
+
+
-
+
-
-
- +
+ -
B
- +
+ -
C
2
5
2
5
2
5
2
5
2
5
2
5
2
5
2
5
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
A
standard
CKGRLA-B
1
4
1
4
- +
1
4
-
1
4
1
4
+
* For function 1 (on-off) with LED on side A
2
5
2
5
2
5
2
5
2
5
+
3
6
-
3
6
+ -
E
3
6
3
6
+ -
F
3
6
Note : If not available, terminals are
added to connect the LED.
D
*
CKGRLD-B
CKGRLE-A
CKRRLF-A
CATAL92/CATAL2001
5
