LASOAV31JGRNWHT datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> LASOAV31JGRNWHT

LASOAV31JGRNWHT: DescriptionIlluminated Pushbutton Switches Sealed Illuminated SPDT 8A 125V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size504KB，4 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

LASOAV31JGRNWHT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LASOAV31JGRNWHT	-	-	View	Buy Now

LASOAV31JGRNWHT Overview

Illuminated Pushbutton Switches Sealed Illuminated SPDT 8A 125V

LASOAV31JGRNWHT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-Switch
Product Category	Illuminated Pushbutton Switches
RoHS	Details
Contact Form	SPDT
Current Rating	8 A
Voltage Rating AC	125 VAC
Voltage Rating DC	125 VDC
Mounting Style	Panel
Illumination	LED
Illumination Color	White
Termination Style	Solder Lug
Actuator	Round
Contact Plating	Silver
Housing Material	Polyetherimide (PEI), Diallyl Phthalate (DAP)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

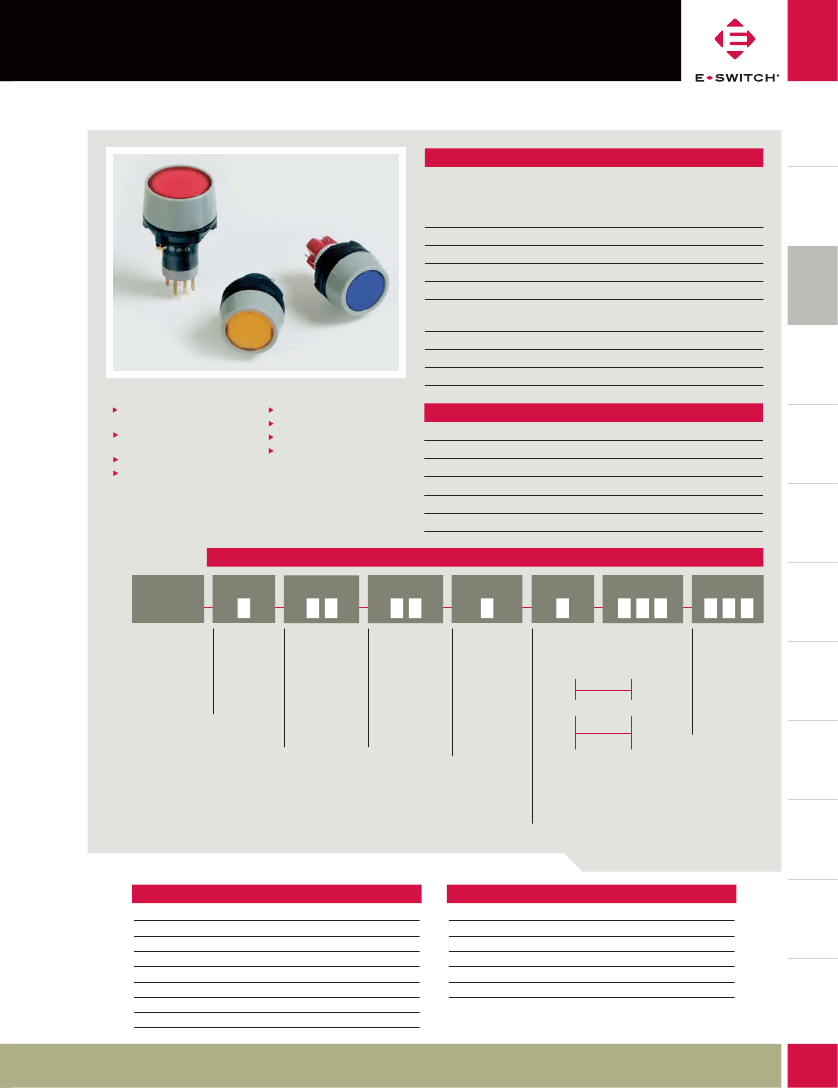

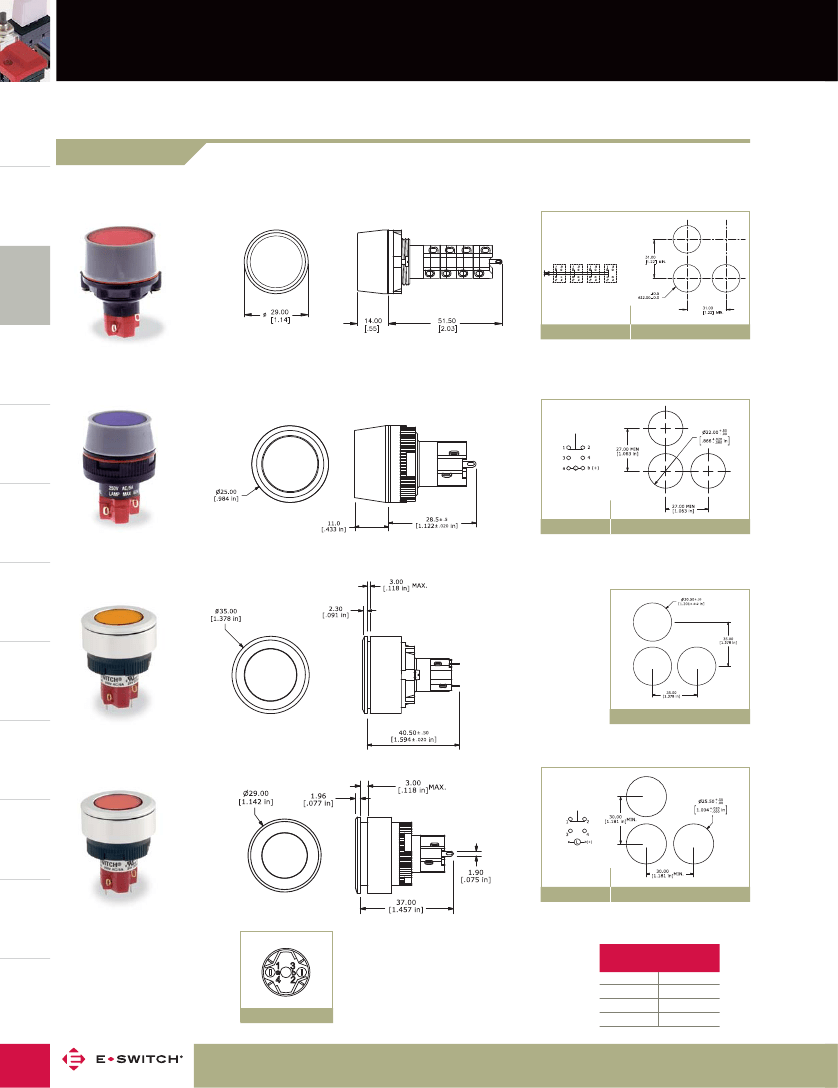

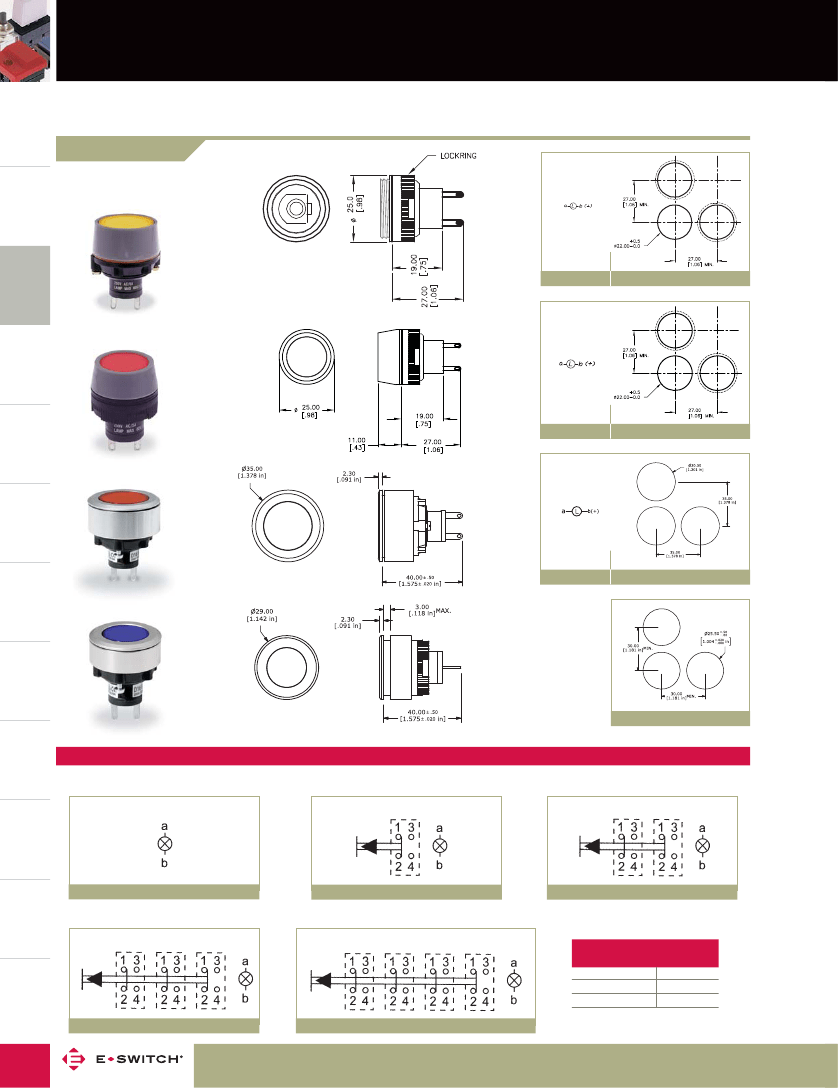

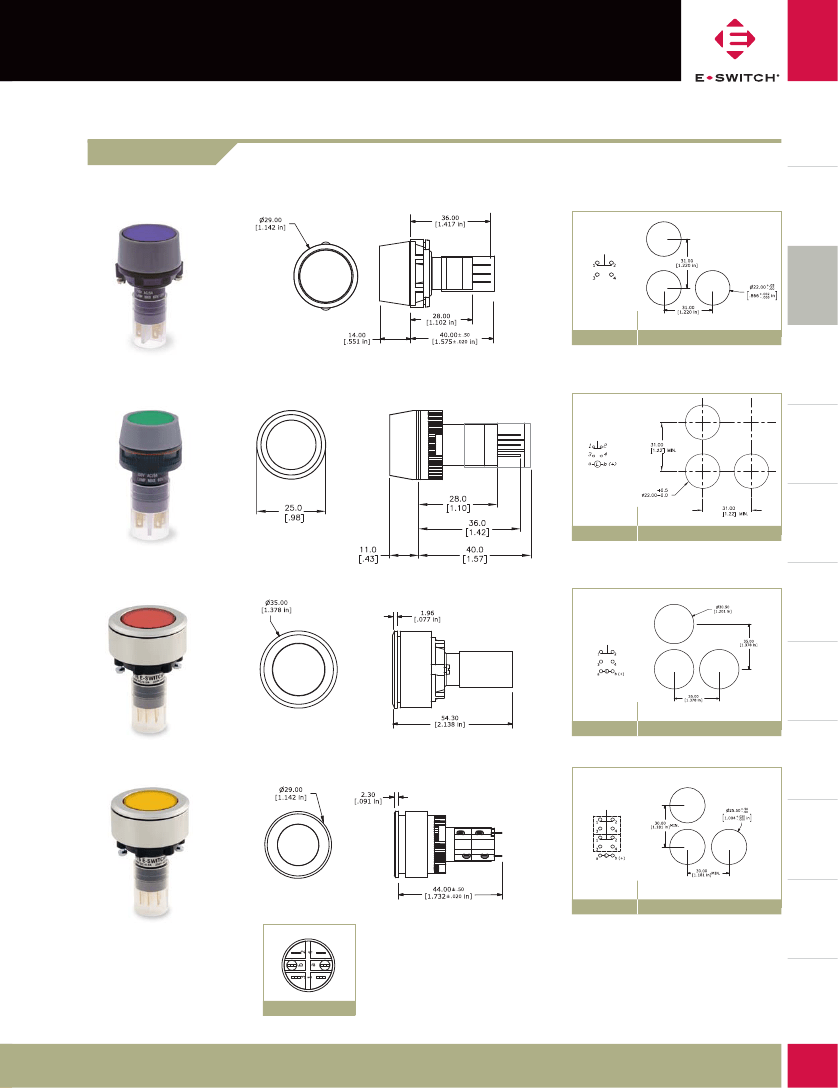

SERIES LA SWITCHES

SPECIFICATIONS

NAVIGATION

SWITCHES

LENS

COLOR

CAP

OPTIONS

TACT

SWITCHES

PUSHBUTTON SWITCHES - SEALED ILLUMINATED

Contact Rating:

5A @ 250 VAC

8A @ 125 VAC

2A @ 250 VDC

6A @ 24 VDC

≥

50,000 cycles

100mΩ max. typical; initial @ 2-4 VDC

> 1,000MΩ

> 1,500 volts 1 minute

> 3,000 volts between poles

300g / pole

-20°C to 55°C

IP65

Life Expectancy (Mechanical):

≥

100,000 cycles

Life Expectancy (Electrical):

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

Operating Temperature:

Degree of Protection:

FEATURES & BENEFITS

Modular interface/contact

block design

Robust product for industrial

applications

Attractive front panel design

Illuminated options available

APPLICATIONS/MARKETS

Switch Housing:

Contact Housing:

Actuator Ring:

Lens:

Contacts:

Terminals:

Polyethermide (PEI)

Diallyl Phthalate (DAP)

Polycarbonate (PC)

Silver plated copper alloy

SLIDE

SWITCHES

DETECTOR

SWITCHES

ROTARY

SWITCHES

KEYLOCK

SWITCHES

DIP

SWITCHES

RED = Red

GRN= Green

BLU = Blue

WHT=White

ORG= Orange

YEL = Yellow

SNAP-ACTION

SWITCHES

ROCKER

SWITCHES

Industrial controls

Instrumentation

Transportation

Telecommunications

MATERIALS

Silver plated copper alloy

HOW TO ORDER

TERMINATION

MECHANICAL

CONFIGURATION

PUSHBUTTON

HEAD

CIRCUIT

LAMP TYPE

& VOLTAGE

LAMP COLOR

(WHERE APPLICABLE)

SERIES

S = Solder

Lug

K = Socket

P = Pilot

Indicator

PL* =

Pilot Indicator

*For LAP

(Pilot Indicator)

EE = Latching

OA = Momentary

U1 = Ø29mm

V1 = Ø25mm

U3* = Ø29mm

V3* = Ø25mm

*Flush Mount

0* =

1**=

2 =

3 =

4 =

Pilot Ind.

SPDT

DPDT

3PDT

4PDT

0 = None

Red

Grn

Red

Grn

Yel

*For LAP

(Pilot Indicator only)

**LAK available

SPDT only

Example Ordering Number

LA_ S_ EE_ U1_ 1_ 0_ RED

Specifications subject to change without notice.

LAMP TYPE & VOLTAGE OPTIONS

Without lamp

Incandescent

Neon

14 V

28 V

48 V

60 V

110 V

220 V

AC/DC

200 mA

80 mA

40 mA

25 mA

20 mA

green/red

LAMP TYPE & VOLTAGE OPTIONS

LED

Incandescent

12 V

24 V

33 V

14 V

AC/DC

green/yellow/red

35 mA

40 mA

www.e-switch.com

info

e-switch.com

TOGGLE

SWITCHES

PUSHBUTTON

SWITCHES

▲
