MMA3221KEG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MMA3221KEG

MMA3221KEG: DescriptionAccelerometers 50 / 20 XY -AXIS; CategoryAnalog mixed-signal IC The signal circuit; File Size172KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MMA3221KEG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MMA3221KEG	-	-	View	Buy Now

MMA3221KEG Overview

Accelerometers 50 / 20 XY -AXIS

MMA3221KEG Parametric

Parameter Name	Attribute value
Brand Name	Freescale
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOIC
package instruction	7.50 X 12.80 MM, 1.27 MM PITCH, ROHS COMPLIANT, SOIC-20
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	12.815 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.55 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

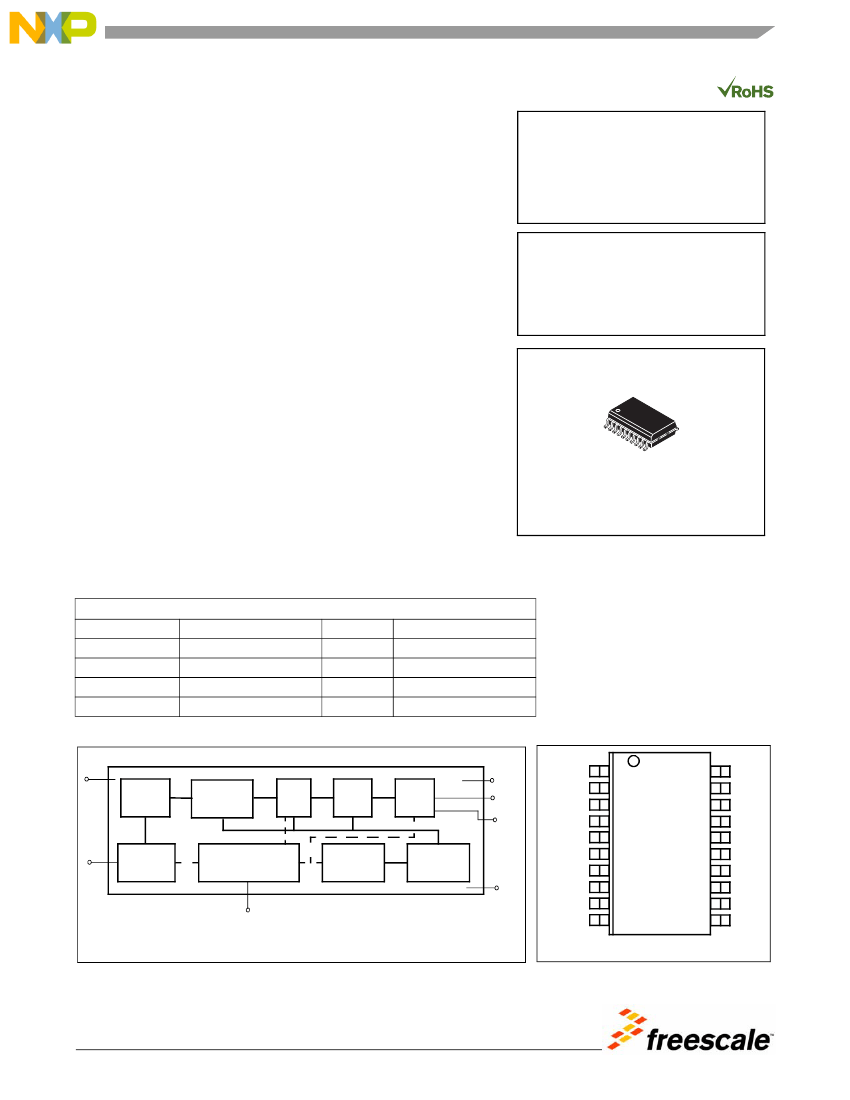

Freescale Semiconductor

Data Sheet: Technical Data

MMA3221KEG

Rev 1, 11/2012

Surface Mount

Micromachined Accelerometer

The MMA3221 series of dual axis (X and Y) silicon capacitive,

micromachined accelerometers features signal conditioning, a 4-pole low

pass filter and temperature compensation and separate outputs for the two

axes. Zero-g offset full scale span and filter cut-off are factory set and require

no external devices. A full system self-test capability verifies system

functionality.

Features

• Sensitivity in two separate axes: 50g X-axis and 20g Y-axis

• Integral Signal Conditioning

• Linear Output

• Ratiometric Performance

• 4th Order Bessel Filter Preserves Pulse Shape Integrity

• Calibrated Self-test

• Low Voltage Detect, Clock Monitor, and EPROM Parity Check Status

• Transducer Hermetically Sealed at Wafer Level for Superior Reliability

• Robust Design, High Shocks Survivability

• Qualified AEC-Q100, Rev. F Grade 2 (-40C/ +105C)

Typical Applications

• Vibration Monitoring and Recording

• Impact Monitoring

• Appliance Control

• Mechanical Bearing Monitoring

• Computer Hard Drive Protection

• Computer Mouse and Joysticks

• Virtual Reality Input Devices

• Sports Diagnostic Devices and Systems

ORDERING INFORMATION

Device

MMA3221EG

MMA3221EGR2

MMA3221KEG*

MMA3221KEGR2*

Temperature Range

–40 to +125°C

Case No.

475A-02

Package

SOIC-20

SOIC-20, Tape & Reel

SOIC-20

SOIC-20, Tape & Reel

MMA3221KEG

MMA3221KEG: XY-AXIS SENSITIVITY

MICROMACHINED

ACCELEROMETER

±50/20g

KEG SUFFIX (Pb-FREE)

20-LEAD SOIC

CASE 475A-02

*Part number sourced from a different facility.

N/C

OUT

GND

N/C

OUT

G-Cell

Sensor

Integrator

Gain

Filter

Temp

OUT

Self-Test

Control Logic &

EPROM

Trim Circuits

Oscillator

Clock

Gen.

STATUS

Status

Figure 1. Simplified Accelerometer Functional Block Diagram

Figure 2. Pin Connections
