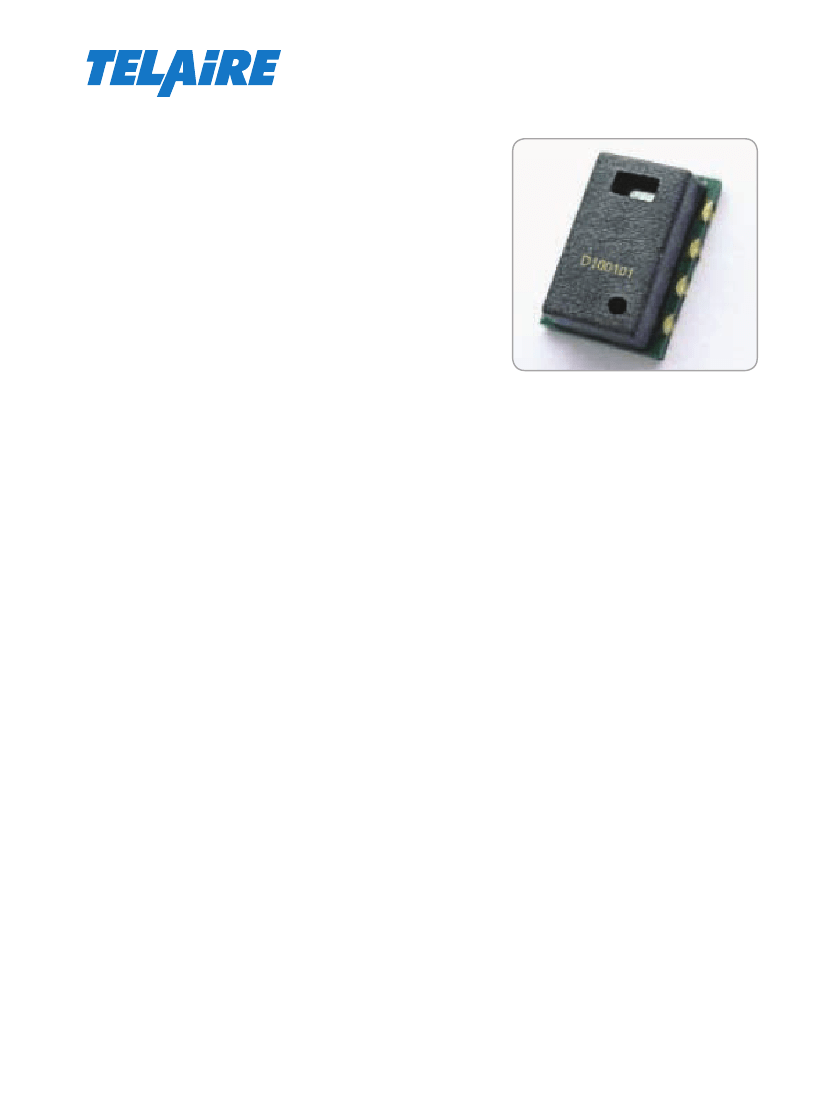

ChipCap 2
®
Features
•
•
•
•
•
•
•
Fully-calibrated and temperature-
compensated
Fully-Calibrated Humidity
and Temperature Sensor
Digital or analog output with alarm function
Precision and accuracy (±2%RH, ±0.3°C,
14 bit )
Free operating voltage (min 2.7V to max
5.5V)
Low current consumption
SMD package for automated assembly
Reliable in harsh environments
ChipCap 2 offers the most advanced and cost
effective humidity and temperature sensing
solution for virtually any type of application.
A capacitive polymer sensor chip and CMOS
integrated circuit with EEPROM are integrated
into one embedded system in a reflow
solderable SMD package.
Individually calibrated and tested, ChipCap 2
performs at ±2% from 20% to 80% RH (±3%
over entire humidity range), and is simple and
ready to use without further calibration or
temperature compensation.
ChipCap 2 provides linear output signals in
various interfaces to customer requirements:
•
•
•
I²C interface
PDM convertible to analog signal
Alarm function for preset control at min/
max humidity
Applications
•
Energy saving HVAC control-air
conditioning, refrigeration, indoor air
quality, vent fans, home appliances, humi/
dehumidifiers
Process control & instrumentation—medical
instruments, handheld devices, weather
stations, food processing, printers, RFIDs
Automobile and transportation—cabin
climate control, defogging control
condensing preventive device
Medical—nebulizers, Oxygen Air, CPAP/
Sleep Apnea Devices
OEM Assemblies Available
•
•
•
•
Amphenol
Advanced Sensors
Sensor Performance
Relative Humidity (RH%)
Resolution
Accuracy
1
Repeatability
Hysteresis
Linearity
Response time
3
Temp Coefficient
Operating Range
Long Term Drift
14 bit (0.01%RH)
±2.0 %RH (20~80%RH)
2
±0.2 %RH
±1.0 %RH
<2.0 %RH
<4.0 sec
0.05%RH/C @ 50%RH (at 10-60°C)
0.15%RH/C @ 90%RH (at 10-60°C)
0 ~ 100 %RH (non-condensing)
<0.5 %RH/yr (normal condition)
Temperature (°C)
Resolution
Accuracy
1
Repeatability
Response time
2
Operating range
Long term drift
14 bit (0.01°C)
±0.3°C
±0.1°C
5.0 sec (τ 63%)
- 40 to 125°C
<0.05°C/yr (normal condition)
1. Accuracies measured at 25°C, 5.0V
2. Min 5.0 sec, Max 20 sec
1. Custom accuracy tolerance available
2. Accuracies measured at 25°C, 5.0V
3. Measured at 25°C, 1m/sec airflow for achieving 63% of step
from 33%RH to 90%RH

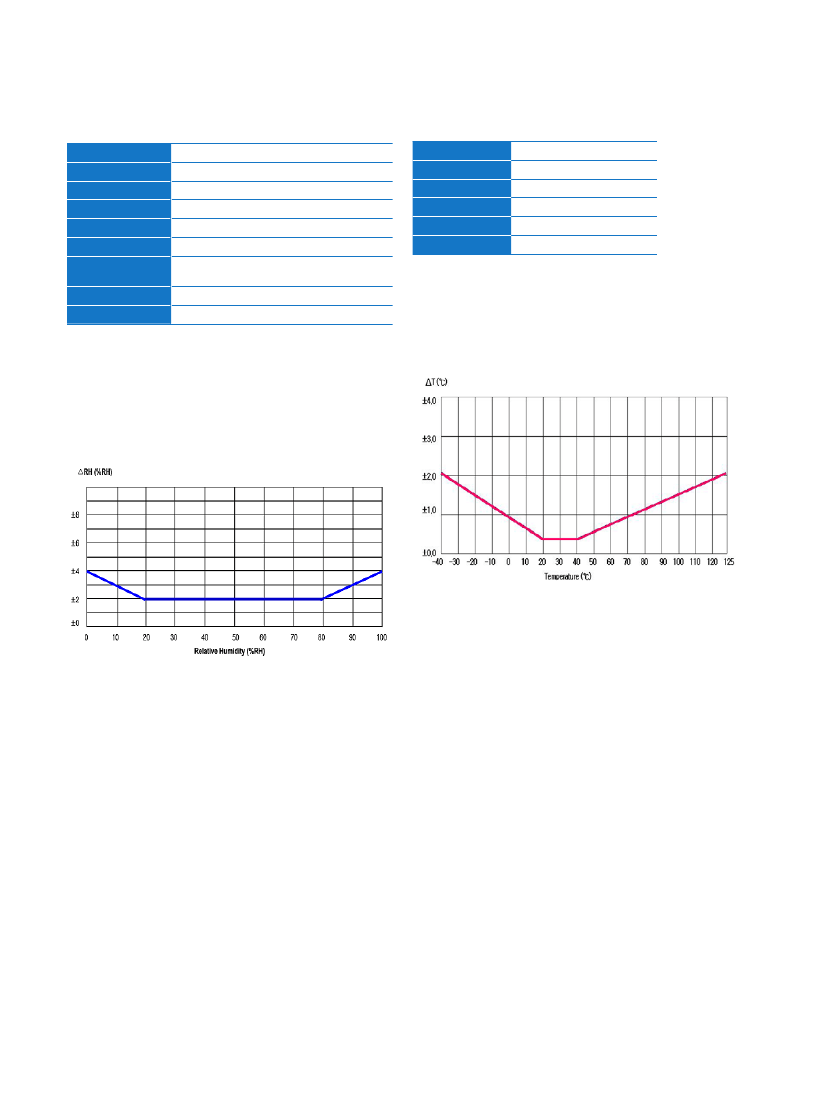

Typical Temperature Accuracy
Typical %RH Accuracy
Absolute Maximum Rating
Parameter
Min
Max
Electrical Specifications
Supply Voltage
min 2.3V to max 5.5V
Supply Voltage (VDD)
Storage Temp (T
strg
)
Junction Temp (T
j
)
-0.3V 6.0V
-55°C 150°C
-55°C 150°C
Soldering Information
Standard or IR Solder Reflow
Tp: 240°C, tp: 40 sec. (qualify Pb free profile)
Note: After soldering, reconditioning will be
required. Details for this process can be found in the
ChipCap
®
2 application note (916-127).
Supply Current (IDD)
750 µA (typical)
Sleep Current (Isleep)
0.6 µA (typical)
Environmental
Operating Temperature Range
- 40 to 125°C
Package Contents
Operating RH Range
0 to 100 % RH (non-condensing)
Capacitive polymer RH sensor,
PTA (Proportional to Absolute) temperature sensor
integrated ASIC chip in LCC (Leadless Chip Carrier)
package, SMD, RoHS compliant

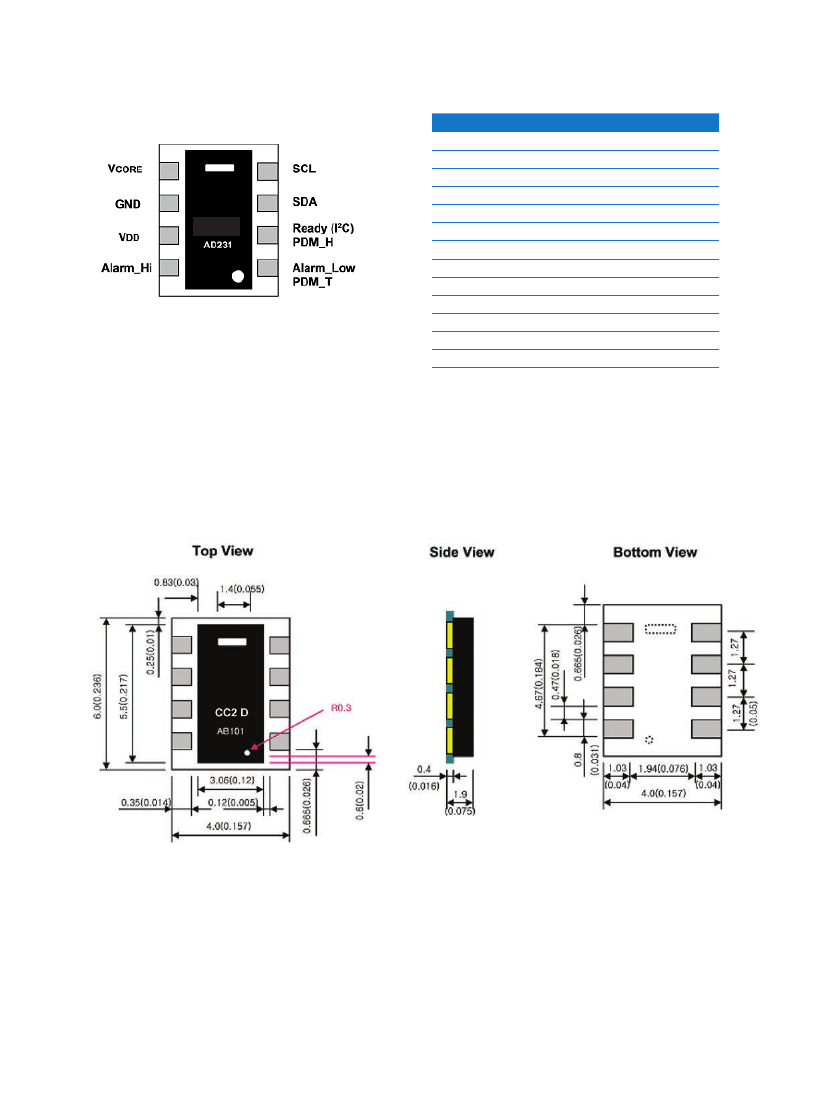

Pin Connection
Ordering Information
Telaire part no.
CC2A25
CC2A23
CC2D23S
CC2D25S
CC2D23
Description
ChipCap
®
2, analog, 2%, 5v
ChipCap 2, analog, 2%, 3.3v
ChipCap 2, digital, sleep mode, 2%, 3.3v
ChipCap 2, digital , sleep mode, 2%, 5v
ChipCap 2, digital, 2%, 3.3v
ChipCap 2, digital, 2%, 5v
CC2-D
CC2D25
CC2D35
CC2A33
CC2D33S
CC2D35S
CC2D33
CC2A35
ChipCap 2, digital, 3%, 5v
ChipCap 2, analog, 3%, 3.3v
ChipCap 2, digital, sleep mode, 3%, 3.3v
ChipCap 2, digital , sleep mode, 3%, 5v
ChipCap 2, digital, 3%, 3.3v
ChipCap 2, analog, 3%, 5v
Packaging Tape and Reel
Dimensions
(units: mm (inch))
Important Safety Information
Telaire makes no warranty, representation or guarantee
regarding the suitability of this product for any particular
application, including safety critical applications. Nor does
Telaire assume any liability arising out of the application or
use in any product or circuit. Telaire specifically disclaims
all liability without limitation consequential or incidental
damages. No statuary or fitness for particular purpose shall
be implied.
Warning
Before installing the product, review the product data sheet
and application notes.
The product shall be used only within power supply
and electrical input and output limits as specified by the
datasheet and application notes.
Improper use of the product may result in product damage
and property loss and/or personal injury.
Amphenol
Advanced Sensors
www.telaire.com
www.amphenol-sensors.com
© 2018 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-558E
02/2018
