NPC-410 Series
Medium Pressure
Sensors
Applications
•
•
•
•
•
Industrial automation
Air flow monitors
Process control
Medical equipment
Underground cable leak detection
Features
•
•
•
•
•
Solid state reliability
±0.1% accuracy
PCB mountable package
DIP package
Individual device traceability
Description

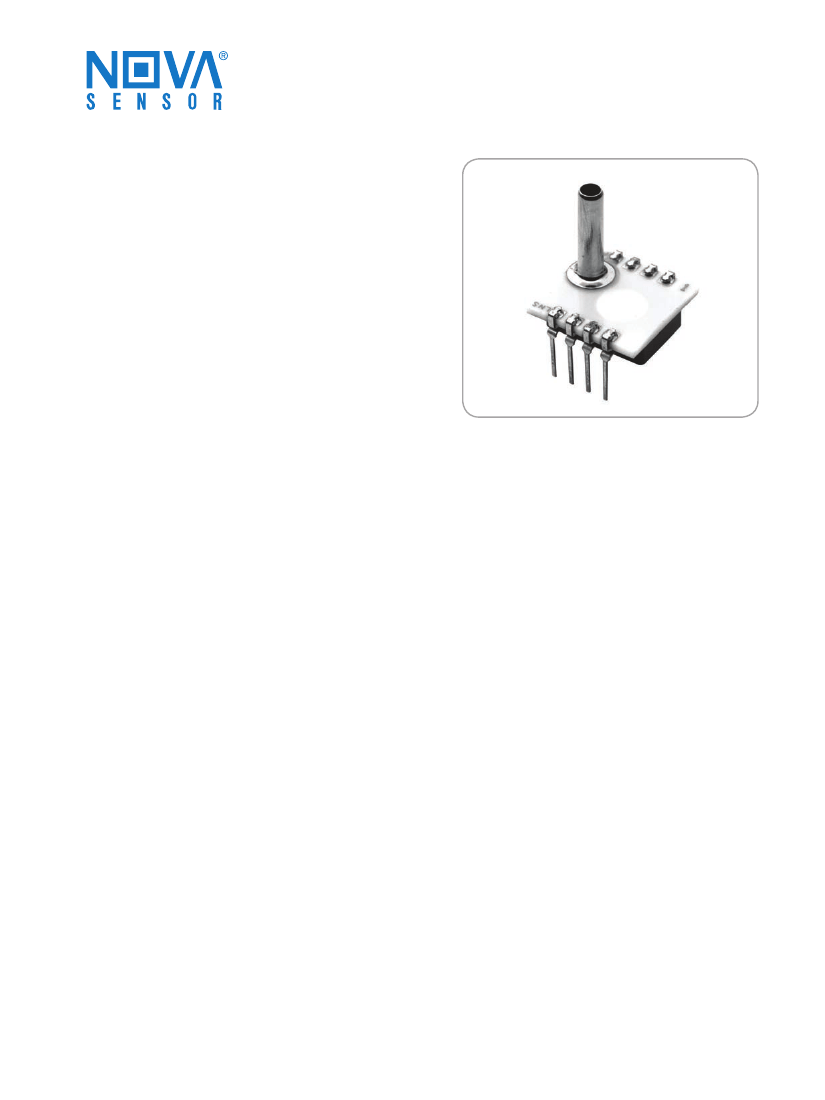

The NPC-410 Series of solid state pressure sensors
are designed to provide a cost effective solution for
applications that require long-term stability and high
volume. Packaged in a dual-in-line configuration,
the NPC-410 Series is intended for printed circuit
board mounting. Optional pressure port and lead
configurations give superior flexibility in low profile
applications where pressure connection orientation
is critical.
The NPC-410 Series is based on NovaSensor’s ad-
vanced SenStable
®
piezoresistive sensing technol-
ogy. The latest techniques in silicon micromachining
have been used to ion implant piezoresistive strain
gages into a Wheatstone bridge configuration, which
is integrally formed on a micromachined diaphragm.
Constant current or constant voltage can be used
for sensor excitation. Offset and sensitivity tempera-
ture compensation and calibration can be achieved
by adding external resistors. Additionally, the NPC-
410 series is available in pressure ranges from 0 psi
to 5 psi (0 bar to 0.34 bar) through 0 psi to 100 psi
(0 bar to 7 bar). Please contact the NovaSensor for
other pressure ranges.
Amphenol
Advanced Sensors
NPC-410 Specifications
Pressure Ranges
•
Gauge and Differential: 5, 15, 30, 50 and 100 psi (0.34, 1, 2, 3.4 and
7 bar)
•
Absolute: 15, 30, 50 and 100 psi (1.03, 2.06, 6.89 bar)
Parameter
Environmental
Temperature Range
Operating
(9)
Storage
Mechanical
Weight
Media Compatibility
Positive differential and gage ports
Absolute and negative differential ports
Compatible with exposed materials
Dry gases only
6
0.005
lb
(2.5 g)
–40 to 257
–67°F to 302
°F
°F
(–40°C to 125°C)
(–55°C to 150°C)
Value
Units
Notes
0.60 in (15.24 mm)
0.1 in
(2.54 mm)
0.6 in (15.24 mm
G6
0.15 in
(3.8 mm)
8
7
6 5
0.2 in
(5.1 mm)
0.32 in
(8.1 mm)
1 2
3
4
0.12 in (3.05 mm)
0.37 in (9.4 mm)
Diameter 0.127 in
(3.23 mm), Two tubes
Used for positive differential (P2)

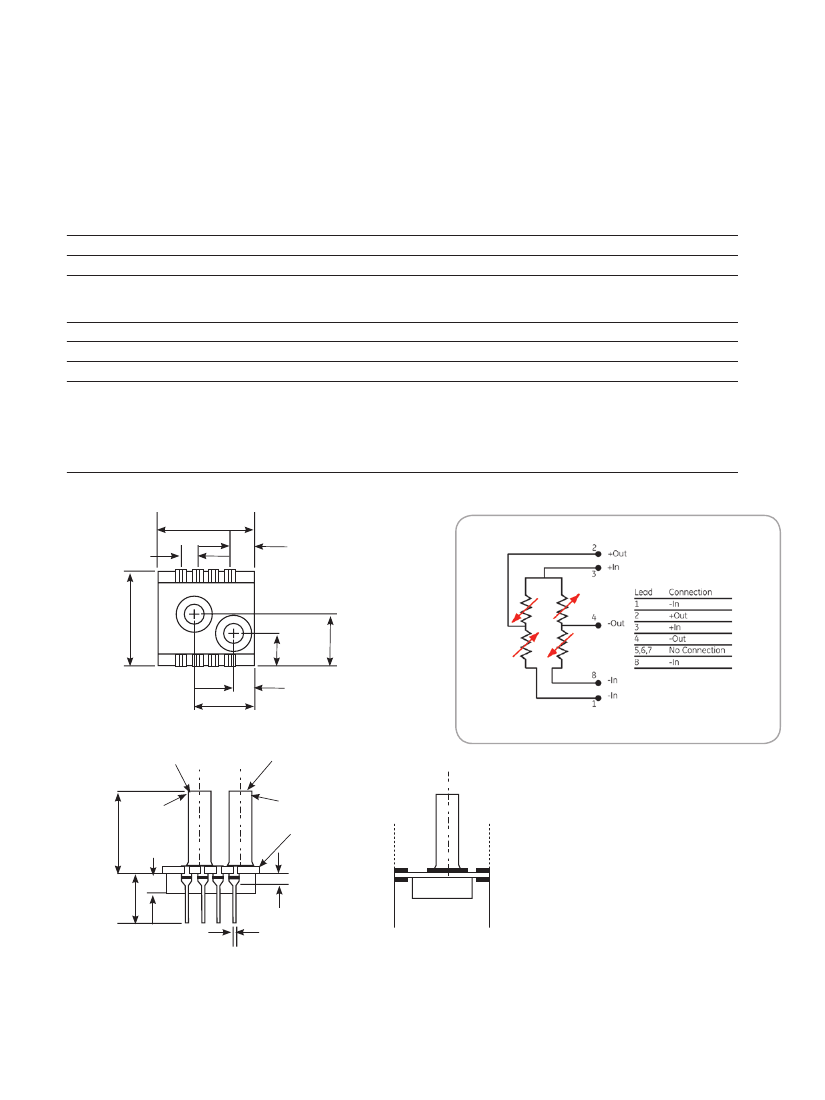

NPC-410 Series schematic diagram
Not used
for absolute
0.167 in
(4.2mm)
Not used
for gauge (P1
Ceramic
substrate
8X 0.07 in
(1.78mm)
(1)
8X 0.34 in
(8.6 mm)
8X 0.02 in (0.51 mm)
1.
Tube length; L = 0.490, S=0.325, N = No tube.
2.
Lead pins can be either be in the same or the opposite direction of the pressure tube. Option (1) has
the leads in the “Up” position, the same direction as the tube. Option (3) has the leads in the “Down”
position, the opposite direction of the tube.
3. Gauge and differential pressure devices are tested by applying pressure to the positive differential
port (P2) and venting to atmosphere the reference port (P1). Absolute pressure devices use only P1 to
apply vacuum or pressure.
L, S (See Notes)
(3)
NPC-410 Series package diagram
NPC-410 Specifications
Parameter
Performance Parameters(1)
Full Scale Output (FSO)
Zero Pressure Output
Linearity
Pressure Hysteresis
Input and Output Impedance
Thermal Accuracy–Span
Thermal Accuracy–Zero
Coefficient-Resistance Temperature
Thermal Hysteresis–Zero
Pressure Overload
mV
mV
%FSO
%FSO
Ω
%FSO
%FSO
%/°C
%FSO
Rated
105
-50
—
—
2500
—
—
—
—
—
3.
4.
5.
6.
Units
Minimum
Type
Maximum
Notes
125
0
—
—
4000
1.5
0.5
0.3
0.1
—
155
50
0.1
0.1
6000
—
—
—
—
3X
2,4
2,4
4
4
5
2
3, 7
1.
Ambient temperature = 77°F (25°C), unless otherwise noted Supply
current = 1.5 mA. Gauge and differential pressure devices are tested
by applying pressure to the positive differential port (P2) and venting to
atmosphere the reference port (P1).
2. External resistors can be added to reduce temperature errors and cali-
brate the offset and FSO.
Best fit straight line.
Temperature range 32°F to 140°F (0°C to 60°C), reference to 77°F (25°C).
3X or 200 psi (13.78 bar) maximum, whichever is less.
Exposed materials are pyrex, ceramic, silicon, epoxy, RTV and stainless
steel.
7.
5 psi (0.34 bar) specifications: Linearity: 0.25 ±%FSO.
Ordering Information
The code number to be ordered may be specified as follows:
NPC-410
Code
005
015
030
050
100
Pressure Ranges
Code
A
G
D
Type
Absolute
Gauge
Differential
Code
1
3
Lead Configuration
Up
Down
Code
L
S
N
Tube Options
Long
Short
None *
NPC-410
number
-
____ -
____
-
____
-
____
Typical model
* Order NPC-410-XXXG-XN in place of NPC-410-XXXD-XN
Warranty
Amphenol Advanced Sensors warrants its products against defects in material and workmanship for
12 months from the date of shipment. Products not subjected to misuse will be repaired or replaced.
Amphenol Advanced Sensors reserves the right to make changes without further notice to any products
herein. NovaSensor makes no warranty, representation or guarantee regarding the suitability of its products
for any particular application, nor does Amphenol Advanced Sensors assume any liability arising out of
the application or use of any product or circuit and specifically disclaims and all liability without limitation
consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other
warranties, whether written, oral, implied or statutory. No implied statutory warranty of merchantability or
fitness for particular purpose shall apply.
Amphenol
Advanced Sensors
www.amphenol-sensors.com
© 2017 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-277C - 11/2017
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
