ChipCap 2-SIP
®
Humidity and Temperature
Sensor
Description

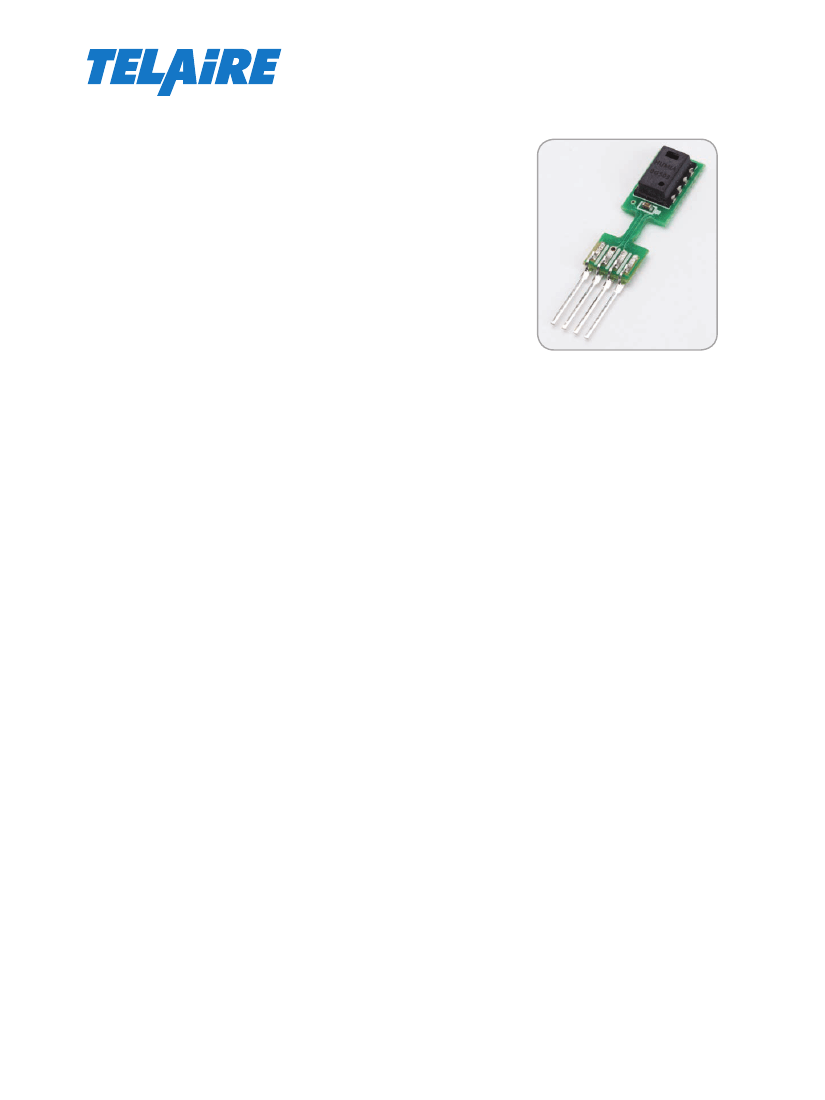

ChipCap 2-SIP by Telaire is a Single In-Line
Package type of ChipCap with ready installed
V-Core capacitor for easy and convenient
application.
ChipCap offers the most advanced and cost
effective humidity and temperature sensing solution
for virtually any type of applications. Capacitive
polymer sensor chip developed and fabricated in-
house and CMOS integrated circuit with EEPROM
are integrated into one embedded system.
Individually calibrated and tested, ChipCap 2-SIP
performs ±2% from 20% to 80%RH (±3% over
entire humidity range), and yet is simple and ready
to use without further calibration or temperature
compensation.
ChipCap 2-SIP offers another sensible sensing
solution for excellent reliability, high accuracy, and
cost effective sensing applications.
Features
• Fully Calibrated & Temperature Compensated
• Digital (I
2
C) Output
• Precision and Accuracy (±2%RH, ±0.3°C, 14 bit )
• Free Operating Voltage (min 2.3V to max 5.5V)
• Low Current Consumption
• SIP (Single-In-line-Package)
• Reliable in Harsh Environment
• Eliminates the reconditioning procedure needed
for surface mount RH sensors
• Field replaceable
• Allows better air circulation and response time
Applications
• Energy Saving HVAC Control: Air Conditioning,
Refrigeration, IAQ monitoring, Vent Fans, Home
Appliances, Humi/Dehumidifiers
• Process Control and Instrumentation: Sensor
Performance
• Medical Instruments, Handheld Devices, Weather
Stations, Food Processing, Printers, RFIDs
• Automobile & Transportation Cabin Climate
Control, Defogging Control, Condensing
Preventive Devise
• Mass Quantity Application: OEM custom
specification available
Amphenol
Advanced Sensors
Sensor Performance
Relative Humidity (RH%)
* Custom Accuracy Tolerance Available
Resolution
Accuracy¹
Repeatability
Hysteresis
Linearity
Response time²
Temp Coefficient
Operating range
Long term drift
14 bit (0.01%RH)
±2.0%RH (20~80%RH)*
±0.2 %RH
+/- 1.0%RH
<2.0 %RH
4.0 sec (63%)
0.05%RH/°C @50%RH and
0.15RH/°C @90RH
(both 10-60°C)
0 ~ 100 %RH (Non-Condensing)
<0.5 %RH/yr (Normal condition)
Temperature (°C)
Resolution
Accuracy³
Repeatability
Response time
Operating range
Long term drift
14 bit (0.01°C)
±0.3°C (Figure 2)
±0.1°C
5.0 sec (63%)
- 40 ~ 125 °C
<0.05 °C/yr (Normal condition)
1. Accuracies measured at 25°C, 5.0V
2. Measured at 25°C, 1m/sec airflow for achieving 63% of step from
33%RH to 90%RH
3. Accuracies measured at 25, 5.0V
4. Min 5.0 sec, Max 20 sec

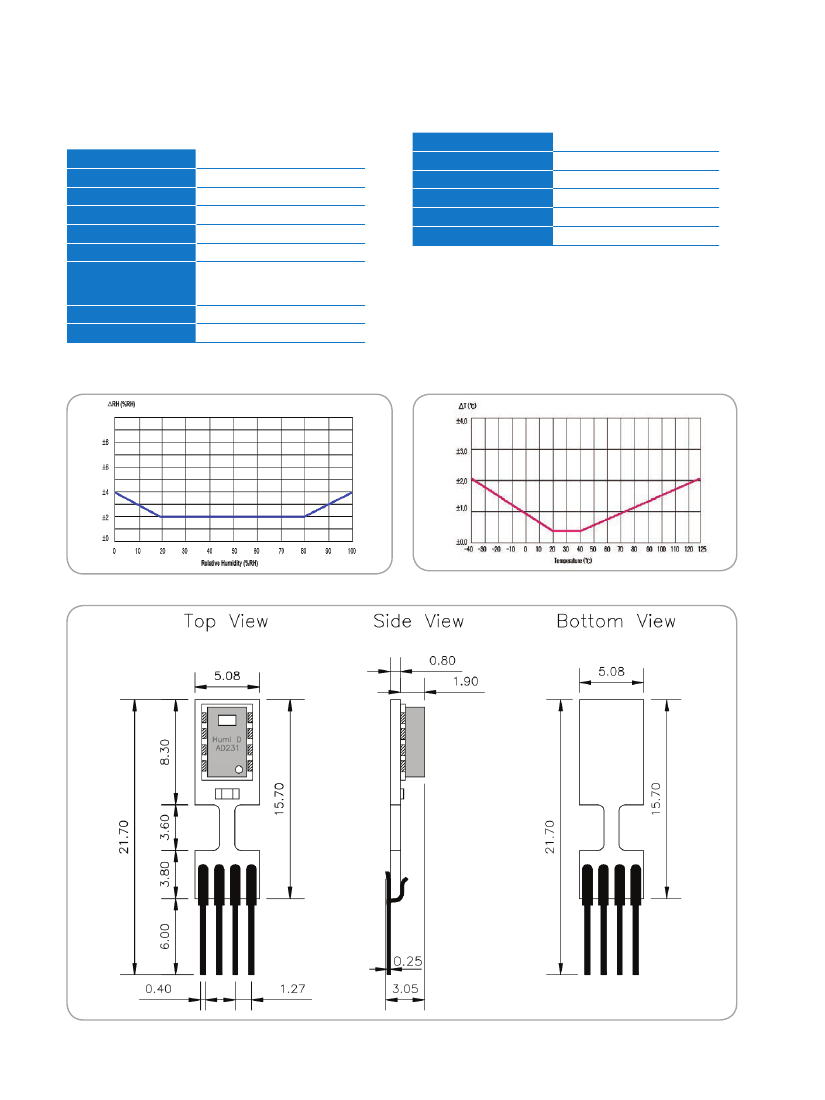

Figure 1. Typical RH% Accuracy at 25°C
Figure 2. Typical Temperature Accuracy
Dimensions
Electrical Specification
Supply Voltage*
1
Supply Current (I
DD
)
Sleep Current (Isleep)*
2
1 min 2.3V ~ max 5.5V
750 µA (typical)
0.6 µA (typical)
Environmental
Operating Temperature
Operating Humidity
- 40 ~ 125°C
0~100%RH (non condensing)
*1. Lower than 2.7V supply voltage may increase
the accuracy tolerance of the Temperature.
*2. At -40 ~85°C
Absolute Maximum Rating
Parameter
Supply Voltage (VDD)
Storage Temp
Junction Temp
Min
-0.3V
-55°C
-55°C
Max
6.0V
150°C
150°C
Pin Connection
Soldering Information
Standard or IR Solder Reflow.
Tp: 260°C, tp: 40 sec. (qualify Pb free profile) For
manual soldering, contact time should not exceed 4
seconds at up to 350°C.
Shipping
Tray :
Inner Box :
Out Box :
100 ea
500 ea
5,000 ea
*.Chip on Board is 100 nF capacitor for Vcore.
Standard Digital (I²C ) Output :
Factory setting is Sleep Mode and calibrated at
3.3V.
Package Contents
ChipCap
®
2-SIP consists of a ChipCap 2 and a
V-core capacitor soldered on the top of a FR4
substrate. Lead Pins are made of Cu, Sn, P alloy
and all parts are fully RoHS and REACH compliant.
Ordering Information
Output
IC
I
2
C
IC
I
2
C
IC
I
2
C
I
2
C
I
2
C
2
2
2
Accuracy
2%
2%
2%
2%
3%
3%
3%
3%
VVD
3.3 V
5V
3.3 V
5V
3.3 V
5V
3.3 V
5V
Mode
Update
Update
Sleep
Sleep
Update
Update
Sleep
Sleep
Part Number
CC2D23-SIP
CC2D25-SIP
CC2D23S-SIP
CC2D25S-SIP
CC2D33-SIP
CC2D35-SIP
CC2D33S-SIP
CC2D35S-SIP
Embedded System
