8LT2325F82SN: DescriptionRack and Panel Connector, 99 Contact(s), Female, Crimp Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector; File Size217KB，1 Pages; ManufacturerEsterline Technologies Corporation; Environmental Compliance

Download Datasheet Parametric View All

8LT2325F82SN Overview

Rack and Panel Connector, 99 Contact(s), Female, Crimp Terminal, Receptacle, ROHS COMPLIANT

8LT2325F82SN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Esterline Technologies Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: MIL-C-38999, COMPATIBLE CONTACT: 8599-0706900
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Termination type	CRIMP
Total number of contacts	99
Base Number Matches	1

Preview

Download Datasheet

View All

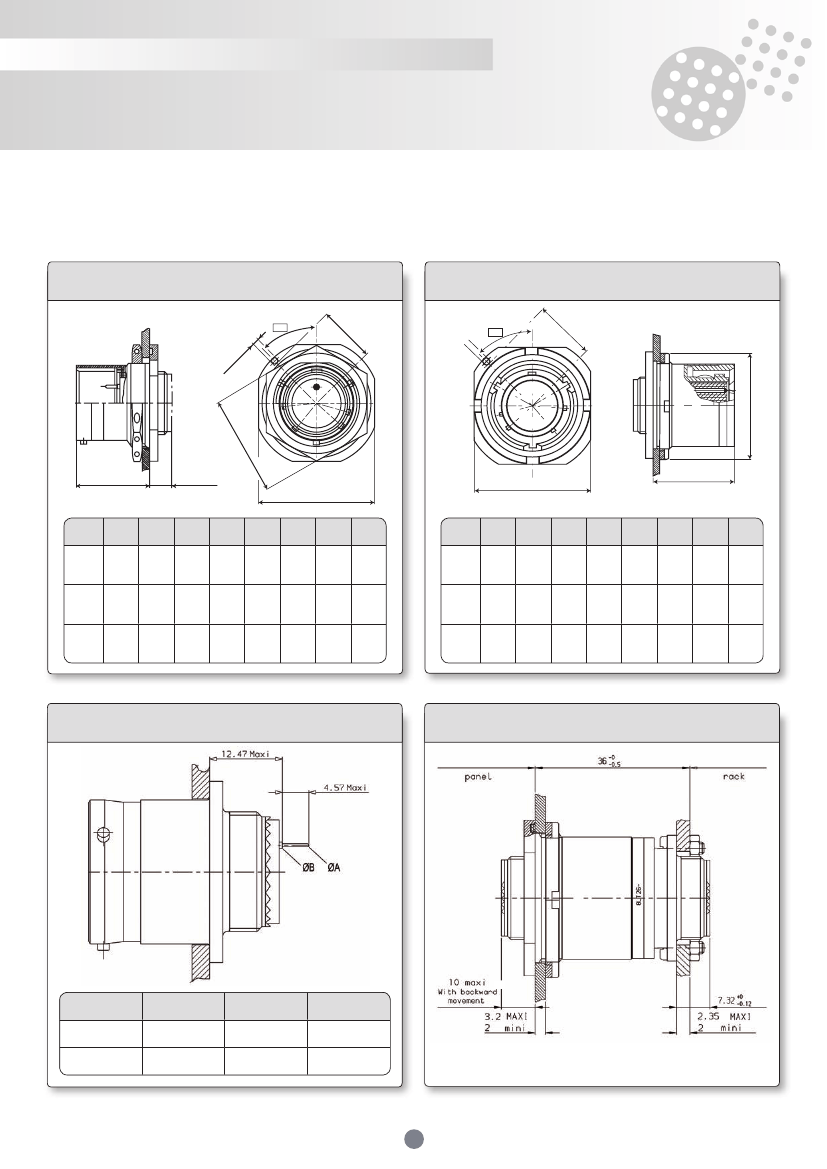

8LT Series

Rack and Panel

Dimensions

Equipment receptacle (type 27)

H

Rack plug (type 26)

H

M

45°

C

M

ax

45°

ax

05

2.

05

2.

05

øF Max

24.20

7.37 Max

D Max

29.50 Max

J Max

29.50 Max

Shells

C

Max

D

Max

E

1

5.33

1

3

15

1

7

1

9

21

23

25

Shells

ØF

Max

H

Max

J

Max

1

3

15

1

7

1

9

21

23

25

16.92 18.51 20.10 22.67 24.26 25.84 27.43

32.10 35.25 38.40 41.60 46.30 49.60 52.70 55.90

32.16 35.34 38.51 41.69 46.43 49.64 52.78 56.00

16.92 18.51 20.10 22.67 24.26 25.84 27.43 29.03

25.55 30.30 33.45 36.65 39.80

43

46.1

5

50.95

32.16 35.34 38.51 41.69 46.43 49.64 52.78 55.96

Square flange receptacle (type 23)

plug (type 26) and receptacle (type 27)

Mated connectors

*

Contact size

A

B

#22D

0.5

1

#20

0.7

1.5

#1

6

1.1

5

2.2

*Included longitudinal alignment

28

øF Max

E
