MS27476Y8D35P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27476Y8D35P

Preview

MS27476Y8D35P: DescriptionCircular MIL Spec Connector BOX MT HERM RECEPT PIN SLDR CUP; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MS27476Y8D35P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27476Y8D35P	-	-	View	Buy Now

MS27476Y8D35P Overview

Circular MIL Spec Connector BOX MT HERM RECEPT PIN SLDR CUP

MS27476Y8D35P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact size	22D
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	TIN PLATED
Shell material	CARBON STEEL
Housing size	8
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

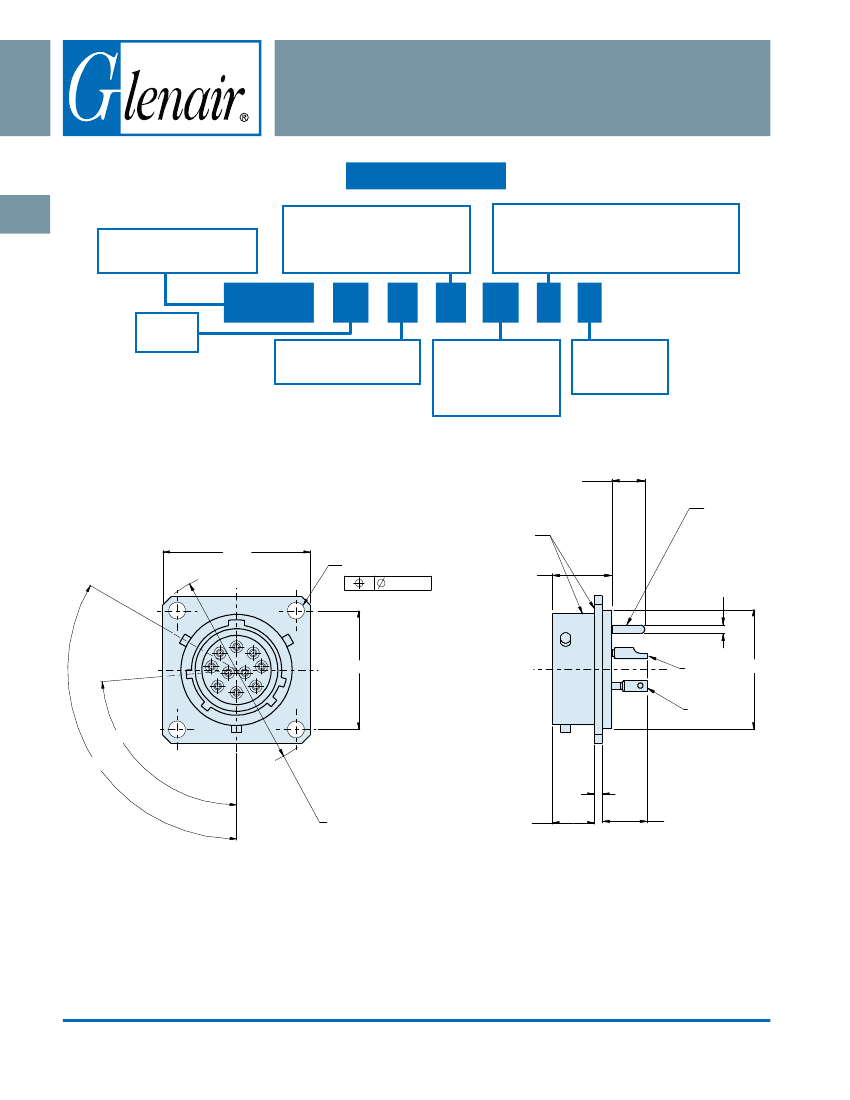

MIL-DTL-38999

Hermetic Connectors

MS27476

Box Mount Hermetic Receptacle

MIL-DTL-38999 Series II

How To Order:

MS

B

Shell Style

MS27476

-

Box Mount, Series II

Connector Material / Finish

D

- Carbon Steel - Fused Tin Finish

E

- Stainless Steel - Passivate Finish

N

- Stainless Steel - Nickel Finish

Contact Termination

A

H

P

- Pin, Solder Cup

S

- Socket, Solder Cup

X

- Pin, Eyelet

G

Z

-

B

Socket, Eyelet

K J

D

- Socket, PCB

C

- Pin, PCB

C

Flex Feedthrough

F

E

D

MS27476

Class

Y-

Hermetic

Y

10

N

35

P

A

Alternate Key

Position

A, B, C, D

(Omit for Normal)

Shell Size

8,10,12,14,16,18,20,22,24

Insert Arrangement

MIL-DTL-38999 Series II

Hermetic Inserts Per

MIL-STD-1560;

See Pages B-2 - B-4

.175/.125

Feedthrough

Contact (C)

B SQ

Marking Location

(Either Location)

4Xø C Holes

.005

M

F Max

P (See Table II)

H

G

F

E

K J

A

B

C

D

2X ABSC

Solder Cup VØ

Contact (P)

Eyelet

Contact (X)

80° BSC

2X 120° BSC

.069

.058

ø E Max

.322

.312

.344 Max

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-32
