SHRINK BOOT ADAPTOR
Amphenol shrink boot adapter is a good option when the unshielded cables are
terminated with heat shrink boots. It has a groove where the boot lip can be held which
provides good grip apart from sufficient space inside for the cable looping.
Using the heat shrink boot is one way of providing environmental protection and strain
relief to cable termination. Using a suitable adapter is essential here to ensure the
repairability. Amphenol shrink boot adapter is designed to provide excellent
characteristics in all these parameters.
For Connector Group
J
K
L
M
N
Page No.
V-1
V-3
V-5
V-6
V-7
- V-2
- V-4
Note:
For Connector group Identification refer Table 1 - A, B, C, D
(Page 7-11)
and for Material / Plating Finish, Refer Table-2
(Page 12)
Amphenol Backshells
V
email: sales@backshellworld.com
www.backshellworld.com
Amphenol

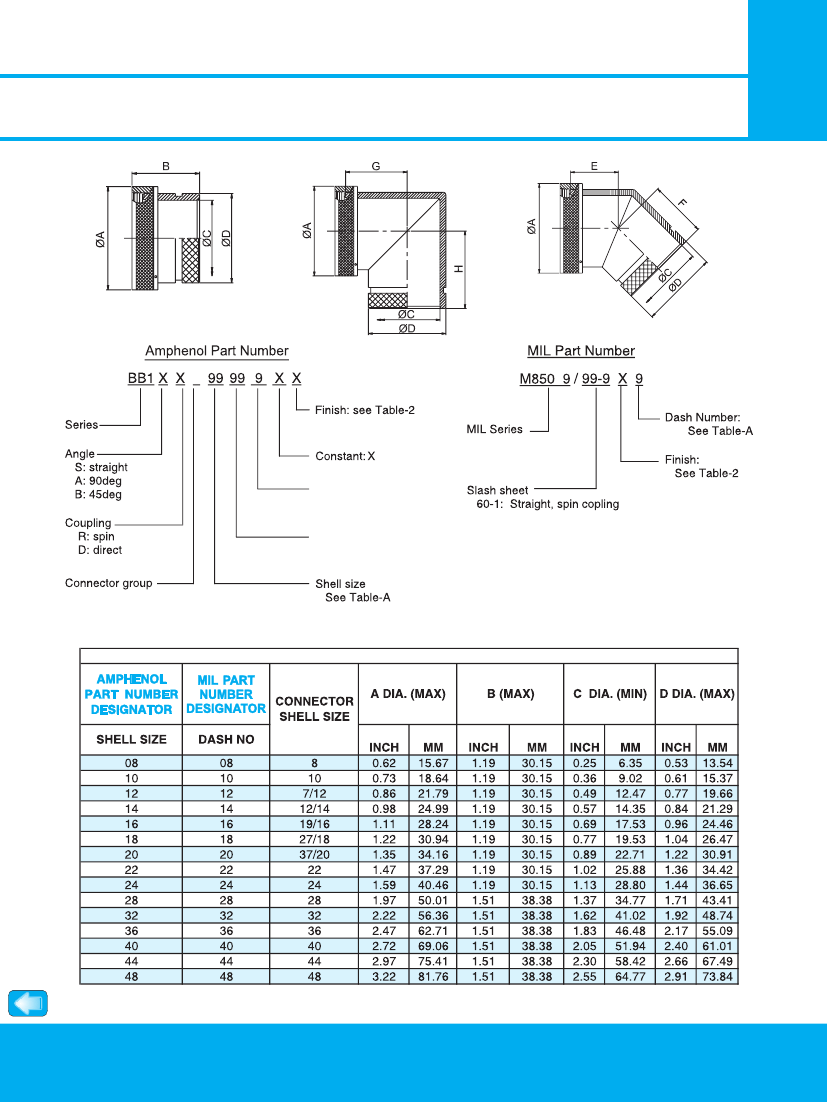

Connector Group - J
Shrink Boot Adaptor
Straight, 90
0
, 45
0
J
4
Length
9 - for standard
Length in table / figure
Entry Size
99 - for standard
Entry Size in table / figure
NOTE: * For more cable entry and length options, contact factory

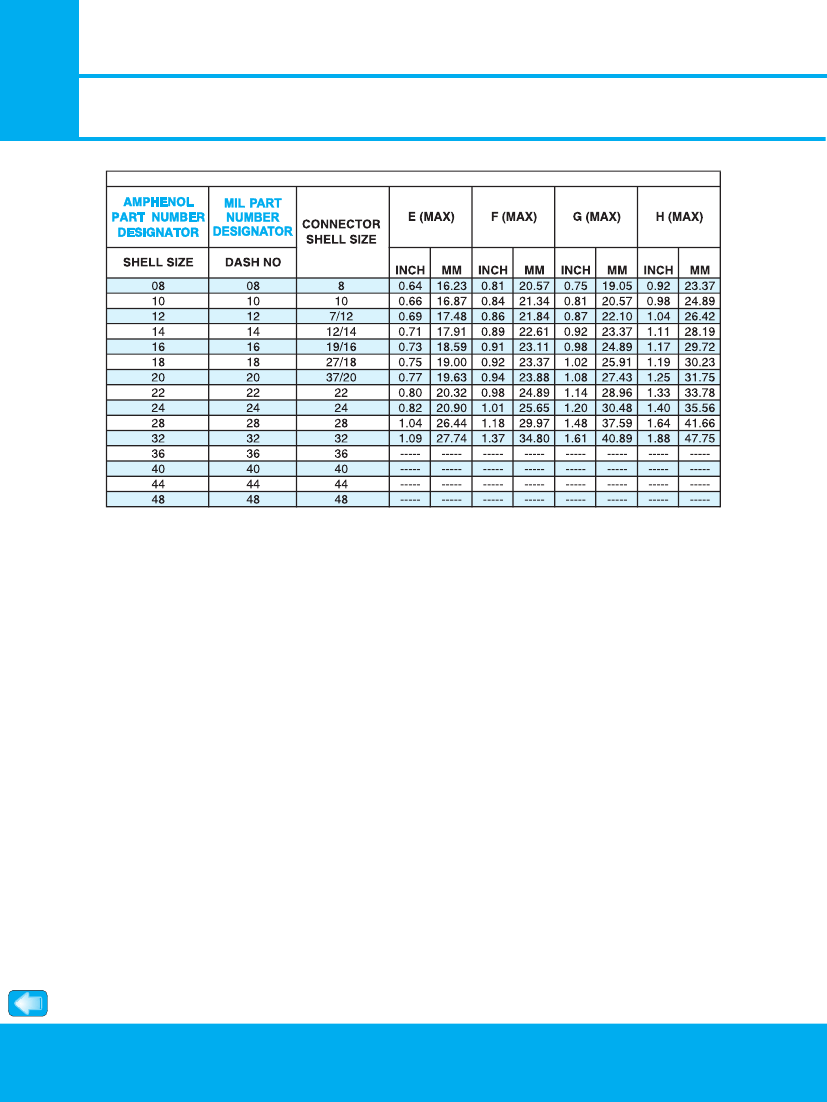

TABLE - A
Table Continued
Amphenol Backshells
V-1
email: sales@backshellworld.com
www.backshellworld.com
Shrink
Boot Adaptor
Amphenol

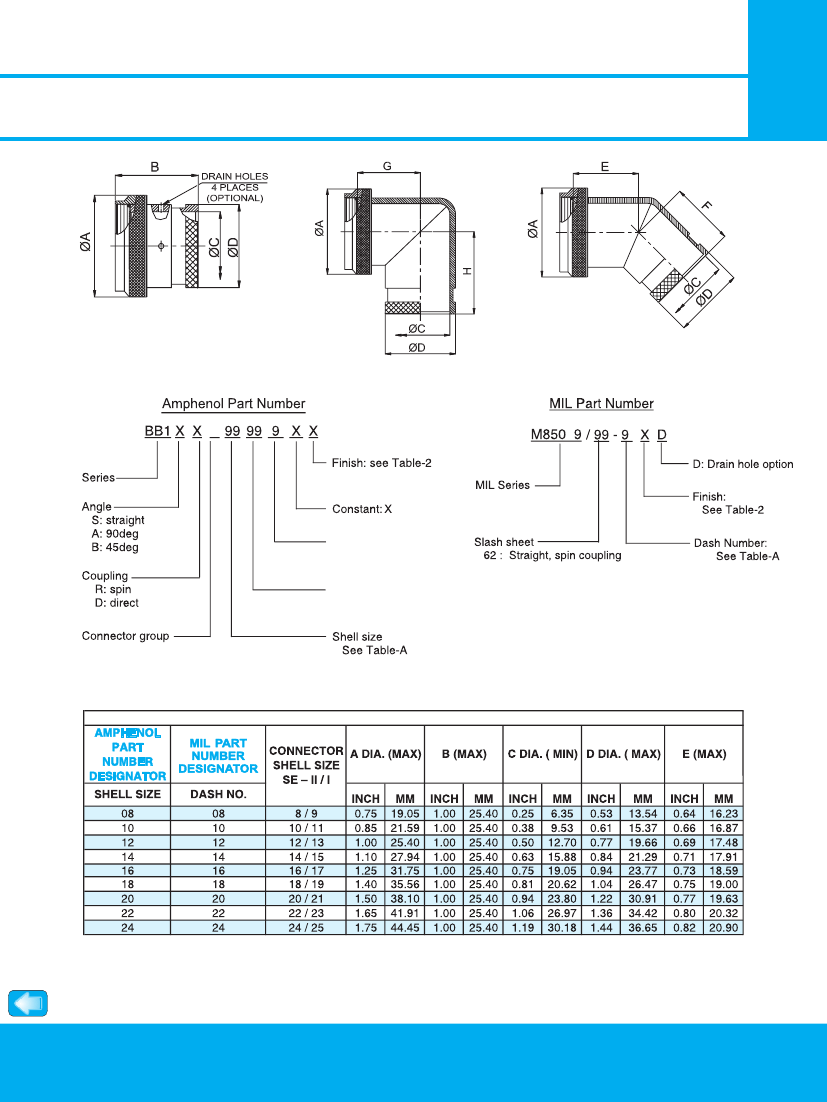

Connector Group - K
Shrink Boot Adaptor
Straight, 90
0
, 45
0
K
4
Length
9 - for standard
Length in table / figure
Entry Size
99 - for standard
Entry Size in table / figure
NOTE: * For more cable entry and length options, contact factory

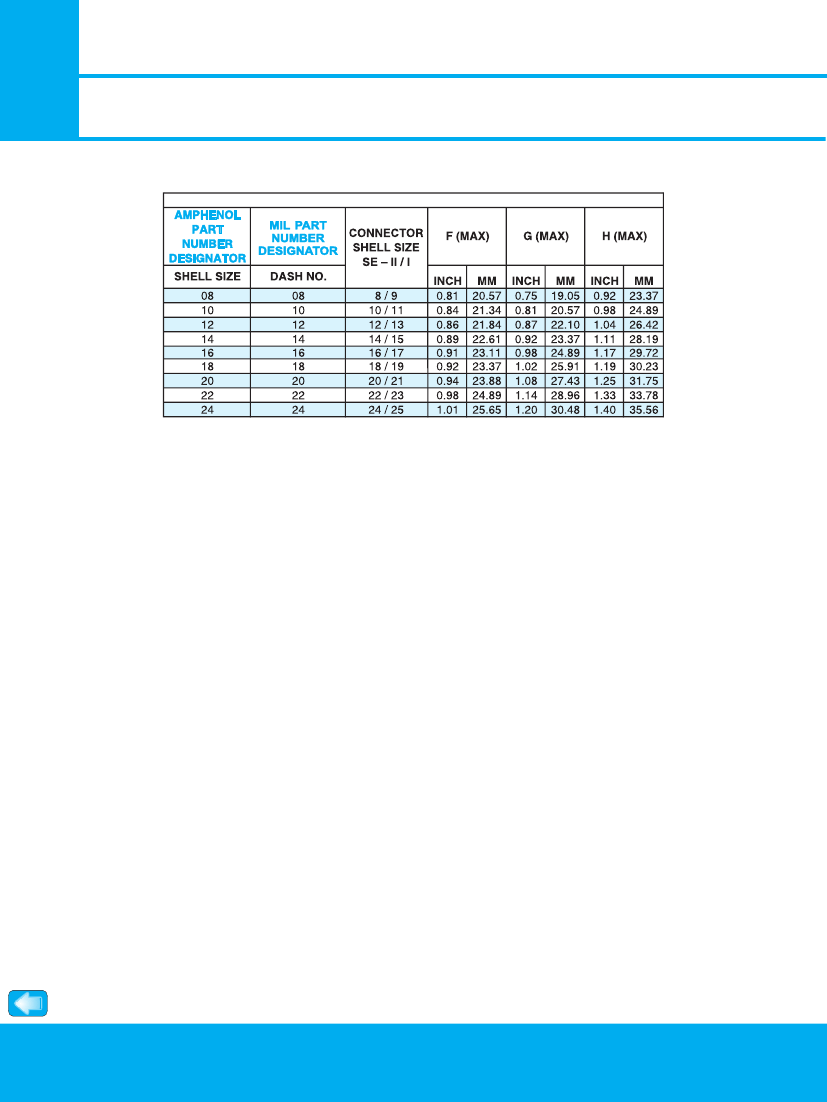

TABLE - A
Table Continued
Amphenol Backshells
V-3
email: sales@backshellworld.com
www.backshellworld.com
Shrink
Boot Adaptor
