5810630004: DescriptionAutomotive Connectors 30 I/O R SMA W/Ferrite; CategoryThe connector The connector; File Size592KB，2 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

5810630004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5810630004	-	-	View	Buy Now

5810630004 Overview

Automotive Connectors 30 I/O R SMA W/Ferrite

5810630004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
body width	1.6 inch
body length	4.54 inch
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	MALE
Contact style	RND PIN
empty shell	NO
Filter function	NO
Plug information	5810130029
Mixed contacts	YES
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYMER
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

ModICE

®

ME-RF Enclosures

ME and mini-ME with Integrated SMA

Technology

ModICE

®

is a line of connector enclosures that offers sealed packaging

solutions for rugged electronic control modules.

mini-ME Enclosure

The ModICE

®

ME-RF Advantage

• ModICE

®

ME-RF offers a unique enclosure cover (header) with integrated

SMA connectors for quick connect of antenna and other RF devices.

• Eliminate the need for complex machining and manual installation of

coax connectors.

ME Enclosure

Product Offering

• 2 enclosure sizes

• ME - PC board size 4 x 3.35” (103 x 85mm)

• mini-ME - PC board size 3.35 x 2.5” (85mm x 63mm)

• Main connector - 18 or 30 I/O

• Coax connector - 1 or 2 SMA standard or reverse polarity

• SMA soldered to PC board

NEW

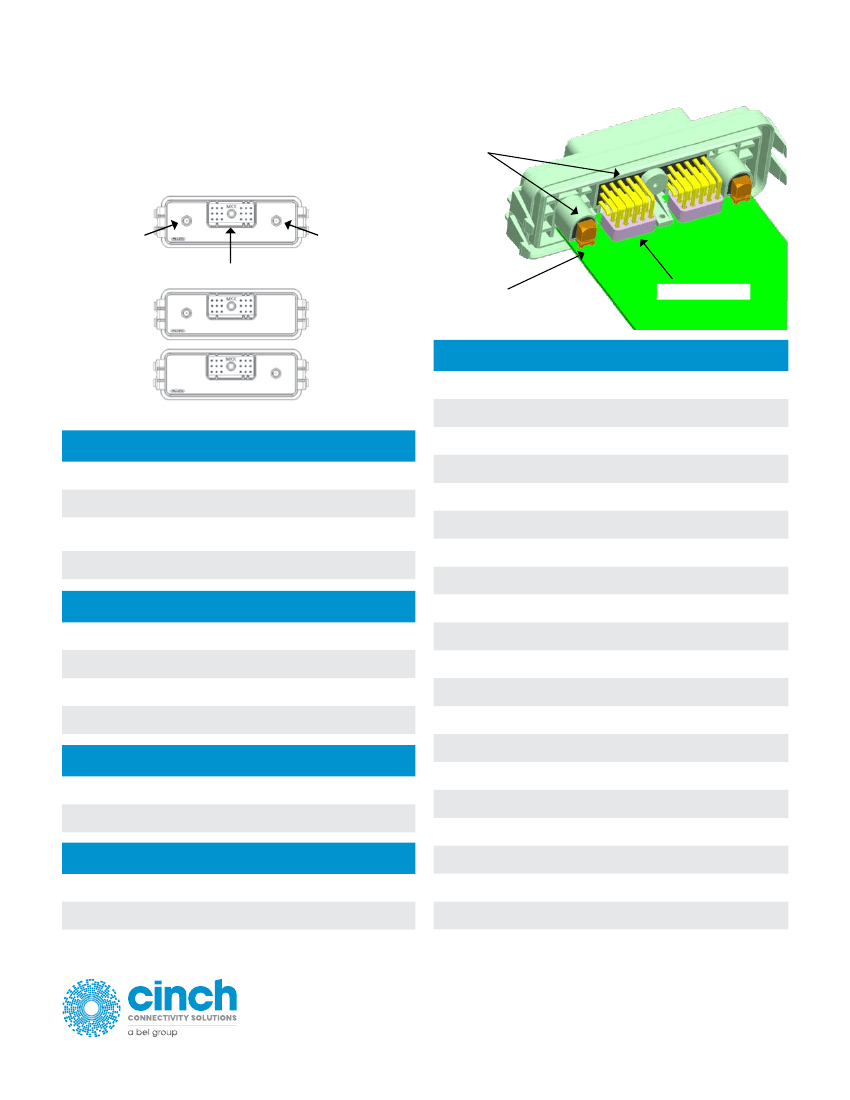

ME-RF Header

belfuse.com/cinch
