Rugged RJ11/RJ12 Connection System for Harsh Environment
RJ11F
compliant
N
&
B
ROHS

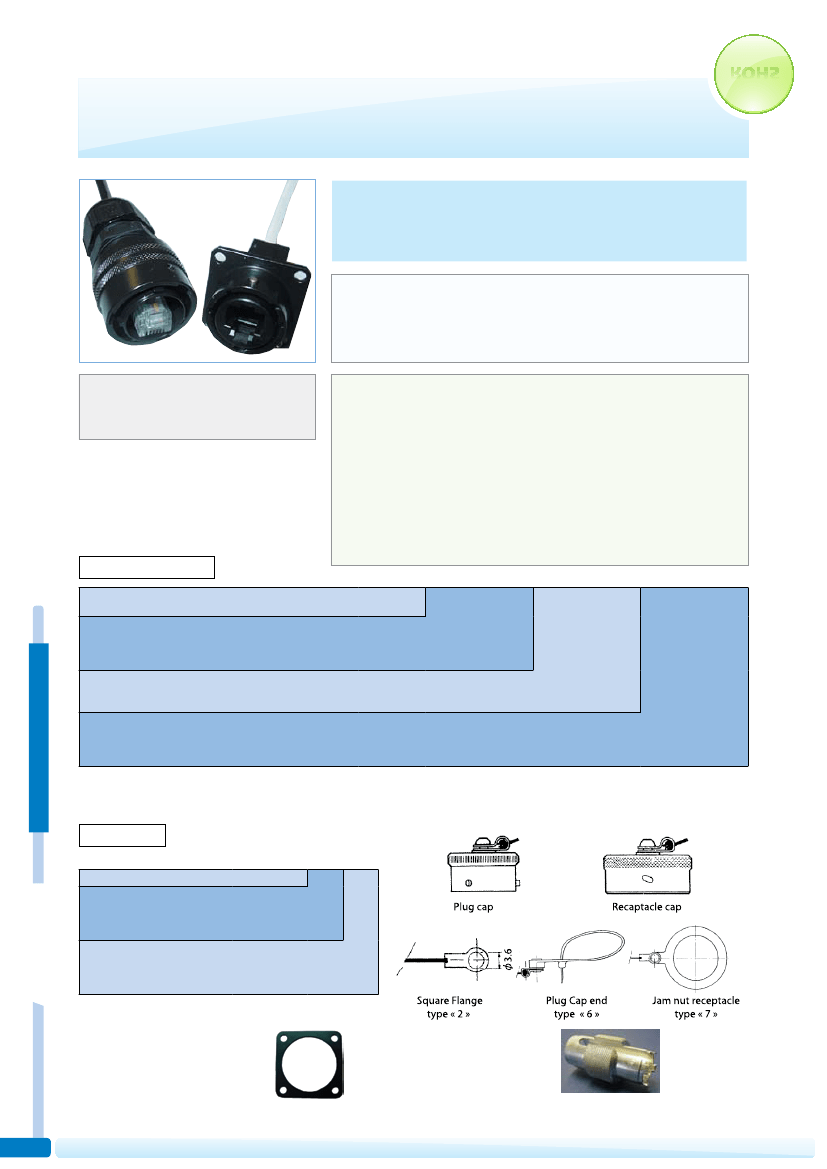

RJ11Field allows you to use a standard phone RJ11 / RJ12 connection in harsh
environments. With the patented RJStop® system you can use a standard
RJ11 / RJ12 cordset in a metallic plug which will protect it from shocks, dust
and fluids.
No hazardous on-field cabling!
MAIN CHARACTERISTICS
n
ayonet coupling
(“Audible & Visual”
B
coupling signal )
n
obust metallic shells based on
R
MIL-DTL-26482 H
Applications
n
Industrial applications
n
Battlefield communication
n
mechanical user-defined coding /
4
Polarization settings (insert rotation)
n
cordset retention in the plug: 100
RJ11
N in the axis
n
Mating cycles: 500 min
Part Number Code
Series
RJ11Field
Shell Type
6:
Plug, Plastic Gland
2:
Square Flange Receptacle
7:
Jam Nut Receptacle
Back Terminations (For Receptacles only)
1:
Female RJ11
2:
Solder (6 tinned holes)
Shell Finishes
B:
Black Coating - ROHS Compliant
N:
Nickel - ROHS Compliant
G:
Olive Drab Cadmium
Examples:
Environmental Protection
n
Sealing: IP68
n
Spray:
Salt
48 h with Nickel plating
> 96 h with black coating
> 500 h with Oliv Drab Cadmium
n
Retardant / Low Smoke: UL94 V0 and NF F 16 101 & 16 102
Fire
n
Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 10 nano s.
n
Shocks: IK06: weight of 250 g drop from 40 cm [15.75 in] onto connectors
(mated pair)
n
Humidity: 21 days, 43°C, 98% humidity
n
Thermal Shock: 5 cycles at - 40°C / +100°C
n
Temperature Range: - 40°C / +85°C
RJ11F
2
2
B
RJ11 F
- Black Plug: RJ11F 6 B
- Black square flange receptacle, Female RJ11 Back termination: RJ11F 2 1 B
- Nickel Jam Nut Receptacle, solder termination: RJ11F 72 N
Accessories
n
Metallic cap
RJ11FC
2
B
Amphenol
Connector Type
6:
Plug
2:
Square Flange Receptacle
7:
Jam Nut Receptacle
Finishes
B:
Black Coating - ROHS Compliant
N:
Nickel - ROHS Compliant
G:
Olive Drab Cadmium
n
Panel gasket for square flange « 2 »
thickness: 0,6 mm
P/N: JE 14
n
Insert removal tool
for receptacle and plug
P/N = RJ11F ODE
46
informations & contacts:
www.rjfield.com • contact@rjfield.com

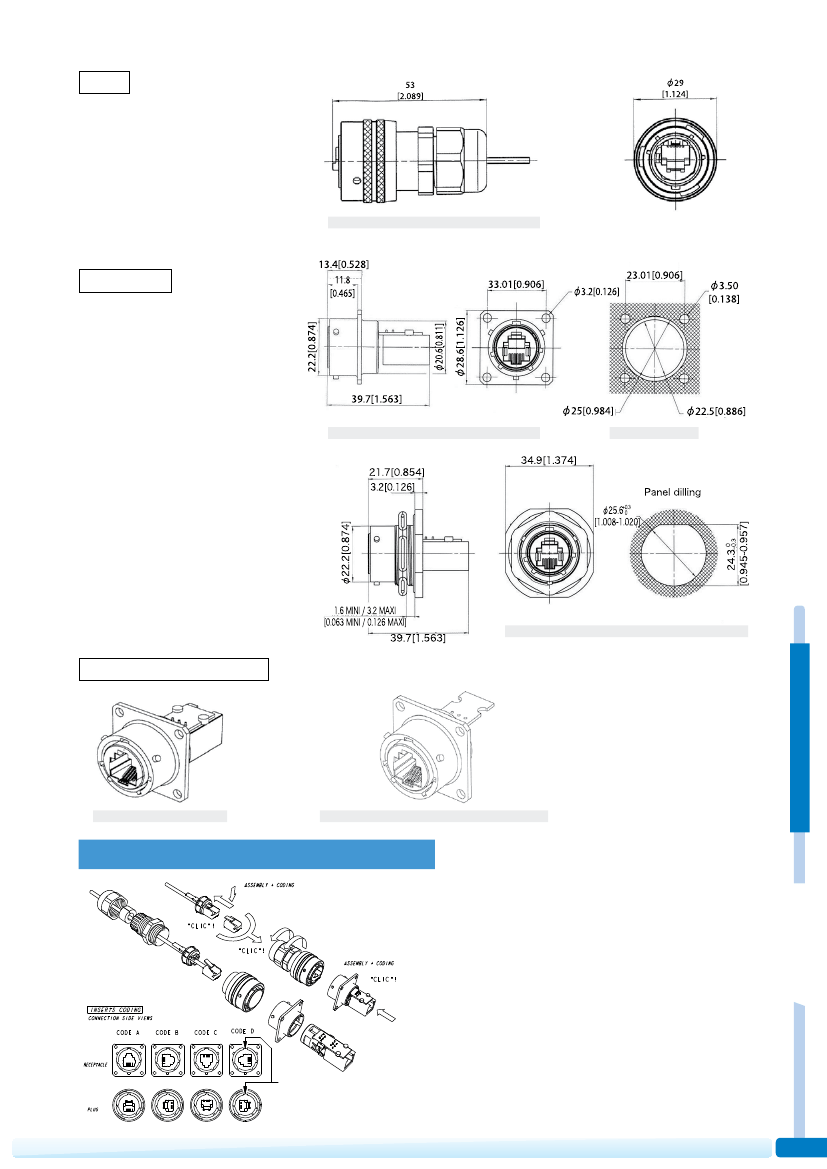

Plug
n
Shell type 6 with Plastic Gland
RJ11F 6 X
Receptacles
n
Square flange receptacle
4 mounting holes: Shell type 2
RJ11F 2 XX
Panel Drilling
n
Jam nut receptacle
Hexagonal Nut mounting: Shell type 7
RJ11F 7 XX
Back Terminations
Type 1: Female RJ11 / RJ12
Type 1: Female RJ11 / RJ12
Type 2: Solder 6 Tinned through holes to solder your cable
Type 2: Solder
6 tinned through holes to solder your cable
Assembly instructions
Easy and Safe: No field cabling tools required
1. Pass the RJ11 / RJ12 plug « A » through the plastic gland « B »
2. Lateraly slide the insert « C » on the cable
3. Fix the RJ11 / RJ12 plug « A » in the insert « C », pushing on the lever
4. Insert in the metallic housing « D »
5. Tighten the plastic gland « B »
MAIN KEY
informations & contacts:
www.rjfield.com • contact@rjfield.com
Amphenol
47
RJ11 F
