MOS6020-154MXD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MOS6020-154MXD

MOS6020-154MXD: DescriptionGeneral Purpose Inductor, 150uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 2824; CategoryPassive components inductor; File Size81KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

MOS6020-154MXD Overview

General Purpose Inductor, 150uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 2824

MOS6020-154MXD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	COILCRAFT
package instruction	2824
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2824
structure	Magnetic Shielding
core material	AMORPHOUS MAGNETIC
DC Resistance	1.28 Ω
Nominal inductance(L)	150 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	2.4 mm
Package length	7.1 mm
Package form	SMT
Package width	6 mm
method of packing	TR, Embossed
Maximum rated current	0.49 A
self resonant frequency	10 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Document 287 -1

SMT Power Inductor - MOS6020 Series

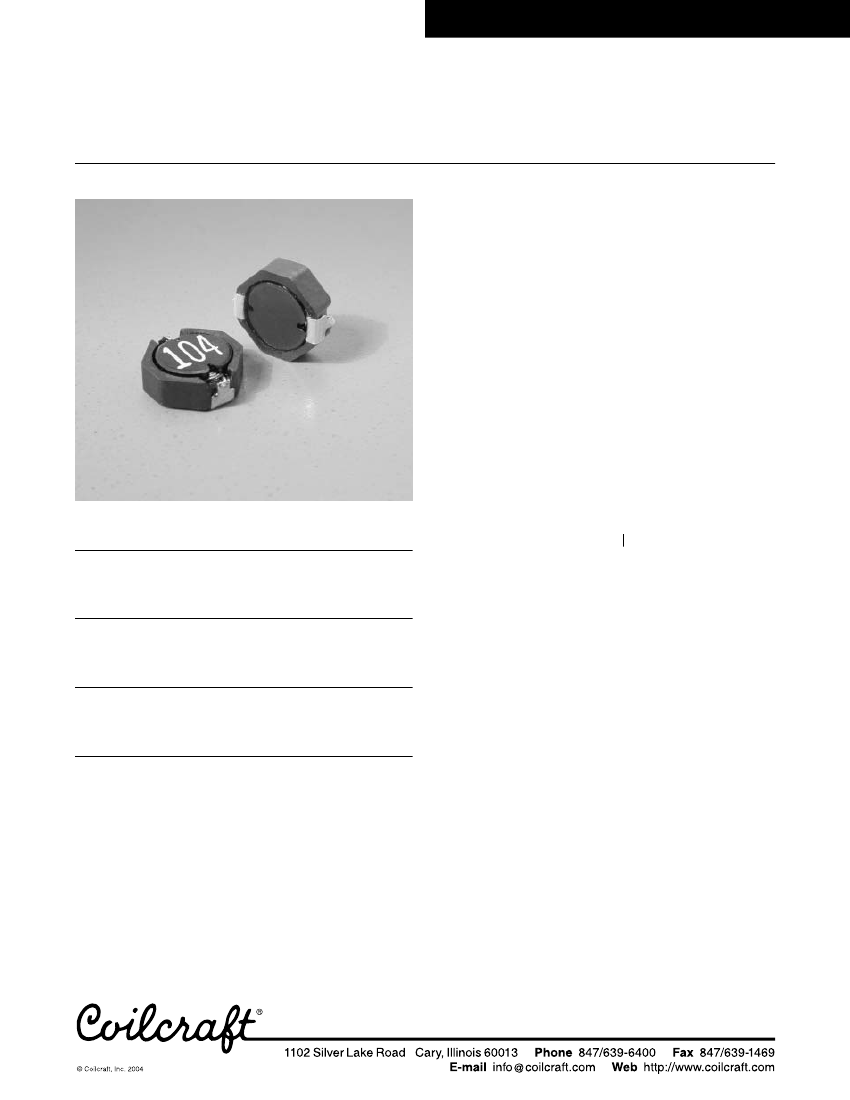

Measuring a mere 2 mm high, the MOS6020 family of

surface mount power inductors offers exceptionally low

DC resistance and excellent current handling.

These magnetically shielded inductors are extremely

space-efficient, with a 6 × 7.1 mm footprint. They are

available in inductance values from 2.2 µH to 470 µH

with saturation current ratings up to 2.15 Amps. Custom

versions up to 4.7 mH are also available.

Free evaluation samples are available by contacting

Coilcraft or ordering them on-line at

www.coilcraft.com.

Part number

L ±20%

DCR max SRF typ

Isat

Irms

(µH)

(Ohms)

(MHz)

(A)

2.2

3.3

4.7

6.8

100

150

220

330

470

0.035

0.046

0.050

0.078

0.092

0.130

0.182

0.290

0.420

0.520

0.800

1.28

2.00

2.84

4.40

110

2.15

1.80

1.50

1.28

1.00

0.85

0.72

0.58

0.49

0.40

0.33

0.27

0.22

0.18

0.15

4.1

3.6

3.1

2.7

2.2

1.8

1.4

1.1

0.7

0.63

0.56

0.49

0.42

0.35

0.29

1. When ordering, please specify

packaging

code:

MOS6020-104MXC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (500 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (2000 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/

HP 4284A or equivalent.

3. SRF measured using Agilent/HP 8753D network analyzer.

4. DC current at which the inductance drops 30% (typ) from its value

without current.

5. Average current for 40°C temperature rise from 25°C ambient.

6. Operating temperature range -40°C to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

MOS6020-222MX_

MOS6020-332MX_

MOS6020-472MX_

MOS6020-682MX_

MOS6020-103MX_

MOS6020-153MX_

MOS6020-223MX_

MOS6020-333MX_

MOS6020-473MX_

MOS6020-683MX_

MOS6020-104MX_

MOS6020-154MX_

MOS6020-224MX_

MOS6020-334MX_

MOS6020-474MX_

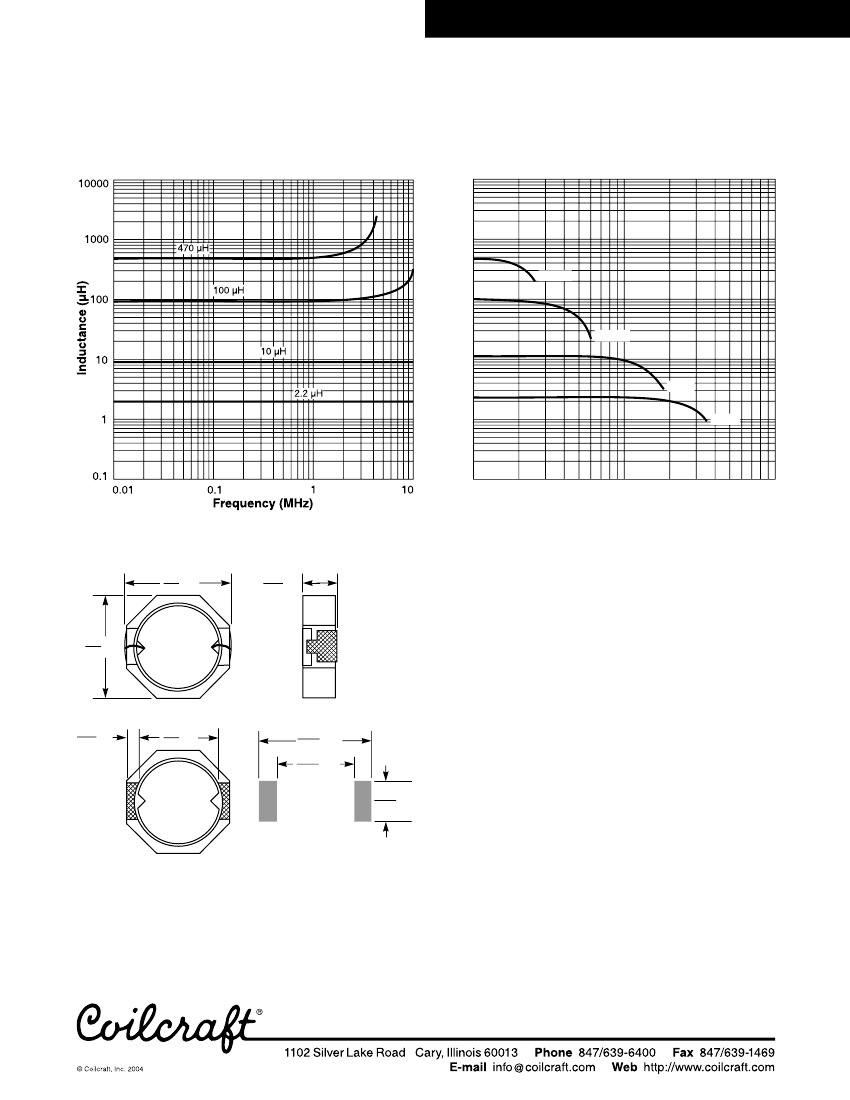

Specifications subject to change without notice.

Document 287-1

Revised 07/30/04
