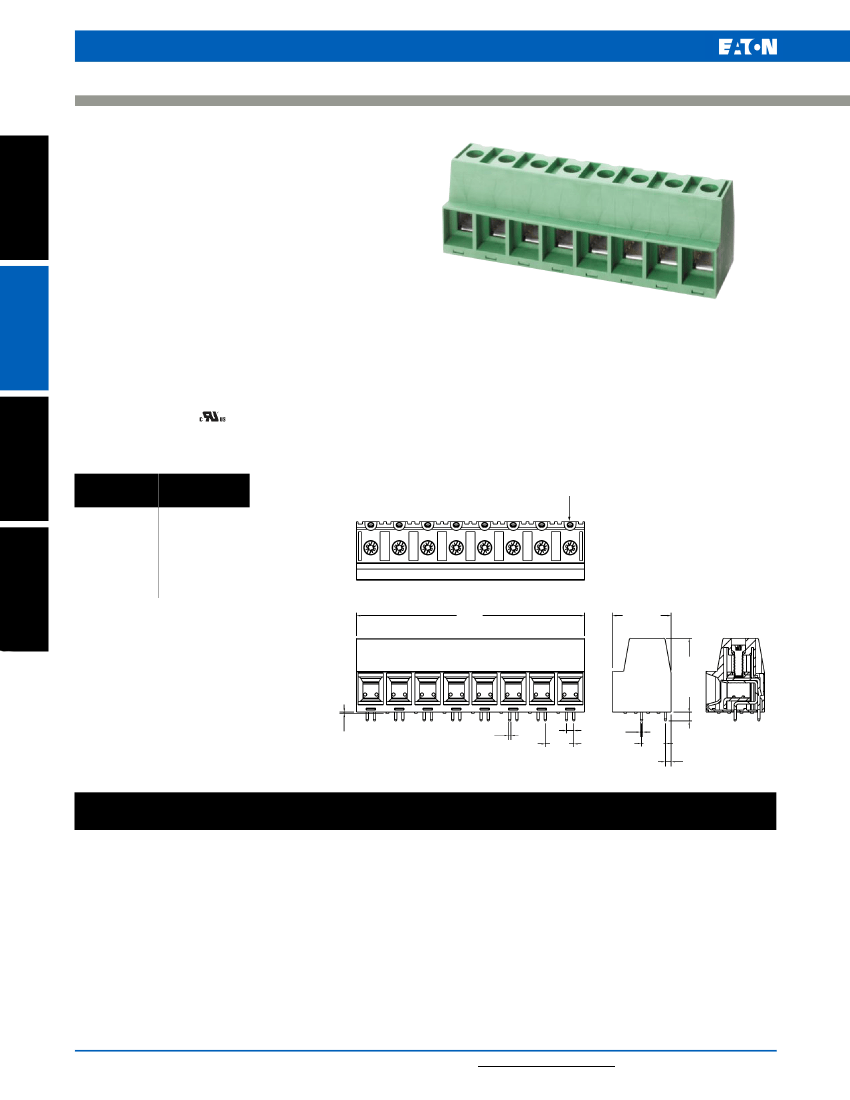

EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single Row
EM2939 Series
EuroMag Terminal Blocks
Hi-Current, 15.00 Centers
SPECIFICATIONS
Rating:
115A, 600V with No Bottom Cover (NC) Option.
Center Spacing:
0.591” (15.00mm)
Wire Range:
#2-20 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Copper
Cage Material:
Steel, Chromate-Plated
Screw Size:
M5 Stainless Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
15 lb-in.
Recommended PCB Hole Diameters:
0.063" (1.60mm)
Construction:
Mold to length
Agency Information:
File E62622; CE Certified
EuroMag Series
High Current
EM293908
Edge Connectors,
One-Sided Boards
Dimensions - mm
Poles
2
3
4
5
6
7
8
L (mm)
30.0
45.0
60.0
75.0
90.0
105.0
120.0
Test Points
Compliance
References
To convert to inches, divide by 25.4
L
31.0
39.0
0.5
1.3
15.0
Part Numbering System
EM2 939
n n n n n n
qq
Series
02
to
08
# of Poles
4.5
3.8 1.2
12.5
3.0
For additional product information, visit
www.eaton.com/connectors
