AN6306S datasheet, PDF - EEWORLD Datasheet

AN6306S: DescriptionVTR Recording Video Signal Processing Circuit; CategoryOther integrated circuit (IC) Consumption circuit; File Size202KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

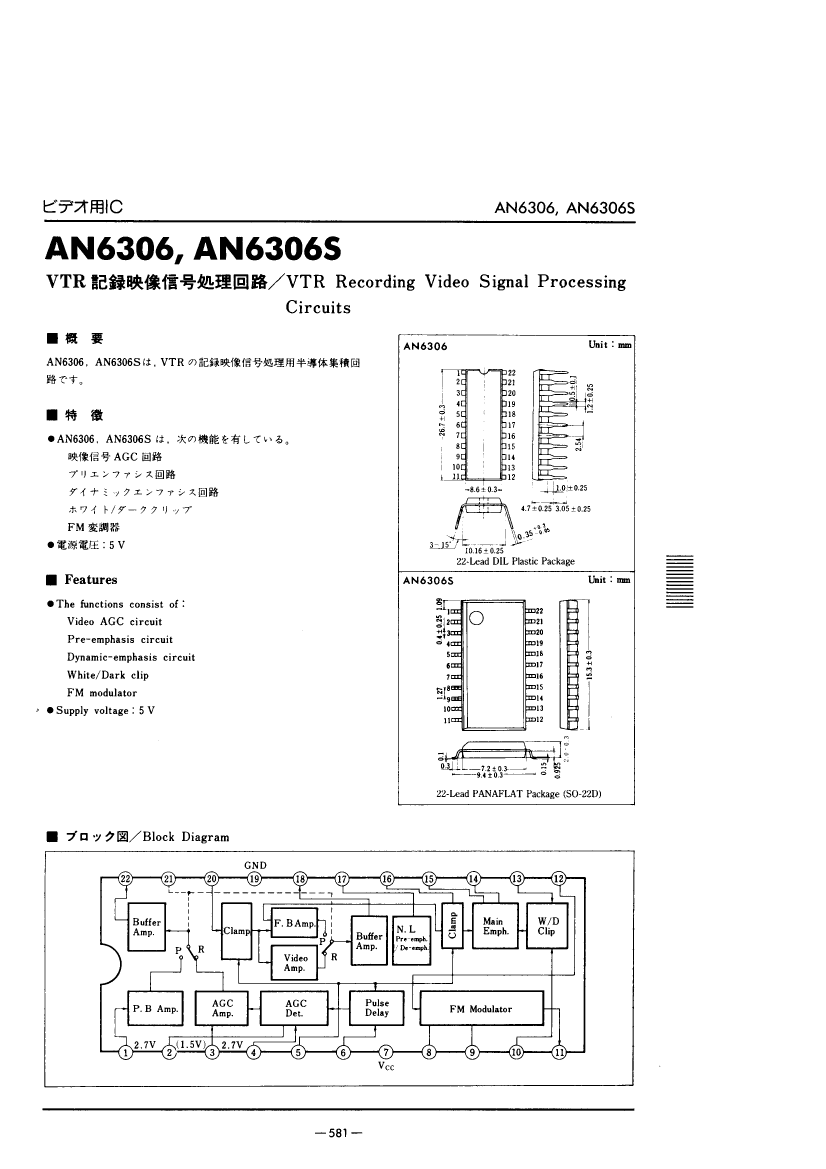

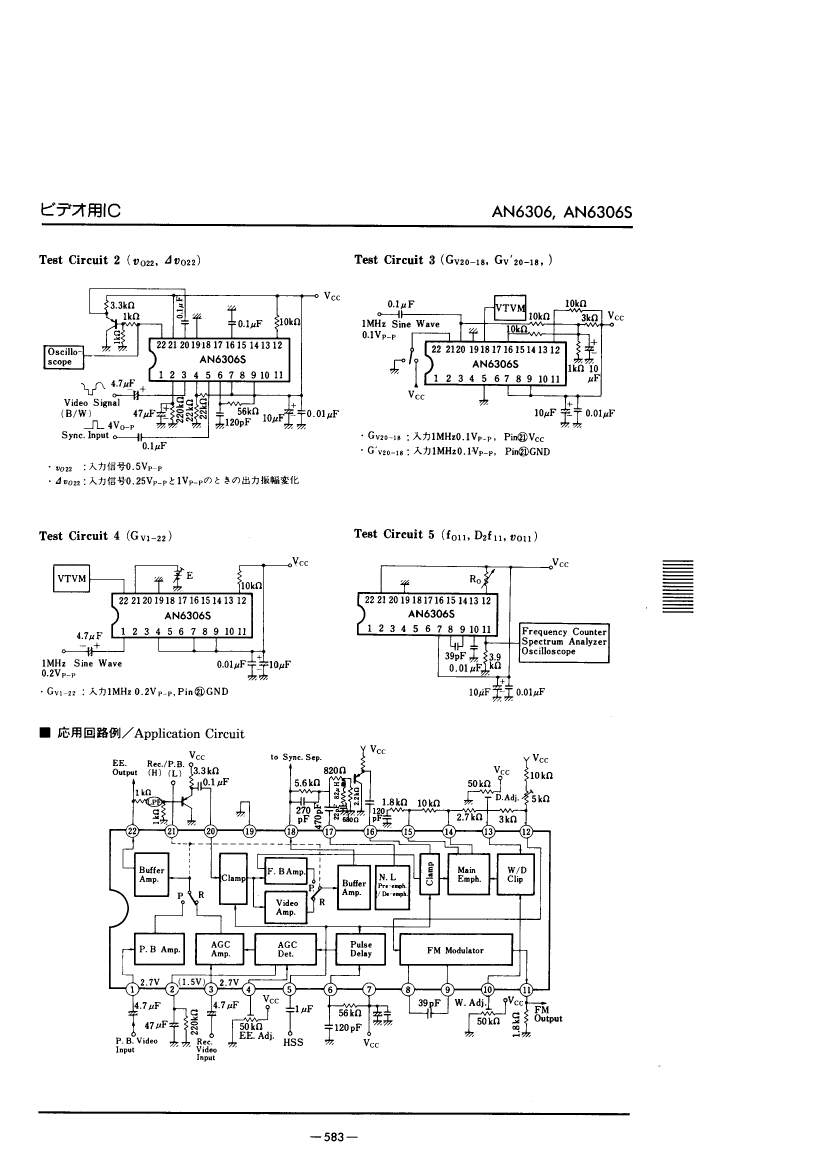

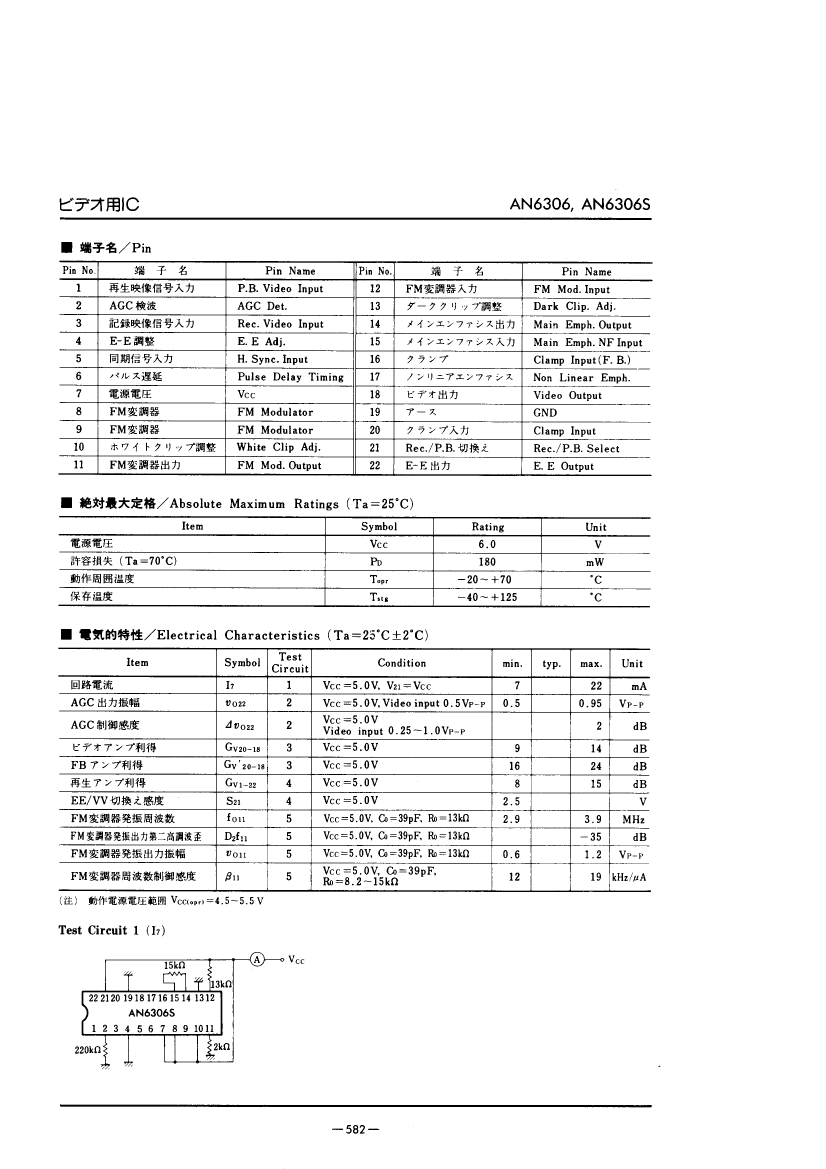

AN6306S Overview

VTR Recording Video Signal Processing Circuit

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP22,.4
Contacts	22
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G22
JESD-609 code	e0
length	15.3 mm
Number of functions	1
Number of terminals	22
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP22,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.4 mm
Maximum slew rate	22 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.2 mm
Base Number Matches	1

	AN6306S	AN6306
Description	VTR Recording Video Signal Processing Circuit	VTR Recording Video Signal Processing Circuit
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP22,.4	DIP, DIP22,.4
Contacts	22	22
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G22	R-PDIP-T22
JESD-609 code	e0	e0
length	15.3 mm	26.7 mm
Number of functions	1	1
Number of terminals	22	22
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP22,.4	DIP22,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.4 mm	4.95 mm
Maximum slew rate	22 mA	22 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.2 mm	10.16 mm
Base Number Matches	1	1
